QuWireless QuSpot for Teltonika RUTX09 (QUSPOT_RUTX09)

Order code: QUSPOT_RUTX09
Quick code: #1816

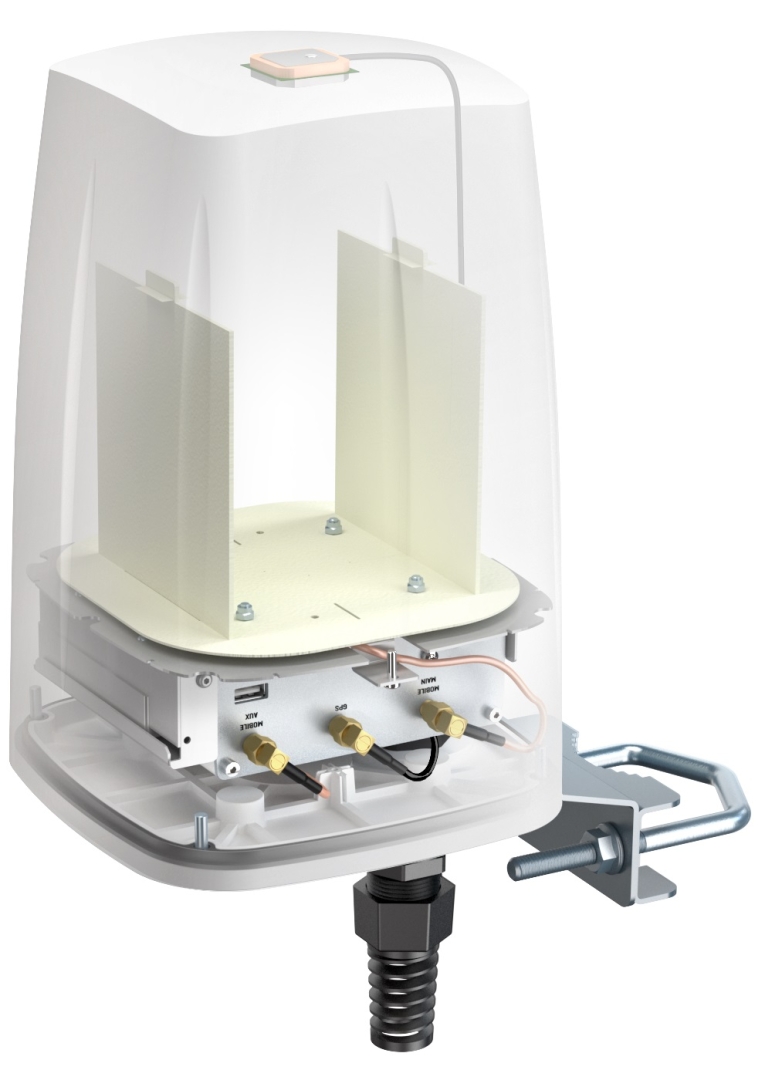

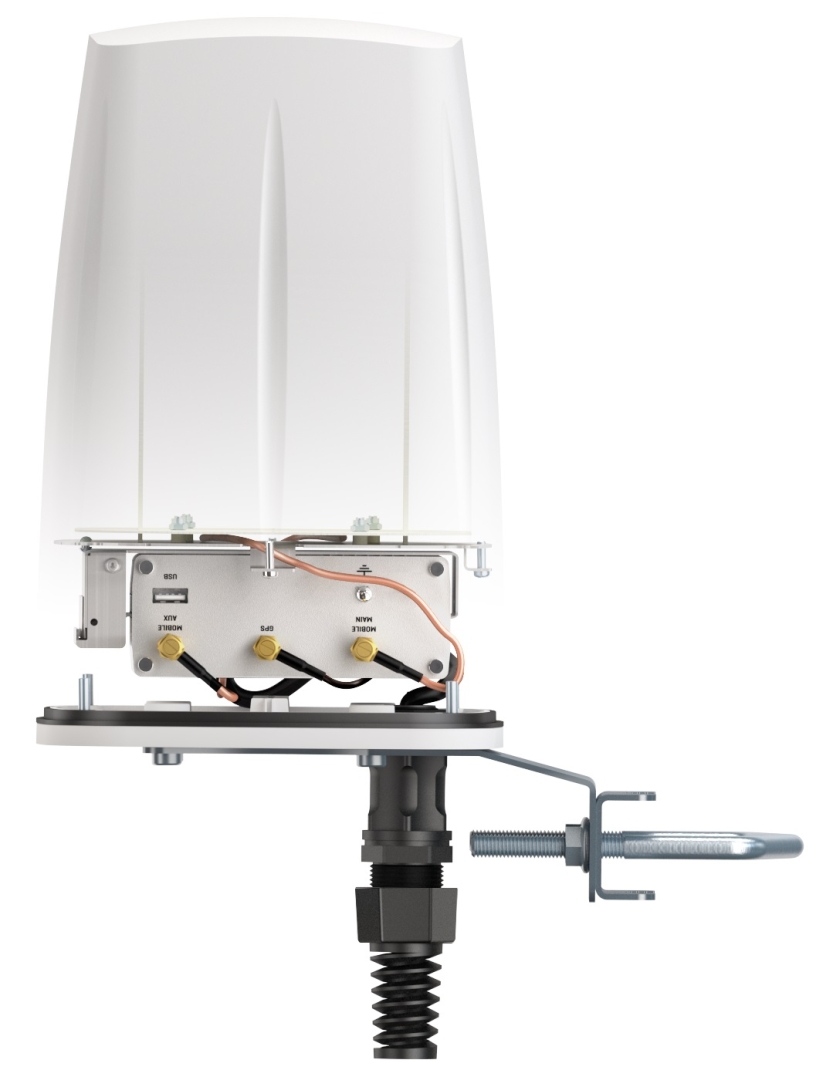

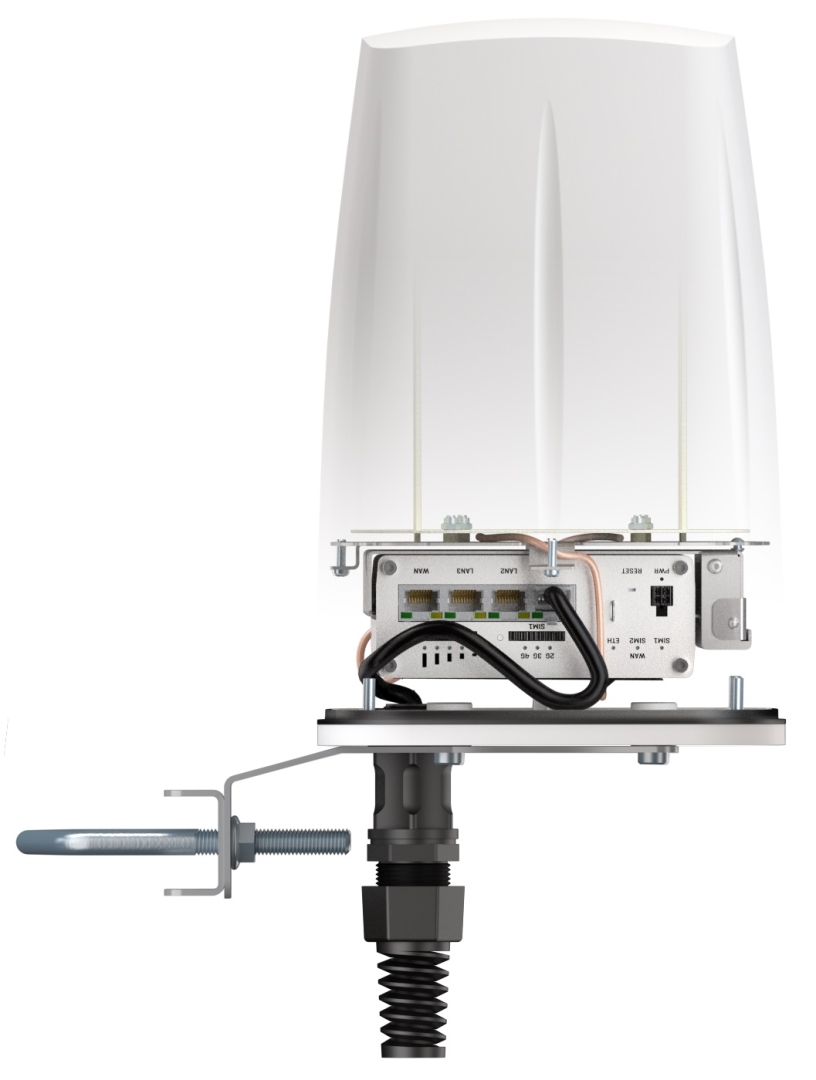

Integrated outdoor multi band LTE omni antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)

Price exc. VAT: Price inc. VAT: For orders (total sum):
72.71£ 87.25£ >0£
71.49£ 85.79£ >300£
70.28£ 84.34£ >1000£
Qty:


Features:

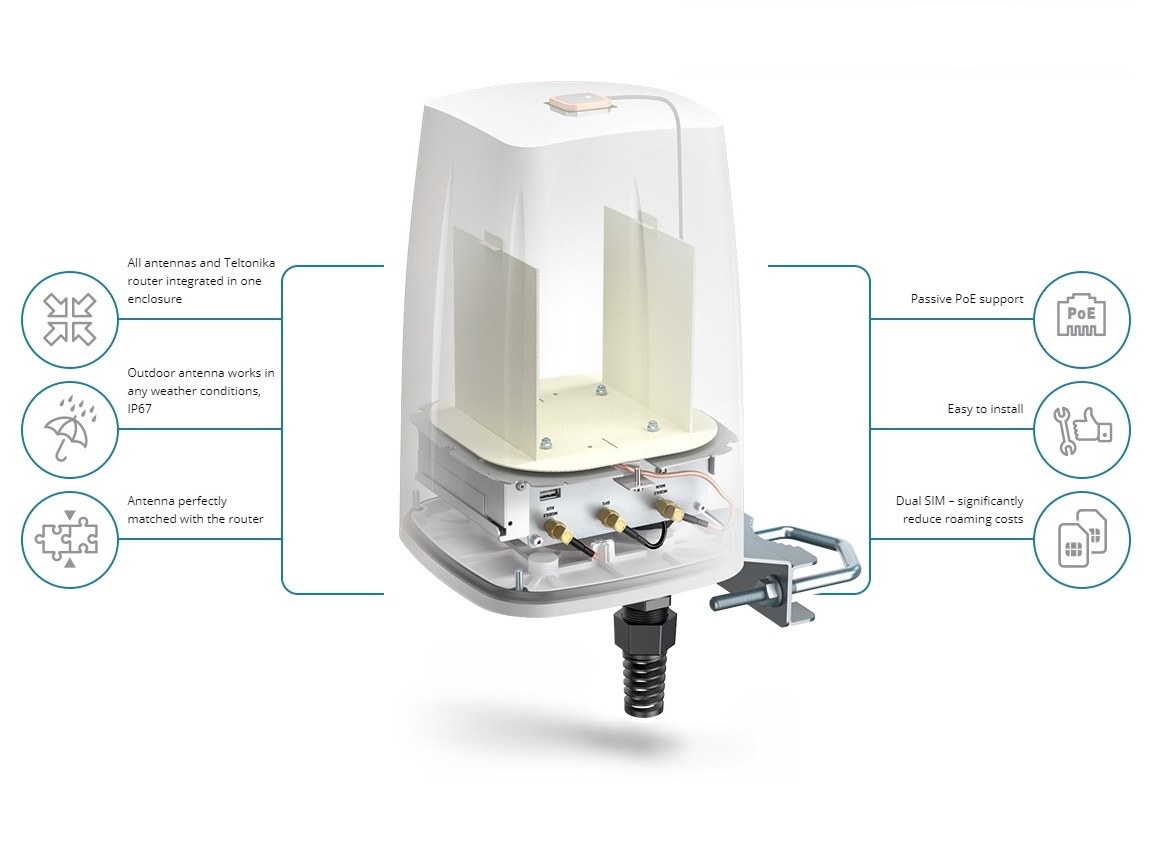

QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Specification:

LTE SPECIFICATION
FREQUENCY:
     0.694 - 0.96 GHz
     1.7 - 2.2 GHz
     2.2 - 2.7 GHz

GAIN:
     2 dBi
     2 dBi
     4 dBi

VSWR:
     <1.70, max <2.00
     <1.60, max <2.00
     <1.60, max <2.00

BEAMWIDTH:
     360°/35° +/- 5°
     360°/35° +/- 5°
     360°/35° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE
INGRESS PROTECTION: IP67
DIMENSIONS: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
WEIGHT: 1.5 kg (3.31 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
