QuWireless QuSpot for Teltonika RUT955 (QUSPOT_RUT955)

Order code: QUSPOT_RUT955
Quick code: #1815

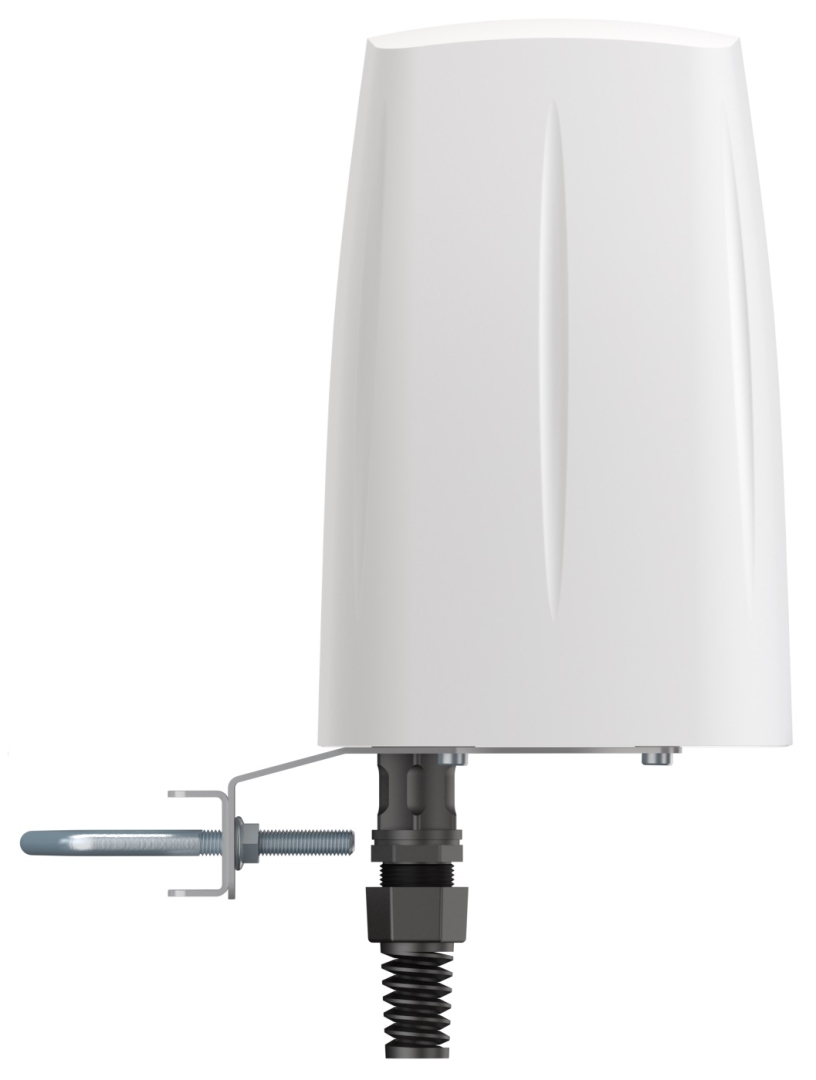

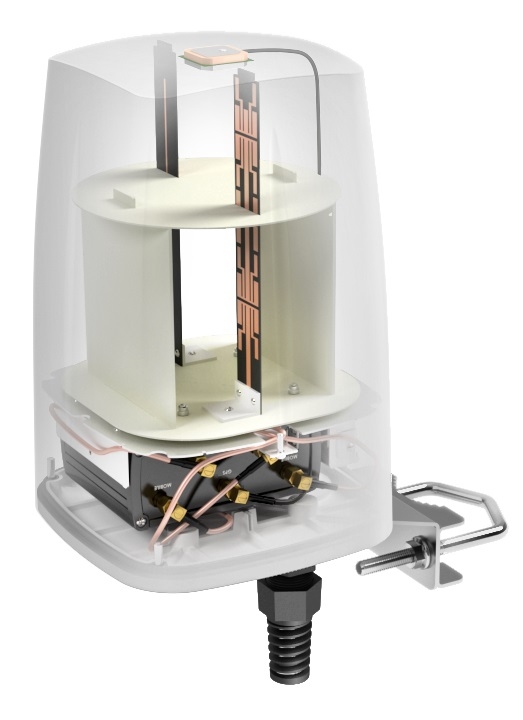

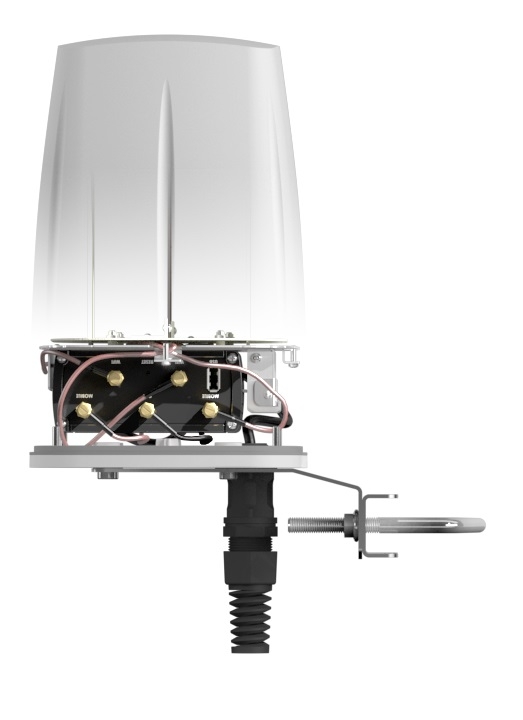

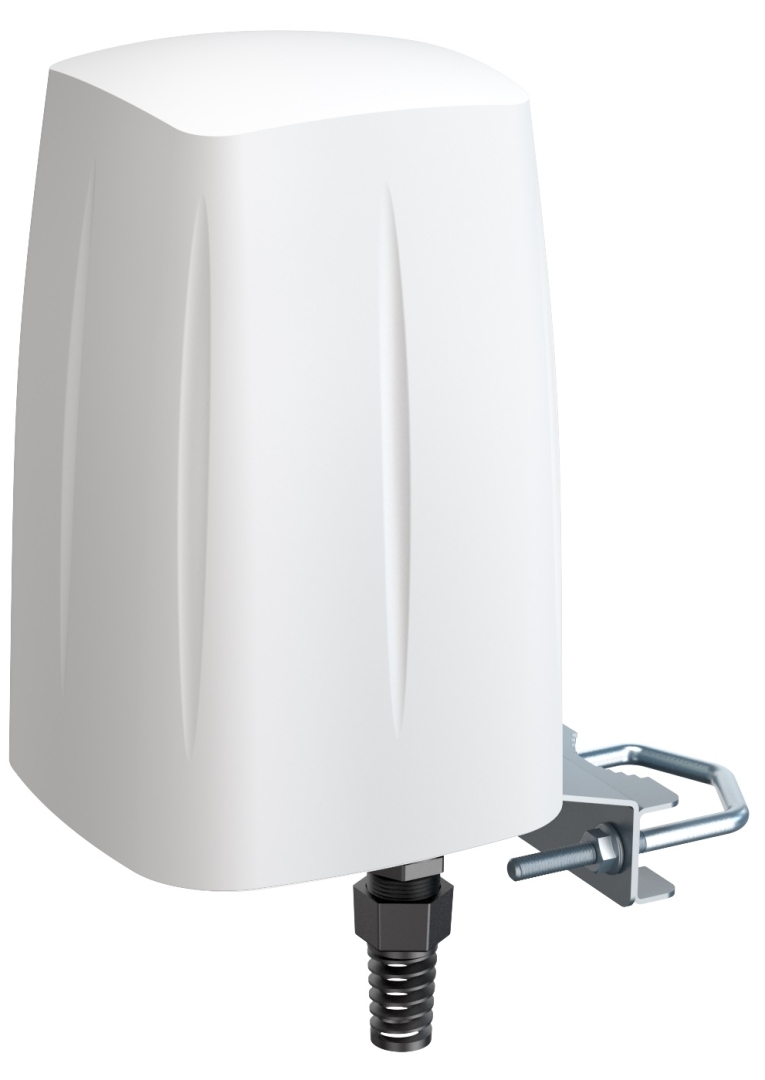

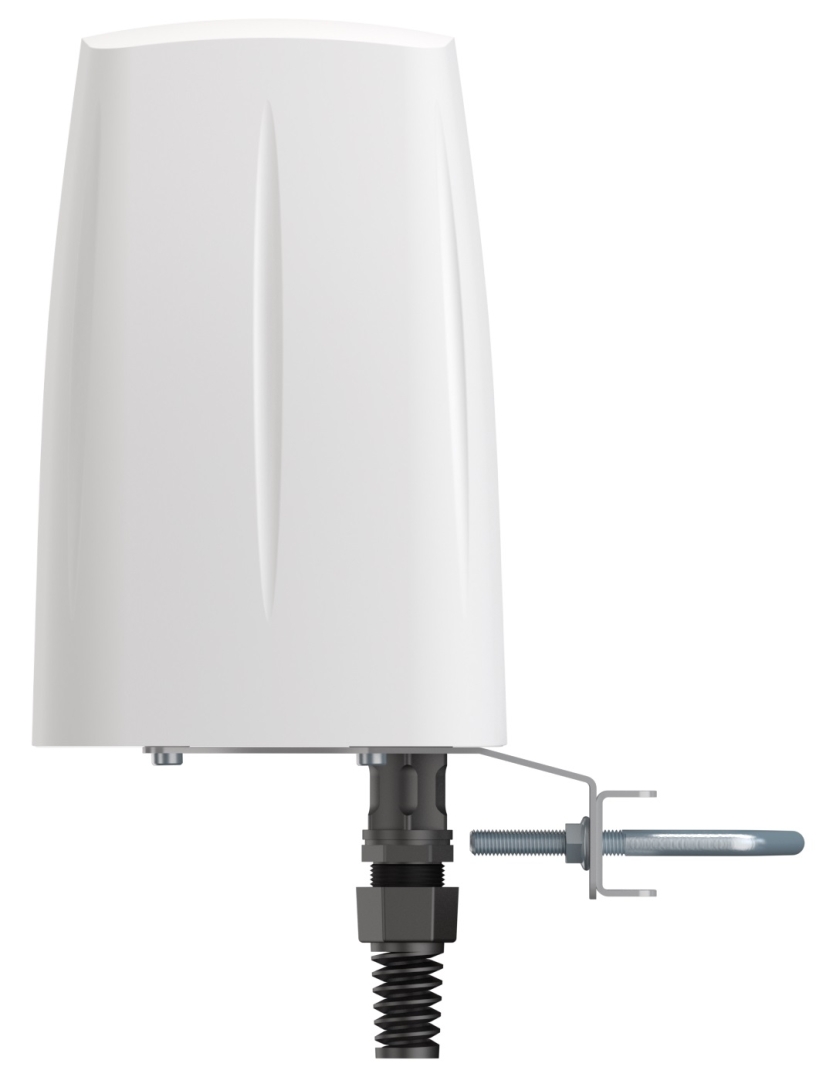

Integrated multi-band LTE omni antenna + WiFi omni antenna + GPS antenna + place to install Teltonika RUT955 (All-in-one)

Price exc. VAT: Price inc. VAT: For orders (total sum):
82.28£ 98.74£ >0£
80.90£ 97.08£ >300£
79.53£ 95.44£ >1000£
Qty:


Features:

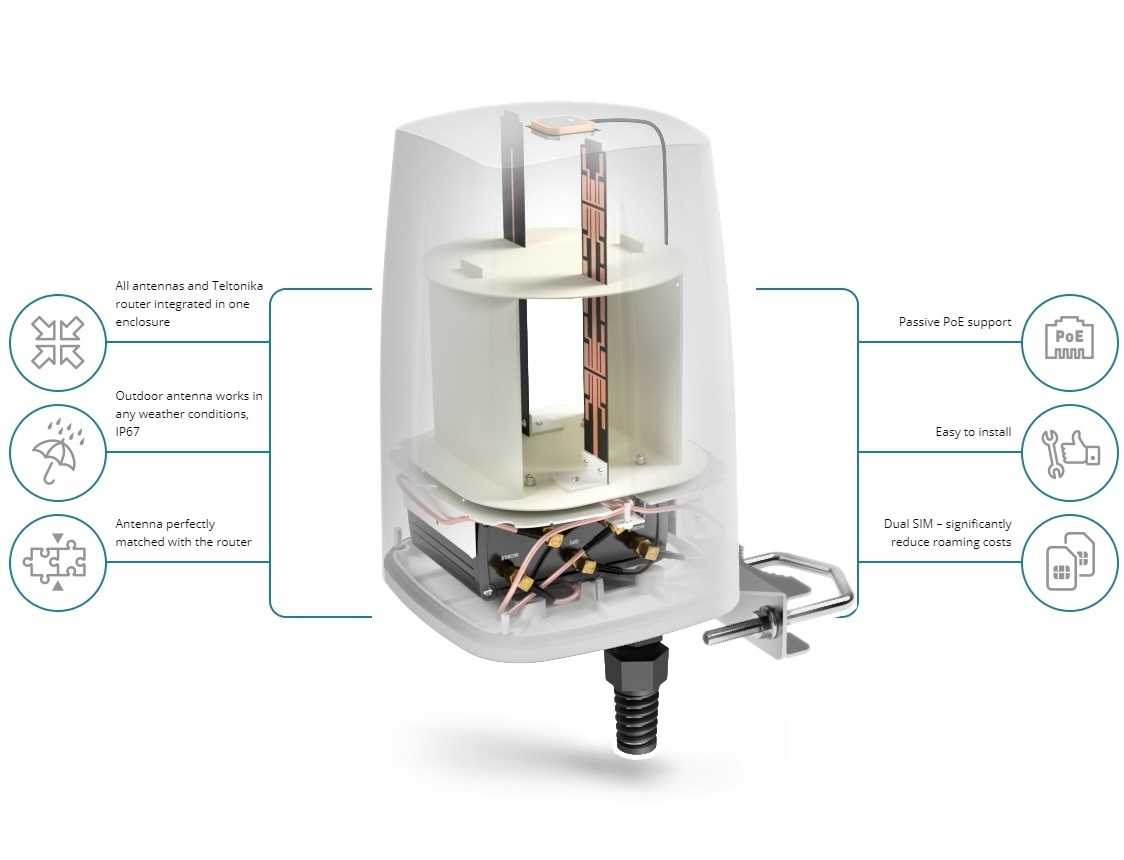

QuSpot omni LTE antenna for Teltonika RUT955 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi and GPS antenna. If you use RUT955 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Specification:

LTE SPECIFICATION
FREQUENCY:
     0.694 - 0.96 GHz
     1.7 - 2.2 GHz
     2.2 - 2.7 GHz

GAIN:
     2 dBi
     2 dBi
     4 dBi

VSWR
     <1.70, max <2.00
     <1.60, max <2.00
     <1.60, max <2.00

BEAMWIDTH:
     360°/35° +/- 5°
     360°/35° +/- 5°
     360°/35° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

WI-FI SPECIFICATION
FREQUENCY
     2.40 - 2.50 GHz
     4.70 - 6.00 GHz

GAIN:
     6 dBi
     7 dBi

VSWR:
     <1.70, max <2.00
      <1.70, max <2.00

BEAMWIDTH:
     360°/25° +/- 5°
     360°/25° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE
INGRESS PROTECTION: IP67
DIMENSIONS: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
WEIGHT: 1.5 kg (3.31 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
