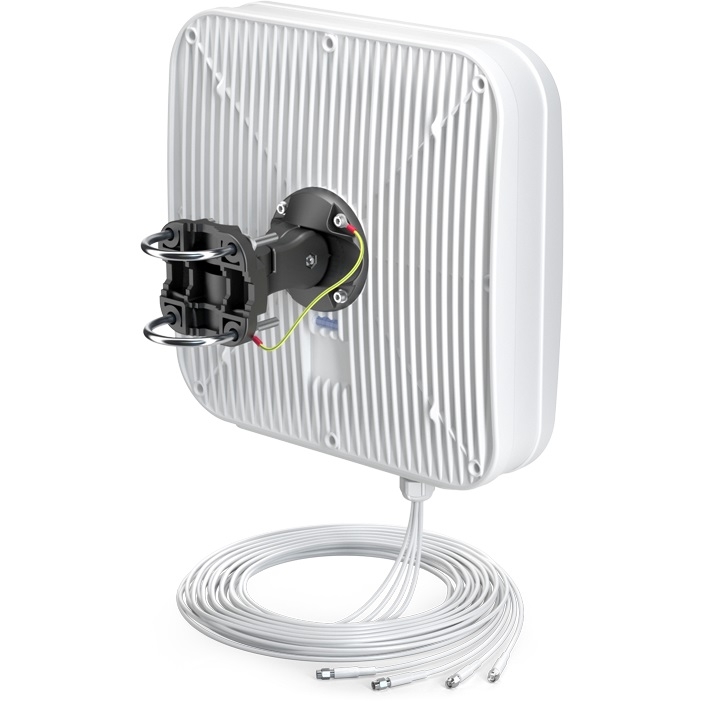

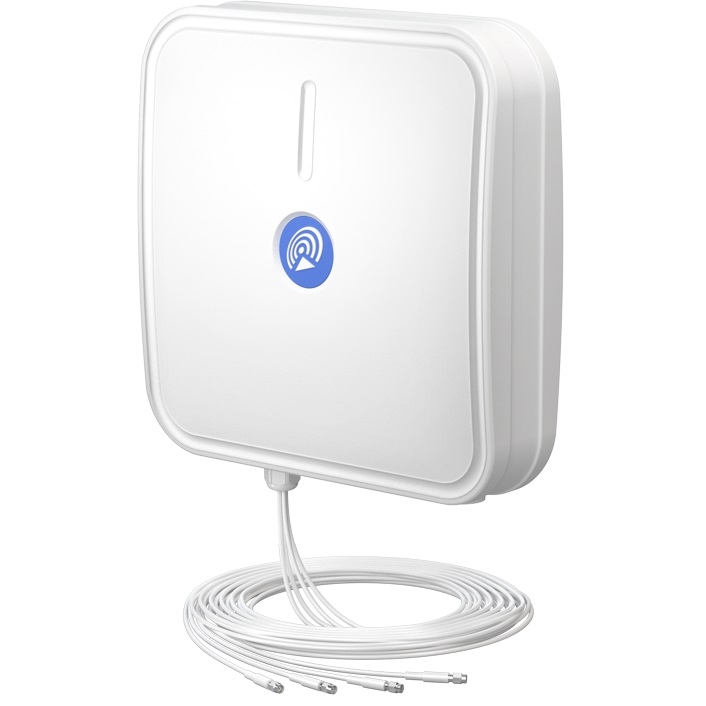

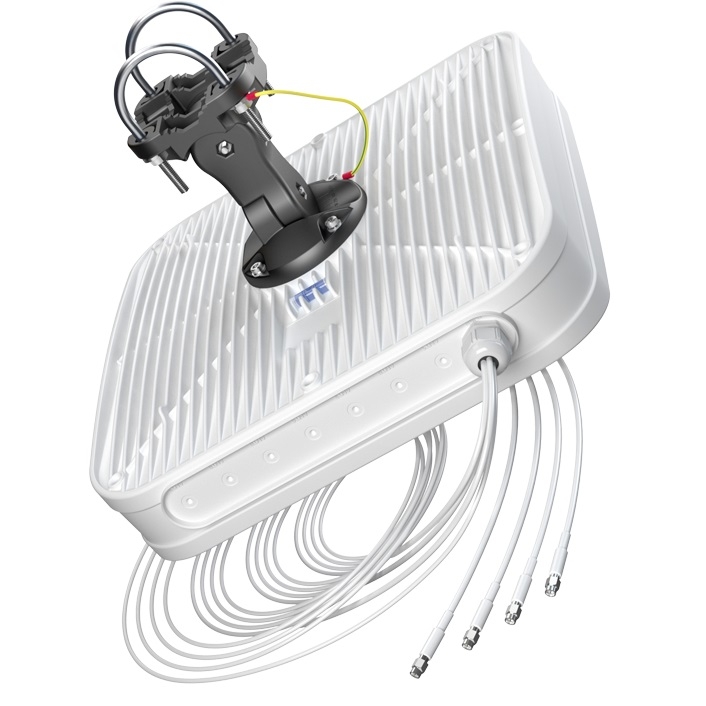

QuWireless Outdoor antenna QuPanel LTE HP MIMO 4x4 (QUPANEL_MIMO4_HP)

MPN: APLM4-H
Order code: QUPANEL_MIMO4_HP
Quick code: #2298

Directional High Power multiband LTE MIMO 4x4 antenna | 7 dBi gain | 694-2700 MHz frequencies | 4x SMA Male connectors | 4x 5m LMR195 cables

Price exc. VAT: Price inc. VAT: For orders (total sum):
110.40£ 132.48£ >0£
108.56£ 130.27£ >300£
106.71£ 128.05£ >1000£
Qty:


Features:

QuPanel LTE directional MIMO 4x4 high gain antenna is predicted for 4G LTE high categories from cat 5 up to cat 19. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with all MIMO 4x4 LTE modems and routers working in categories: cat 5, cat 6, cat 7, cat 9, cat 10, cat 11, cat 12, cat 13, cat 15, cat 16, cat 18, cat 19.

Specification:

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization X-Pol
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67
Dimensions 392 x 392 x 96 mm
15.43 x 15.43 x 3.78 inch
Weight 3.7 kg
8.16 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
