QuWireless Outdoor antenna QuPanel LTE HP MIMO 2x2, 5m cables (QUPANEL_MIMO2_HP)

MPN: APLM2-H
Order code: QUPANEL_MIMO2_HP
Quick code: #2300

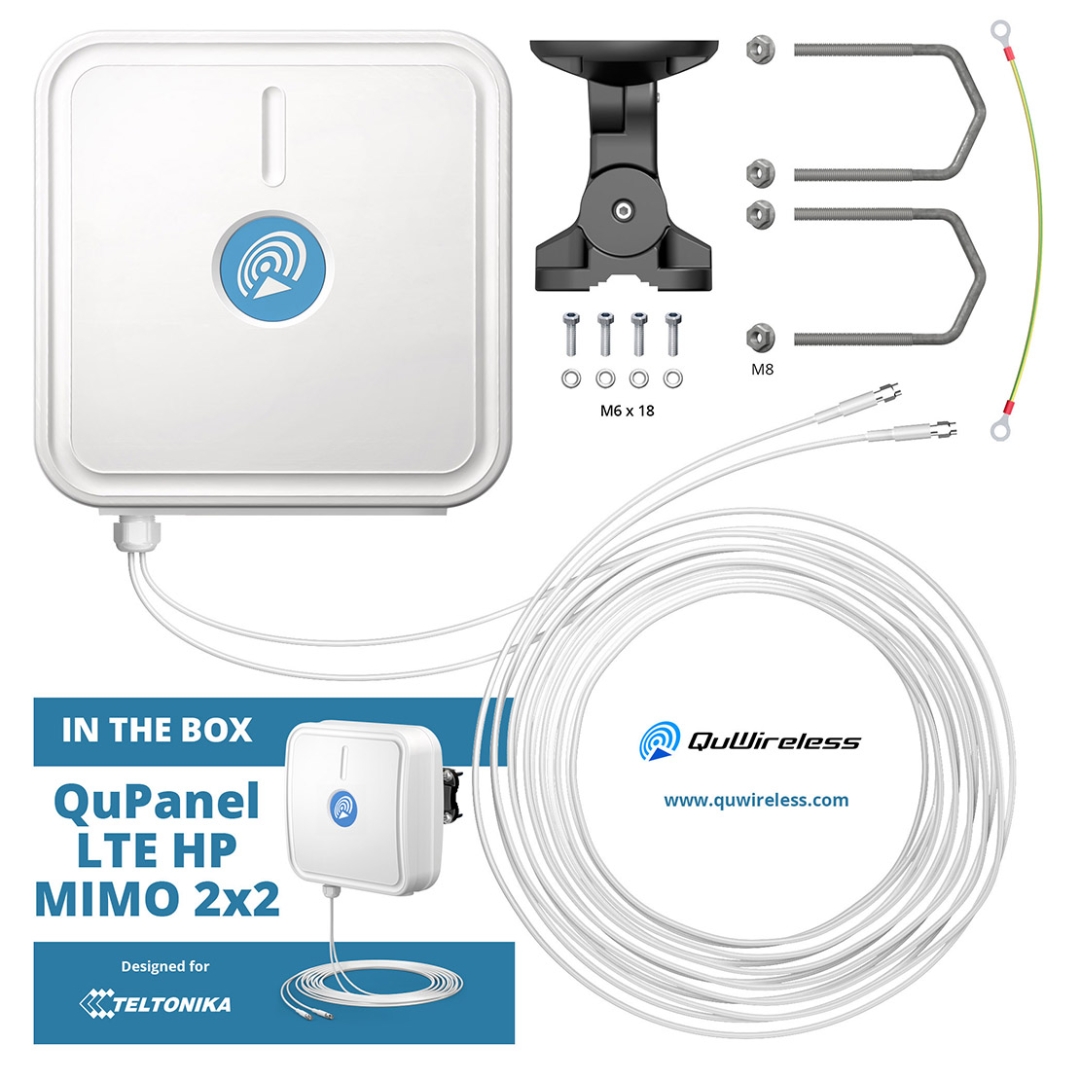

Directional High Power multiband LTE MIMO 2x2 antenna | 7 dBi gain | 0.694 - 0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz frequencies | 2x SMA Male connectors |2x 5m LMR195 cables (white)

Price exc. VAT: Price inc. VAT: For orders (total sum):
75.61£ 90.73£ >0£
74.36£ 89.23£ >300£
73.09£ 87.71£ >1000£
Qty:


Features:

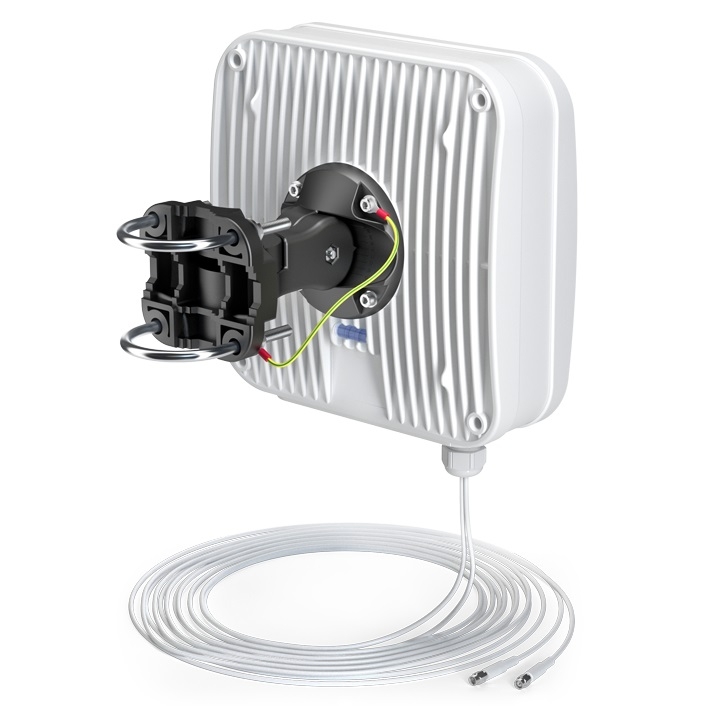

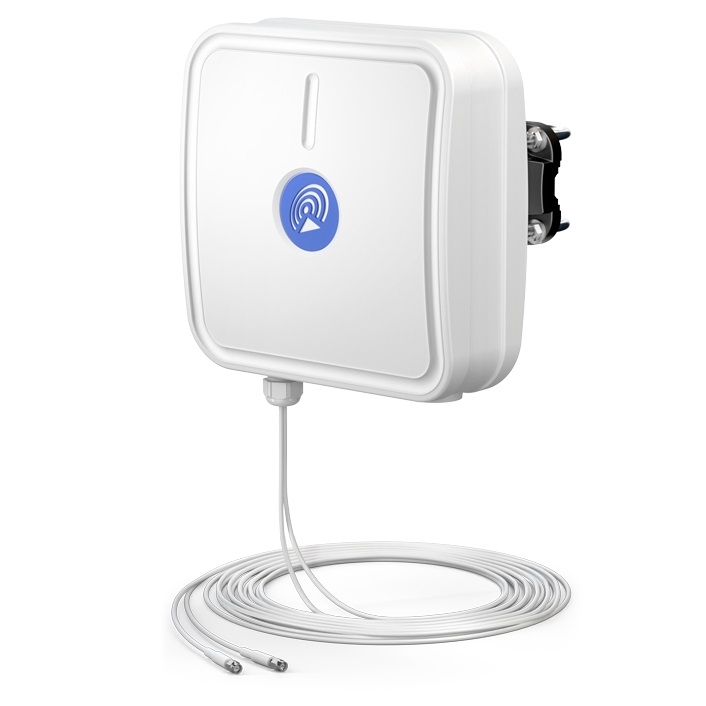

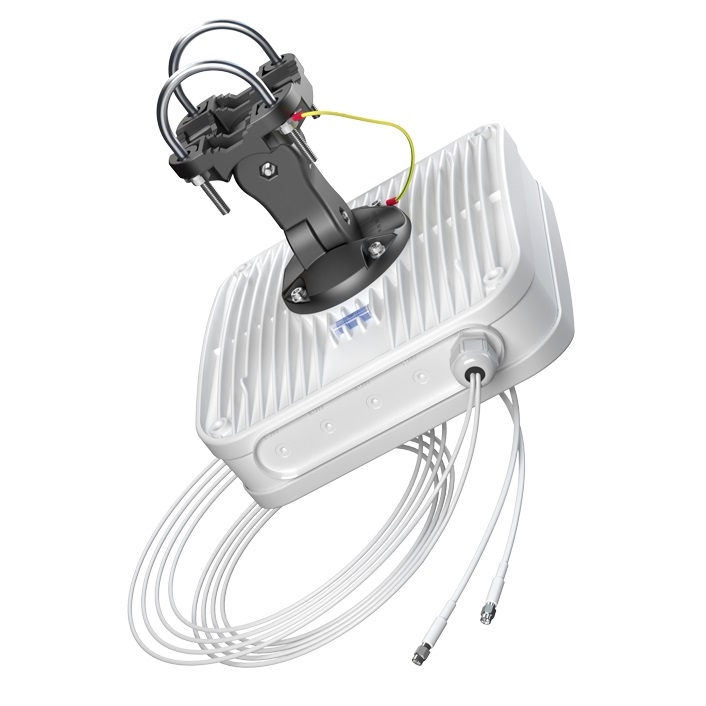

QuPanel LTE HP directional MIMO 2x2 high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 LTE/3G/2G modems and routers.

Specification:

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization X-Pol
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67

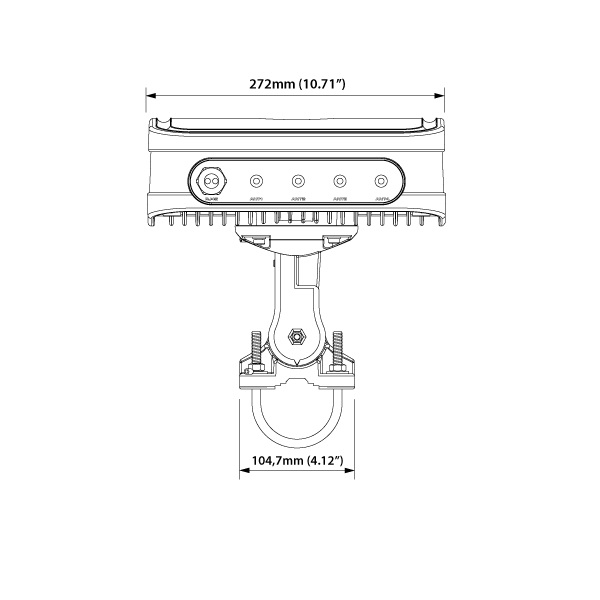

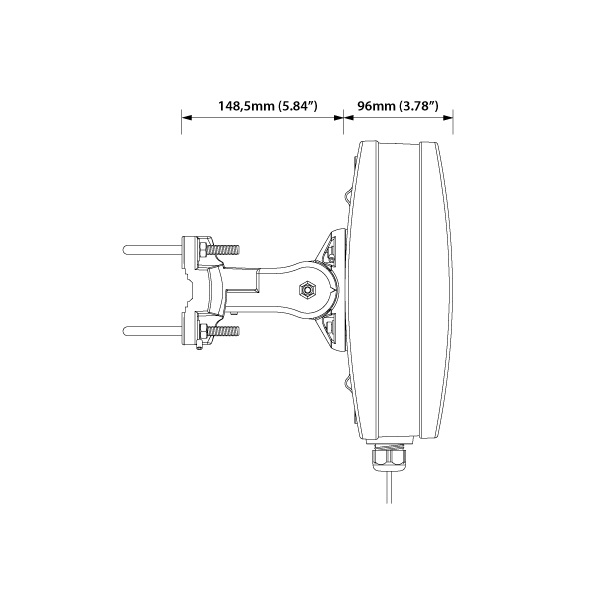

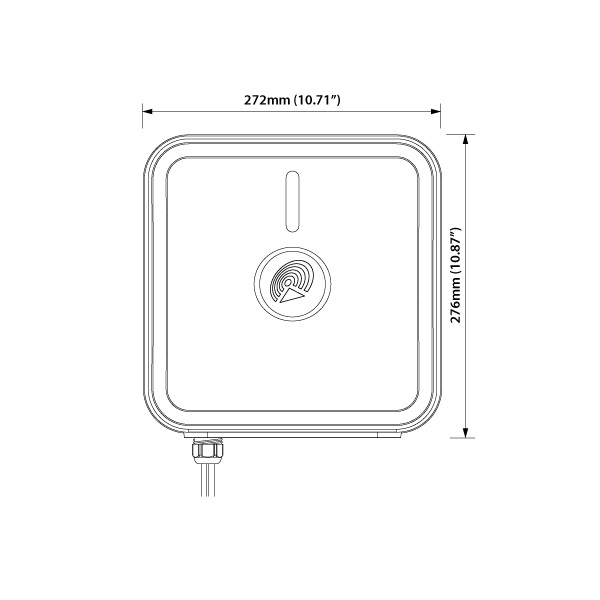

Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
