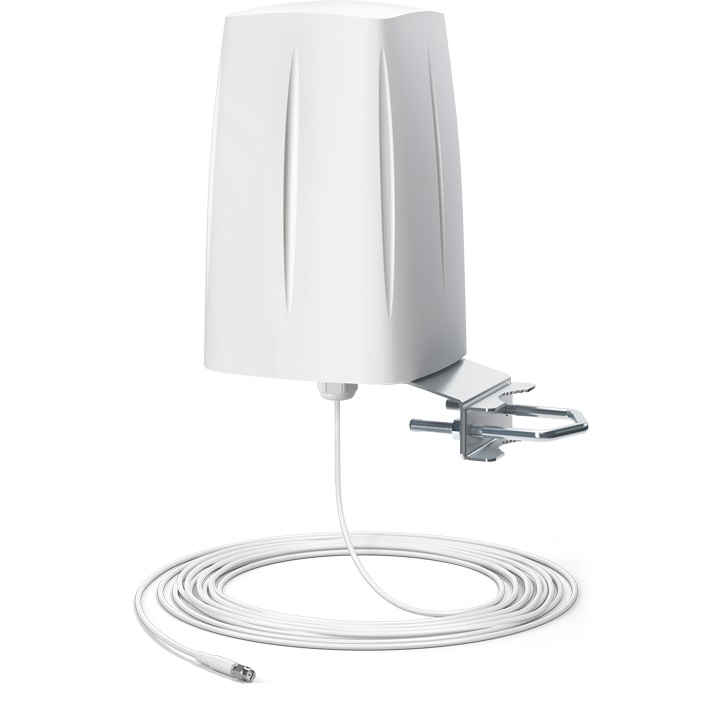

QuWireless Outdoor antenna QuOmni LTE SISO (QUOMNI_SISO)

MPN: AOLS1
Order code: QUOMNI_SISO
Quick code: #2303

Omnidirectional multiband LTE SISO antenna | 4 dbi gain | 694-2700 MHz frequencies | 1x SMA Male connector | 1x 5m LMR195 cable

Price exc. VAT: Price inc. VAT: For orders (total sum):
57.18£ 68.62£ >0£
56.23£ 67.48£ >300£
55.28£ 66.34£ >1000£
Qty:


Features:

QuOmni LTE omnidirectional SISO LTE antenna is working in Vertical polarization, it´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/3G. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.

Specification:

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Gain 0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.2 - 2.7 GHz : 4 dBi
VSWR <1.60, max <2.00
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE
Ingress protection IP67
Dimensions 160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight 1.5 kg
3.31 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
