QuWireless QuMax Omni for Teltonika TRB500 (QUMAX_TRB500)
MPN:
A500MO
Order code:
QUMAX_TRB500
Quick code:
#3935
EAN:
5907772035825
Integrated multi-band LTE & 5G omni antenna + place to install Teltonika TRB500 (All-in-one)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 137.98£ | 165.58£ | >0£ |
| 135.68£ | 162.82£ | >300£ |
| 133.38£ | 160.06£ | >1000£ |
Features:

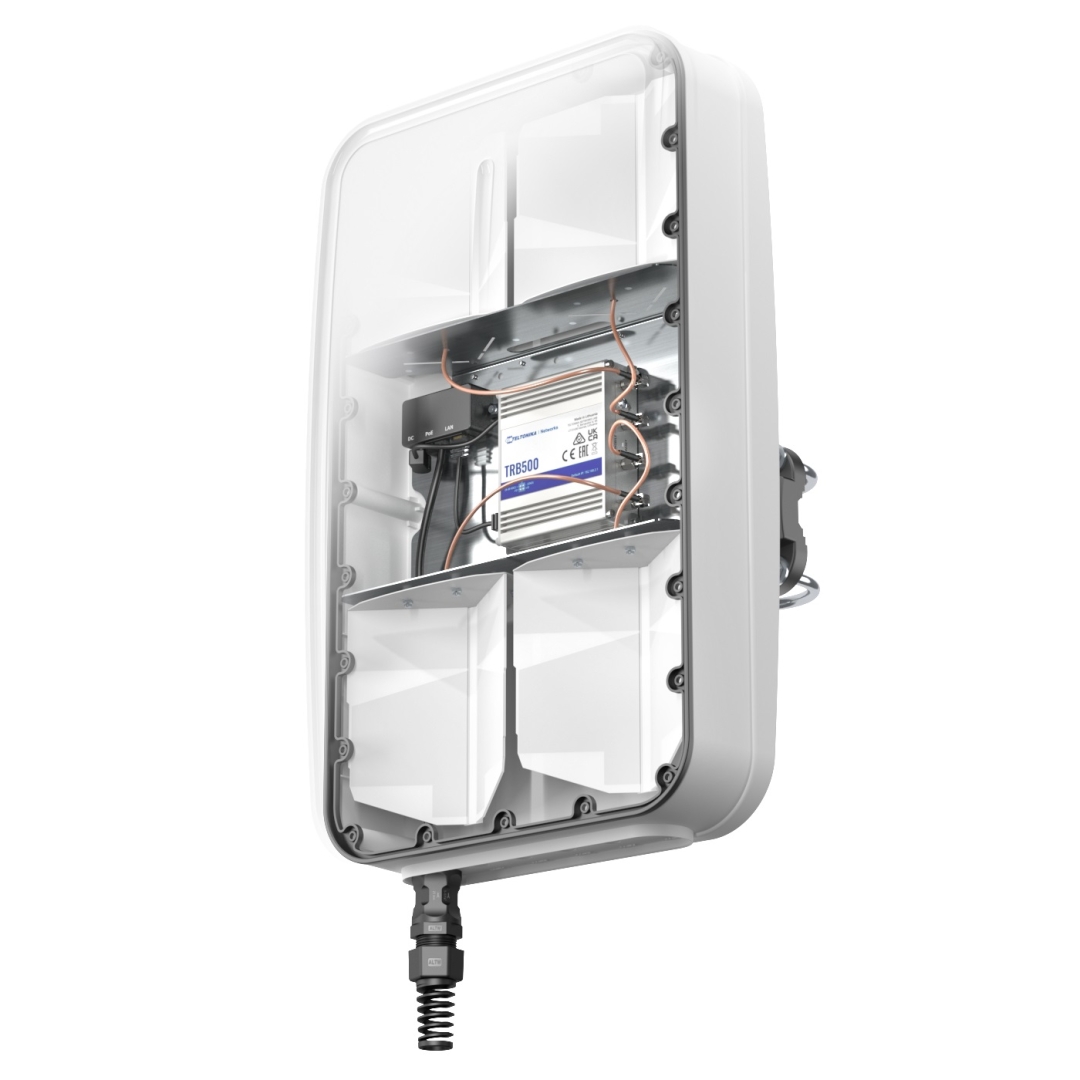

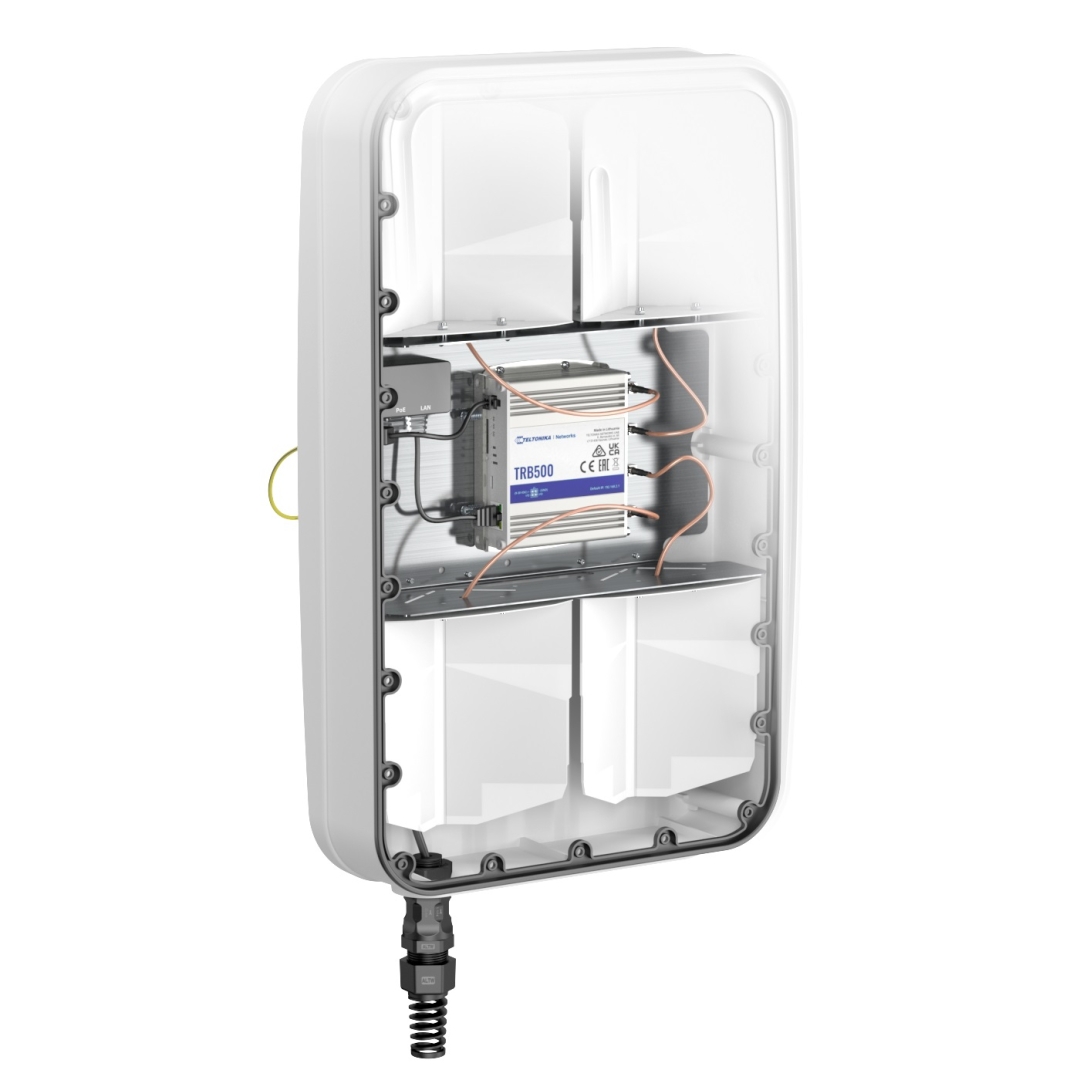

QuMax Omni is a 5 G omnidirectional MIMO 4 x 4 antenna for the Teltonika TRB 500 gateway The antenna covers a wide frequency range from 617 MHz (Band 71 to 3 8 GHz Additional router compartment inside the housing creates a variety of new outdoor (IP 67 scenarios It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.
NOTE! The antenna doesn’t support B 32 band and n 77 (above 3800 MHz) band!
Specification:
| LTE & 5G ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 0.617 - 0.96 GHz 1.7 - 2.2 GHz 2.3 - 2.7 GHz 3.3 - 3.8 GHz |
| Supported LTE/5G bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 71, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95 |
| Gain | 0.617 - 0.96 GHz : 3 dBi 1.7 - 2.2 GHz : 3.5 dBi 2.3 - 2.7 GHz : 3.5 dBi 3.3 - 3.8 GHz : 4 dBi |
| VSWR | <1.80, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress protection | IP67 |
| Connector type | RJ45 |
| Dimensions | 292.2 x 486.0 x 105.6 mm 11.5 x 19.13 x 4.16 inch |
| Weight | 2.5 kg 5.51 lbs |
| Operating temperature | From -40°C to 75°C From -40°F to 167°F |
