QuWireless QuMax for Teltonika RUTX11 (QUMAX_RUTX11)

Order code: QUMAX_RUTX11
Quick code: #1823

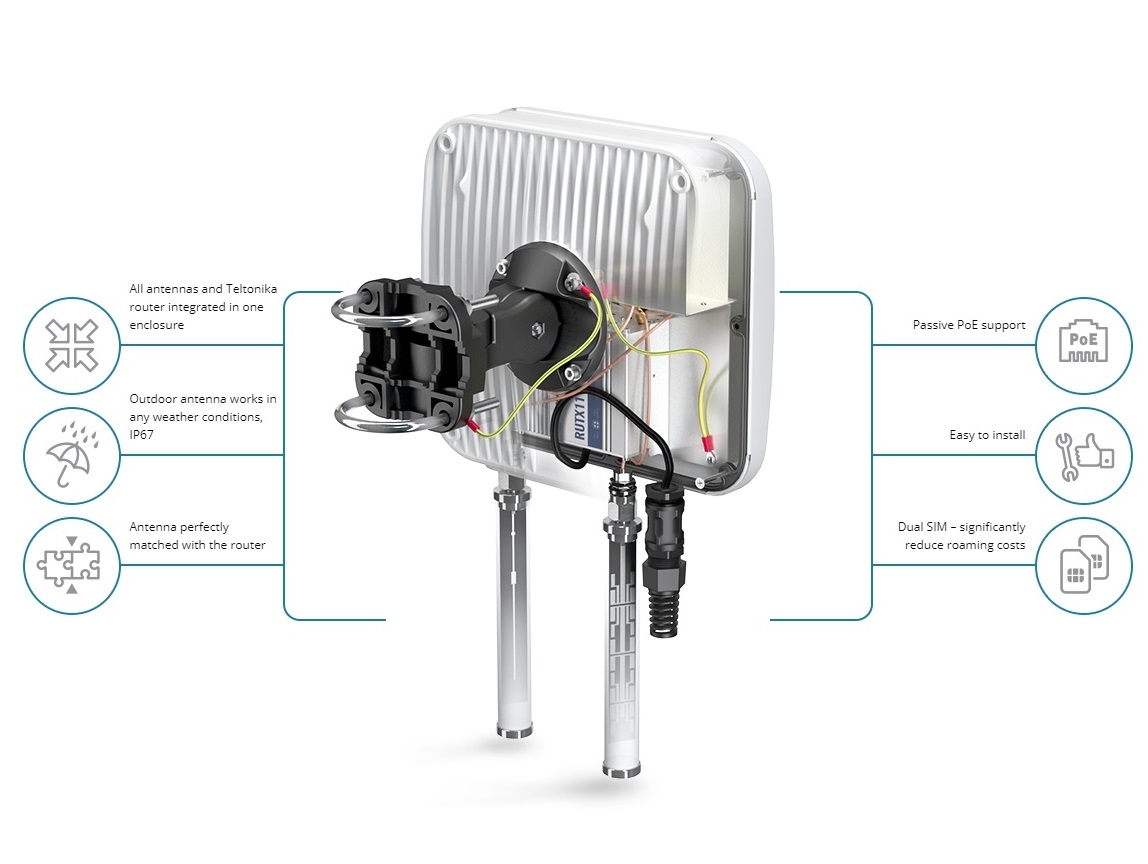

Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUTX11 (All-in-one)

Price exc. VAT: Price inc. VAT: For orders (total sum):
92.25£ 110.70£ >0£
90.71£ 108.85£ >300£
89.17£ 107.00£ >1000£
Qty:


Features:

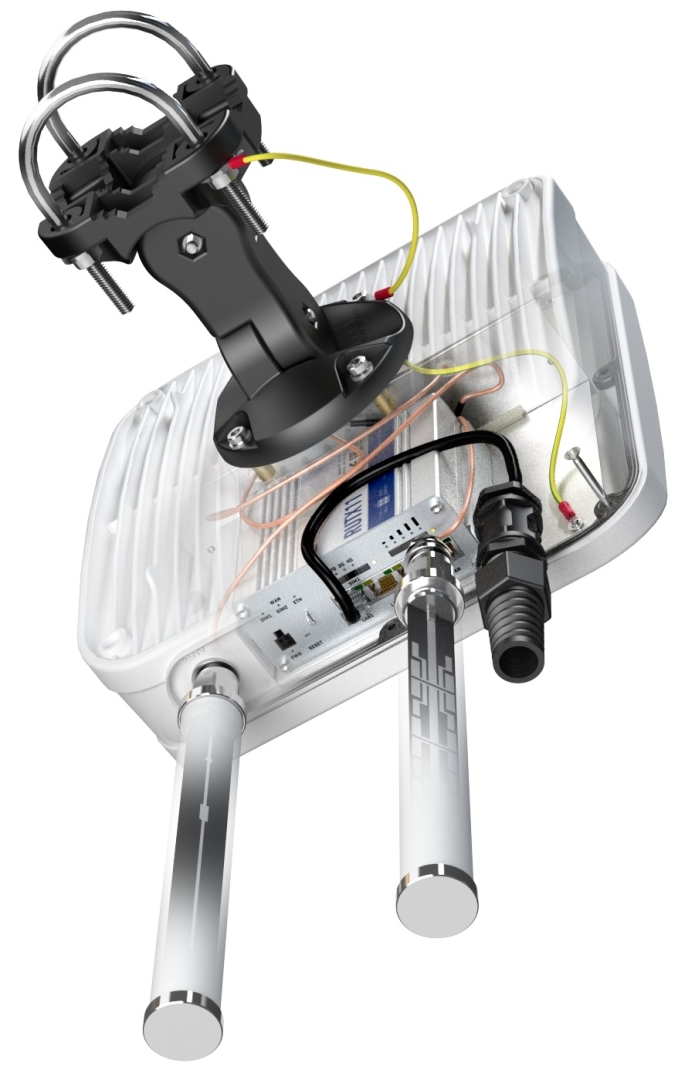

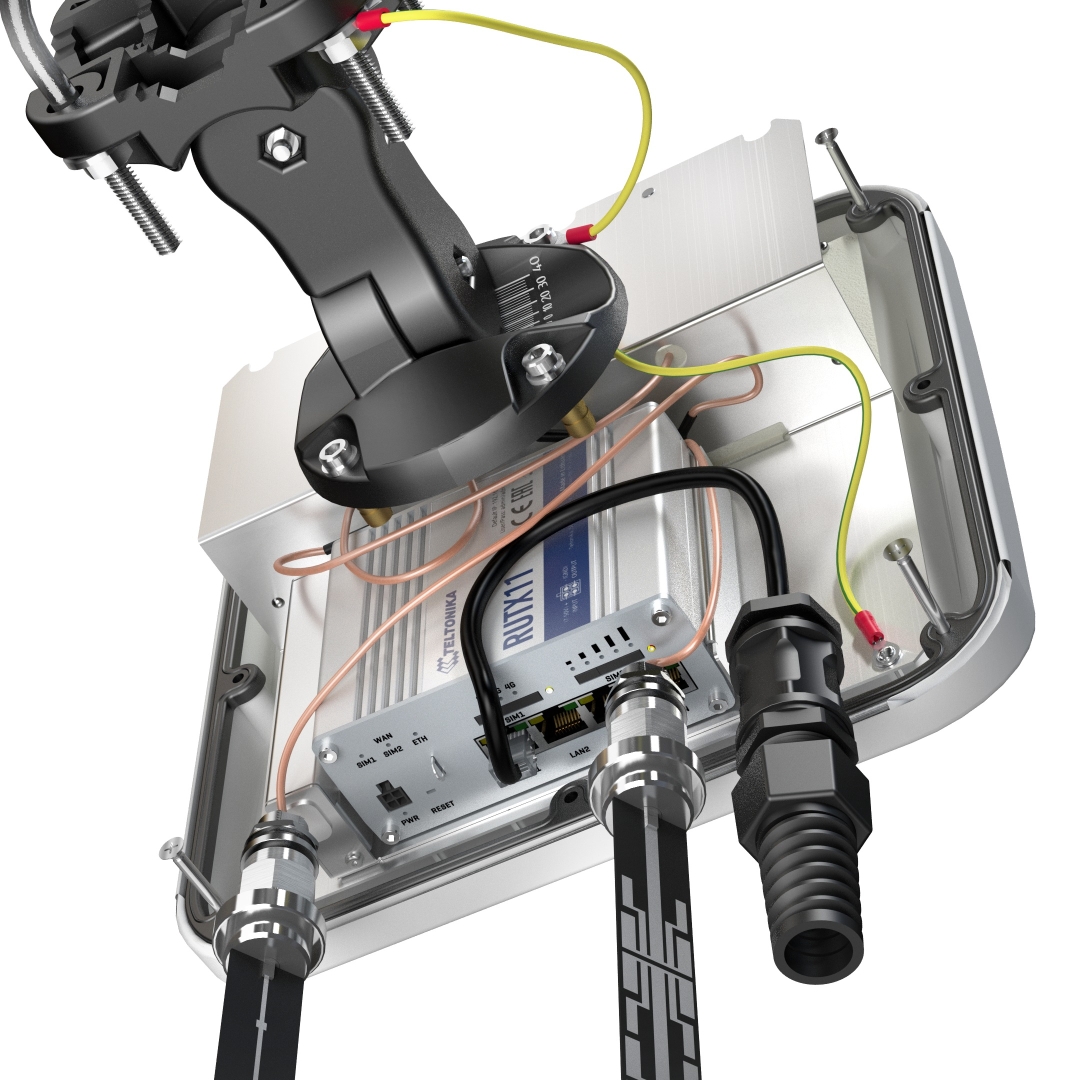

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.

Specification:

LTE SPECIFICATION
FREQUENCY:
     0.694-0.96 GHz
     1.7 - 2.2 GHz
     2.2 - 2.7 GHz

GAIN:
     4 dBi
     5 dBi
     6 dBi

VSWR:
     <1.50, max <2.00
     <1.30, max <1.60
     <1.30, max <1.60

BEAMWIDTH:
     90°/90° +/- 30°
     90°/90° +/- 30°
     90°/90° +/- 30°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

WI-FI SPECIFICATION
FREQUENCY:
     2.40-2.50 GHz
     4.70 - 6.00 GHz

GAIN:
     6 dBi
     7 dBi

VSWR:
     <1.70, max <2.00
     <1.70, max <2.00

BEAMWIDTH:
     360°/25° +/- 5°
     360°/25° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE, Fiberglass
INGRESS PROTECTION: IP67
DIMENSIONS: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch)
WEIGHT: 1.8 kg (3.97 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
