QuWireless QuMax for Teltonika RUTX09 (QUMAX_RUTX09)

Order code: QUMAX_RUTX09
Quick code: #1821

Integrated outdoor multi band high power LTE directional antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)

Price exc. VAT: Price inc. VAT: For orders (total sum):
82.79£ 99.35£ >0£
81.41£ 97.69£ >300£
80.03£ 96.04£ >1000£
Qty:


Features:

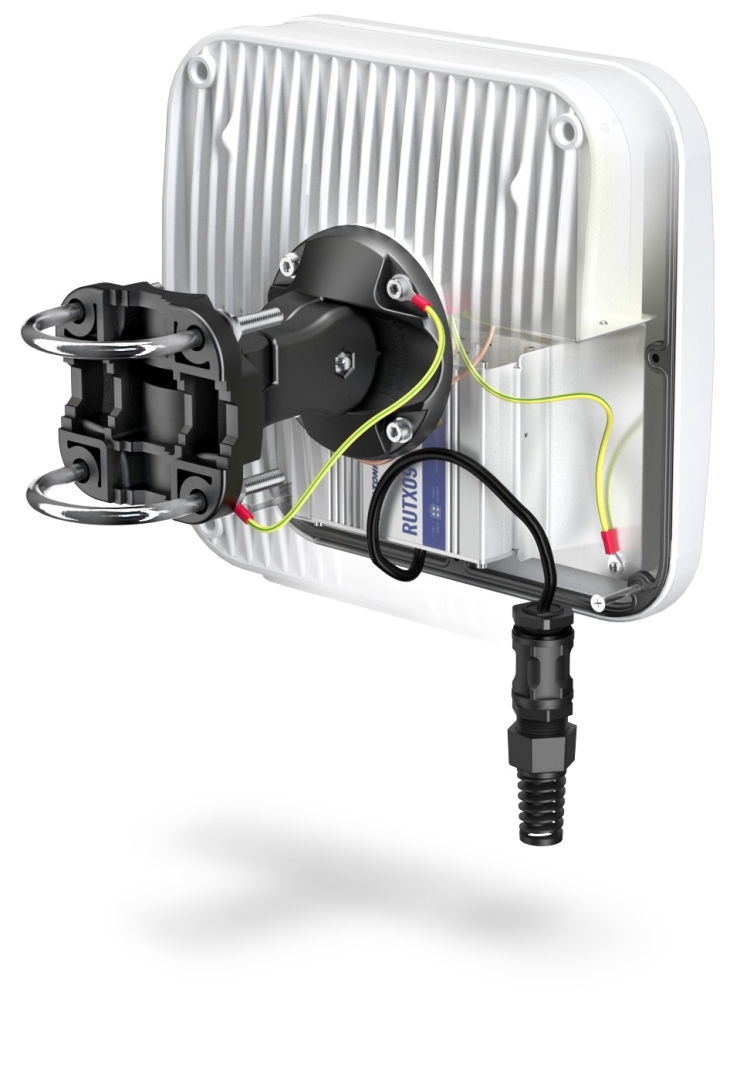

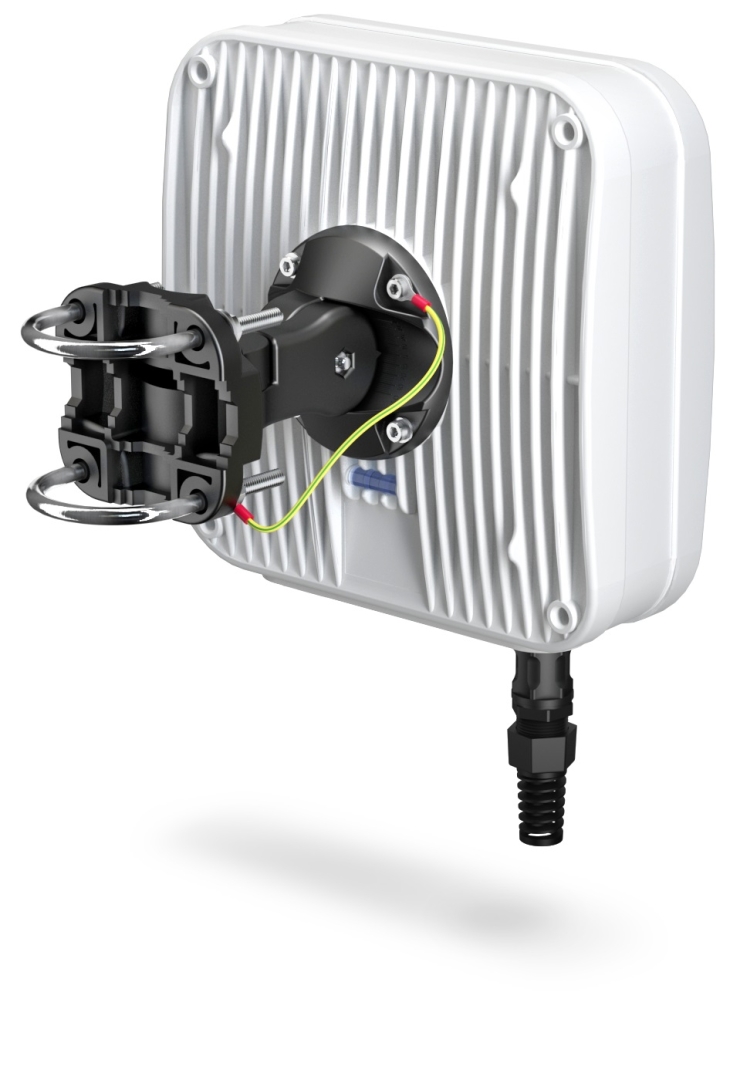

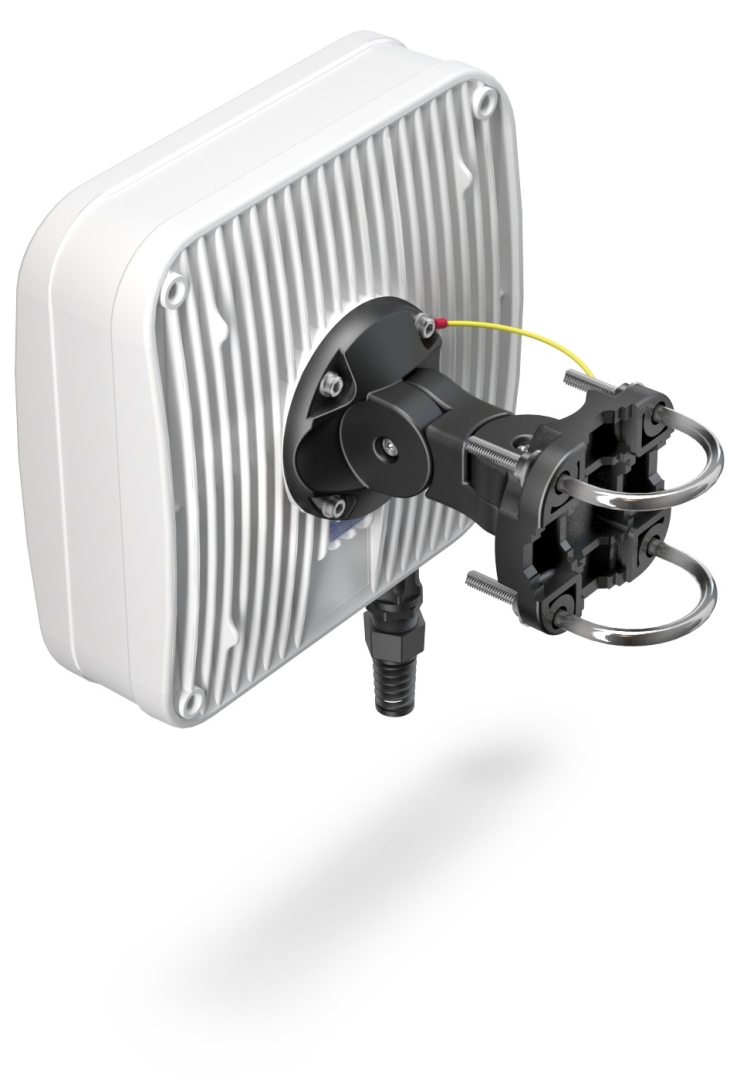

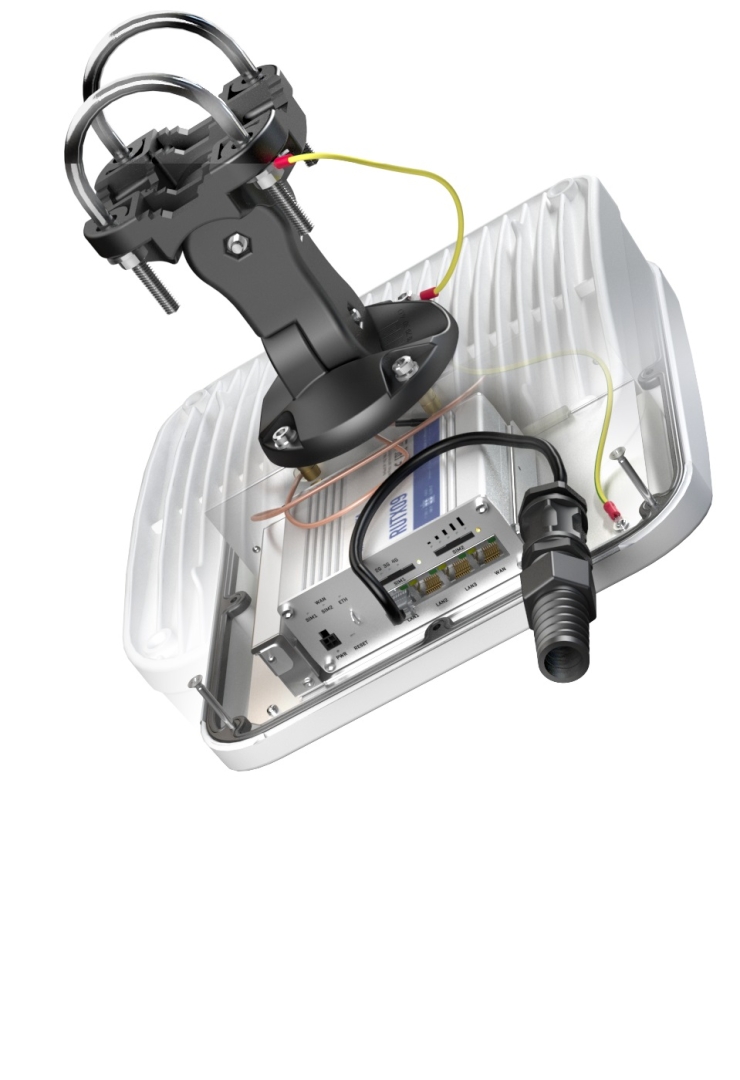

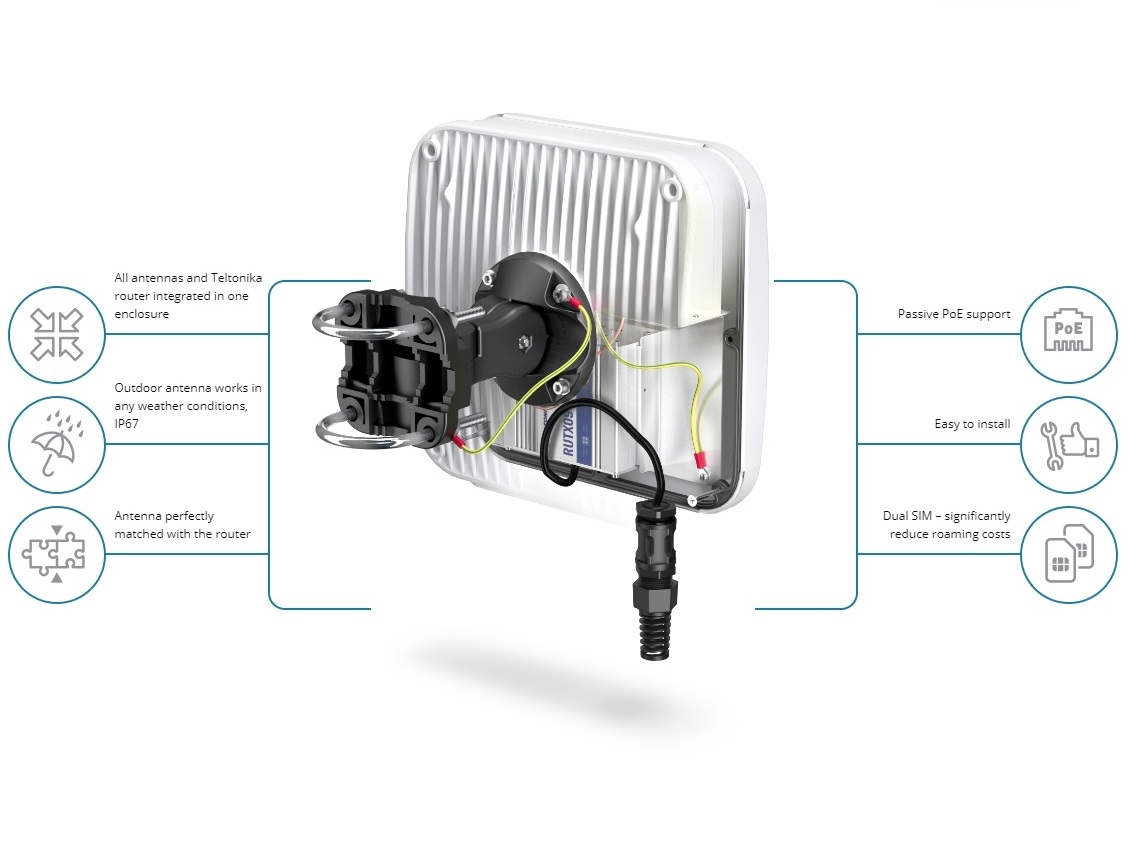

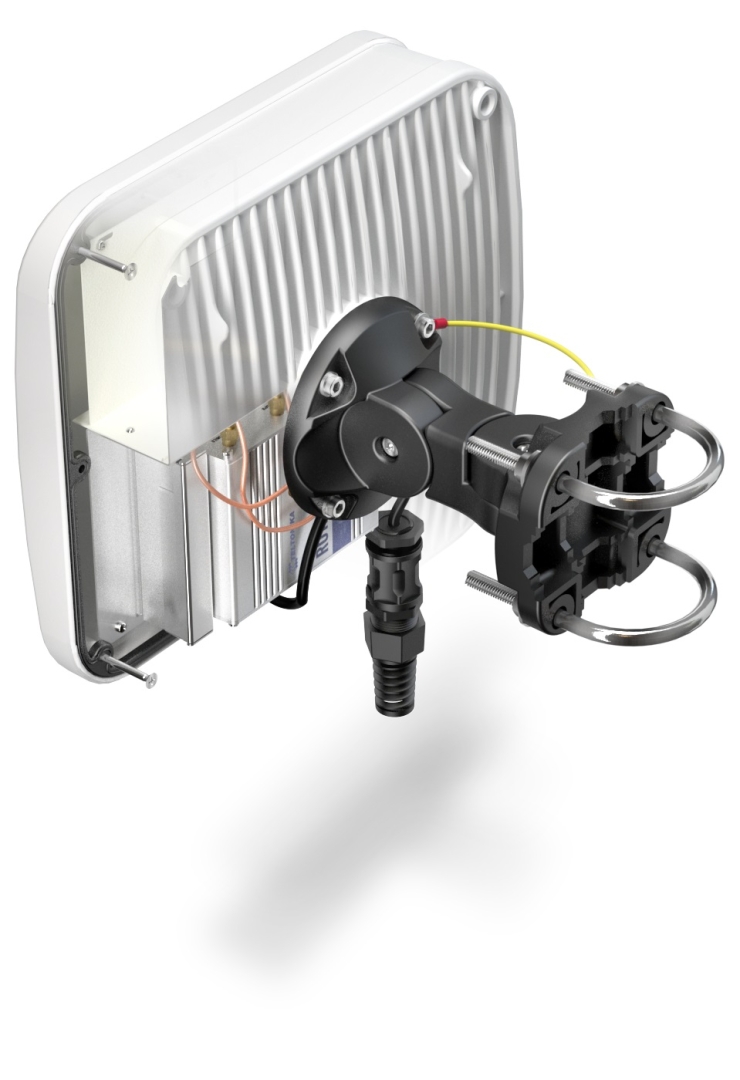

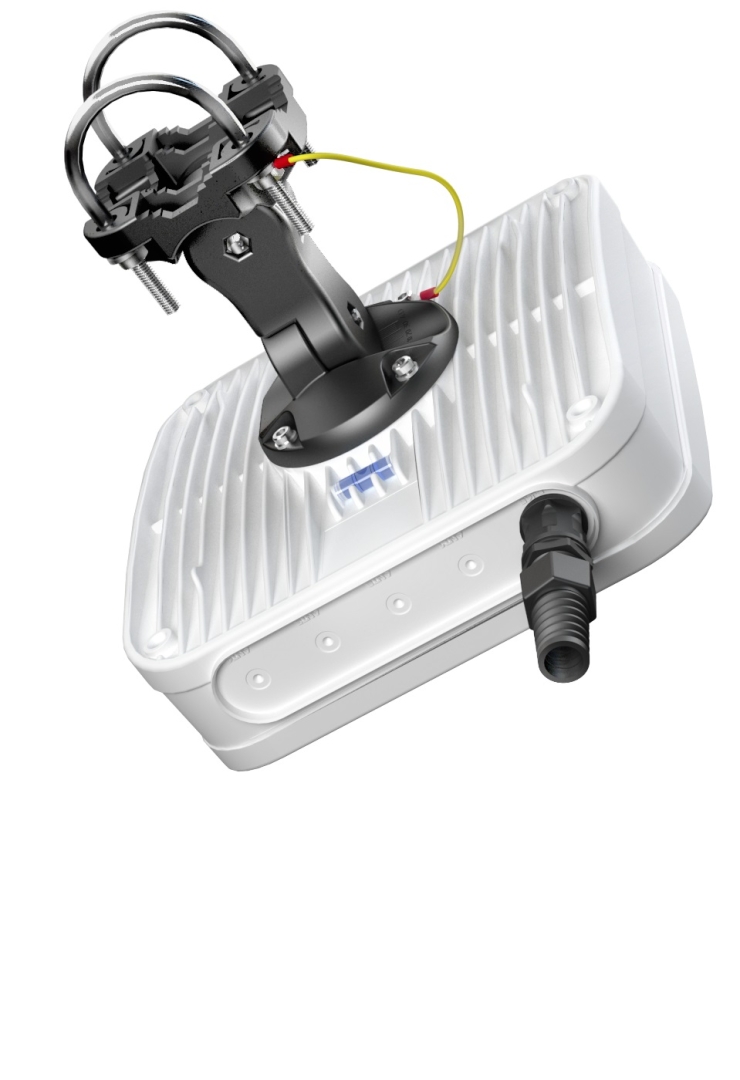

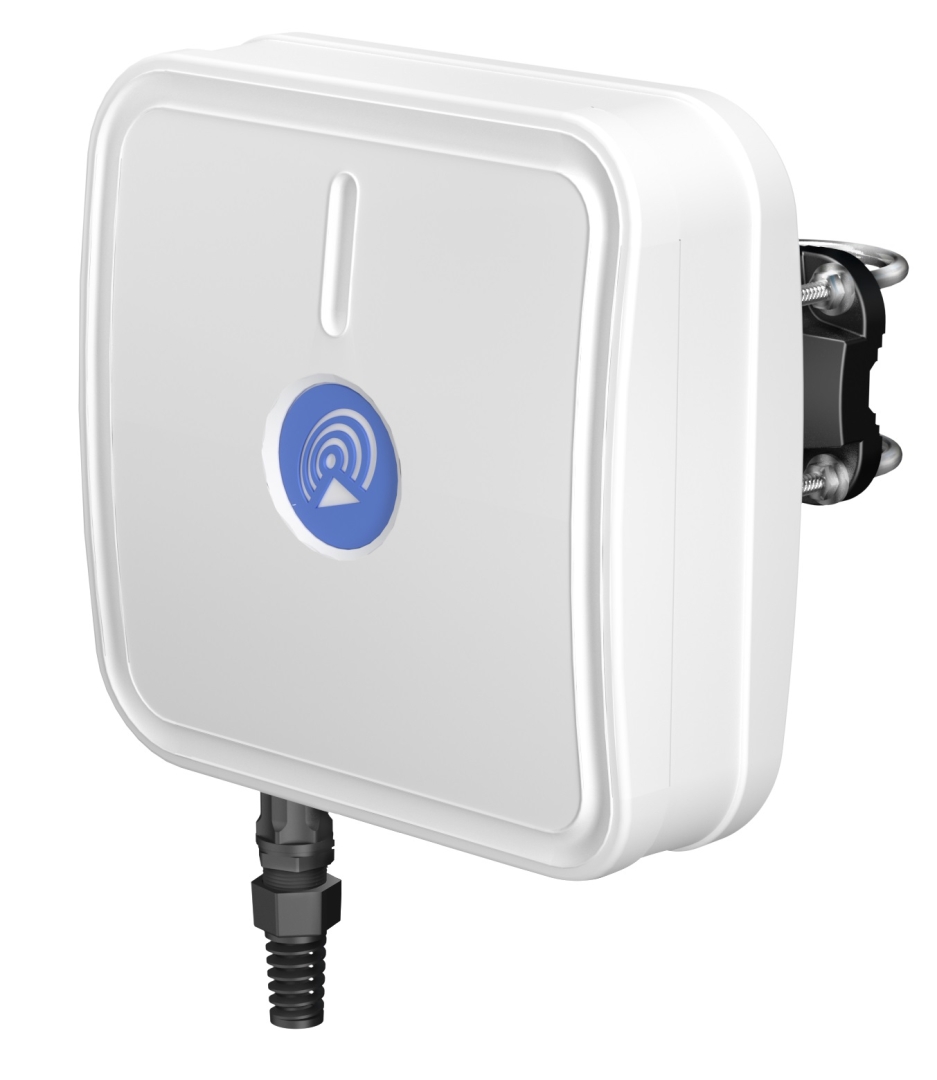

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX09 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna.

Specification:

LTE SPECIFICATION
FREQUENCY:
     0.694-0.96 GHz
     1.7 - 2.2 GHz
     2.2 - 2.7 GHz

GAIN:
     4 dBi
     5 dBi
     6 dBi

VSWR:
     <1.50, max <2.00
     <1.30, max <1.60
     <1.30, max <1.60

BEAMWIDTH:
     90°/90° +/- 30°
     90°/90° +/- 30°
     90°/90° +/- 30°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE, Fiberglass
INGRESS PROTECTION: IP67
DIMENSIONS: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch)
WEIGHT: 1.8 kg (3.97 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
