QuWireless QuMax for Teltonika RUT950/900 (QUMAX_RUT950)

Order code: QUMAX_RUT950
Quick code: #1819

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT950 or 900 (All-in-one)

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
84.70£ 101.64£ >0£
83.28£ 99.94£ >300£
81.87£ 98.24£ >1000£
Qty:
  In stock


Features:

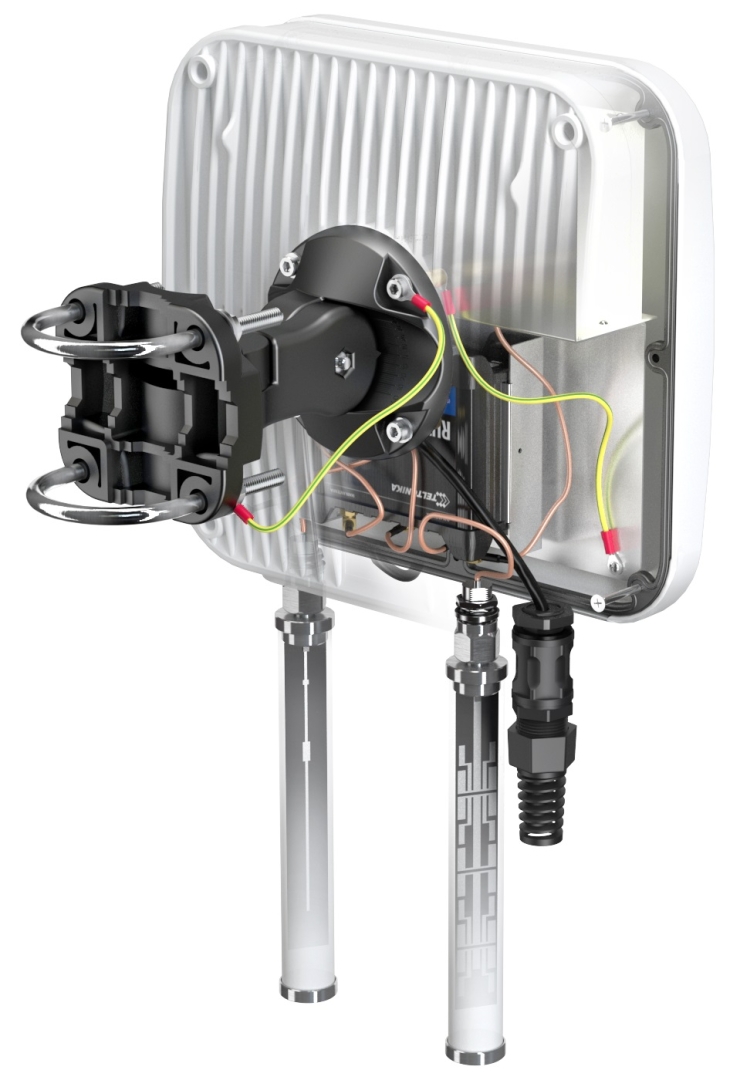

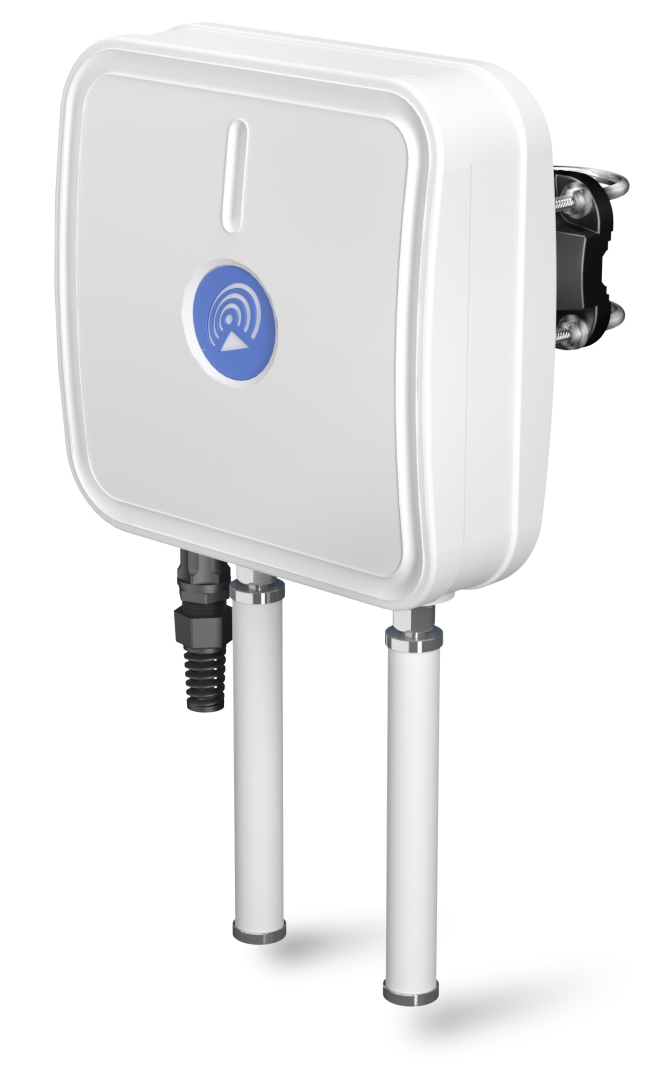

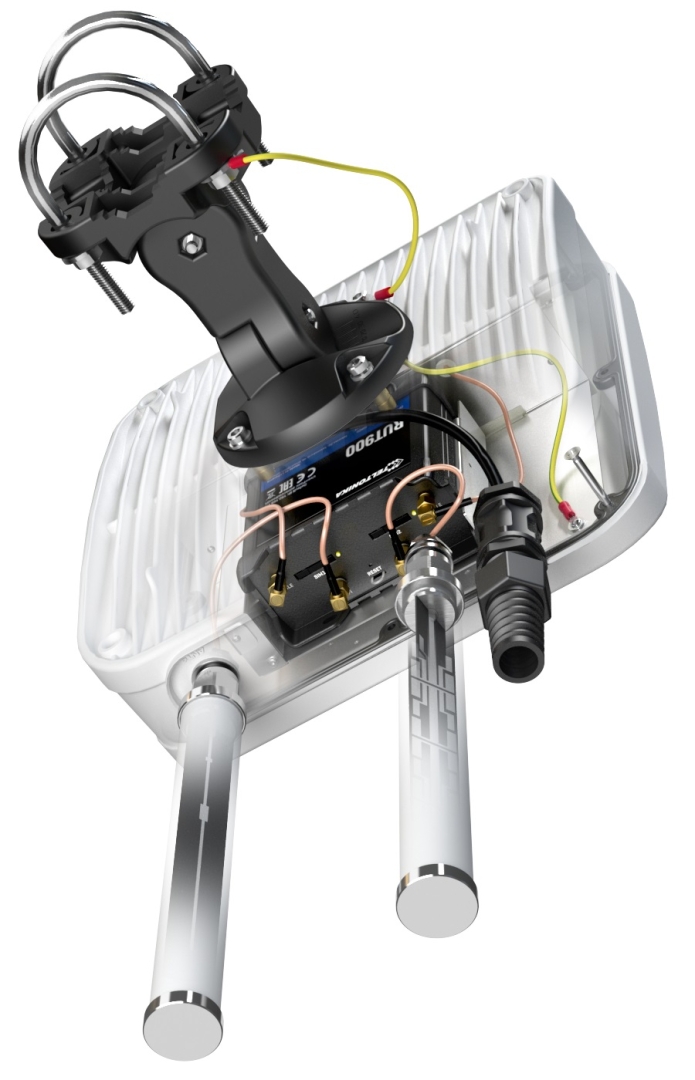

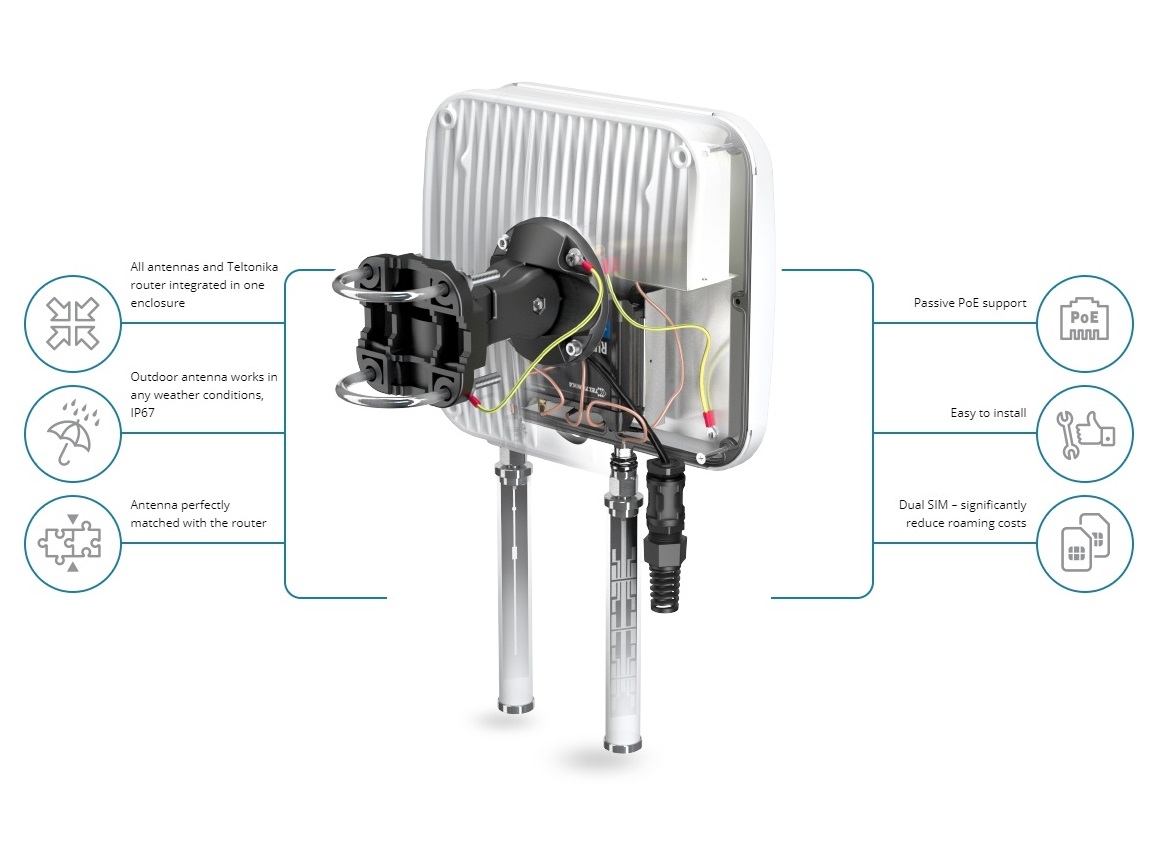

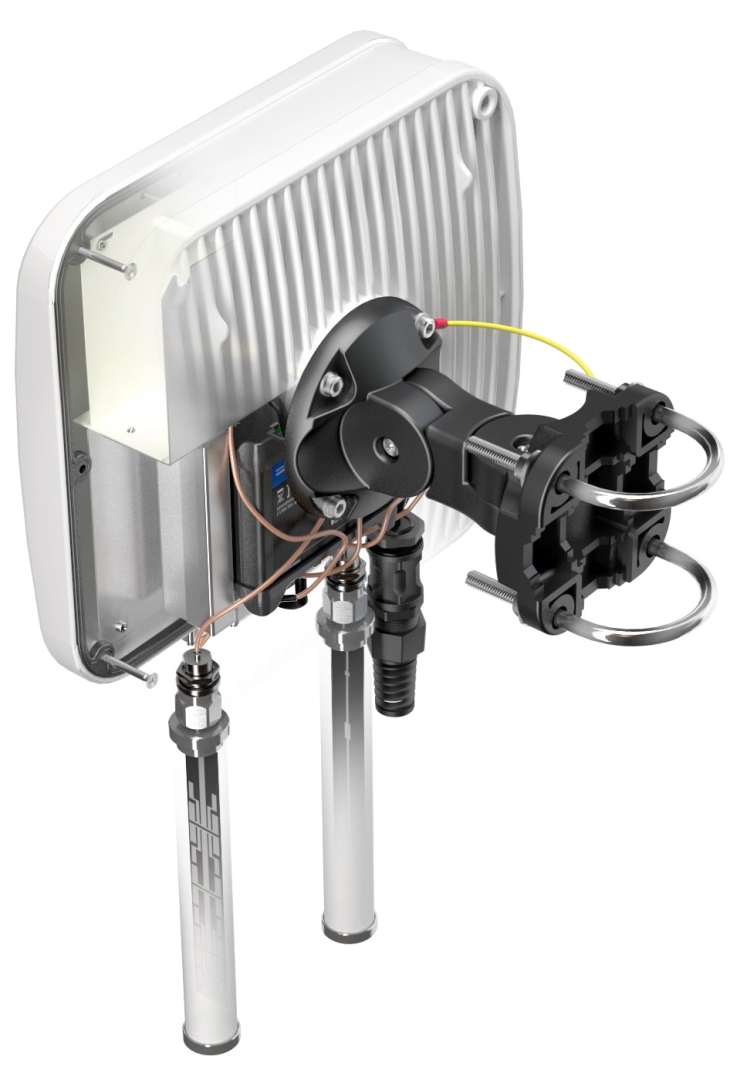

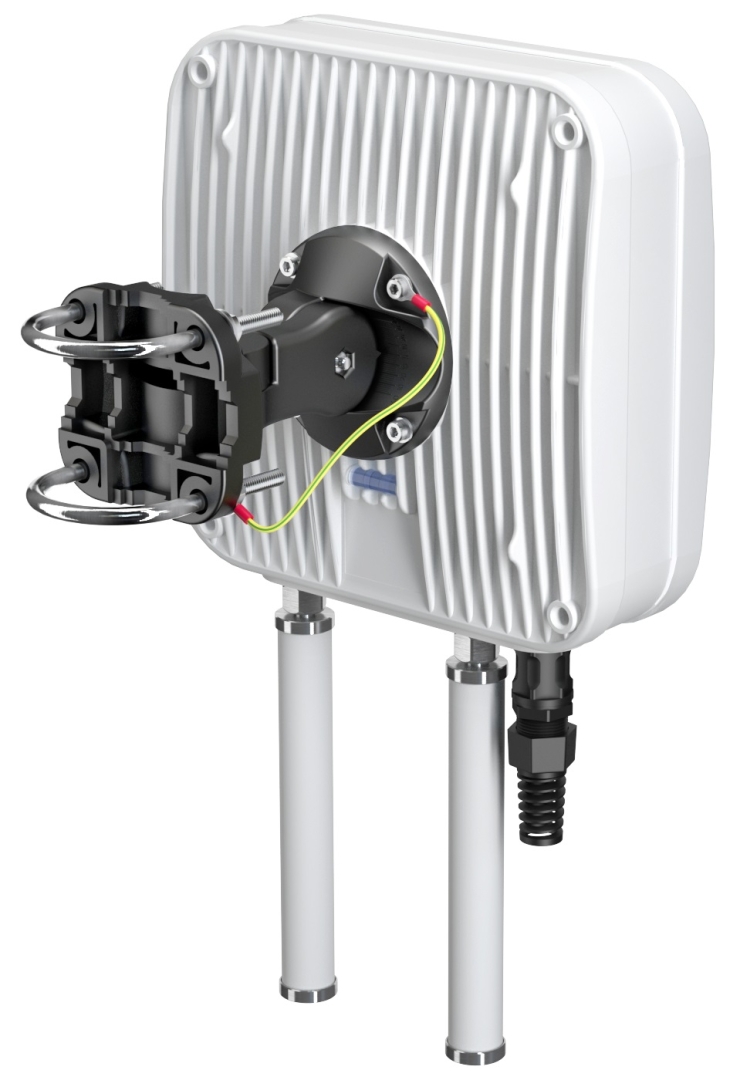

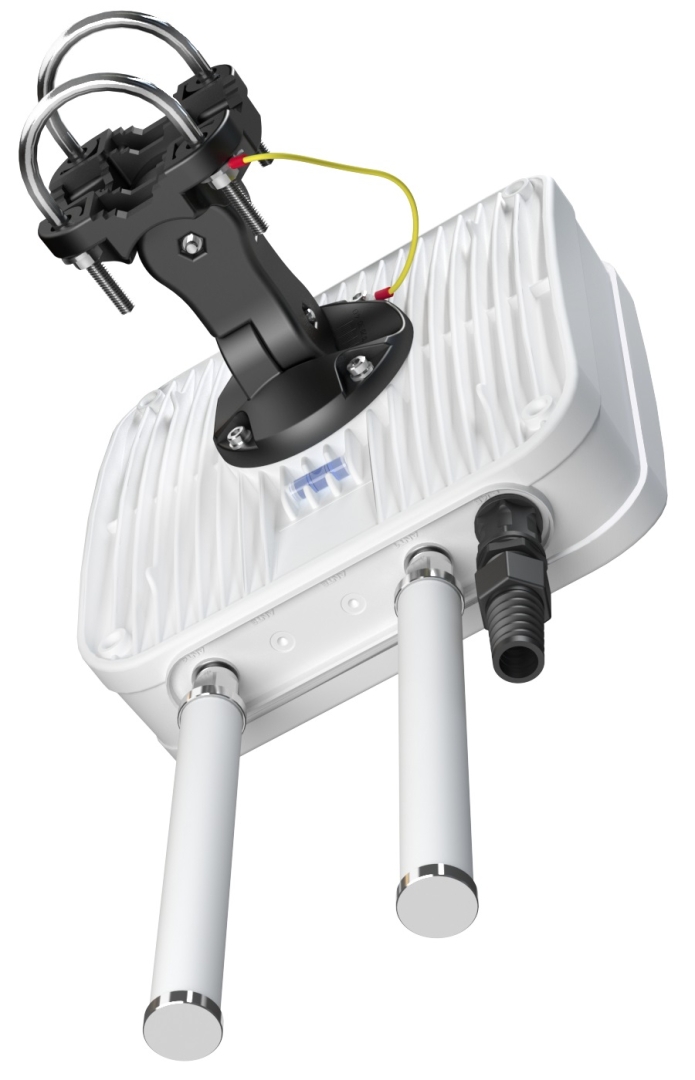

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT950 or RUT900 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.

Specification:

LTE SPECIFICATION
FREQUENCY:
     0.694-0.96 GHz
     1.7 - 2.2 GHz
     2.2 - 2.7 GHz

GAIN:
     4 dBi
     5 dBi
     6 dBi

VSWR:
     <1.50, max <2.00
     <1.30, max <1.60
     <1.30, max <1.60

BEAMWIDTH:
     90°/90° +/- 30°
     90°/90° +/- 30°
     90°/90° +/- 30°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

WI-FI SPECIFICATION
FREQUENCY:
     2.40-2.50 GHz
     4.70 - 6.00 GHz

GAIN:
     6 dBi
     7 dBi

VSWR
     <1.70, max <2.00
     <1.70, max <2.00

BEAMWIDTH:
     360°/25° +/- 5°
     360°/25° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE, Fiberglass
INGRESS PROTECTION: IP67
DIMENSIONS: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch)
WEIGHT: 1.8 kg (3.97 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
