QuWireless QuMax for Teltonika RUT240/230 (QUMAX_RUT2XX)

Order code: QUSMAX_RUT2XX
Quick code: #1813

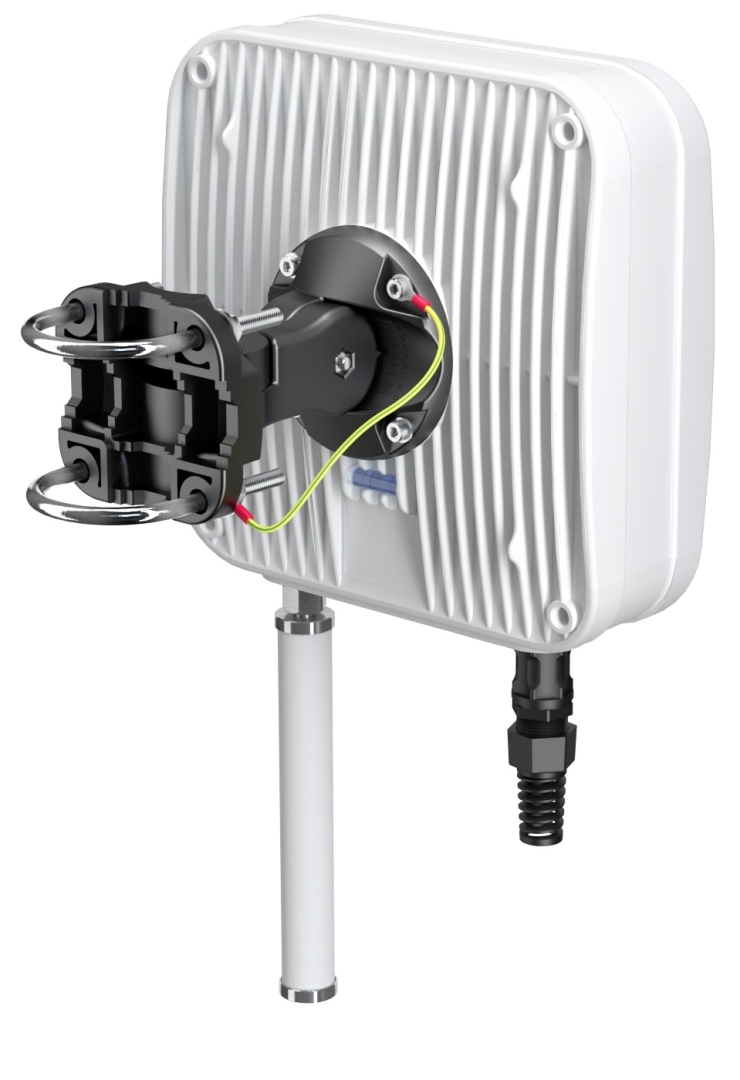

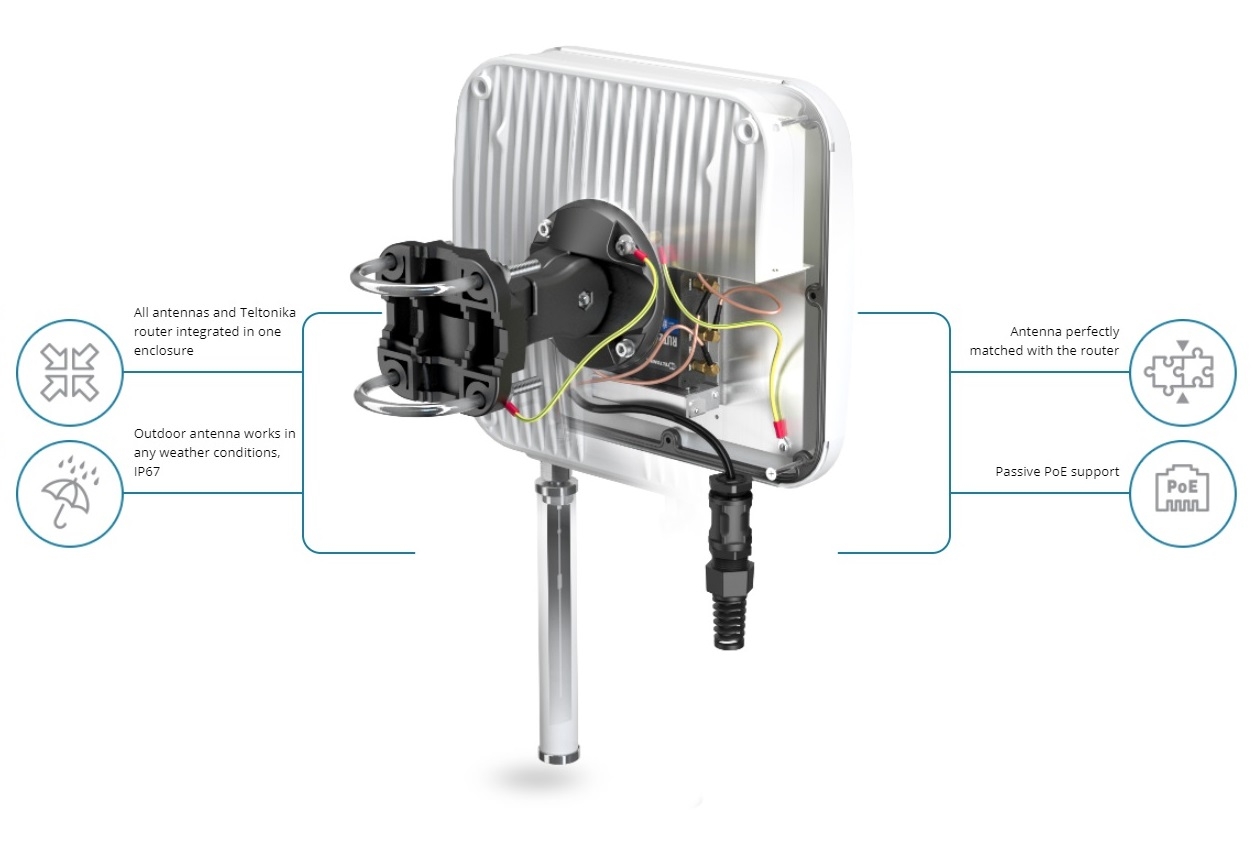

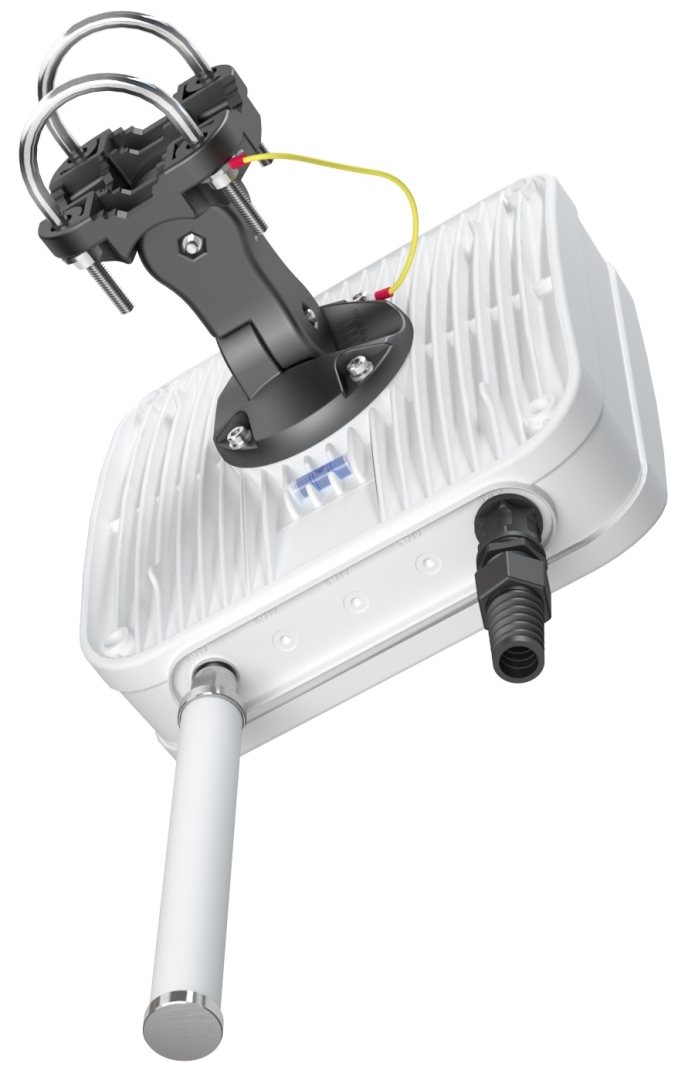

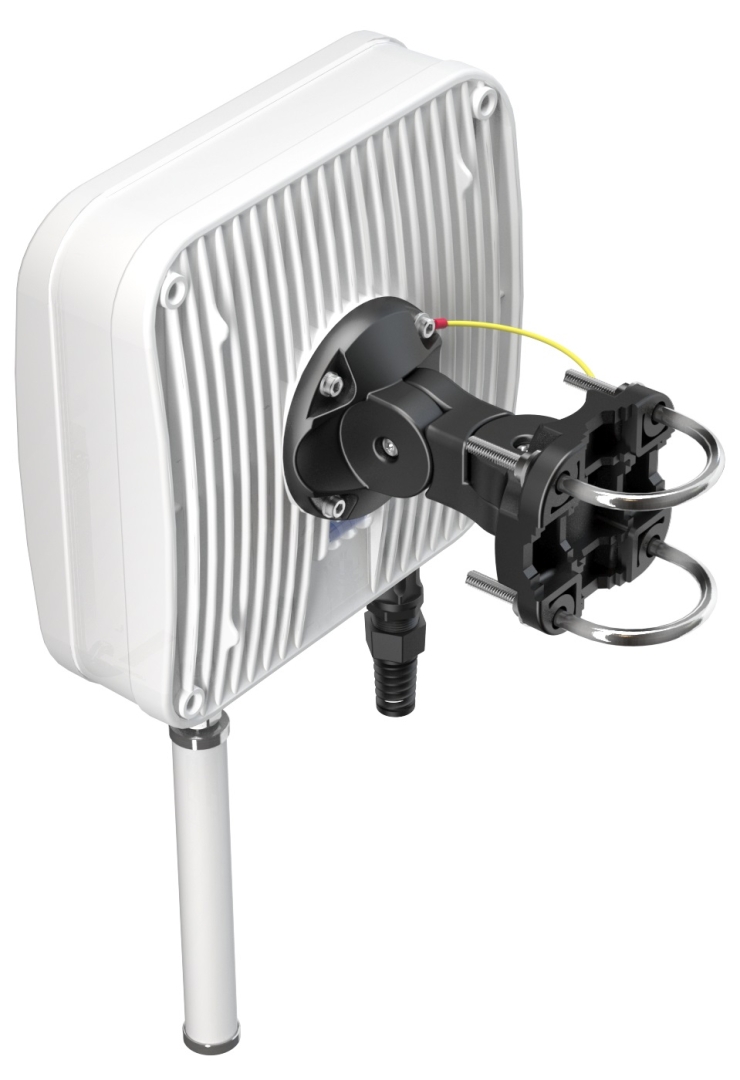

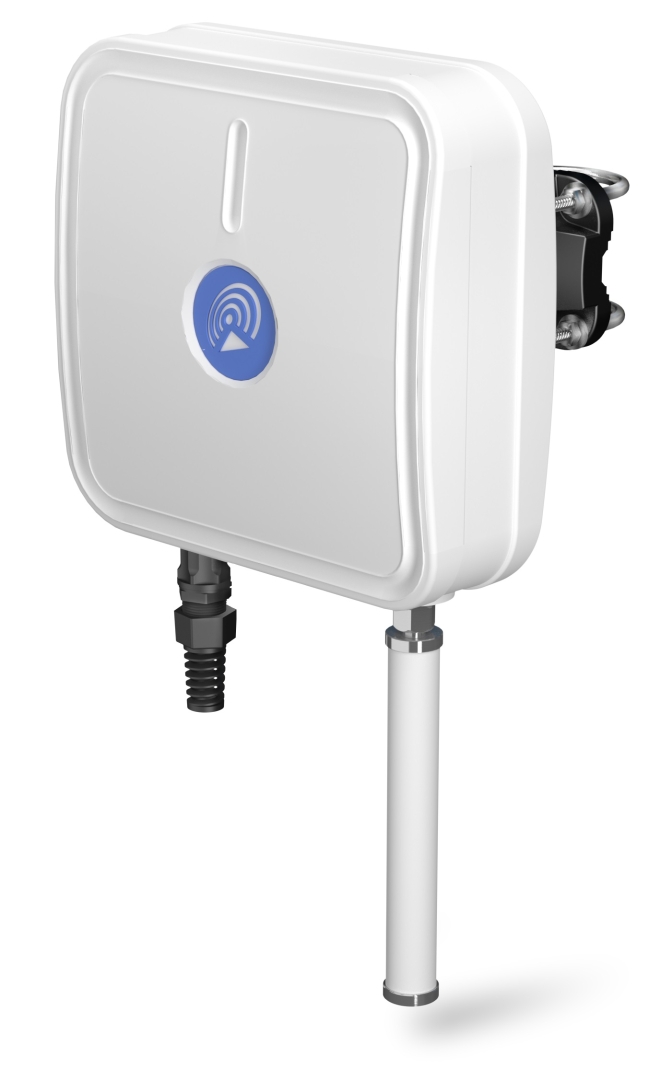

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT240 or 230 (All-in-one)

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
75.02£ 90.02£ >0£
73.77£ 88.52£ >300£
72.52£ 87.02£ >1000£
Qty:
  In stock


Features:

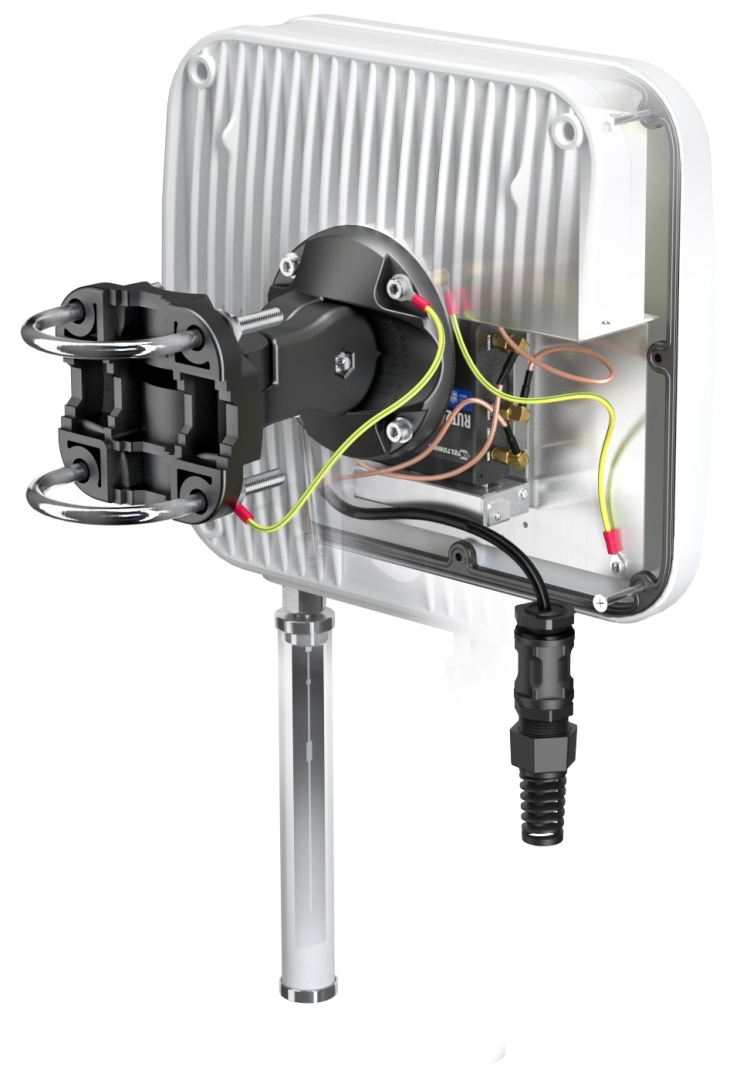

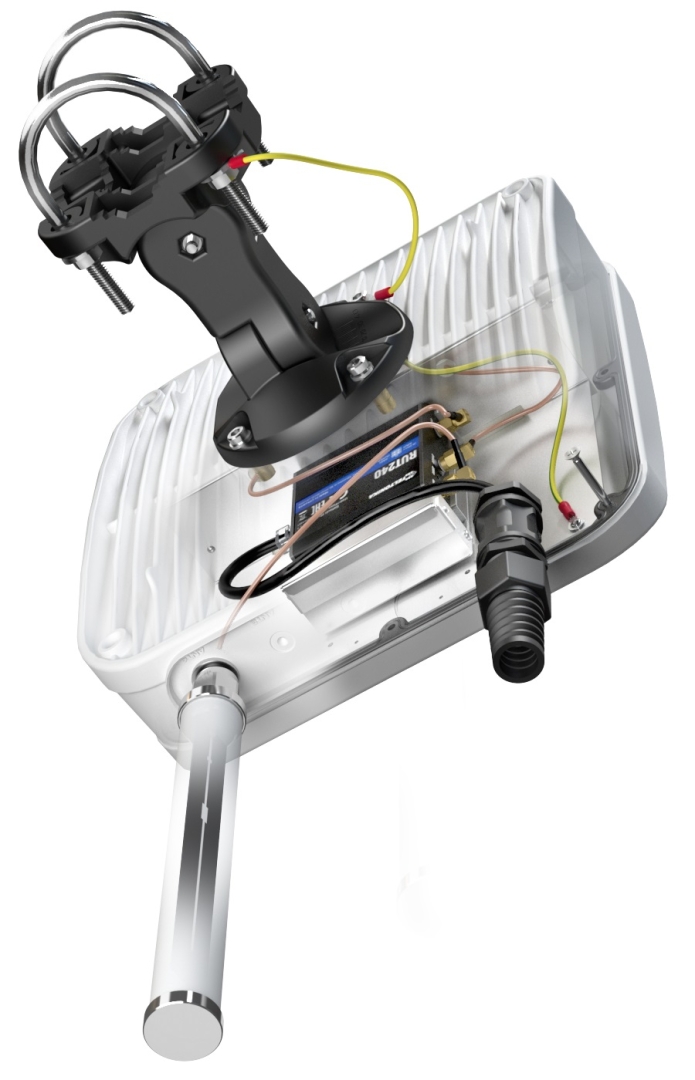

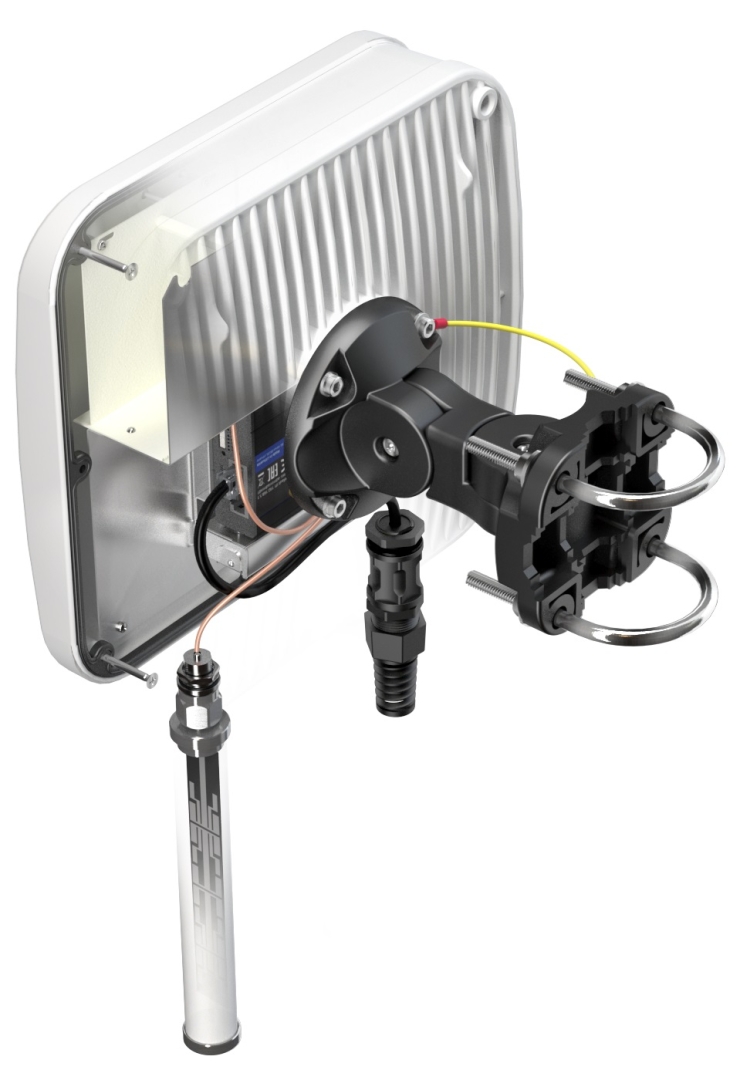

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT240 or RUT230 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded outdoor Wi-Fi omni antennas.

NOTE: For RUT230 one LTE antenna is unplugged.

Specification:

LTE SPECIFICATION
FREQUENCY:
     0.694-0.96 GHz
     1.7 - 2.2 GHz
     2.2 - 2.7 GHz

GAIN:
     4 dBi
     5 dBi
     6 dBi

VSWR:
     <1.50, max <2.00
     <1.30, max <1.60
     <1.30, max <1.60

BEAMWIDTH:
     90°/90° +/- 30°
     90°/90° +/- 30°
     90°/90° +/- 30°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

WI-FI SPECIFICATION
FREQUENCY:
     2.40-2.50 GHz
     4.70 - 6.00 GHz

GAIN:
     6 dBi
     7 dBi

VSWR:
     <1.70, max <2.00
     <1.70, max <2.00

BEAMWIDTH
     360°/25° +/- 5°
     360°/25° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE, Fiberglass
INGRESS PROTECTION: IP67
DIMENSIONS: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch)
WEIGHT: 1.8 kg (3.97 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
