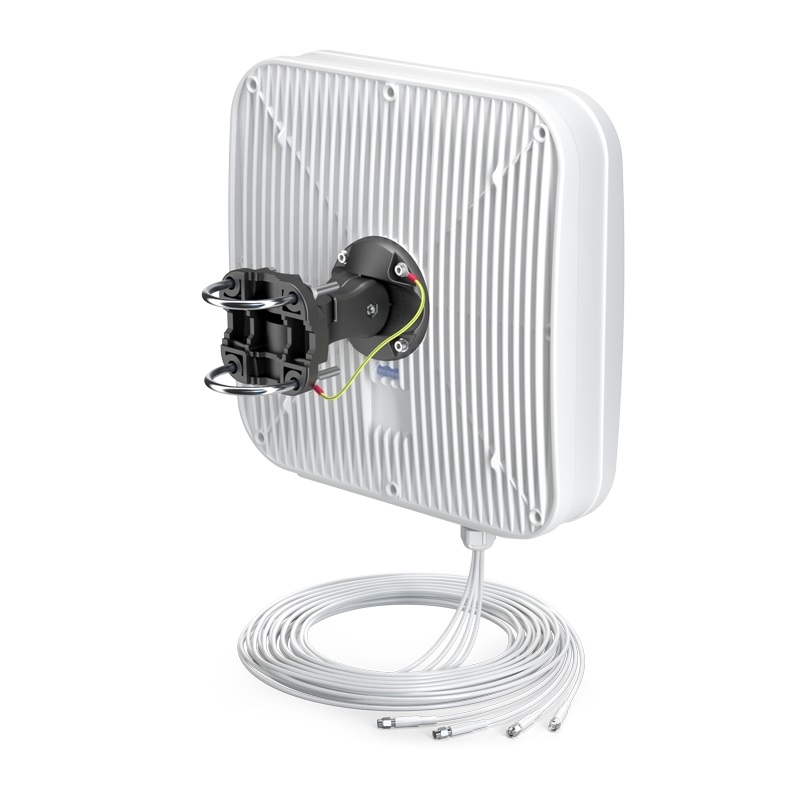

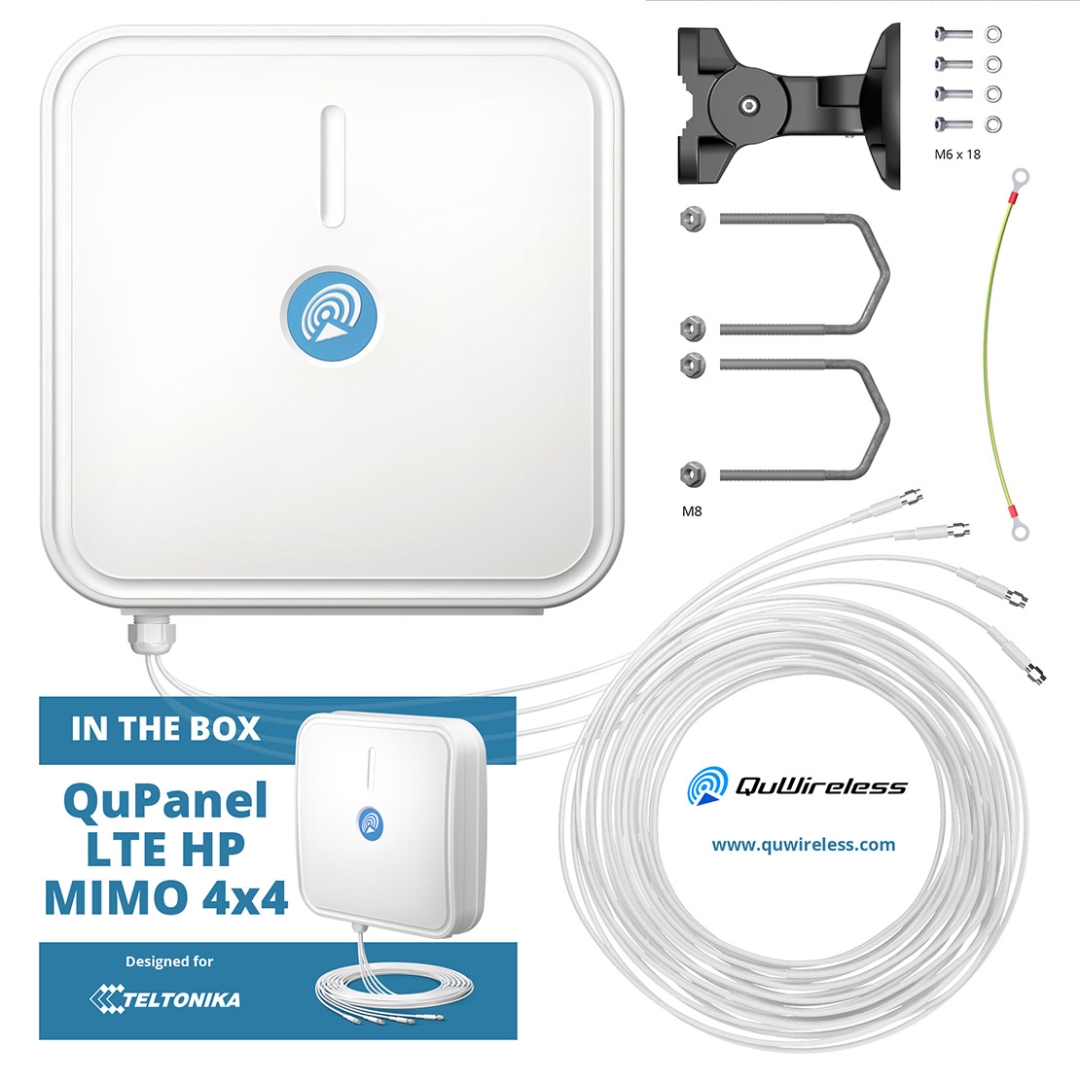

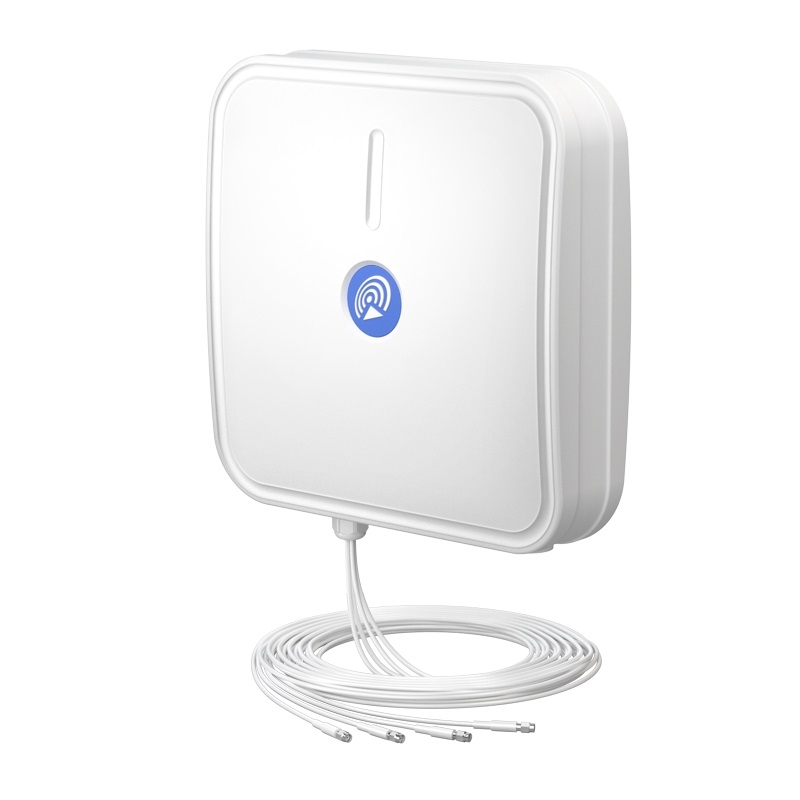

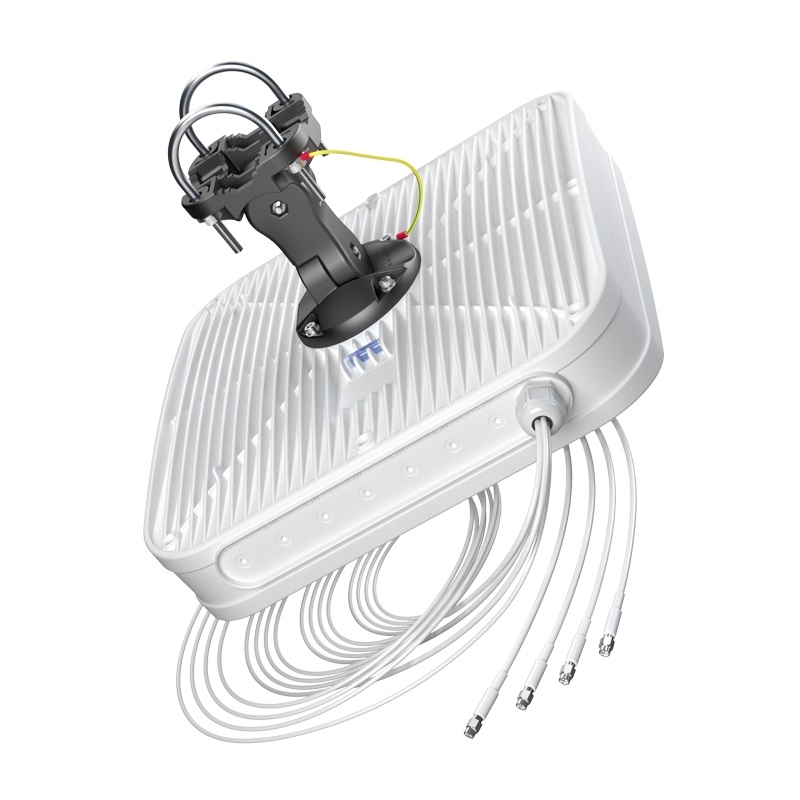

QuWireless Outdoor antenna QuPanel 5G/LTE HP MIMO 4x4, 5m cables (AP5G4)

MPN: AP5G4

Order code: AP5G4

Quick code: #3542

Directional High Power multiband 5G/LTE MIMO 4x4 antenna | 7 dBi gain | 694-3800 MHz frequencies | 4x SMA Male connectors | 4x 5m LMR195 cables

Price exc. VAT:	Price inc. VAT:	For orders (total sum):
132.10£	158.52£	>0£
129.89£	155.87£	>300£
127.69£	153.23£	>1000£
Qty:

Features:

QuPanel 5G/LTE directional MIMO 4x4 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It’s compatible with Teltonika and other MIMO 4x4 5G / LTE / 3G / 2G modems and routers.

Specification:

5G/LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz 3.3 - 3.8 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain	0.694 - 0.96 GHz : 7 dBi 1.7 - 2.2 GHz : 7 dBi 2.2 - 2.7 GHz : 7.5 dBi 3.3 - 3.8 GHz : 5.5 dBi
Front-to-Back	0.694 - 0.96 GHz : >10 dB 1.7 - 2.2 GHz : >12 dB 2.2 - 2.7 GHz : >14 dB 3.3 - 3.8 GHz : >17 dB
VSWR	<1.70, max <2.00
Beamwidth	70°/70° ±15°
Polarization	Dual polarized X-Pol
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress protection	IP67
Dimensions	392 x 392 x 99 mm 15.43 x 15.43 x 3.90 inch
Weight	3.7 kg 8.16 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F
Cable length	5m (P/N: AP5G4) or 10m (P/N: AP5G4-1)
Cable type	LMR195 white
Connector type	4x SMA plug
