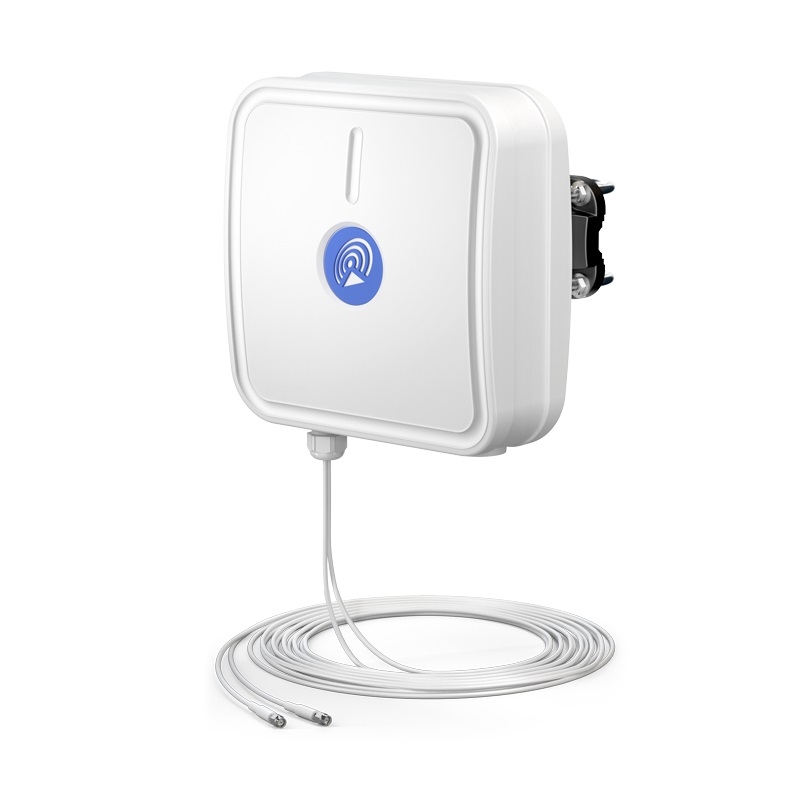

QuWireless Outdoor antenna QuPanel 5G/LTE MIMO 2x2, 5m cables (AP5G2)

MPN: AP5G2
Order code: AP5G2
Quick code: #3555

Directional High Power multiband 5G/LTE MIMO 2x2 antenna | max. 7.5 dBi gain | 0.694 - 0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz, 3.3 - 3.8 GHz frequencies | 2x SMA Male connectors | 2x 5m LMR195 cables (white)

Price exc. VAT: Price inc. VAT: For orders (total sum):
110.20£ 132.24£ >0£
108.36£ 130.03£ >300£
106.52£ 127.82£ >1000£
Qty:


Features:

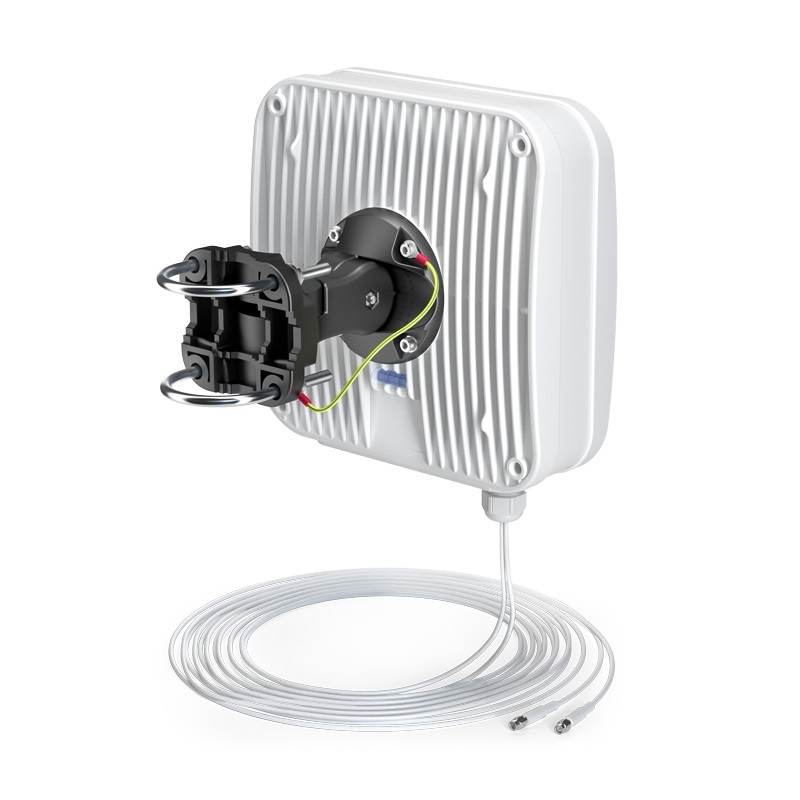

QuPanel 5G/LTE directional MIMO 2x2 high gain antenna is predicted for 5G and 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for 5G bands n77, n78 and LTE bands like LTE700 / 800 / 1800 / 1900 / 2100 / 2300 / 2600 / 3400 / 3800. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 5G / LTE / 3G / 2G modems and routers.

Specification:

5G/LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
3.3 - 3.8 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7.5 dBi
3.3 - 3.8 GHz : 5.5 dBi
Front-to-Back 0.694 - 0.96 GHz : >10 dB
1.7 - 2.2 GHz : >12 dB
2.2 - 2.7 GHz : >14 dB
3.3 - 3.8 GHz : >17 dB
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization Dual polarized X-Pol
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67

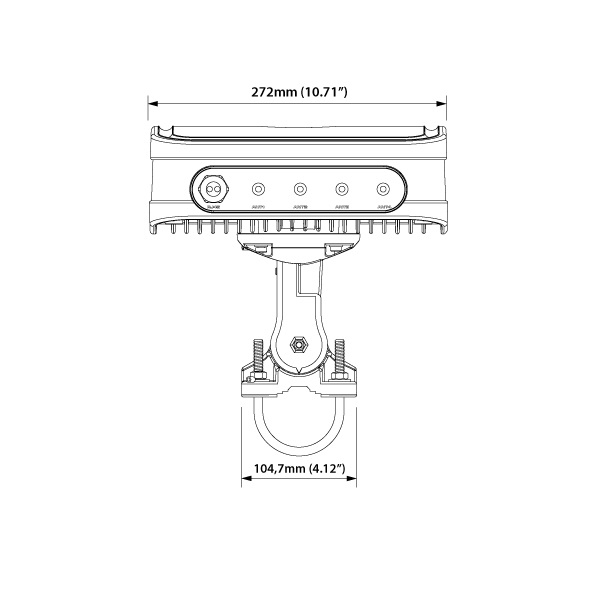

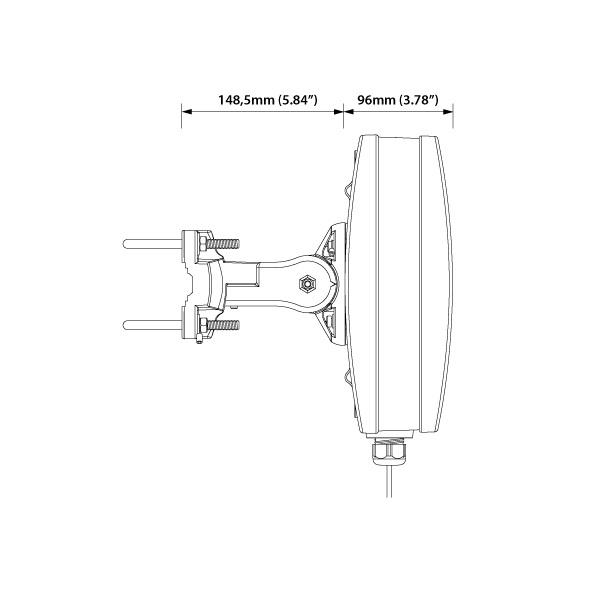

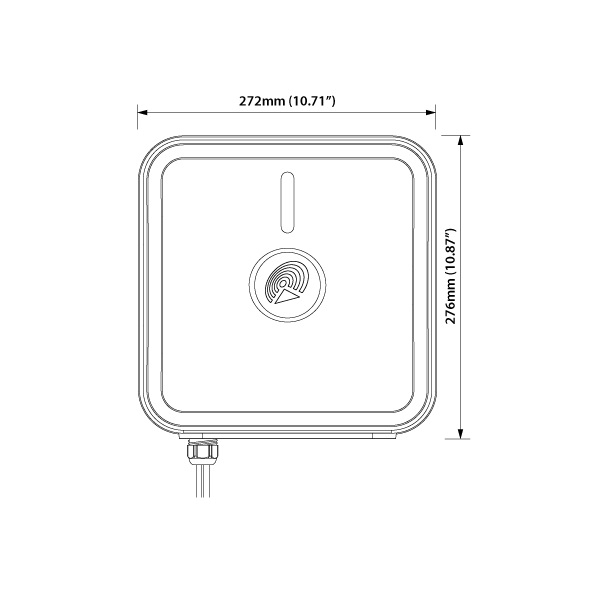

Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
Cable length 5m
Cable type LMR195 white
Connector type 2x SMA plug
