RBmAPL-2nD mAP lite AP (RouterOS Level 4)

Order code: RBmAPL-2nD
Quick code: #945

MIKROTIK RBmAPL-2nD mAP lite with QCA9533 CPU, 64MB RAM, 1x LAN port, PoE In, supports 802.3at, built-in 2.4Ghz 802.11bgn wireless with integrated antennas, magnetic base, plastic case, PSU

Price exc. VAT: Price inc. VAT: For orders (total sum):
16.56£ 19.87£ >0£
16.42£ 19.70£ >300£
16.17£ 19.40£ >1000£
Qty:
  Out of stock


Features:

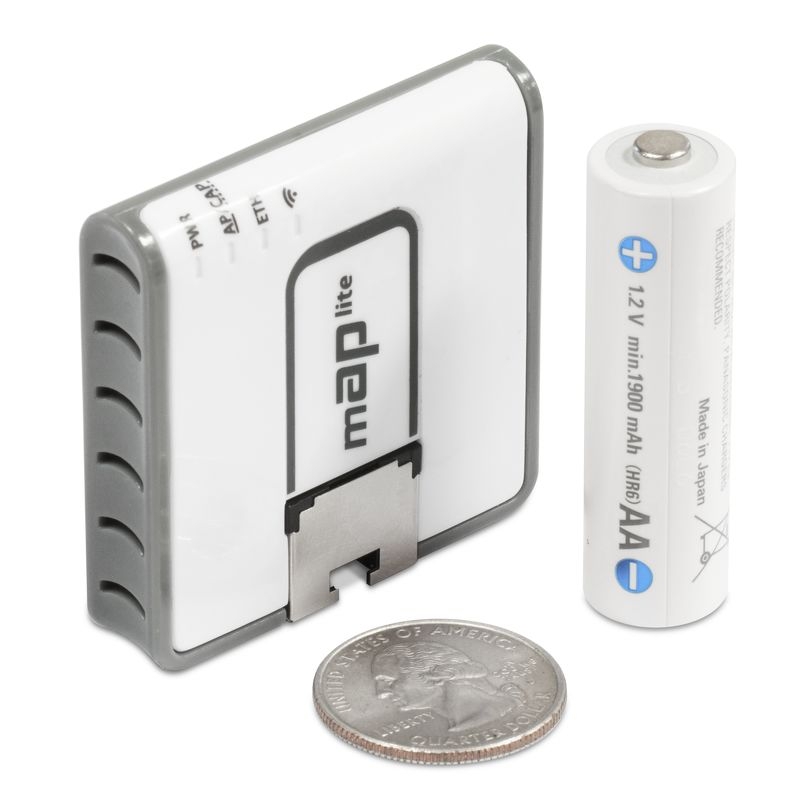

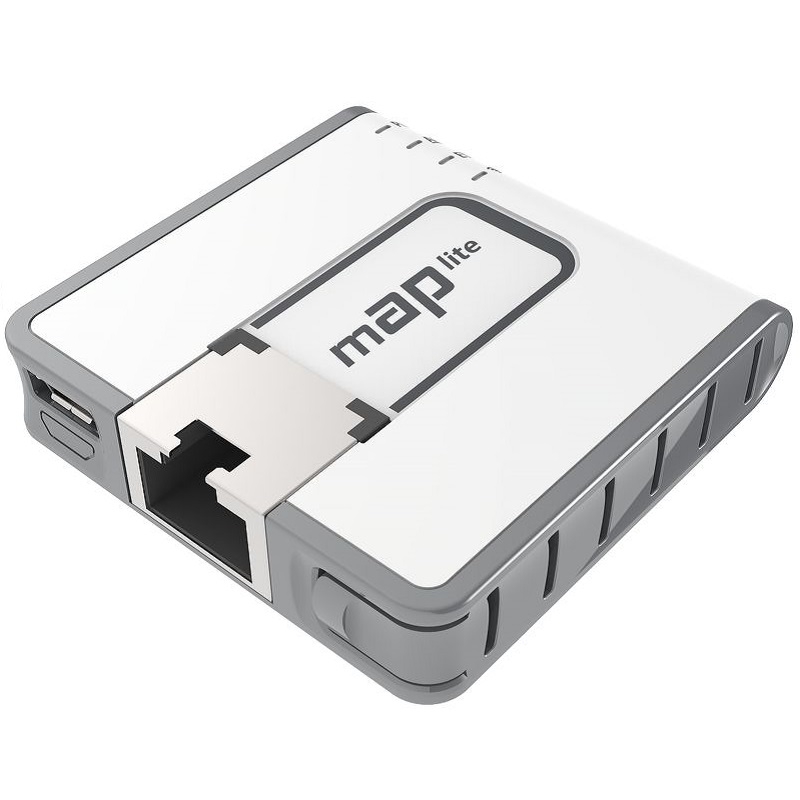

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

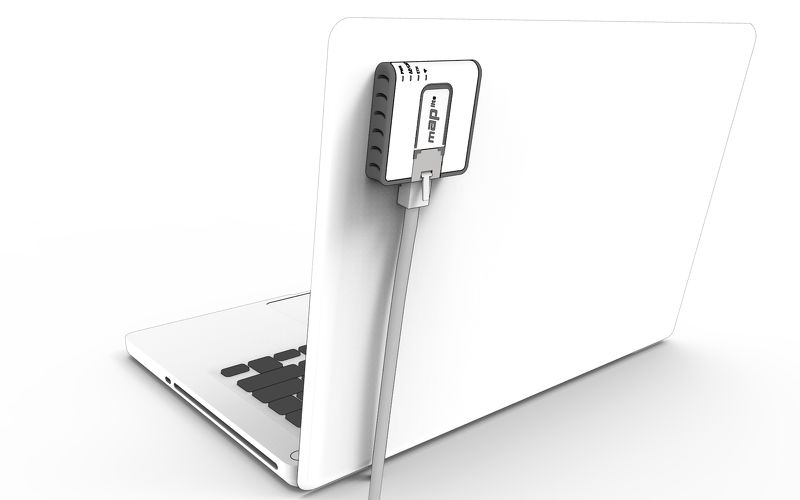

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

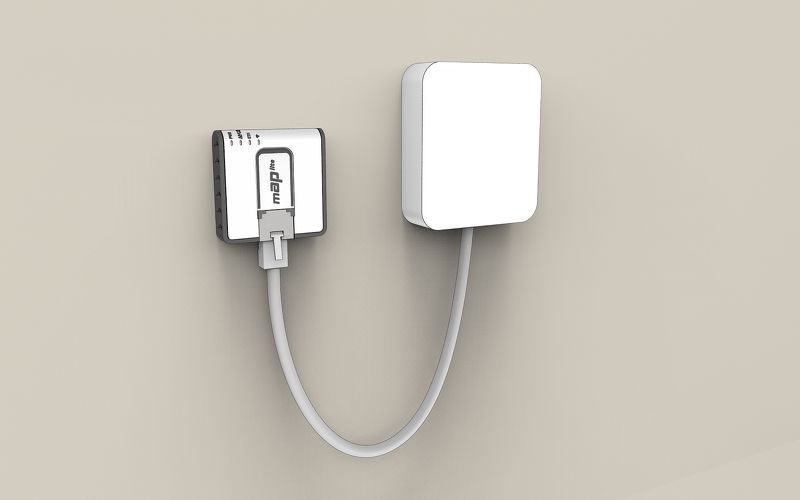

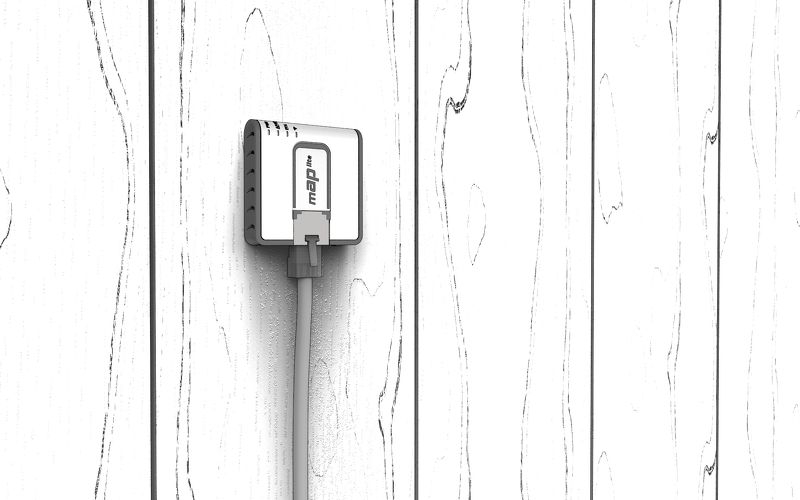

It comes with a built-in magnet, so you can attach it to any ferrous surface, or, if those are not available, a metallic plate with an adhesive back is also included.

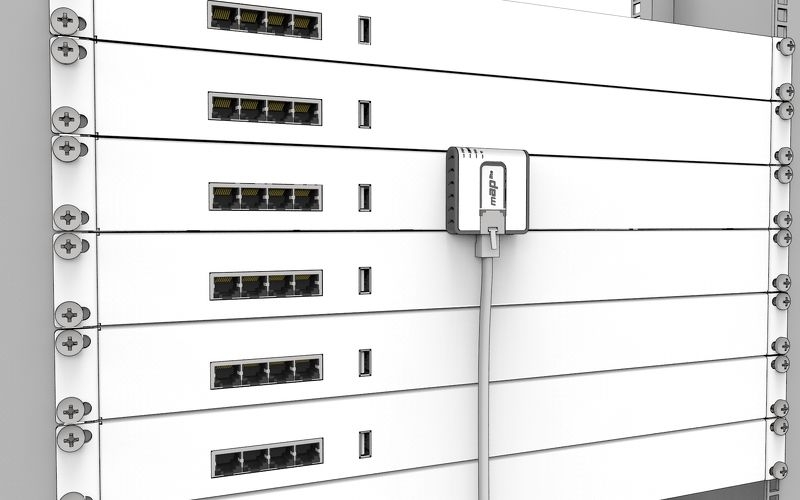

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device, plus, it neatly attaches to the rack with it’s magnet.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Specification:

Product code: RBmAPL-2nD
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 48x49x11mm
Operating System: RouterOS (License level 4)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -30 + 70 C

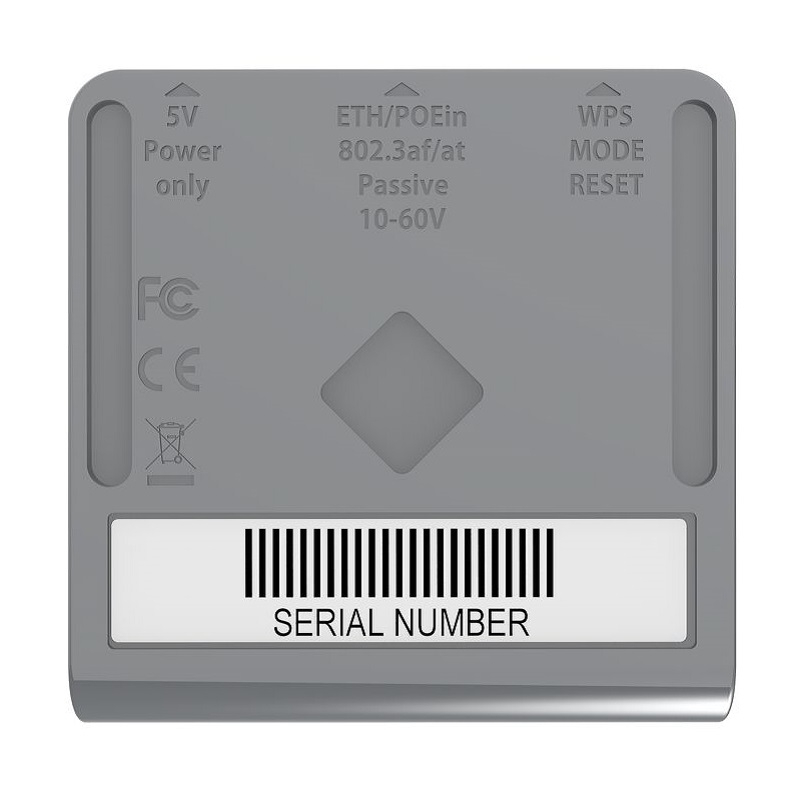

Powering

Max Power consumption: 3.5W
MicroUSB input Voltage: 5V
PoE in: 802.3af/at
PoE in input Voltage: 10-60 V
Number of DC inputs: 2 (PoE-IN, MicroUSB)

Wireless

Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9533

Ethernet

10/100 Ethernet ports: 1
