MIKROTIK LHG series 5 GHz outdoor wireless router LHG 5, 3 pack (RBLHG-5nD-3)
LHG 5 - 24.5 dBi dual-chain antenna (3 units) with built-in 5 GHz 802.11a/n , 1 x PoE LAN, TX power up to 316 mW, Router OS (Licenese level 3)
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|

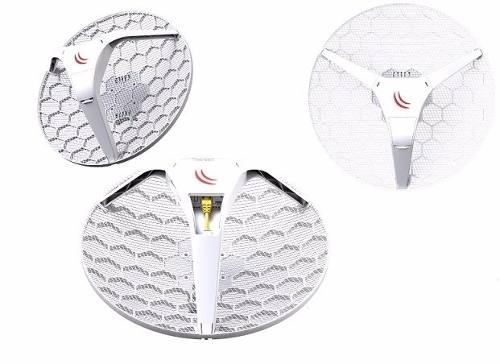

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.
RBLHG-5nD-3 (LHG 5 3pack) box contains 3 pieces.
Product code: RBLHG-5nD
CPU nominal frequency: 600 MHz
Size of RAM: 64 MB
Storage: 16 MB Flash
10/100 Ethernet ports: 1
Wireless: Built-in 5 GHz 802.11a/n, dual-chain
Wireless chip model: AR9344
Operating frequency: 5150 - 5875 MHz
Antenna gain: 24.5 +/- 0.5 dBi
Antenna beam width: 7°
Cross polar: 15 dBi
Port to port isolation: 20 dB
Front to back ratio: 25 dB
Return loss: 10 dB
PoE in: Yes
Supported input voltage: 11 V - 30 V (passive PoE)
Wind loading: 186N @ 205 km/h
Operating temperature: -40 to 70° C
Operating humidity: 5 to 95% noncondensing
Shock and vibration: ETSI300-019-1.4
ETSI specification: EN 302 326 DN2
Dimensions: Ø 391 x 222 mm; package 450 x 450 x 145 mm
Weight: Unit - 560 g; package - 1.98 kg
Max Power consumption: 6 W
Box contains 3 units
