MIKROTIK RB/912UAG-2HPnD (RouterOS Level 4)

Order code: RB912UAG-2HPnD
Quick code: #590

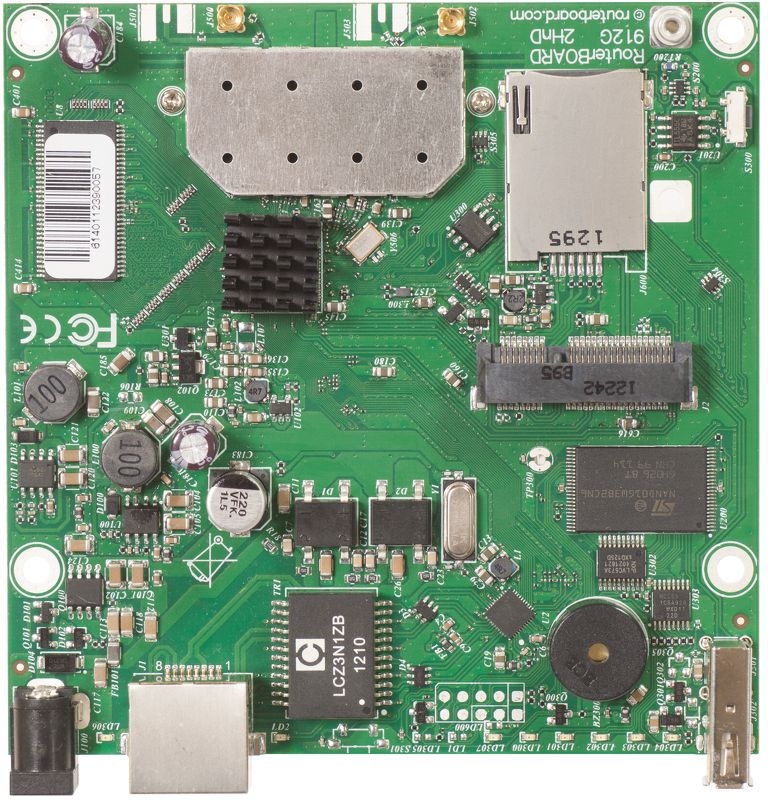

RouterBOARD RB912UAG-2HPnD with 600Mhz Atheros CPU, 64MB RAM, 1xGigabit LAN, USB, miniPCIe, built-in 2.4Ghz 802.11b/g/n 2x2 two chain wireless, 2xMMCX connectors, RouterOS L4

Price exc. VAT: Price inc. VAT: For orders (total sum):
48.40£ 58.08£ >0£
48.25£ 57.90£ >300£
47.15£ 56.58£ >1000£


The RB912UAG-2HPnD is very versatile device. It's small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports


Product code RB912UAG-2HPnD
CPU speed 600MHz
CPU cores 1
RAM 64
Architecture MIPS-E
LAN ports 0
Gigabit 1
MiniPCI 0
miniPCI-e 1
Integrated Wireless Yes
Wireless standards 802.11b/g/n
Power Jack 8-30V DC
802.3af support No
PoE 8-30V DC on Ether1
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
Temperature range -30C to +60C
RouterOS License Level4
Current Monitor No
TX power 30dBm
