MIKROTIK RouterBOARD hEX POE Lite (RB750UPr2) (RouterOS Level 4)

Order code: RB750UPr2
Quick code: #427

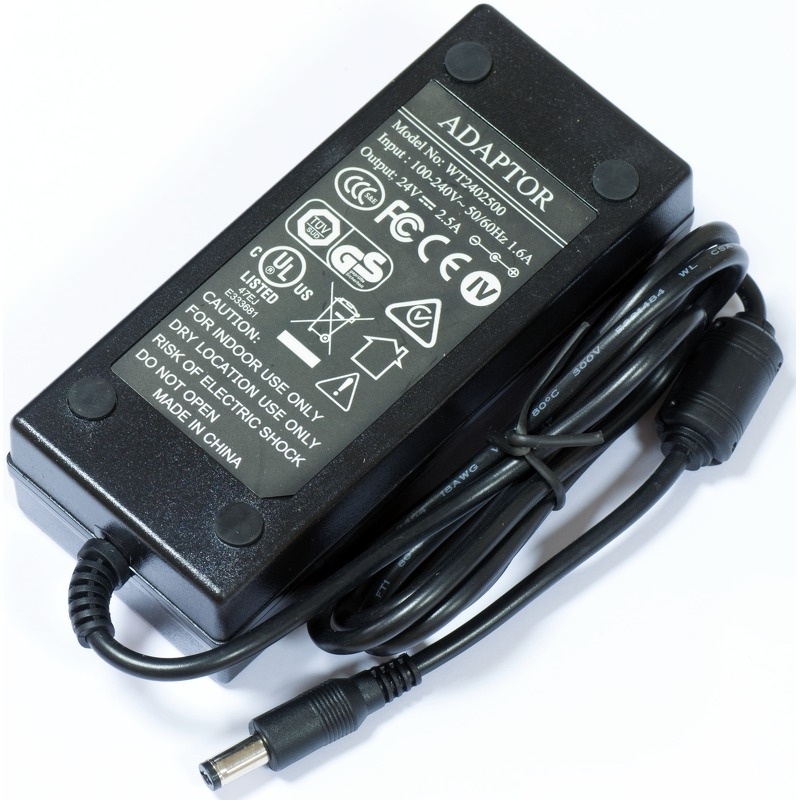

Ethernet Router | RouterBOARD 750UPr2 with QCA9531 650 MHz CPU, 64 MB, 5xLAN, 4x PoE, RouterOS L4, plastic case and PSU

Price exc. VAT: Price inc. VAT: For orders (total sum):
40.70£ 48.84£ >0£
40.35£ 48.42£ >300£
39.64£ 47.57£ >1000£
Qty:


Features:

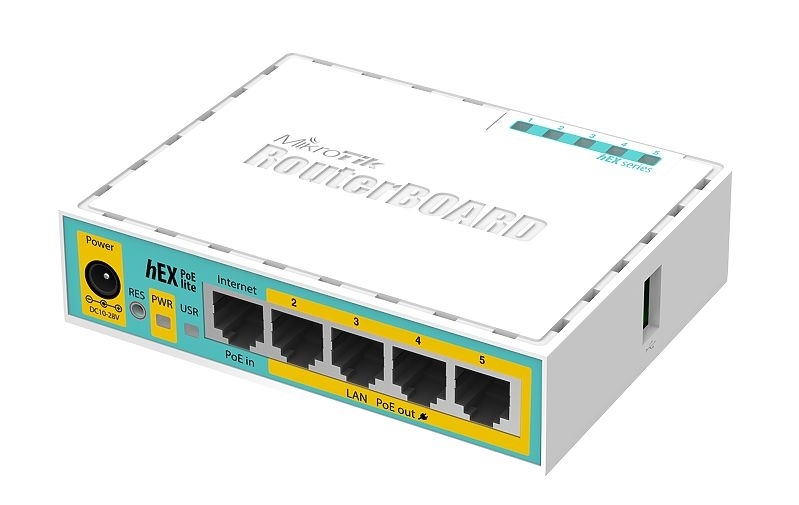

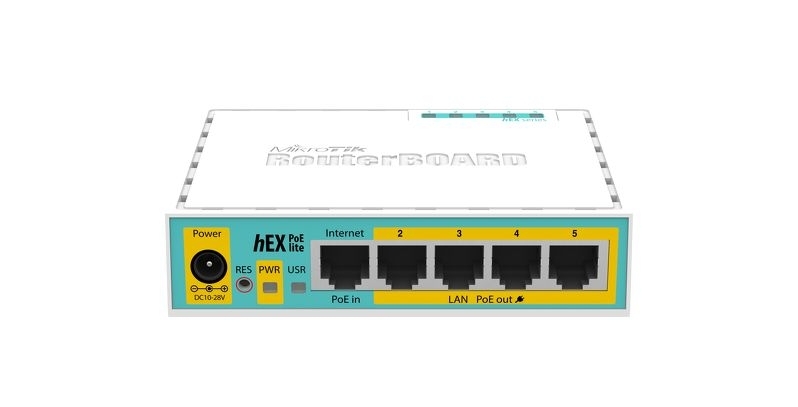

hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.

Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.

Specification:

Specifications

Product code RB750UPr2
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 113x89x28mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C


Powering

PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 51 W
Max power consumption without attachments 3 W


PoE-out

PoE-out ports Ether2-Ether5
PoE out Passive PoE
Max out per port output (input < 30 V) 1 A
Max total out (A) 2 A


Ethernet

10/100 Ethernet ports 5


Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Certification CE/RED, EAC, ROHS
