Order code: QM
Quick code: #874

quickMOUNT - Wall mount adapter, supports SXT, Omnitik, Basebox, anvilNITE material, supports up to two SXT units

Price exc. VAT: Price inc. VAT: For orders (total sum):
1.76£ 2.11£ >0£
1.75£ 2.10£ >300£
1.71£ 2.05£ >1000£

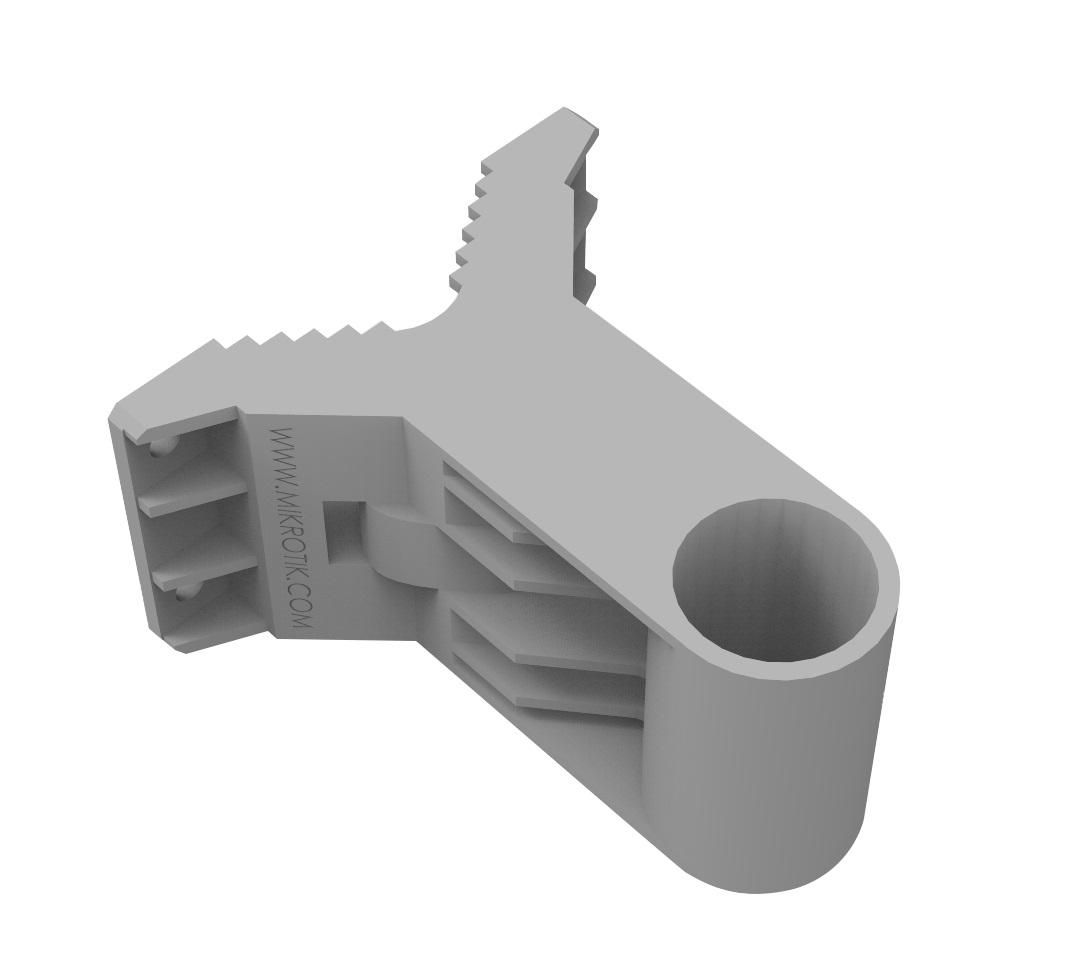

The quickMOUNT is a basic wall mount adapter for small point to point and
sector antennas.
You can mount it on the wall or use it as an adapter from large diameter
pole to small size antenna mounting clip ensuring reliable fitment. The
quickMOUNT gives possibility to turn antenna within 190°.
With the quickMOUNT it is possible to simultaneously mount two SXTs, thus
creating a repeater access point or creating large sector coverage.
You can use the quickMOUNT with any pole mountable device with weight
less than 1.5 Kg
• simple and low cost
• supports SXT, Omnitik, BaseBox or any other pole mountable device
• supports up to two SXT units
The adapter is very durable due to it’s special material composite -
anvilNITE (TM)


Dimensions 96x107.5x56 mm
Tube diameter 35 mm
Max tube diameter to which mount can be
attached 65 mm
Maximum antenna weight 1.5 kg
Maximum wind load 100N
Compatible devices SXT series, Omnitik, 3rd party antennas that are designed to be pole
Turn angle for Mikrotik products 190°
Operational temperature range ±40° C
Material anvilNITE™
