MIKROTIK RouterBOARD PowerBox (RB750P-PBr2) (RouterOS Level 4)

Order code: RB750P-PBr2
Quick code: #795

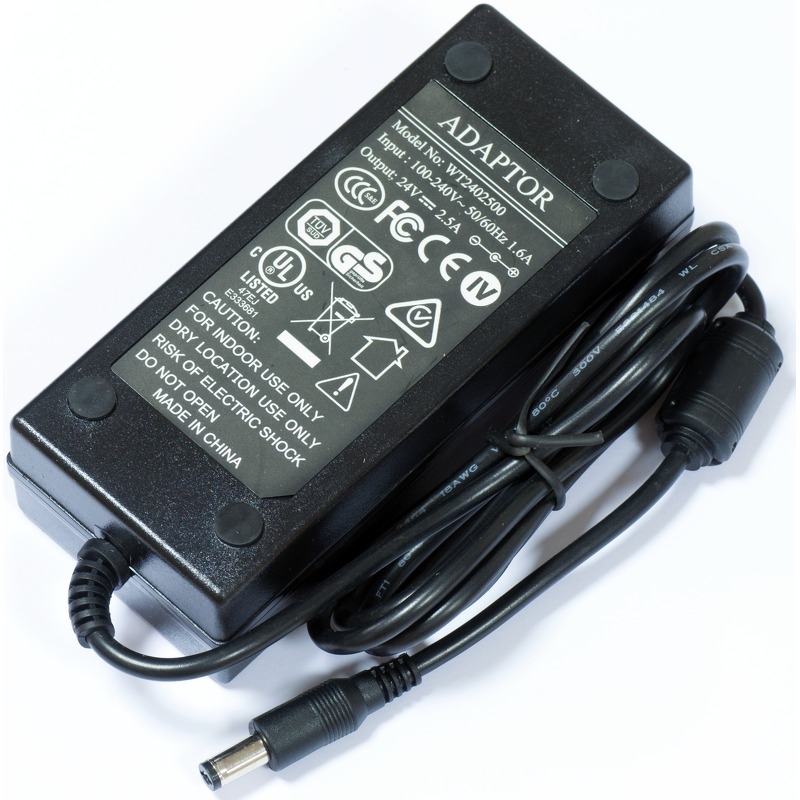

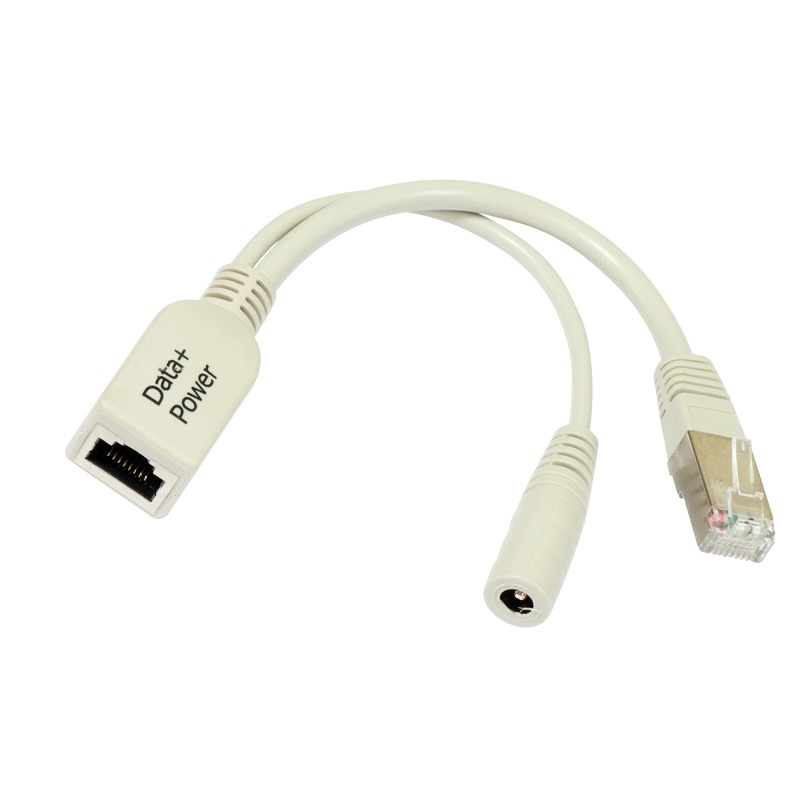

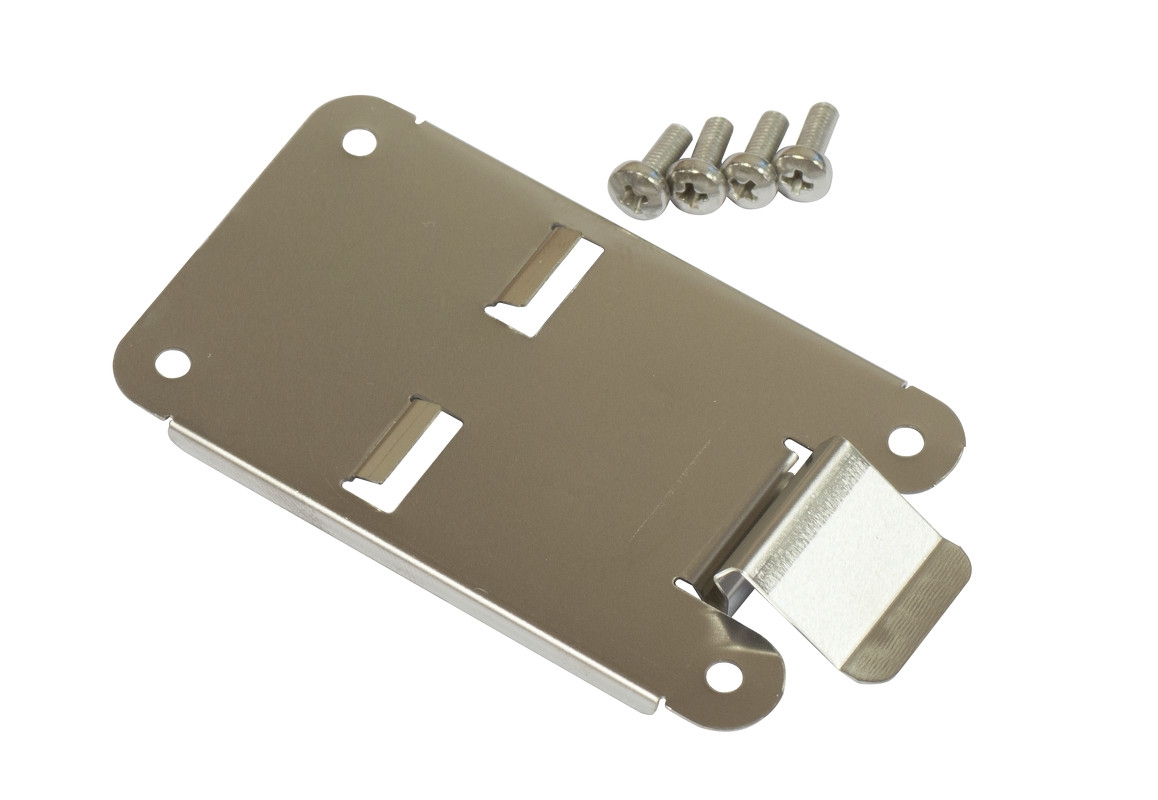

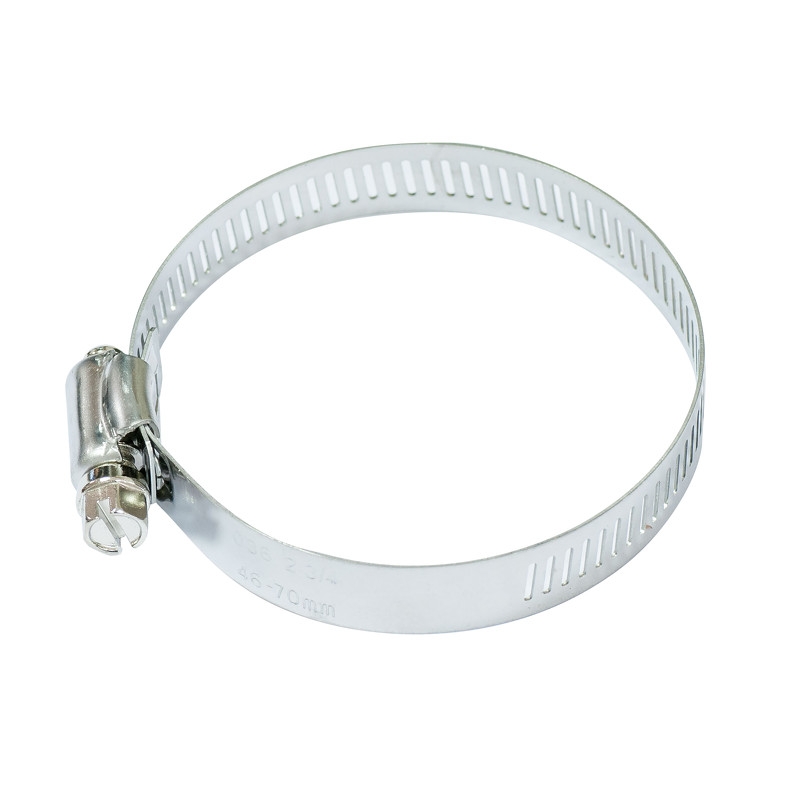

Ethernet Router | MIKROTIK PowerBox RB750P-PBr2 (QCA9531-BL3A-R 650MHz CPU, 64MB RAM, 5xLAN (four with PoE-OUT), RouterOS L4, outdoor case, PSU, PoE, mounting set)

Price exc. VAT: Price inc. VAT: For orders (total sum):
43.60£ 52.32£ >0£
43.23£ 51.88£ >300£
42.47£ 50.96£ >1000£
Qty:


Features:

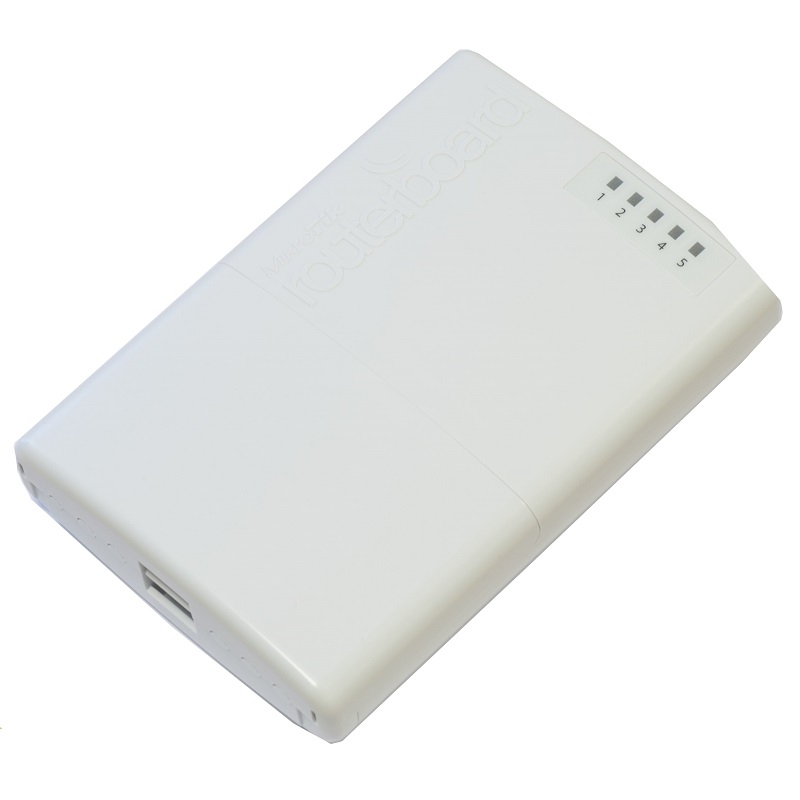

The PowerBOX is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.

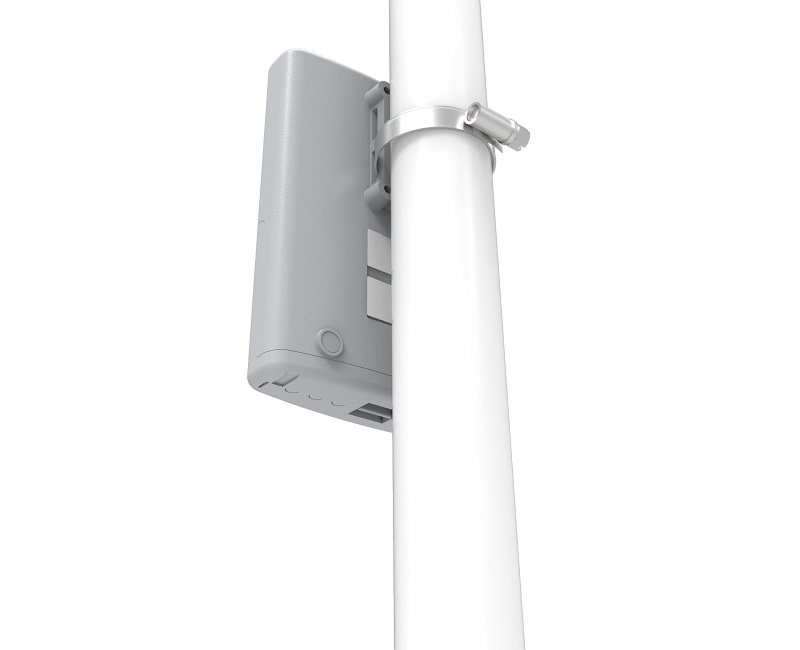

Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

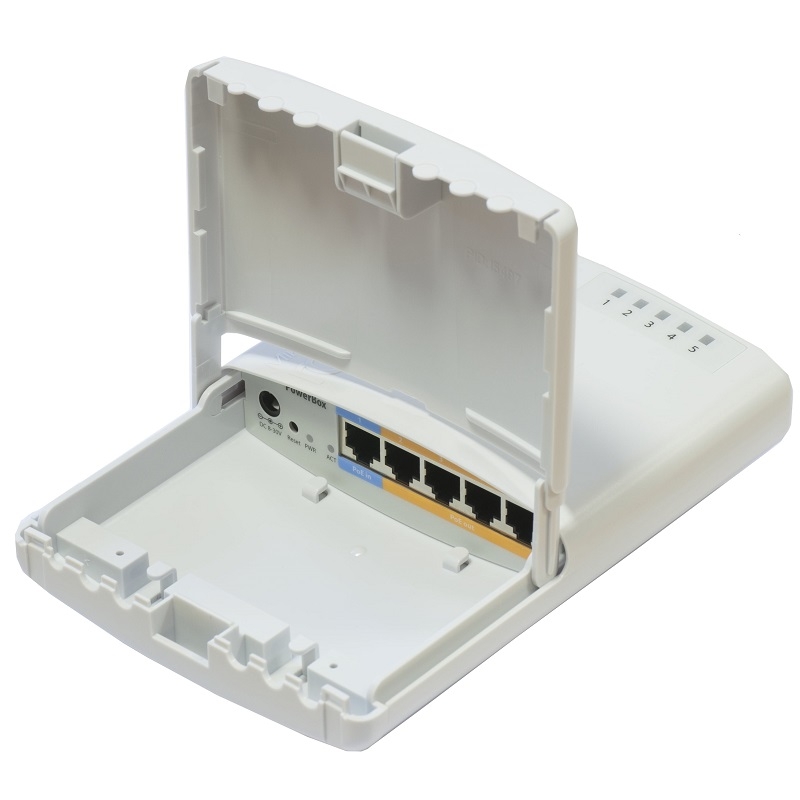

The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!

Specification:

Specifications

Product code RB750P-PBr2
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 125x178x48mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price $69.00


Powering

PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 50 W
Max power consumption without attachments 2 W


PoE-out

PoE-out ports Ether2-Ether5
PoE out Passive PoE
Max out per port output (input < 30 V) 1 A
Max total out (A) 2 A


Ethernet

10/100 Ethernet ports 5


Other

Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Certification CE/RED, EAC, ROHS
