Order code: MTAS-5G-15D120
Quick code: #897

Mikrotik MTAS-5G-15D120 - mANT 15s 5Ghz, 15dBi, 120 degrees, dual-polarization Sector antenna with two RP-SMA connectors

Price exc. VAT: Price inc. VAT: For orders (total sum):
39.75£ 47.70£ >0£
39.40£ 47.28£ >300£
38.72£ 46.46£ >1000£


Sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

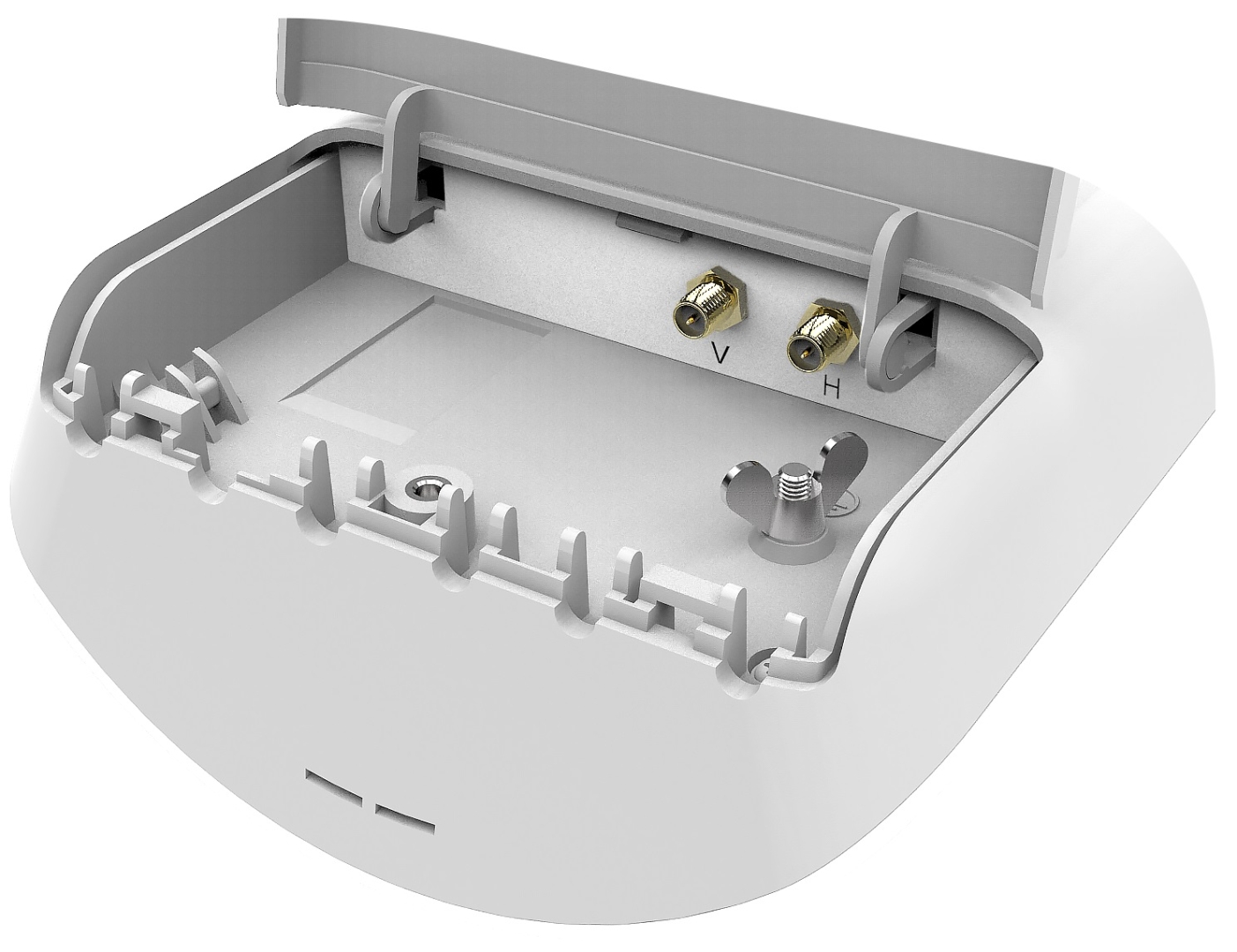

The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth.

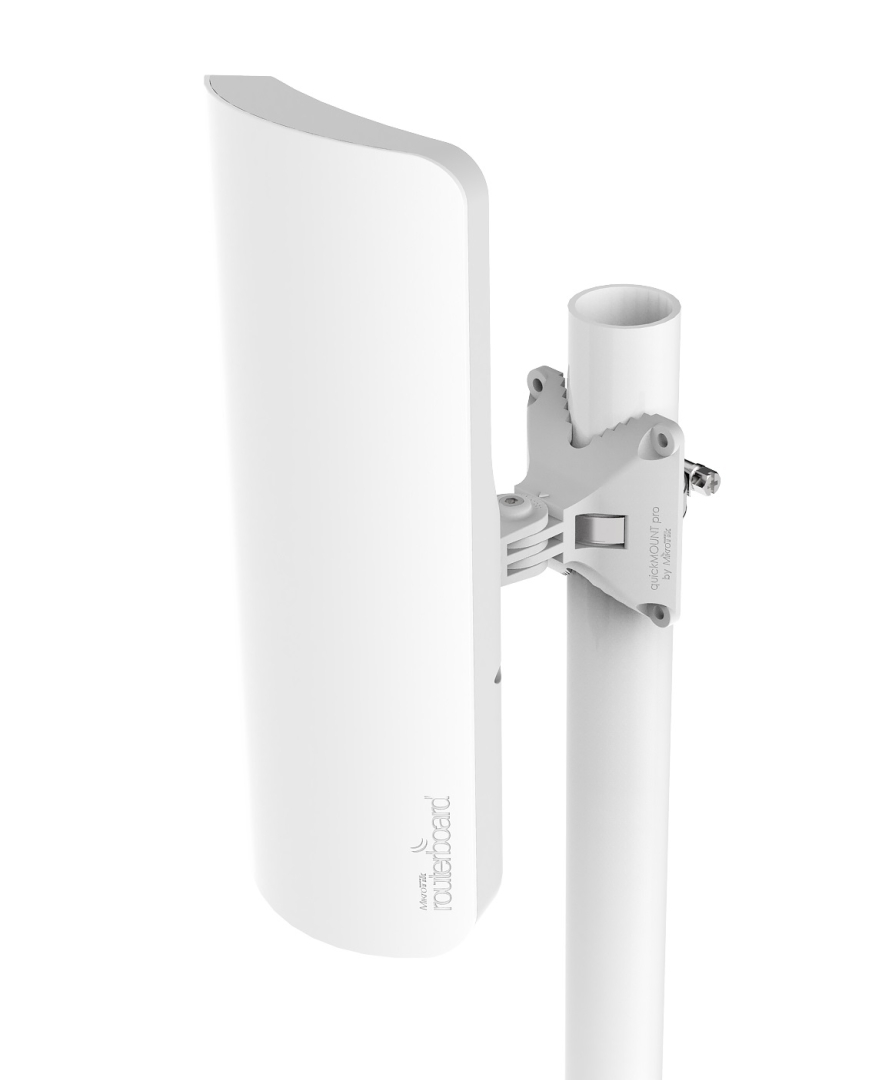

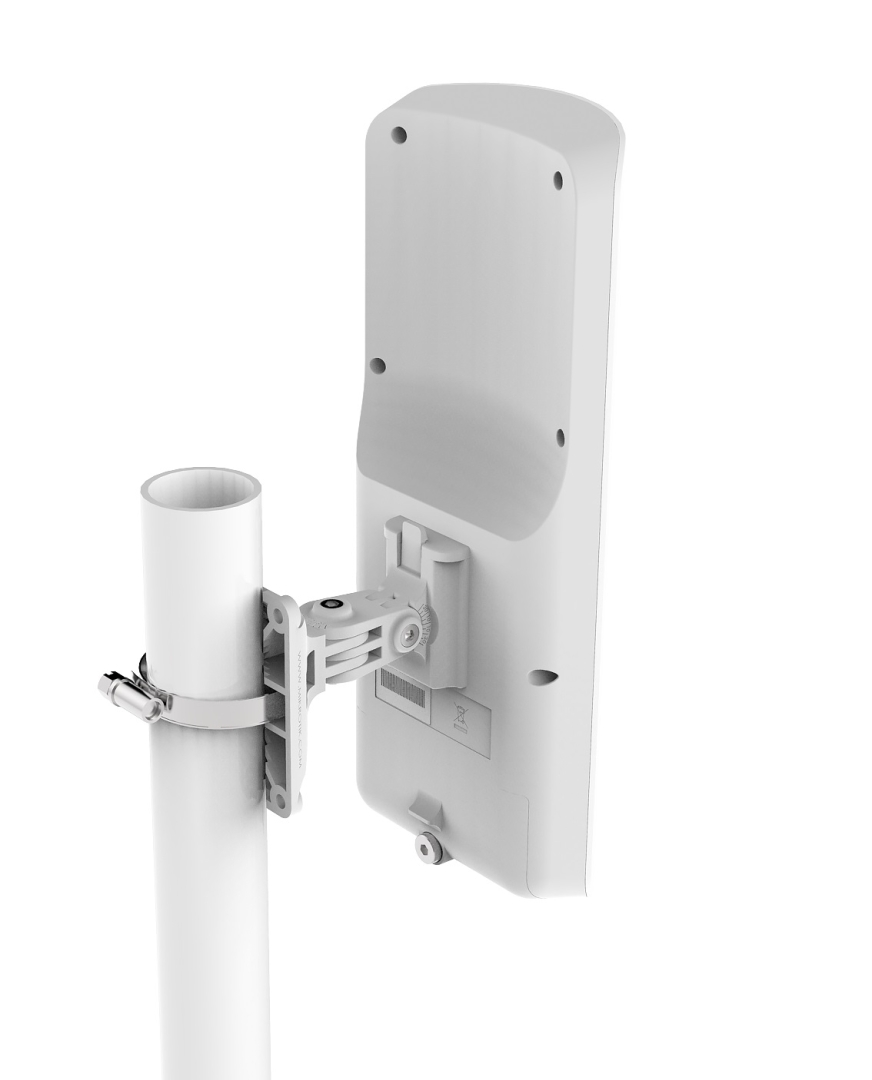

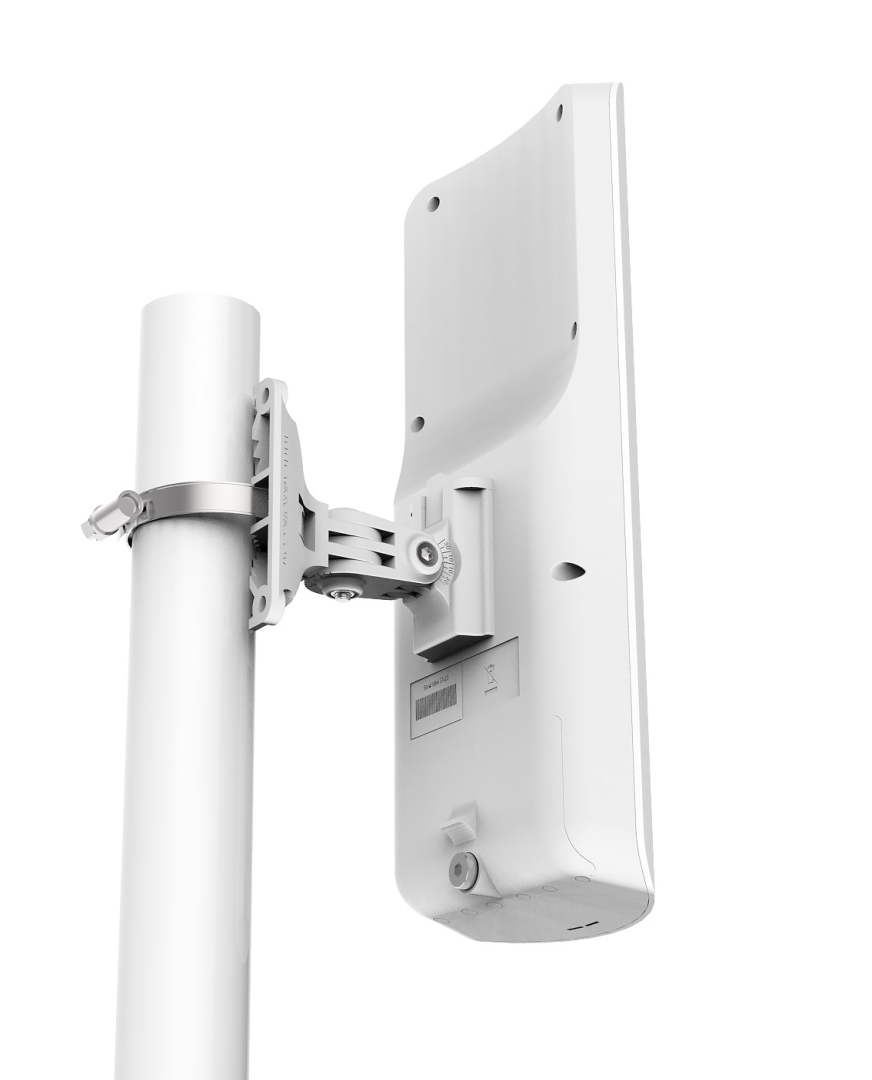

The mANT15s is compatible with the SXT type mount, so you can use it with Mikrotik durable and adjustable QuickMount systems.


Product code: MTAS-5G-15D120
Antenna gain: 15 dbi
Frequency range: 5.17 - 5.825 GHz
Polarization: Vertical and horizontal

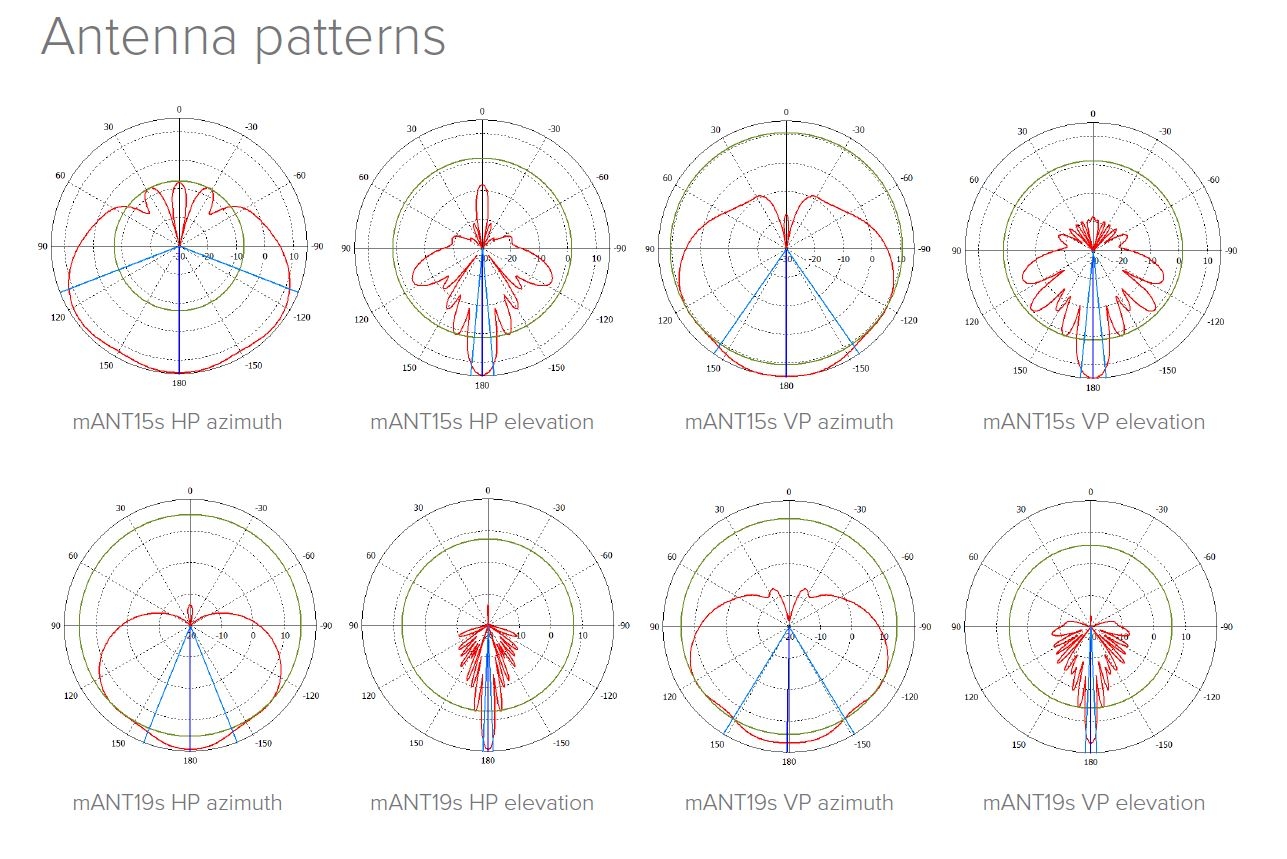

3DB Beamwidth - azimuth: 120 deg
3DB Beamwidth - elevation: 10 deg
VSWR: 1.43 typ, 1.8 max
Port to Port isolation: >40 dB min
Front-to-Back ratio: >30 dB
Cross Polarization: >30 dB
