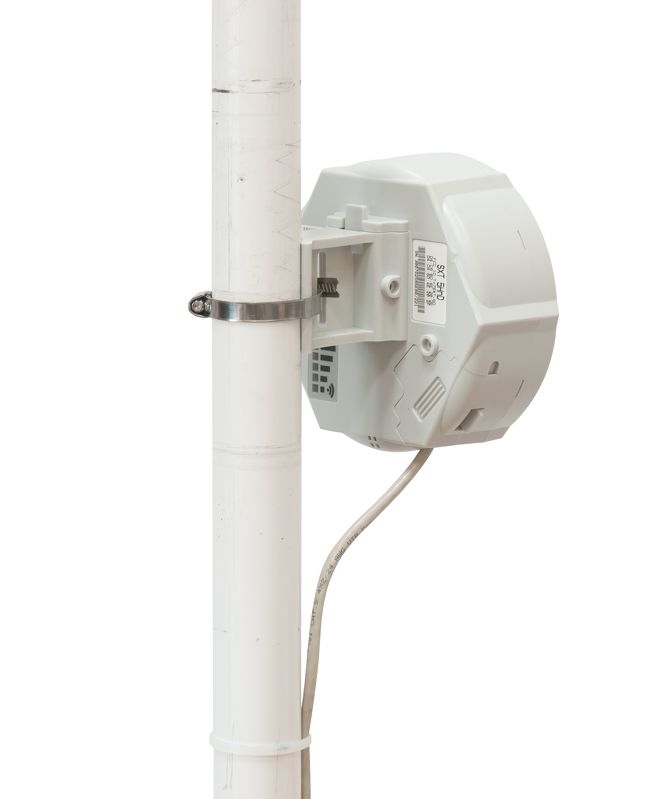

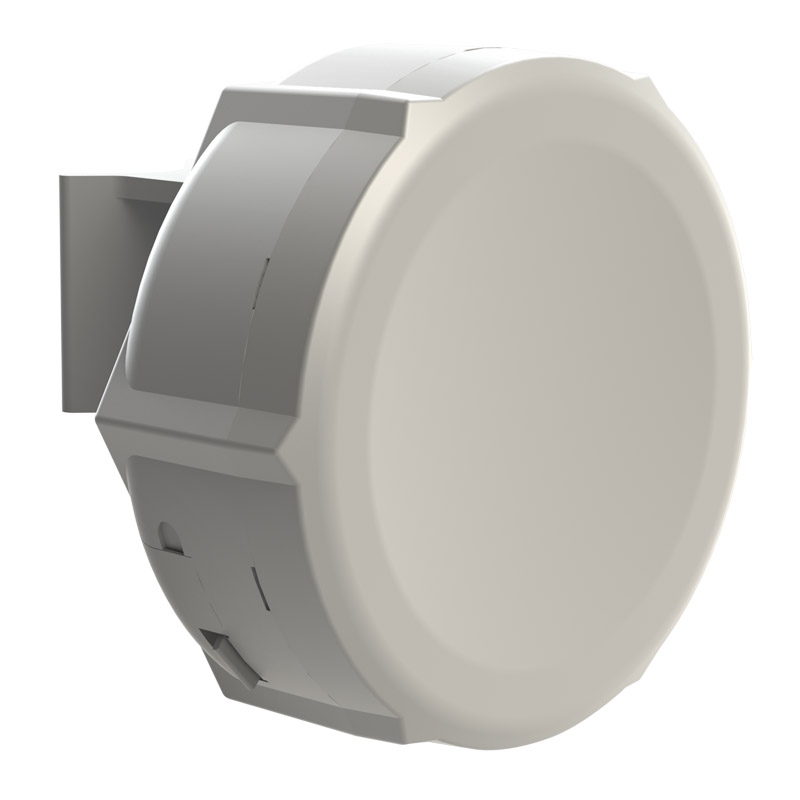

MIKROTIK RouterBOARD SXT SA5 ac (RBSXTG-5HPacD-SA) (License Level 4)

Order code: RBSXTG-5HPacD-SA
Quick code: #723

Wide beamwidth sector antenna / CPE| RBSXTG-5HPacD-SA with Dual Chain 802.11ac, 13dBi 90degree sector 5GHz antenna, 720MHz CPU, 128MB RAM, Gigabit Ethernet, USB, POE, PSU, pole mount, RouterOS L4

Price exc. VAT: Price inc. VAT: For orders (total sum):
72.45£ 86.94£ >0£
71.83£ 86.20£ >300£
70.58£ 84.70£ >1000£


The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beamwidth sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.

• 1300mW RF output
• extended temperature range -30C to +80C
• up to 540Mbps throughput
• low latency Point to Point


Product code    RBSXTG-5HPacD-SA
CPU nominal frequency    720 MHz
CPU core count    1
Size of RAM    128 MB
10/100 Ethernet ports    None
10/100/1000 Ethernet ports    1
MiniPCI slots    0
MiniPCI-e slots    0
Wireless chip model    QCA9882-BR4A-R
Wireless standards    802.11ac
Number of USB ports    1
Power Jack    0
PoE in    802.3at
Voltage Monitor    Yes
CPU temperature monitor    No
PCB temperature monitor    Yes
License level    4
Antenna gain DBI    13
Current Monitor    No
CPU    QCA9557-AT4A-R
Max Power consumption    12 W
SFP ports    None
SFP+ ports    None
USB slot type    USB type A
Supported Voltage    15-60V
Number of chains    2
Serial port    None
