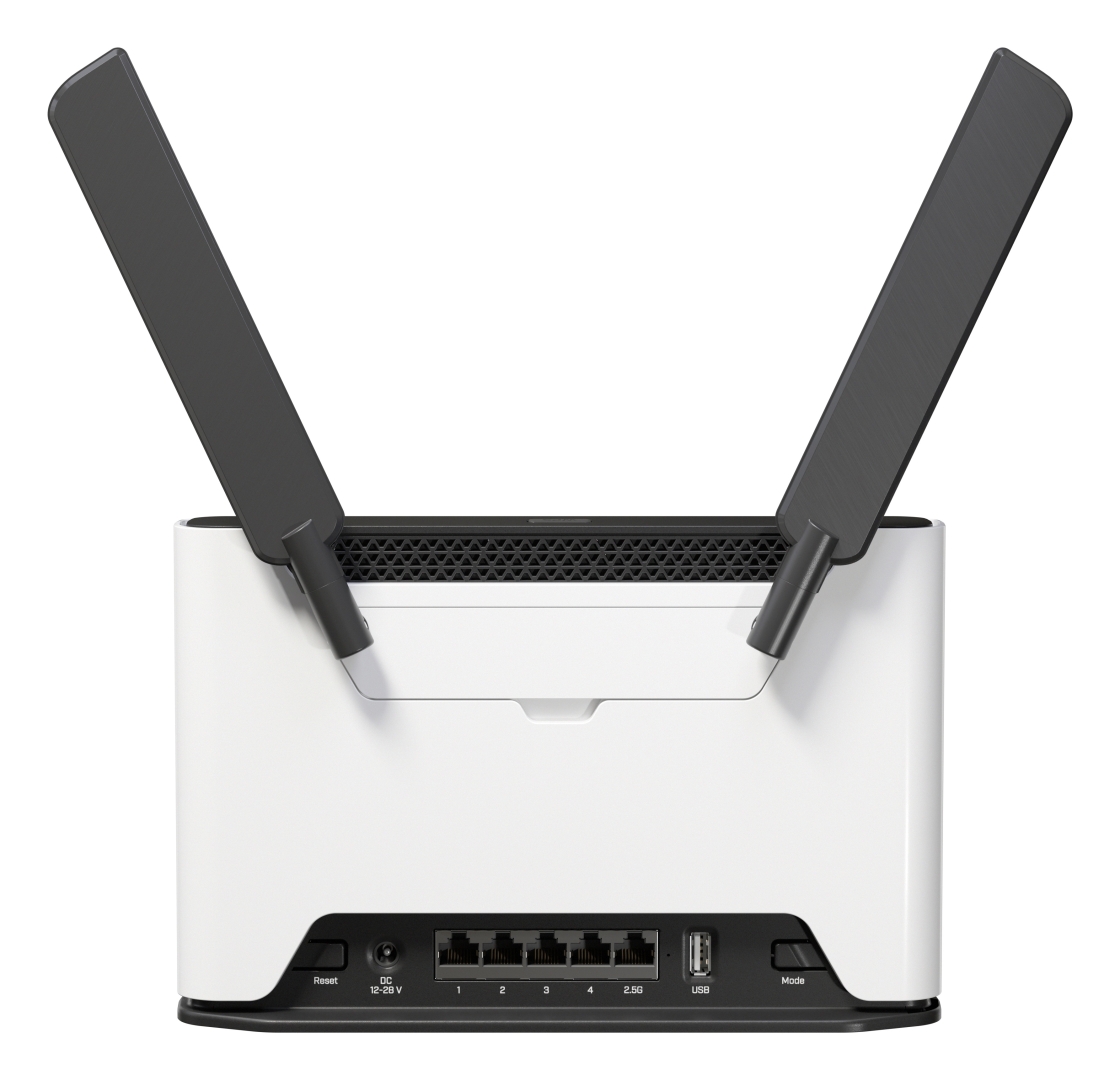

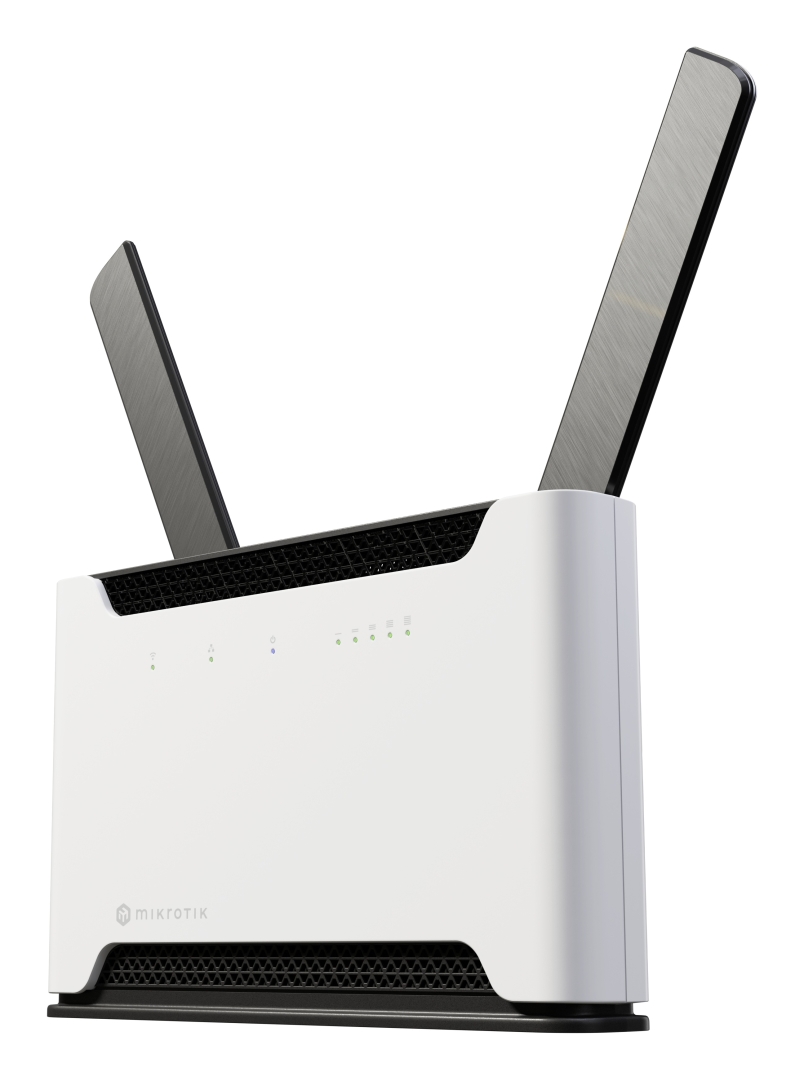

MIKROTIK Wi-Fi 6 Access Point, LTE ver.7 support, Chateau LTE7 ax (S53UG+5HaxD2HaxD-TC&R11e-LTE7)
Wi-Fi 6 | LTE 6 (300Mbps Downlink, 100 Mbps Uplink) | 2x2 MIMO (DL) LTE support | Max. Wi-Fi antenna gain 6 dBi | Carrier aggregation | 2.4 GHz 802.11b/g/n/ax dual-chain (up to 574 Mbit/s), 5 GHz 802.11a/n/ac/ax dual-chain (up to 1200 Mbit/s) | 1x 2.5 Gigabit LAN port | 4x Gigabit LAN ports | 1x USB 2.0 port | Router OS (Licence level 4)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 109.07£ | 130.88£ | >0£ |
| 108.13£ | 129.76£ | >300£ |
| 106.27£ | 127.52£ | >1000£ |
Features:
Mikrotik's favorite high-performance home and office LTE router just got a major upgrade. Chateau LTE7 ax keeps the same powerful hardware, sleek design, and Wi-Fi 6 performance – but now features an LTE Category 7 modem, expanded frequency support, and a significantly lower price than the previous LTE6 ax version.
Why upgrade to CAT7?
- Twice the upload speed (Depending on the LTE tower infrastructure and other variables)
- Expanded frequency support, including Band 28 (700 MHz) & Band 32 (1500 MHz) for better performance in congested areas
- Carrier aggregation (2×CA) for higher efficiency and responsiveness in busy networks
- Same trusted design – no changes to installation or configuration
- Lower cost – better connectivity that actually costs less, especially on volume orders
A powerful LTE router for demanding networks
Chateau LTE7 ax combines the new R11e-LTE7 modem with a quad-core ARM CPU, 1GB of RAM, Wi-Fi 6(802.11ax) dual-band wireless, and a 2.5 Gigabit Ethernet port for ultra-fast local connections. Run multiplesecure VPN tunnels, advanced firewall rules, advanced container setups, or complex routing scenarios– all while enjoying faster and more reliable mobile connectivity. Whether LTE is your primary connectionor a rock-solid backup to fiber, Chateau LTE7 ax adapts to your setup effortlessly… and in style!
Perfect for home offices, businesses, and ISPs
With five Ethernet ports (including a 2.5G port!), 2×2 MIMO LTE and full RouterOS v7 functionality, Chateau LTE7 ax fits a wide range of use cases:
- Secure home offices and remote work
- Small and medium-sized businesses
- LTE-based or hybrid ISP deployments
- Households that want performance and clean design
It’s equally comfortable in the hands of seasoned system administrators who need true flexibility – or users who just want to plug it in and forget it’s there.
Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill.
Specification:
Product code: S53UG+5HaxD2HaxD-TC&R11e-LTE7
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: 448-896 (auto) MHz
CPU Threads count: 4
Switch chip model: IPQ-6010
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 1 (DC jack)
DC jack input Voltage: 12-28 V
Max power consumption: 21.5 W
Max power consumption without attachments: 15.5 W
Cooling type: Passive
Mobile
3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands:
1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)
3 (1800 MHz)
LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
LTE TDD bands 38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
TAC 35312597
Wireless specifications
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz Number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: QCN-5022
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz Number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 6
Wireless 5 GHz chip model: QCN-5052
Wireless 5 GHz generation: Wi-Fi 6
Ethernet
10/100/1000 Ethernet ports: 4
Number of 2.5G Ethernet ports: 1
Peripherals
Number of SIM slots: 1 Modem (Micro SIM)
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other
CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 20
