MIKROTIK RouterBOARD wAP LoRa8 kit (wAP_LoRa8_kit) (License level 4)

MPN: RBwAPR-2nD&R11e-LR8
Order code: wAP_LoRa8_kit
Quick code: #2064

An out-of-the-box solution to use LoRaWAN gateway, Operates in 863-870 MHz frequency

Price exc. VAT: Price inc. VAT: For orders (total sum):
103.93£ 124.72£ >0£
103.60£ 124.32£ >300£
101.80£ 122.16£ >1000£
Qty:


Features:

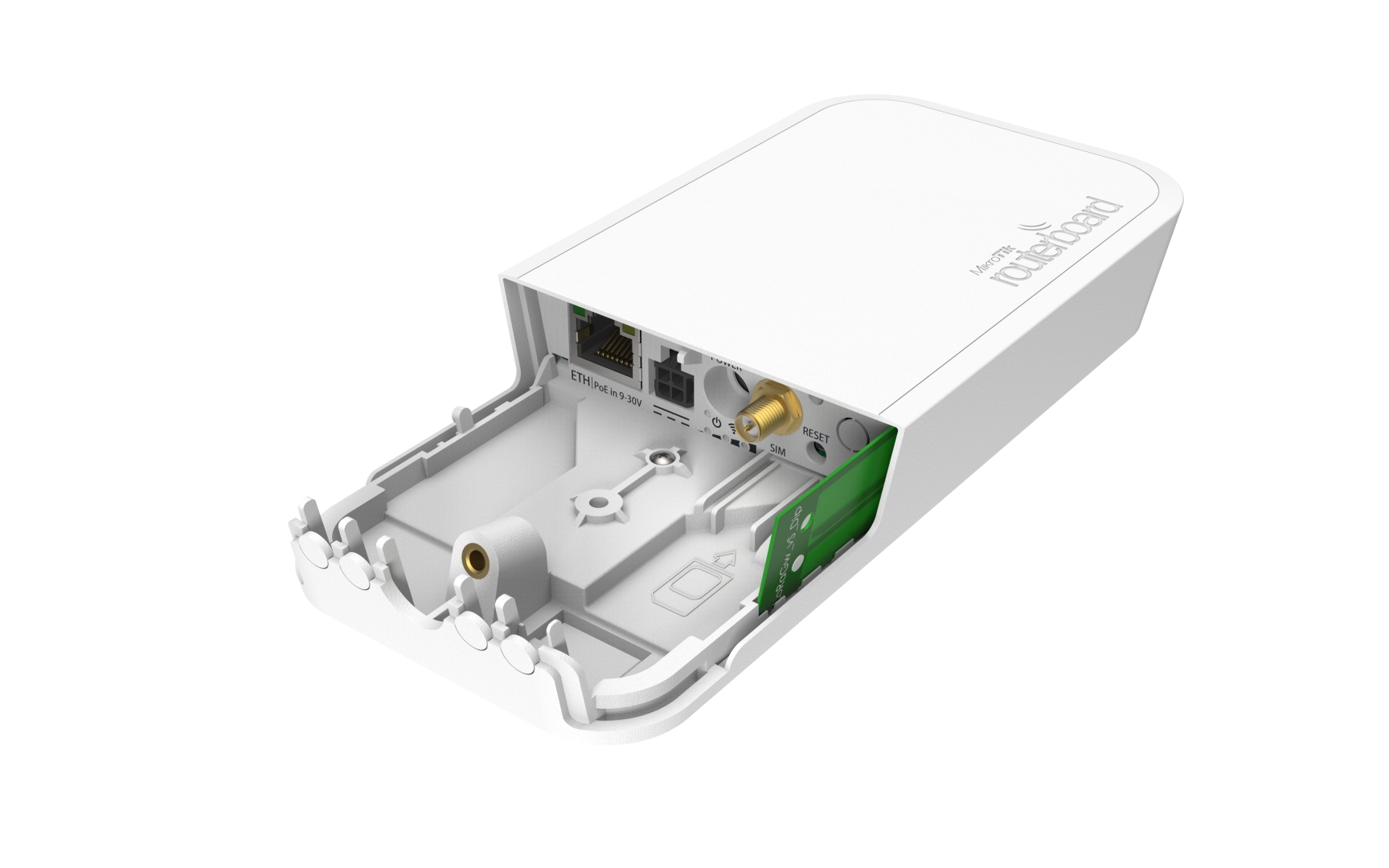

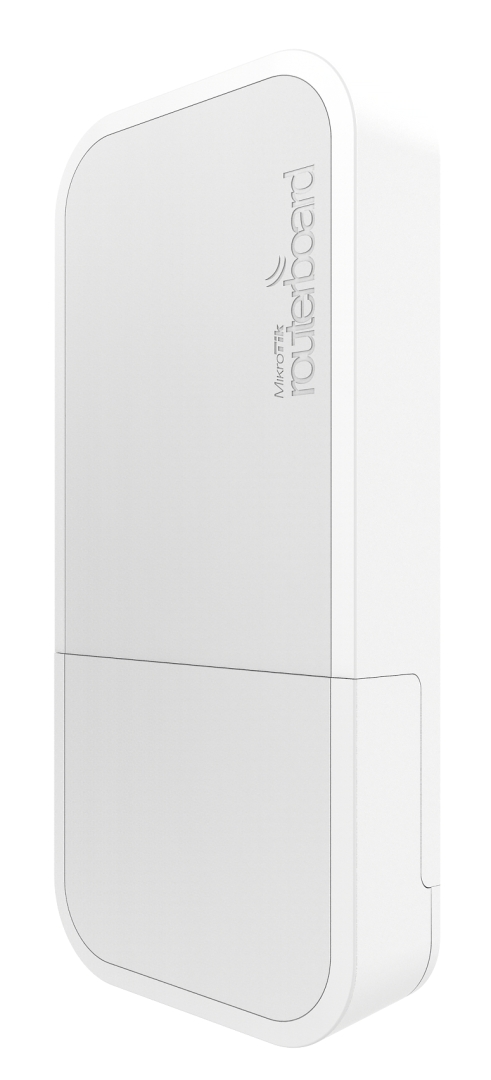

wAP LR8 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.

wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.

Specification:

Details
Product code RBwAPR-2nD&R11e-LR8
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 54

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71

Included parts

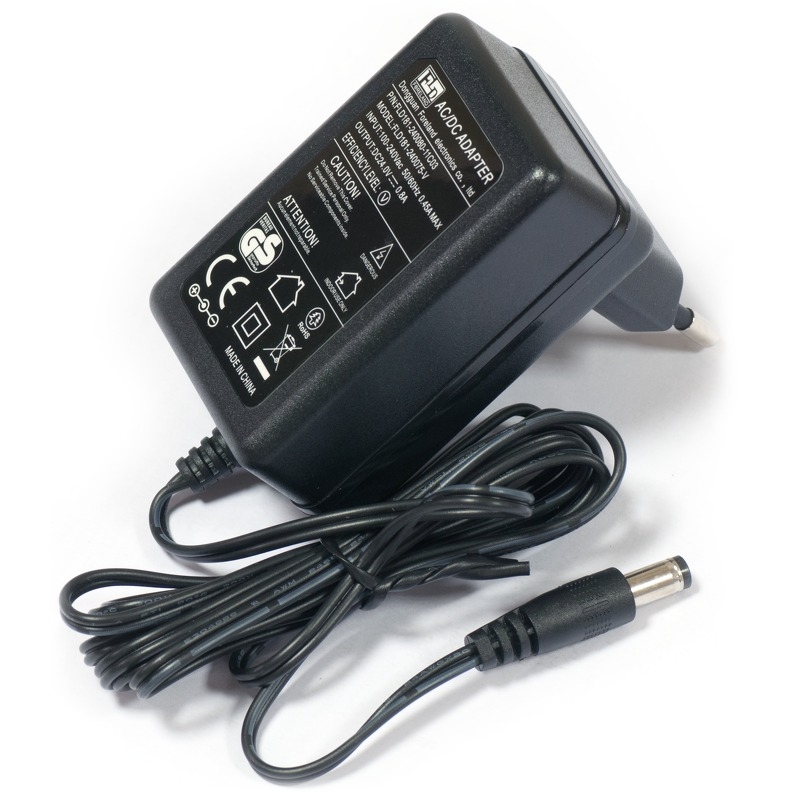

  • 24V 0.8A power adapter

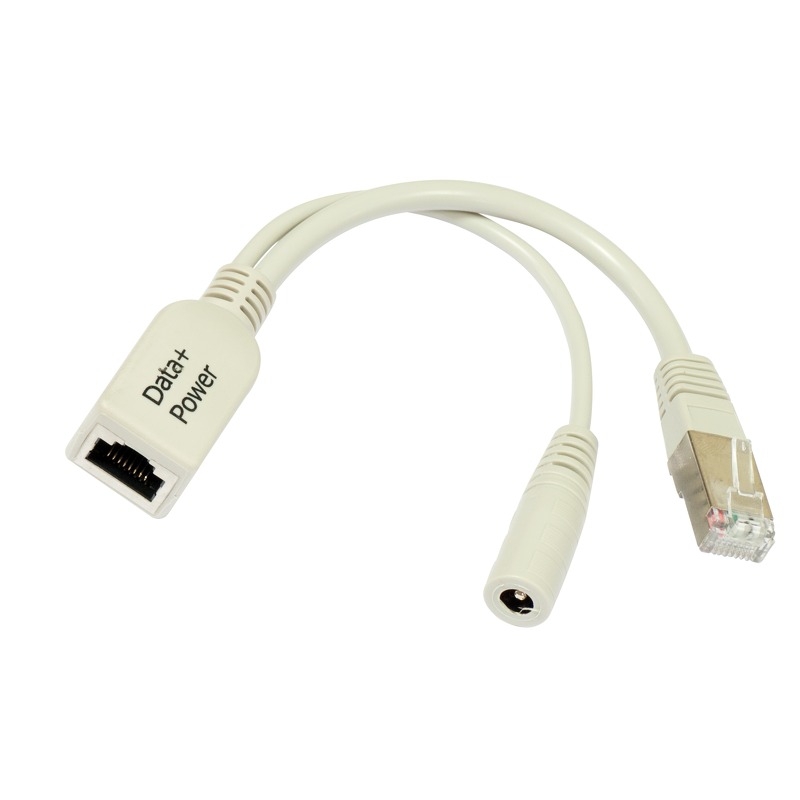

  • PoE injector

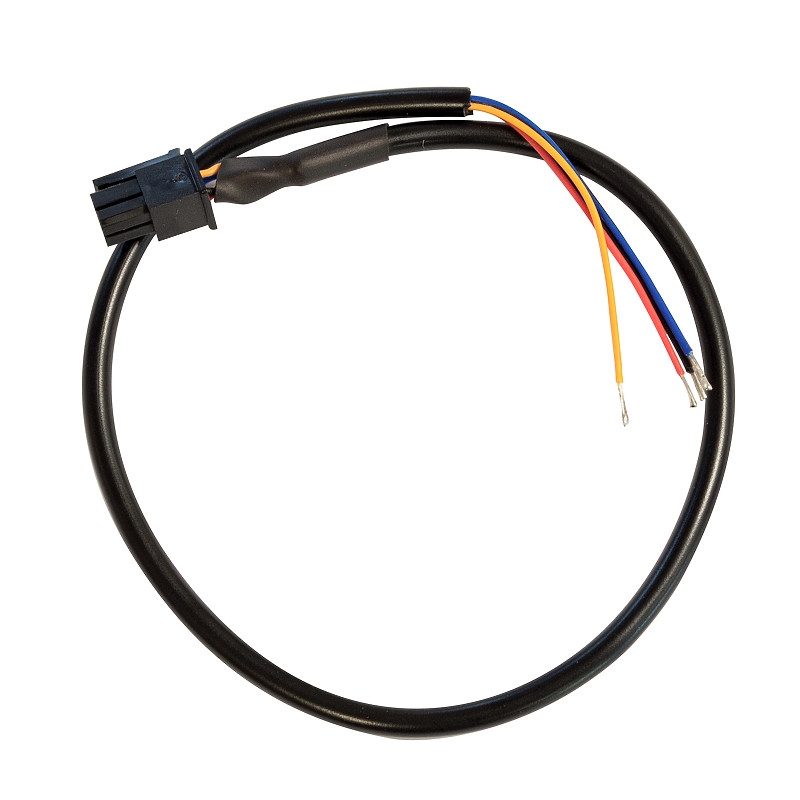

  • 0.35m 4pin Automotive adapter cable

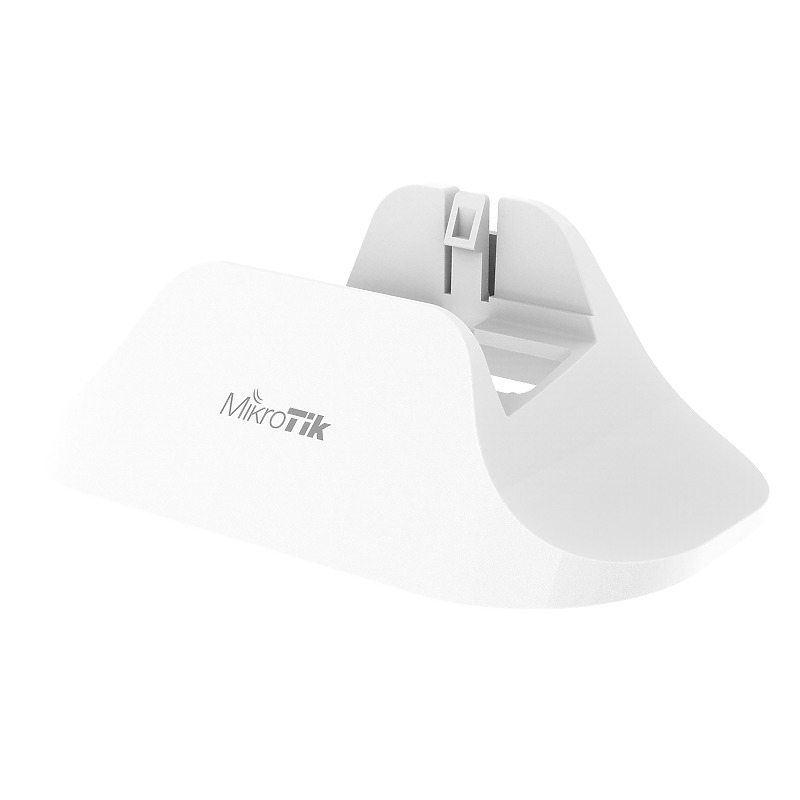

  • wAP desktop stand

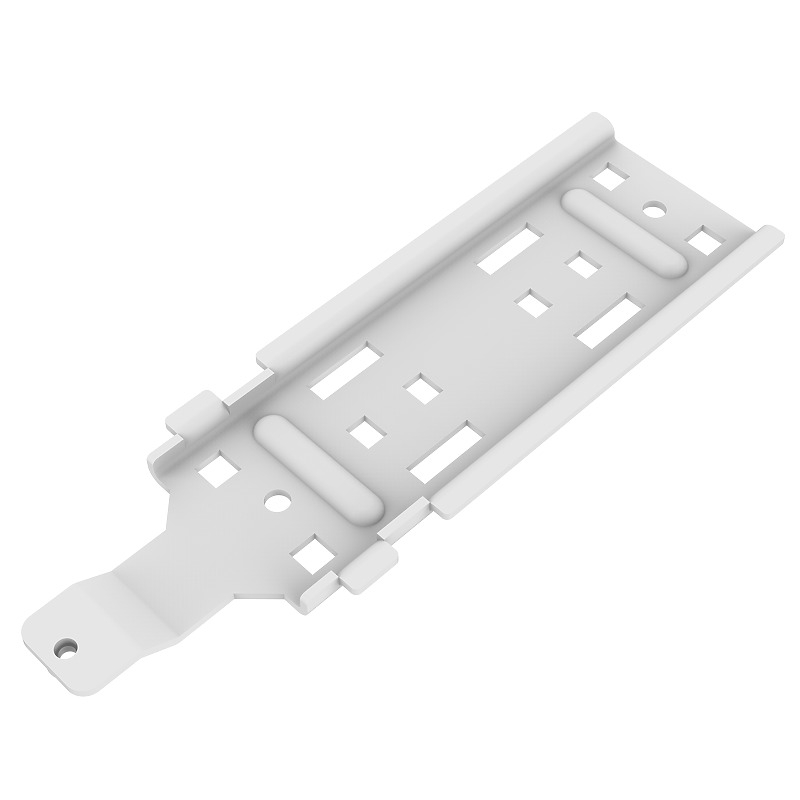

  • wAP mount bracket

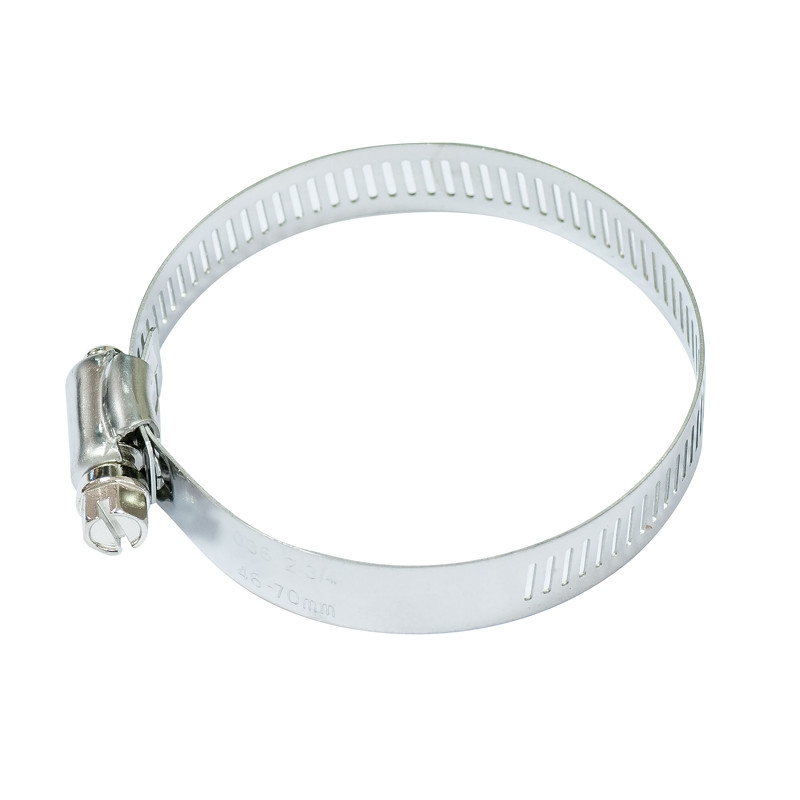

  • Metal ring (one)
