MIKROTIK RouterBOARD SXTsq Lite2 (RBSXTsq2nD) (License Level 3)

Order code: RBSXTsq2nD
Quick code: #1547

Outdoor CPE/PtP | SXTsq series outdoor wireless device with an integrated antenna, Low-cost small-size 10dBi 2.4GHz dual chain integrated CPE/Backbone, 1 x PoE LAN, Router OS (License level 3)

Price exc. VAT: Price inc. VAT: For orders (total sum):
23.63£ 28.36£ >0£
23.42£ 28.10£ >300£
23.01£ 27.61£ >1000£

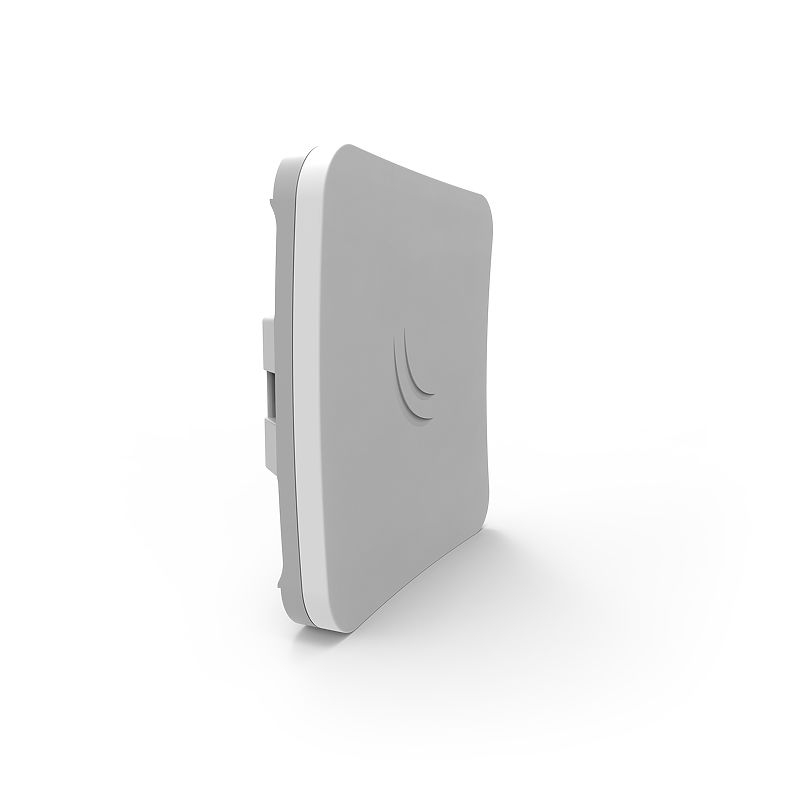

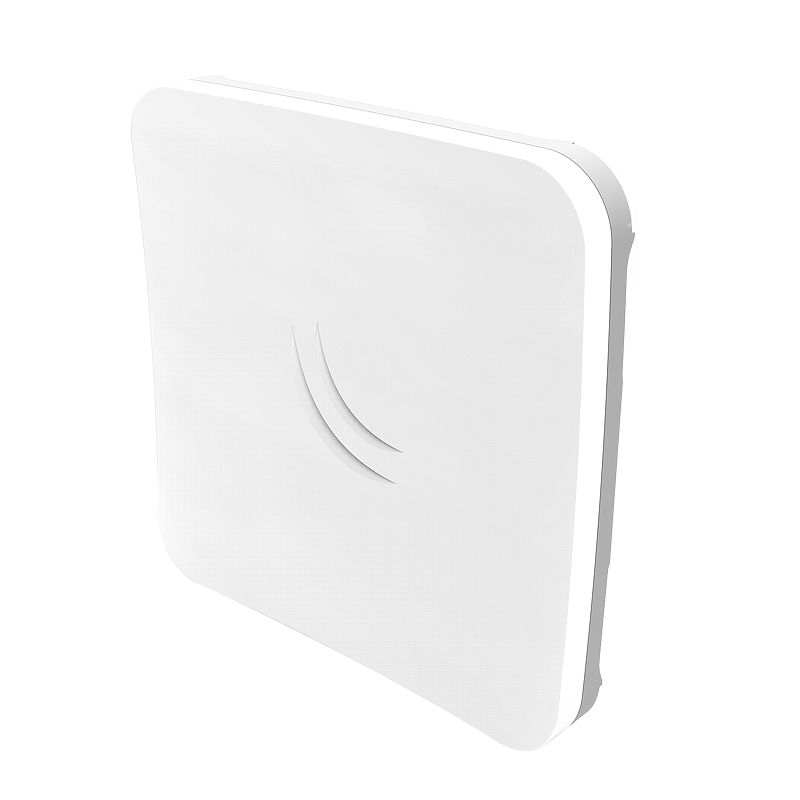

The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.

The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

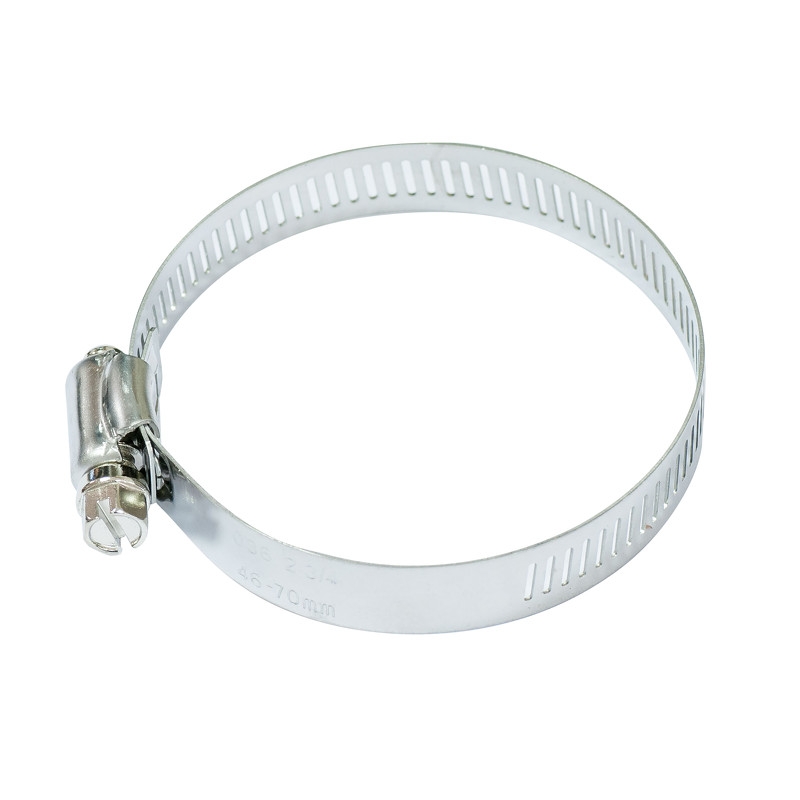

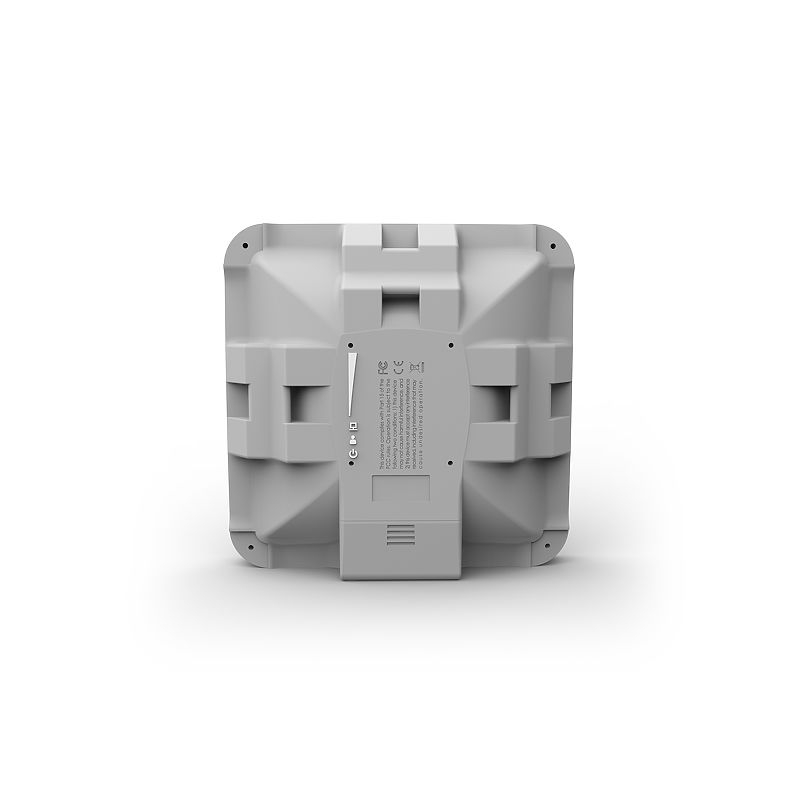

The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. The device includes one 10/100 Mbit Ethernet port. There is also an easily accessilble grounding connection to protect it against lightning.


Product code: RBSXTsq2nD
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 129 x 129 x 34 mm, package: 255 x 180 x 45 mm
Weight: unit - 295 g; package - 492 g
Operating System: RouterOS (License level 3)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C .. +70°C


Max Power consumption: 5W
PoE in: Passive PoE
PoE in input Voltage: 10-30 V
Number of DC inputs: 1 (PoE-IN)


Operating frequency: 2412 - 2484 MHz
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 10
Wireless 2.4 GHz chip model: QCA9533
Antenna beam width: 60°


10/100 Ethernet ports: 1
