MIKROTIK RouterBOARD SXTsq 5 ax (SXTsq-5axD)
1x Gigabit LAN port (passive 12-28 V PoE in) | 5 GHz802.11a/n/ac/ax dual-chain (Wi-Fi 6) | 16dBi antenna gain | 10+ km links in line-of-sight deployments | IP55 | Router OS (Licence level 4)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 40.90£ | 49.08£ | >0£ |
| 40.56£ | 48.67£ | >300£ |
| 39.85£ | 47.82£ | >1000£ |
Features:

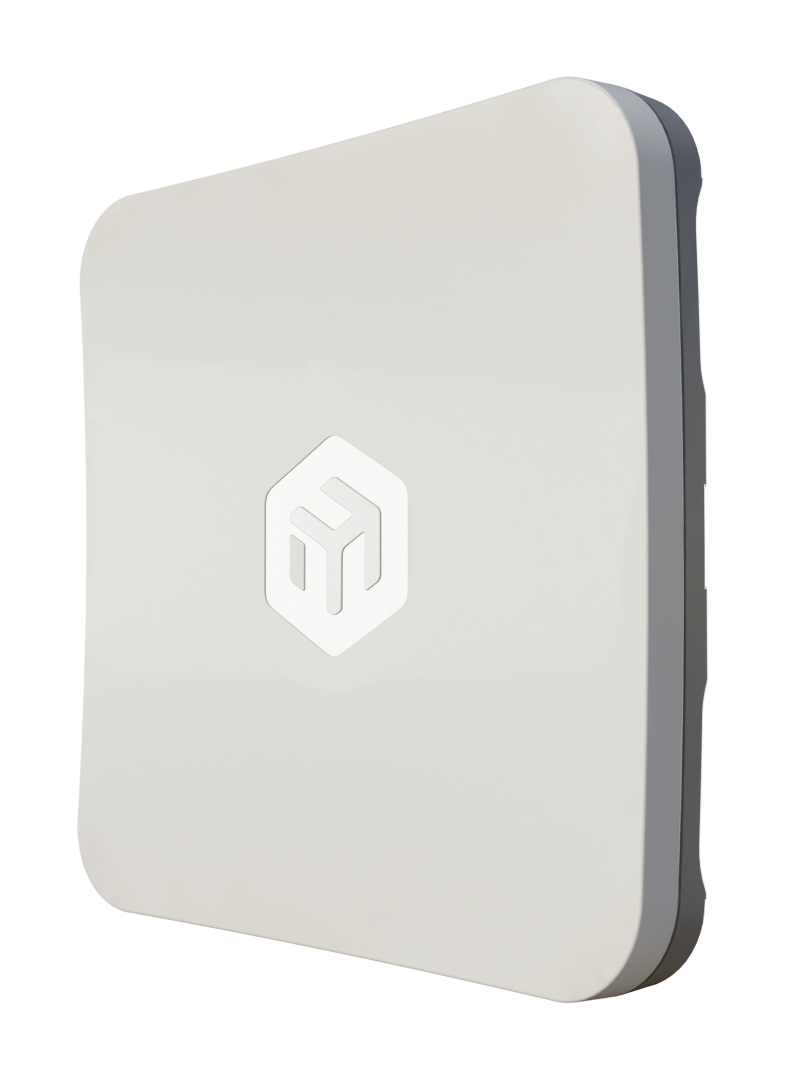

Meet the SXTsq 5 ax — Mikrotik's first Wi-Fi 6 outdoor CPE, combining the best wireless technology with a trusted, compact SXTsq form factor.
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual- core CPU, this unit keeps the same price point as the previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

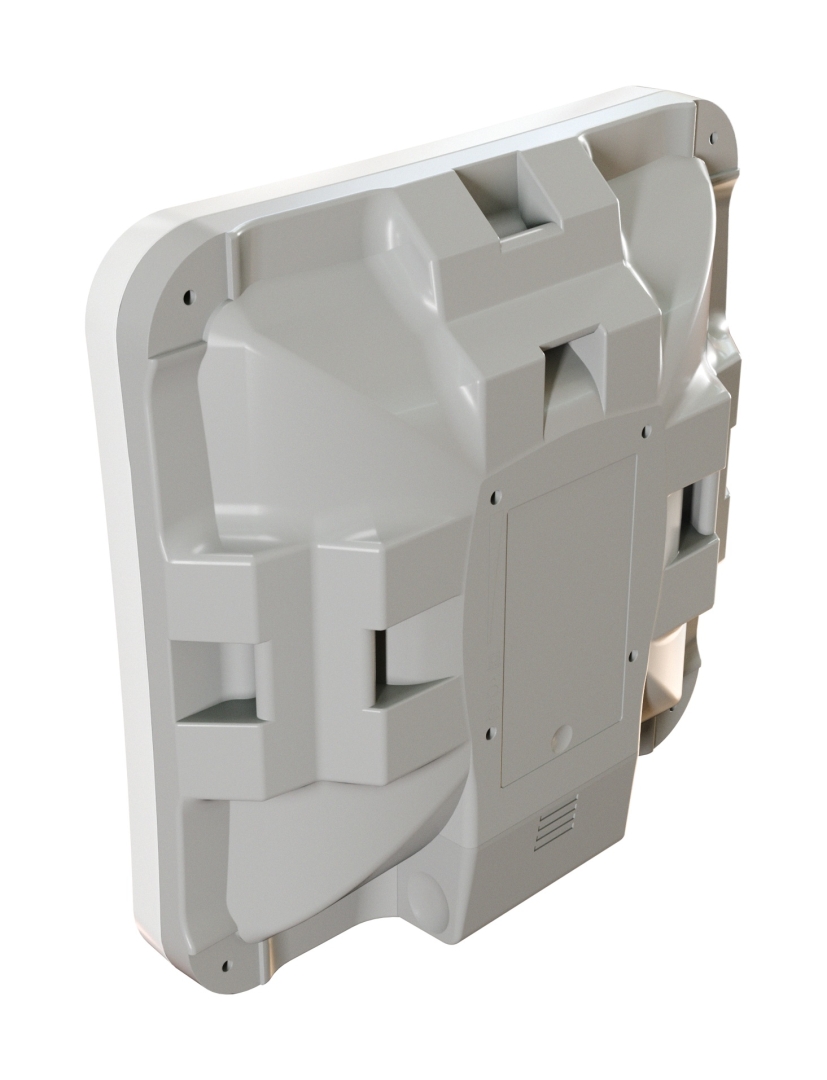

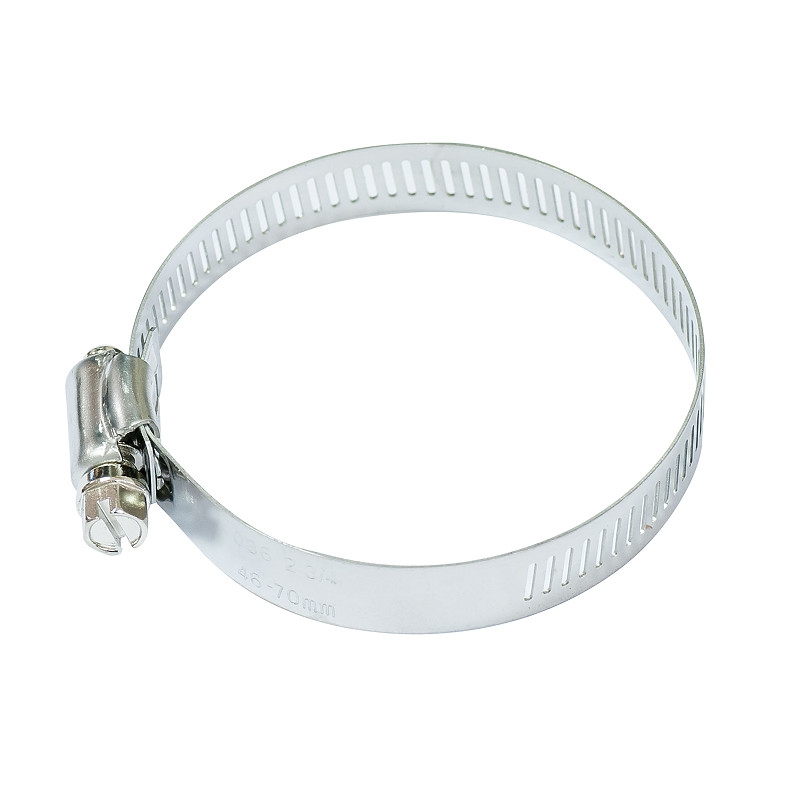

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.
With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space- sensitive deployments.
Specification:
| Product code | SXTsq-5axD |
| Architecture | ARM 64bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 55 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
| MCS11 | 16 | -67 |
