MIKROTIK RouterBOARD (RB4011iGS+RM) (RouterOS level 5)

MPN: RB4011iGS+RM
Order code: RB4011iGS+RM
Quick code: #1590

10x Gigabit Ports | 1x SFP+ port | Quad-core 1.4Ghz CPU, 1GB RAM | desktop case with rack ears | RouterOS (Licence level 5)

Price exc. VAT: Price inc. VAT: For orders (total sum):
128.86£ 154.63£ >0£
127.75£ 153.30£ >300£
125.53£ 150.64£ >1000£
Qty:


Features:

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

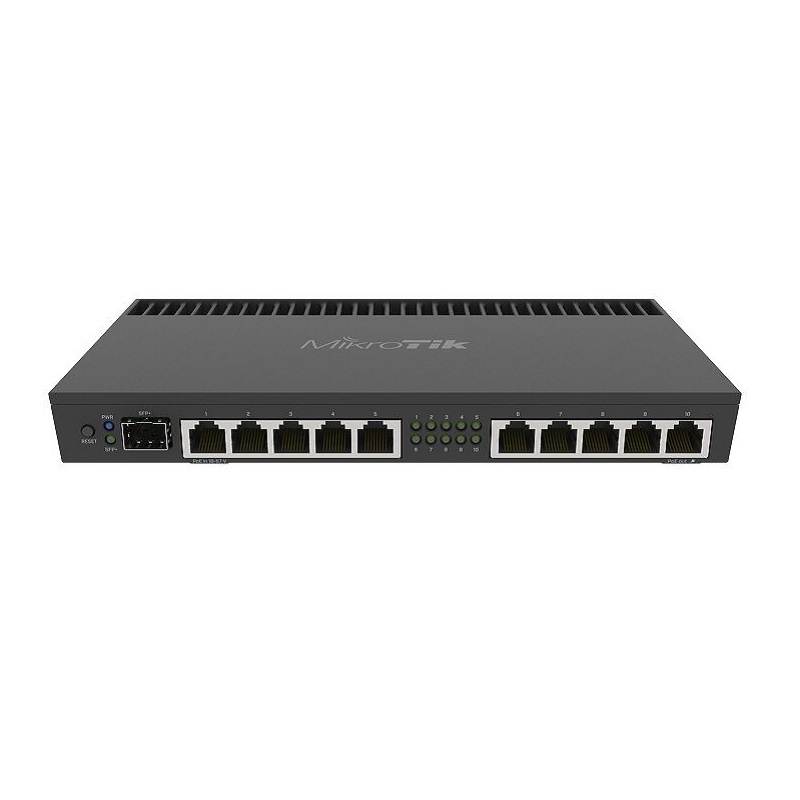

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.

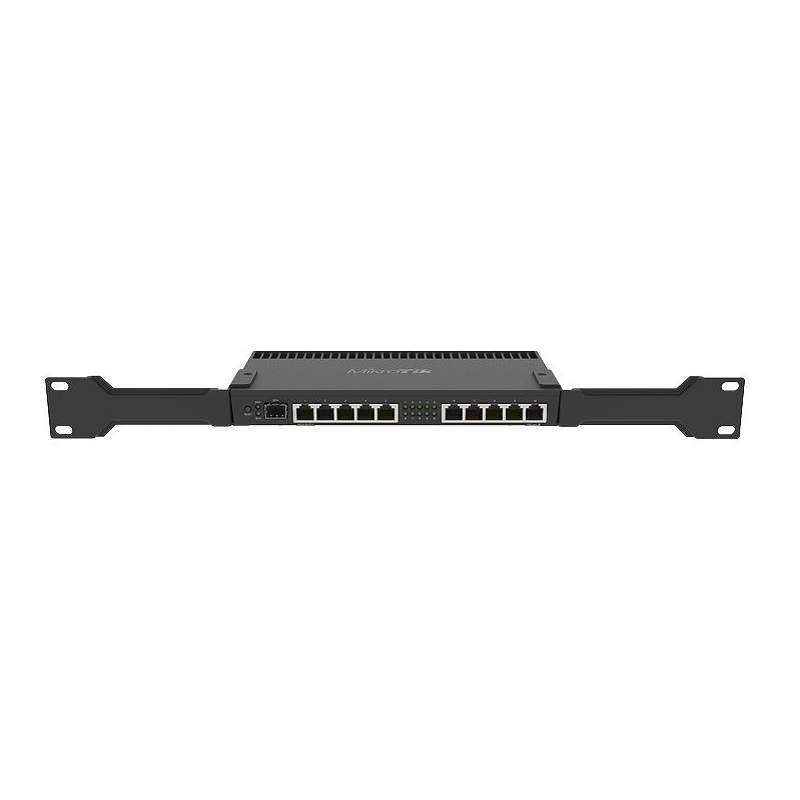

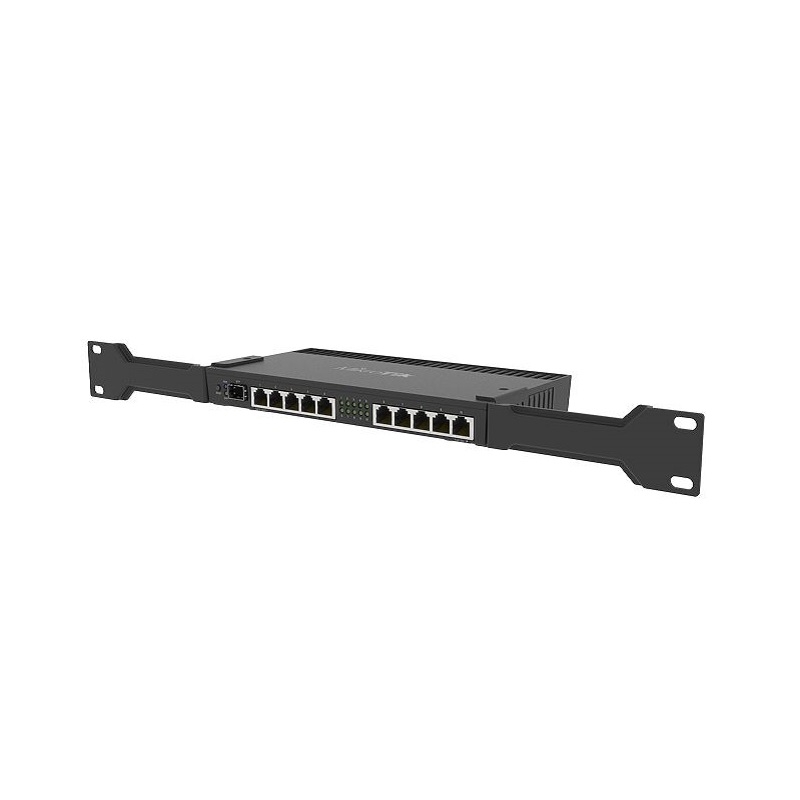

RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Specification:

Product code RB4011iGS+RM
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1400 MHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C

Powering

PoE in Passive PoE
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 33 W
Max power consumption without attachments 18 W

PoE-out

PoE-out ports Ether10
PoE out Passive PoE up to 57V
Max out per port output (input < 30 V) 600 mA
Max out per port output (input > 30 V) 400 mA
Max total out (A) 600 mA

Ethernet

10/100/1000 Ethernet ports 10

Fiber

SFP+ ports 1

Peripherals

Serial port RJ45

Other

PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Certification CE/RED, EAC, ROHS

Included parts

  • 24V 1.5A power adapter

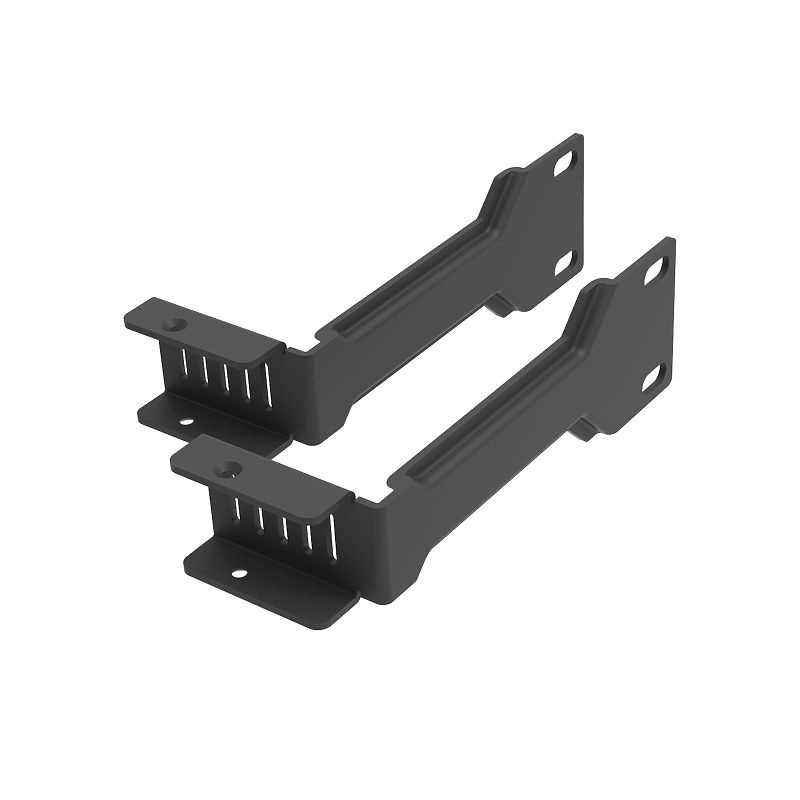

  • 4011 ears
