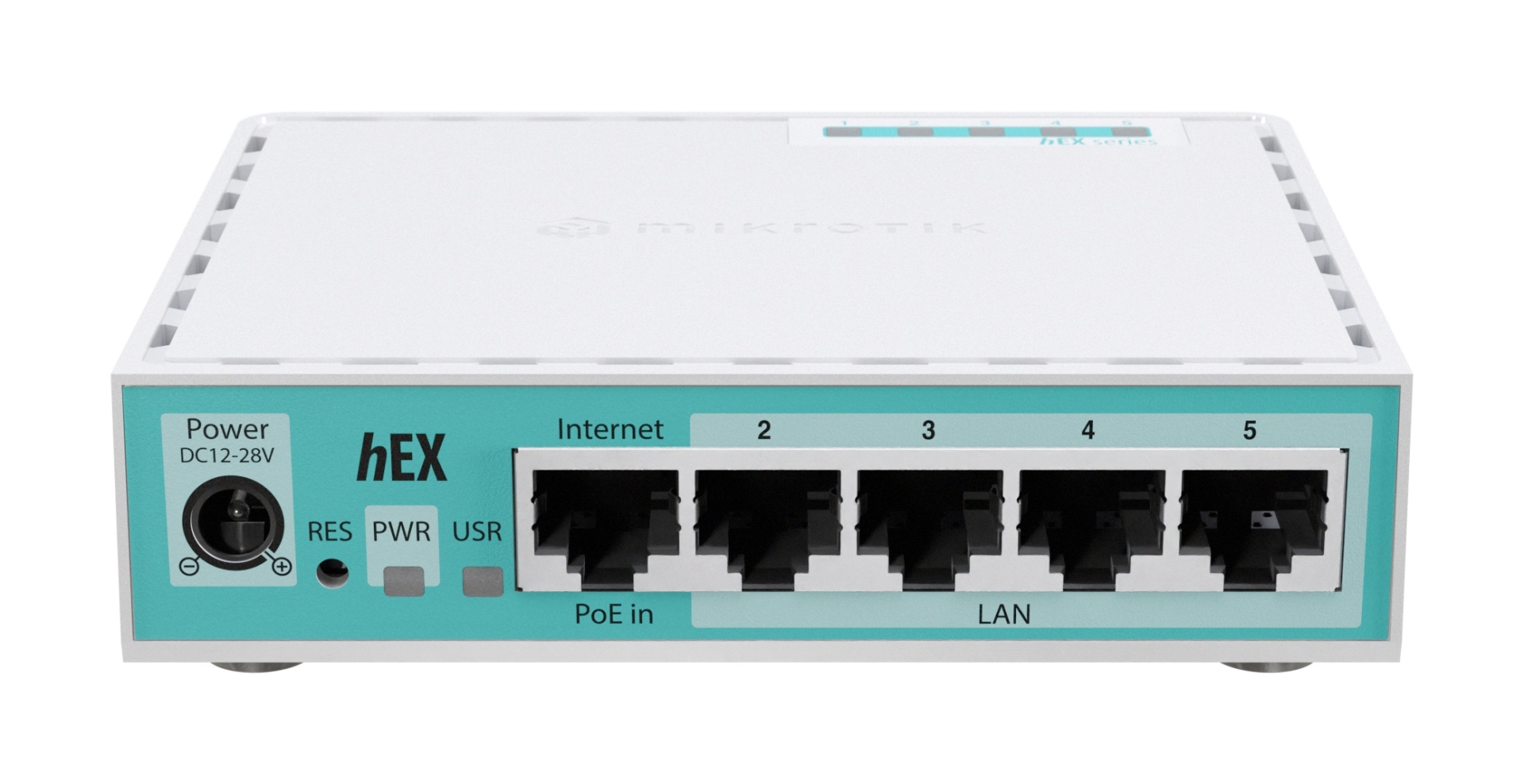

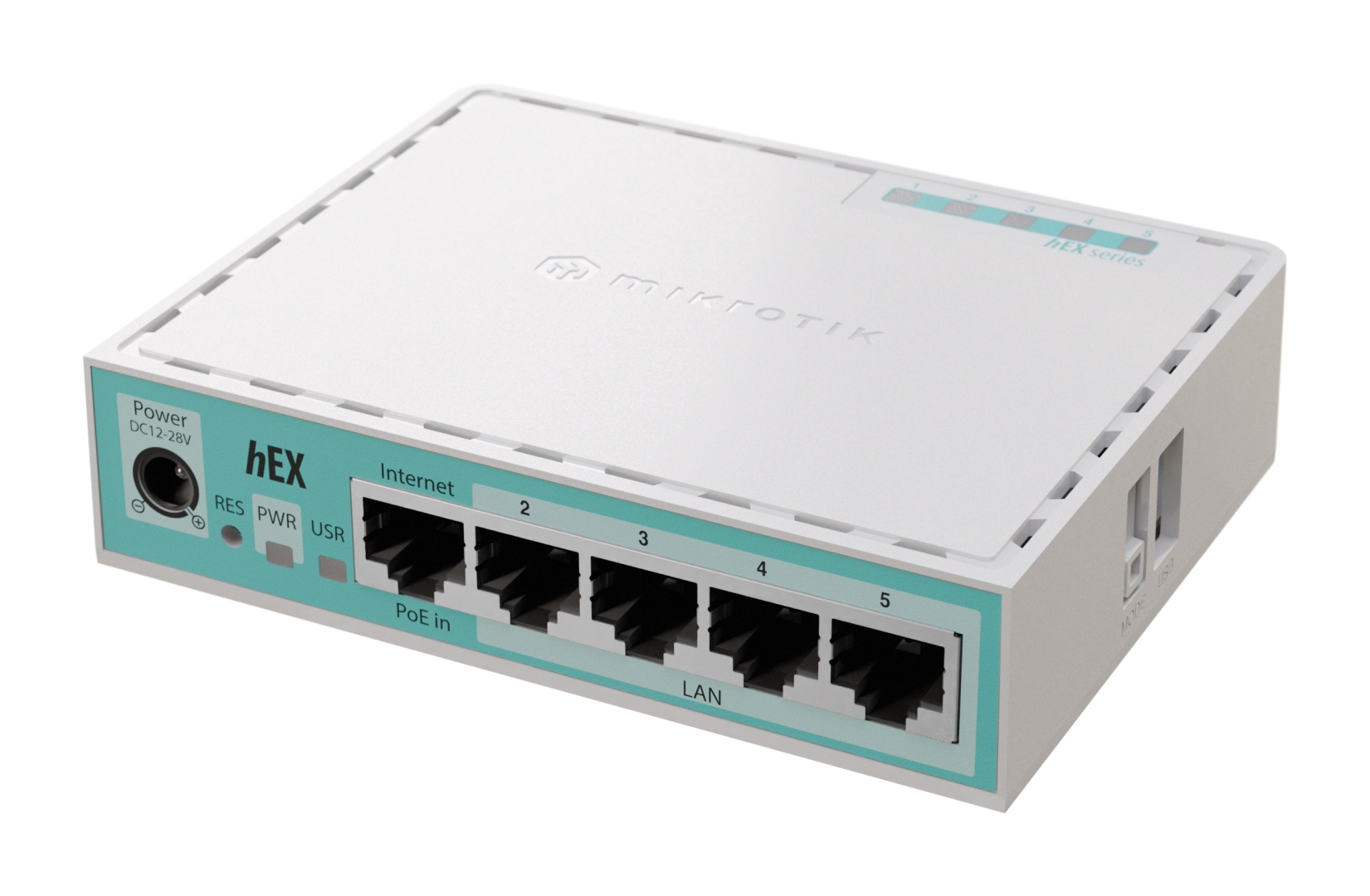

MIKROTIK RouterBOARD hEX (2024 version) (E50UG)
5x Gigabit LAN ports (Ethernet1 has Passive PoE in) | 1x Full size USB type A | 2 core CPU | Can be powered in 2 different ways (DC jack, PoE-IN) | RouterOS (Licence level 4)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 38.69£ | 46.43£ | >0£ |
| 38.36£ | 46.03£ | >300£ |
| 37.70£ | 45.24£ | >1000£ |
Features:
The affordable, reliable router you know and trust is now stronger than ever. With the latest refresh, the hEX delivers twice the performance. Whether you’re looking for a rock-solid solution for your home or small office, hEX ensures seamless and stable connectivity with a powerful upgrade: Mikrotik has increased the RAM from 256 MB to 512 MB, and replaced the CPU with a modern ARM dual-core workhorse!
Depending on your configuration, the performance increase can reach 100-134%! With 5x Gigabit Ethernet ports, hEX is the most cost-effective way to interconnect your main home or office devices. And you can use the full-sized USB port to add extra storage to stream high-quality media across devices!
Specification:
Specifications
| Details | |
|---|---|
| Product code | E50UG |
| Architecture | ARM |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7562CT |
| Dimensions | 113x89x28mm |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 10 W |
| Max power consumption without attachments | 4 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-28 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
