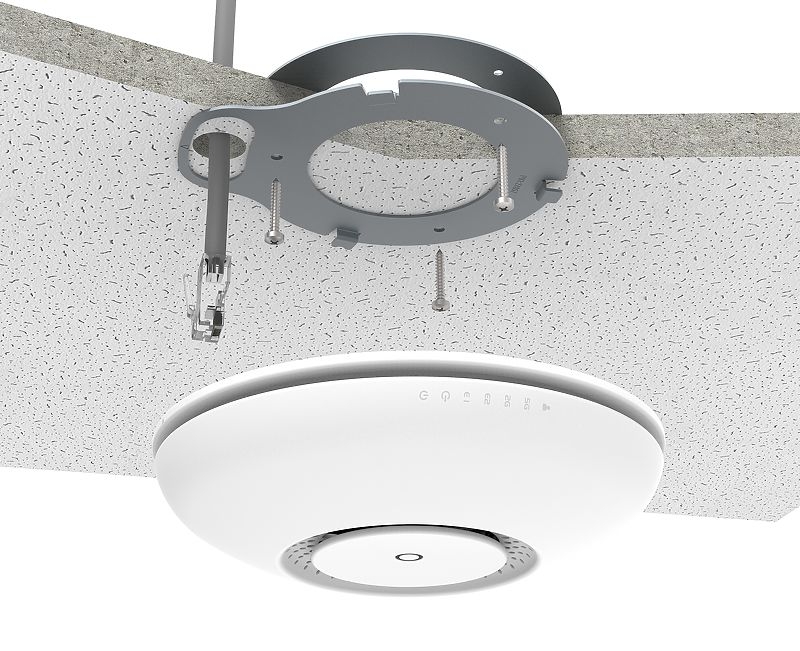

MIKROTIK RouterBOARD cAP ac (RBcAPGi-5acD2nD) (License level 4)
Ceiling/Wall Wireless Access Point | Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output) and 802.11ac support, 24V Gigabit POE included (License level 4)
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|
The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port.
- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Product code: RBcAPGi-5acD2nD
Architecture: ARM 32bit
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
Operating System: RouterOS (License level 4)
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40 to 50° C
Max Power consumption: 13W
PoE in: 802.3af/at
PoE out: Passive PoE up to 57V
PoE in input Voltage: 17-57 V
Number of DC inputs: 1 (PoE-IN)
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: IPQ-4018
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11ac
Antenna gain dBi for 5 GHz: 2.5
Wireless 5 GHz chip model: IPQ-4018
10/100/1000 Ethernet ports: 2
