MIKROTIK RouterBOARD (RBcAP2nD) (License Level 4)

Order code: RBcAP2nD
Quick code: #750

Wireless Access Point |RouterBOARD Ceiling AP (RBcAP2nD) with QCA9533 CPU, 64MB RAM, 1xLAN, built-in 2.4Ghz 802.11b/g/n dual chain wireless with integrated antenna, RouterOS L4, plastic case, PSU

Price exc. VAT: Price inc. VAT: For orders (total sum):
31.02£ 37.22£ >0£
30.59£ 36.71£ >300£
30.22£ 36.26£ >1000£

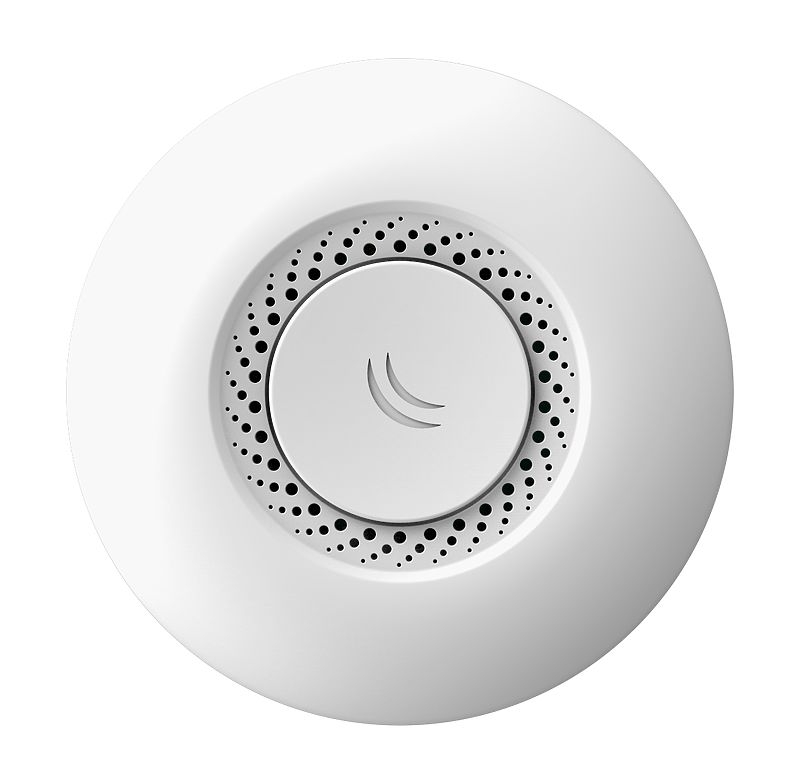

RouterBOARD cAP-2nD (ceiling Access Point) is MikroTik's first 2.4GHz ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2n supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

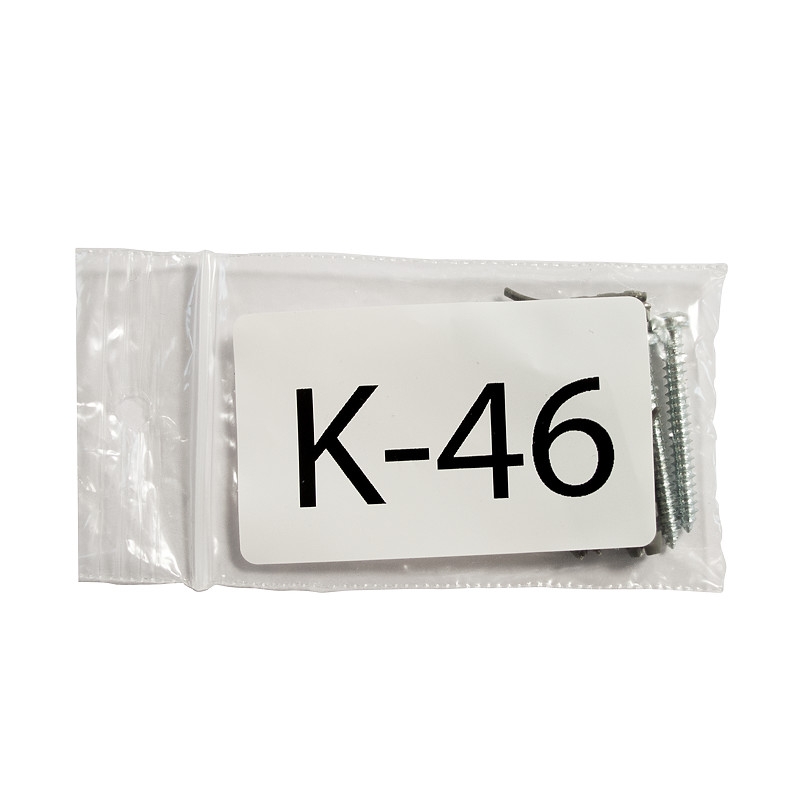

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.


Product code: RBcAP2nD
10/100 Ethernet ports: 1
802.11b: Yes
802.11g: Yes
802.11n: Yes
Antenna gain: 2
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 185mm diameter, 31mm height
License level: 4
Max Power consumption: 4W
Number of chains: 2
Operating System: RouterOS
PoE in: 802.3af/at
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Supported input voltage: 11 V - 57 V
Tested ambient temperature: -40C to +70C
Wireless chip model: QCA9533
Wireless standards: 802.11b/g/n

Wireless specifications
Rate          Tx          Rx
1MBit/s     22         -96
11MBit/s   22         -89
6MBit/s     20         -93
54MBit/s   18         -74
MCS0         20         -93
MCS7         16         -71

What's in the box:
1. RBcAP2nD
2. 24V 0.2A Adapter

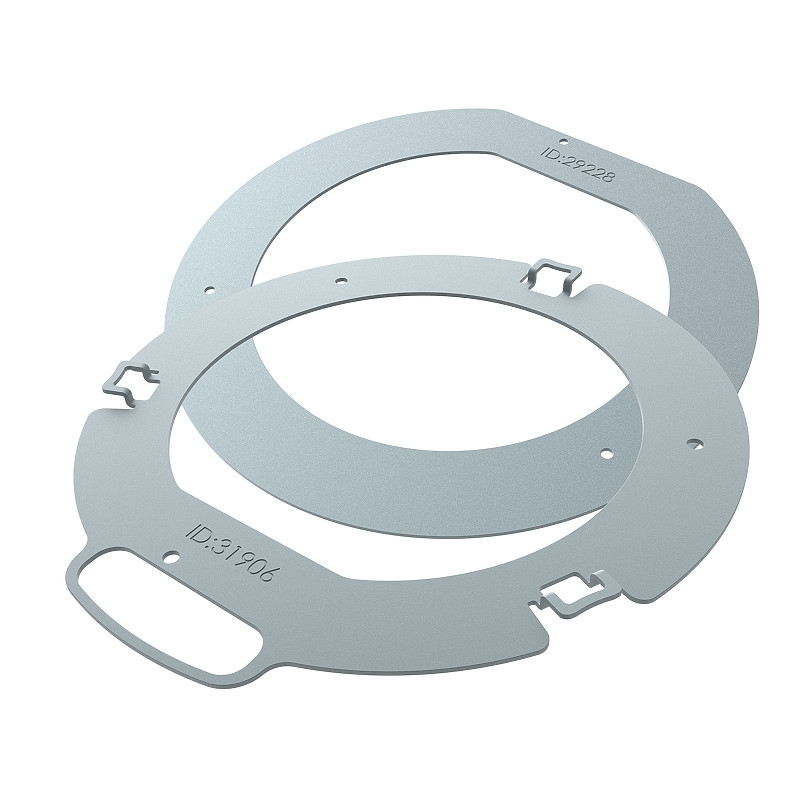

3. Ceiling mount base
4. Ceiling mount attachment
5. PoE injector
