MIKROTIK RouterBOARD (RB1100x4) (RouterOS Level 6)

MPN: RB1100x4
Order code: RB1100AHx4
Quick code: #1401

Quad Core CPU, 1GB RAM, 13x Gigabit Ethernet ports, maximum throughput of up to 7.5Gbps, rackmount case and powers cords included, RouterOS (License level 6)

Price exc. VAT: Price inc. VAT: For orders (total sum):
170.17£ 204.20£ >0£
168.70£ 202.44£ >300£
165.76£ 198.91£ >1000£

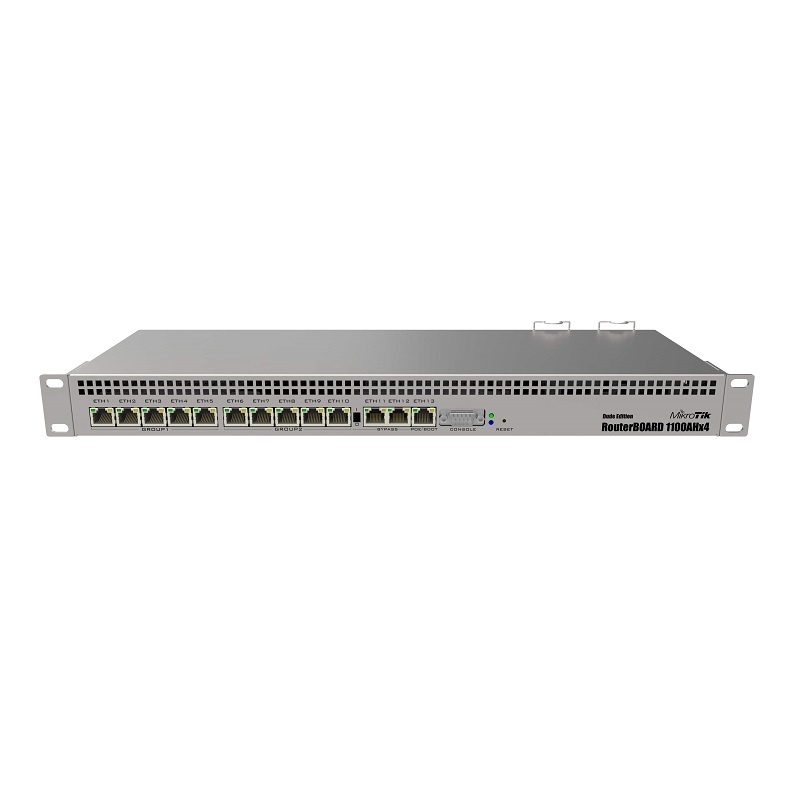

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

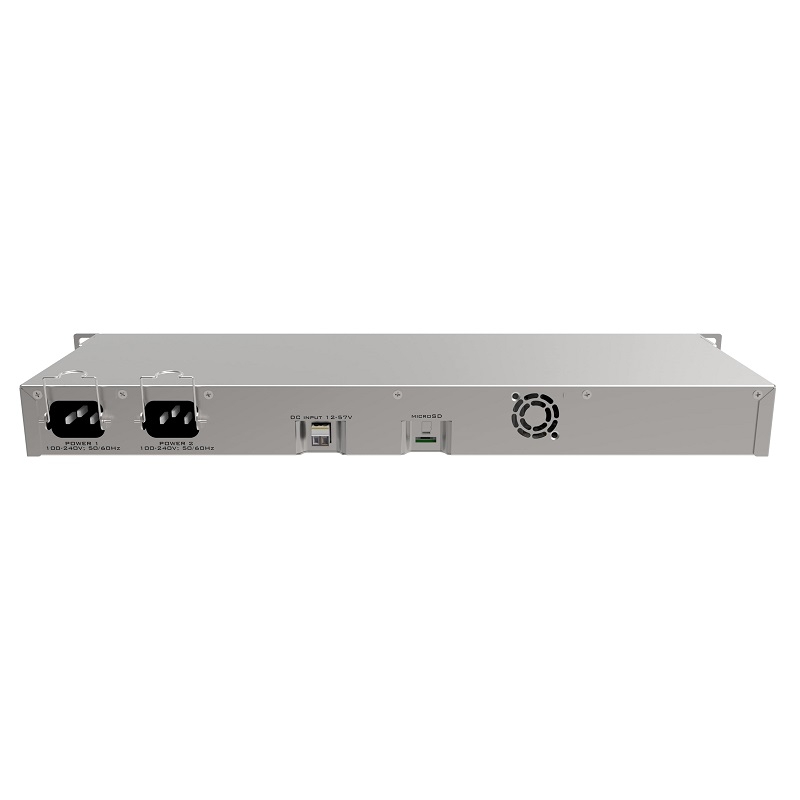

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).


Product code RB1100x4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 443 x 148 x 44 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C


PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W


10/100/1000 Ethernet ports 13


Memory card type microSD
Memory Cards 1
Serial port RS232


Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes

Certification & Approvals

Certification CE/RED, EAC, ROHS

Included parts

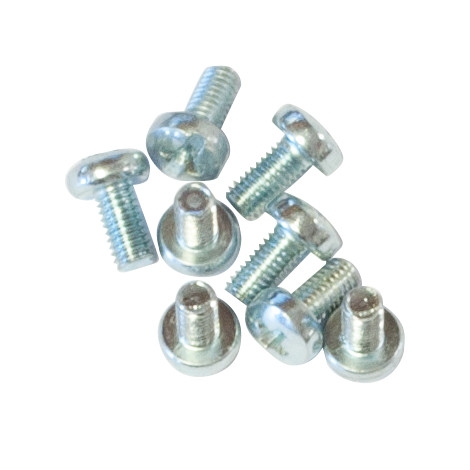

  • K10 R2 screw kit

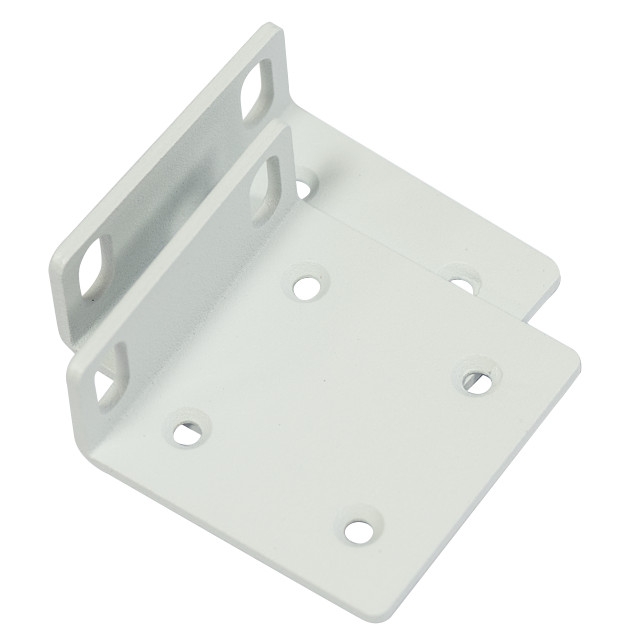

  • Rack ears
  • 2x IEC cords
