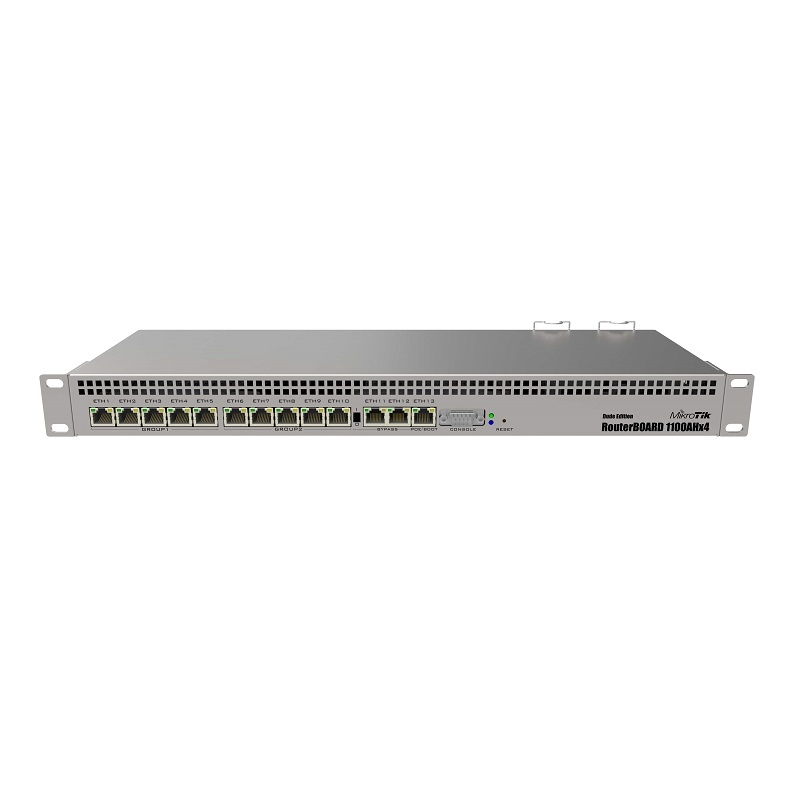

MIKROTIK RouterBOARD Dude Edition (RB1100Dx4) (RouterOS level 6)

MPN: RB1100Dx4
Order code: RB1100AHx4-Dude
Quick code: #1297

Quad Core CPU, 1GB RAM, 13x Gigabit Ethernet ports, maximum throughput of up to 7.5Gbps, includes a 60GB M.2 drive already installed, rack mount case and powers cords included, RouterOS (License level 6)

Price exc. VAT: Price inc. VAT: For orders (total sum):
232.96£ 279.55£ >0£
230.95£ 277.14£ >300£
226.93£ 272.32£ >1000£
Qty:


Features:

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

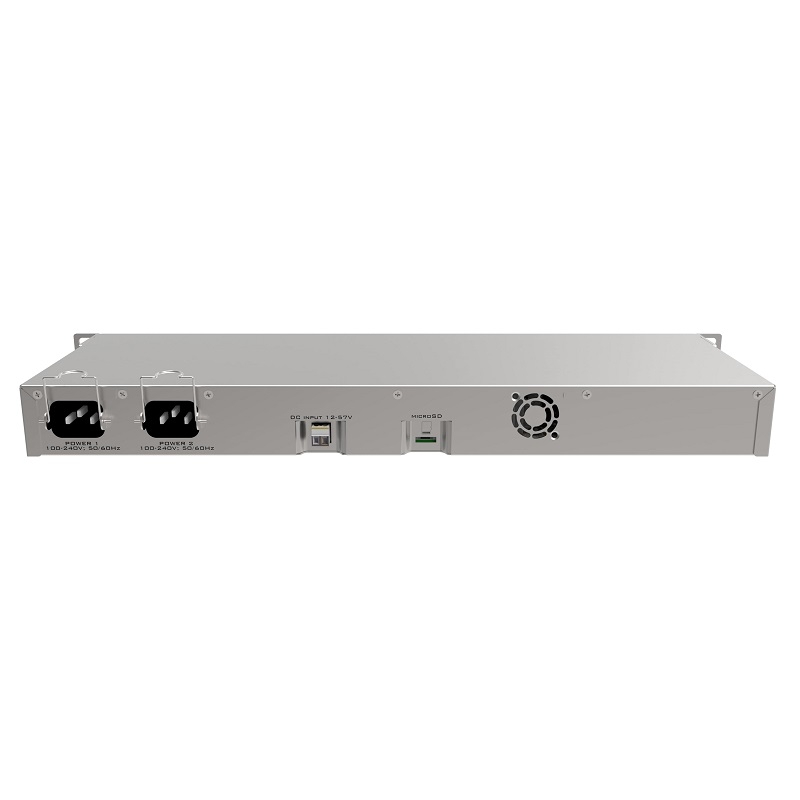

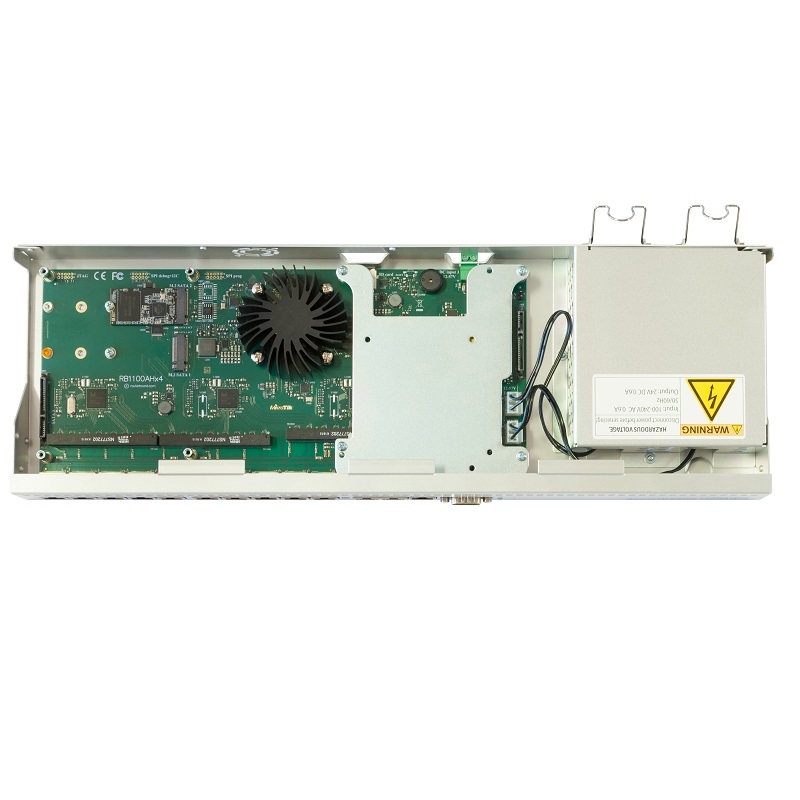

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

Specification:

Product code RB1100Dx4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 443 x 148 x 44 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C


Powering

PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 20-57 V
Max power consumption 33 W
Max power consumption without attachments 25 W


Ethernet

10/100/1000 Ethernet ports 13


Peripherals

Extended storage 60GB M.2 SSD included
M.2 slots 2
Memory card type microSD
Memory Cards 1
SATA ports 2x SATA3
Serial port RS232


Other

Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Certification CE/RED, EAC, ROHS

Included parts

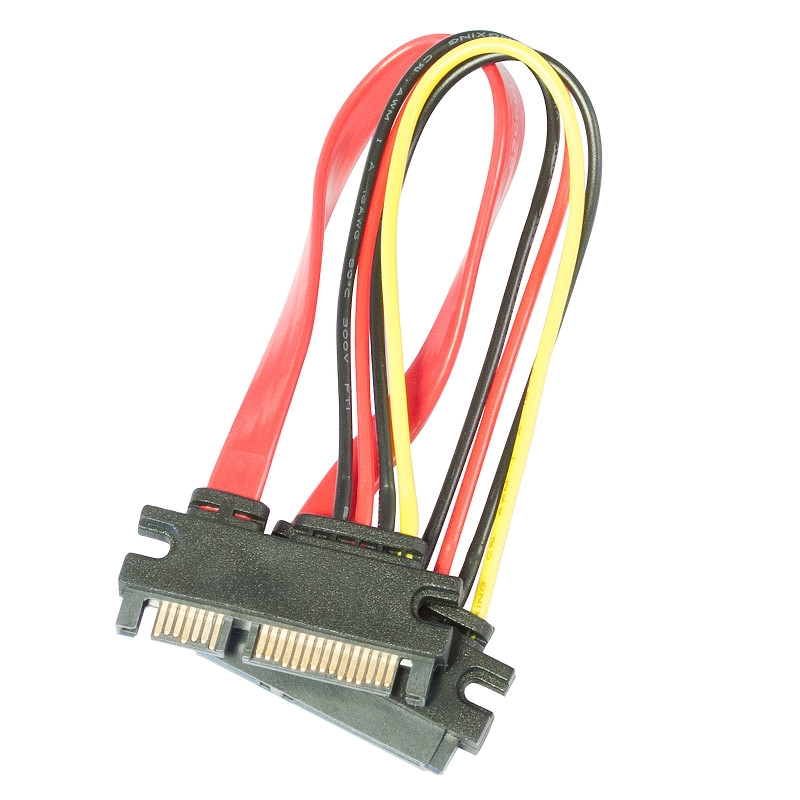

  • SATA cables

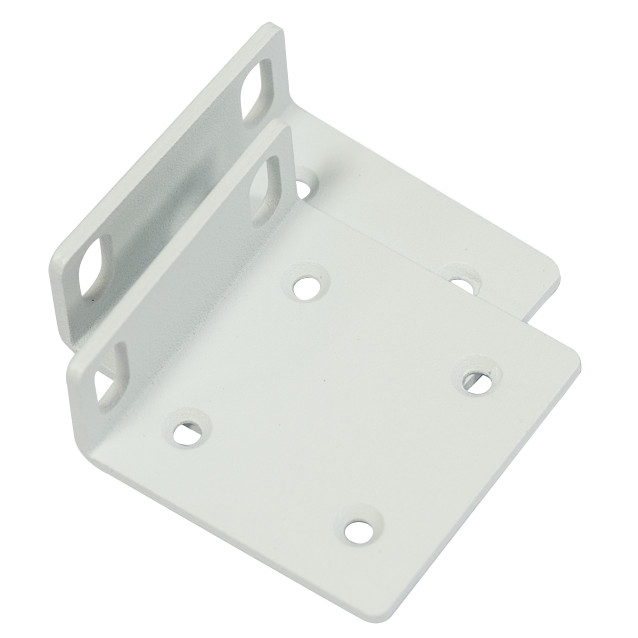

  • Rack ears

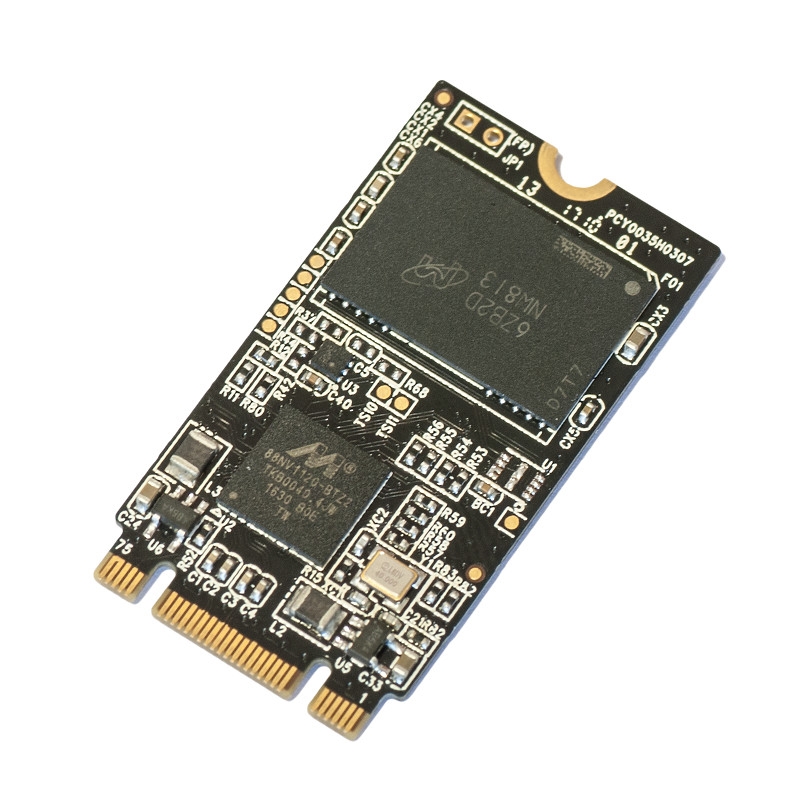

  • M.2 SSD 60GB

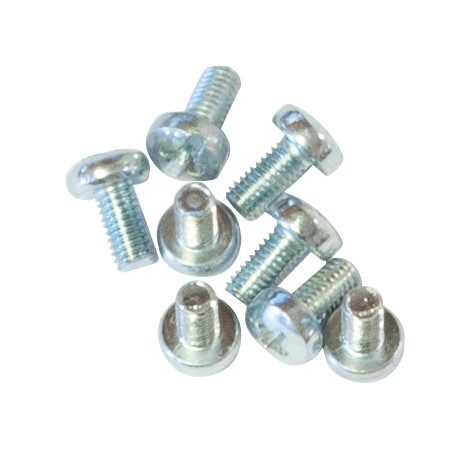

  • Screw and feet kit (K10)
  • 2x IEC cords
