MIKROTIK gateway card for LoRa® technology R11e-LR9 (R11e-LoRa9)
MPN:
R11e-LR9
Order code:
R11e-LoRa9
Quick code:
#2023
LoRaWAN concentrator Gateway card in mini PCIe form factor for 902-928 MHz. Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 60.82£ | 72.98£ | >0£ |
| 60.30£ | 72.36£ | >300£ |
| 59.26£ | 71.11£ | >1000£ |
Features:
MikroTik is bringing you new, powerful LoRa products for the fraction of the cost you would expect.

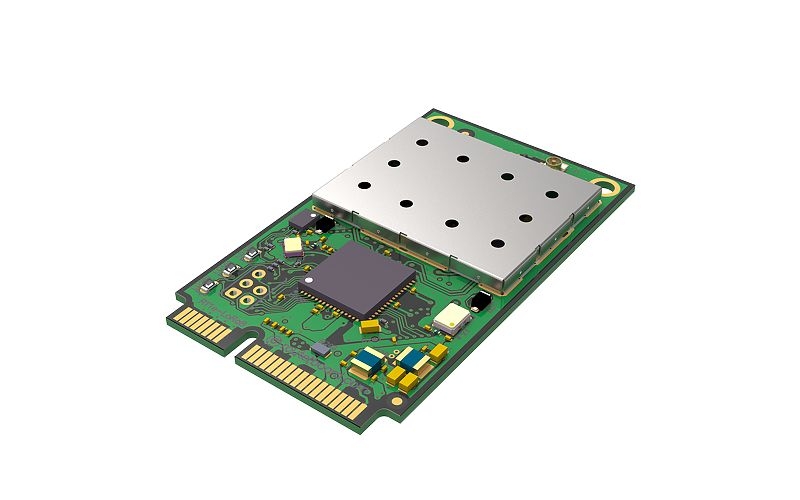

R11e-LoRa9 is a new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.
With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
Specification:
| Product code | R11e-LoRa9 |
| Interface | Mini-PCIe |
| Supported class | A and C |
| Frequency | 902-928 MHz (AU915-928, US902-928, AS923, KR920-923) |
| RF Output power | 902-928 MHz 23 dBm |
| Receive max sensitivity | -137 dB @ SF12 |
| Range | Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit |
| Operating ambient temperature |
-40°C .. +70°C |
| Max power consumption | 2 W |
