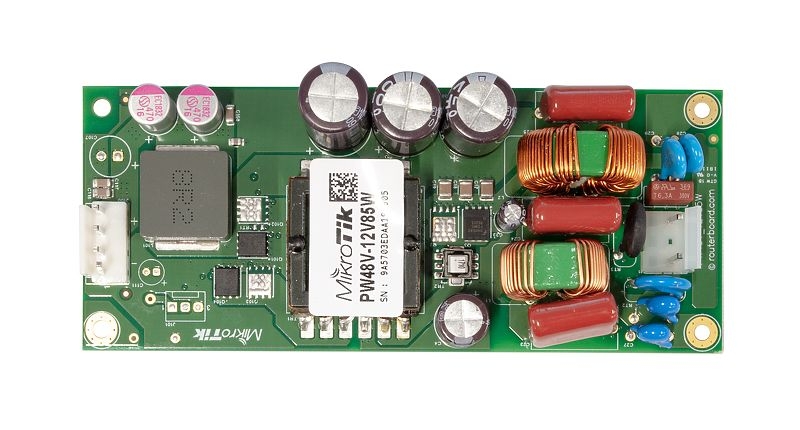

MIKROTIK ±48V Open frame Power supply with 12V 7A output (PW48V-12V85W)

MPN: PW48V-12V85W
Order code: PW48V-12V85W
Quick code: #2287

Designed for new r2 CCR revisions

Price exc. VAT: Price inc. VAT: For orders (total sum):
30.84£ 37.01£ >0£
30.74£ 36.89£ >300£
30.04£ 36.05£ >1000£

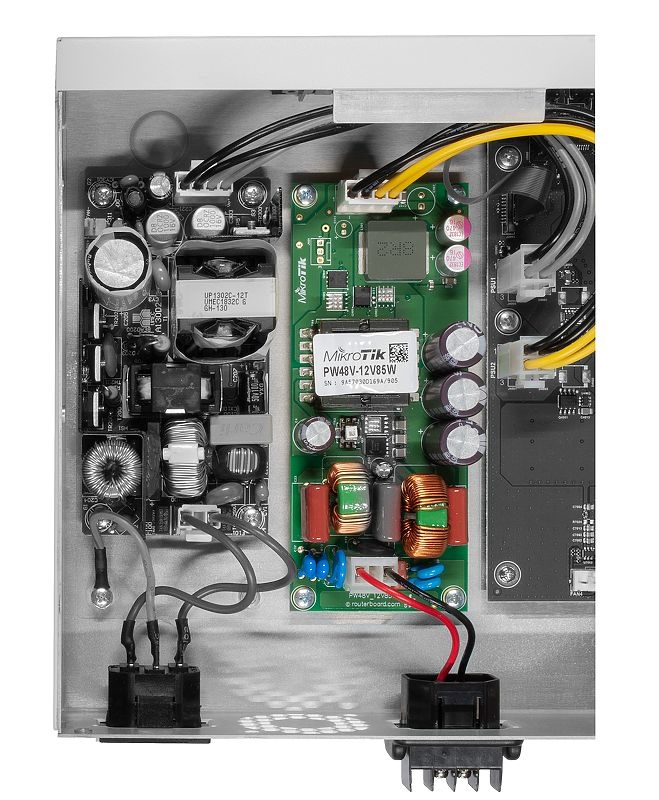

±48 V DC telecom Open Frame Power supply with 12 V 7 A output, for use with new “r2” revision of Cloud Core Routers or the new CRS326-24S+2Q+RM. Simply remove one of the current power supplies and replace with the new PW48V-12V85W for ±48 V installations.

Although made specifically for -48V telecom power, the supported input range is from 36V to 57V. Note: To use, positive terminal must be 36 to 57V higher potential than negative terminal (eg. if negative terminal is -48 V, the positive must be -12 to +9 V).


Product code PW48V-12V85W
Input ±48V, 3A
Output 12V, 7A
Tested ambient temperature -20...+60C
Dimensions 118 x 52 mm
