MIKROTIK outdoor wireless device with an integrated antenna SXTsq 5 ac (RBSXTsqG-5acD)

Order code: RBSXTsqG-5acD
Quick code: #1437

16dBi outdoor wireless CPE with built-in 5 GHz 802.11ac, 1 x Gigabit PoE LAN, Router OS (Licenese level 3)

Price exc. VAT: Price inc. VAT: For orders (total sum):
32.75£ 39.30£ >0£
32.47£ 38.96£ >300£
31.90£ 38.28£ >1000£

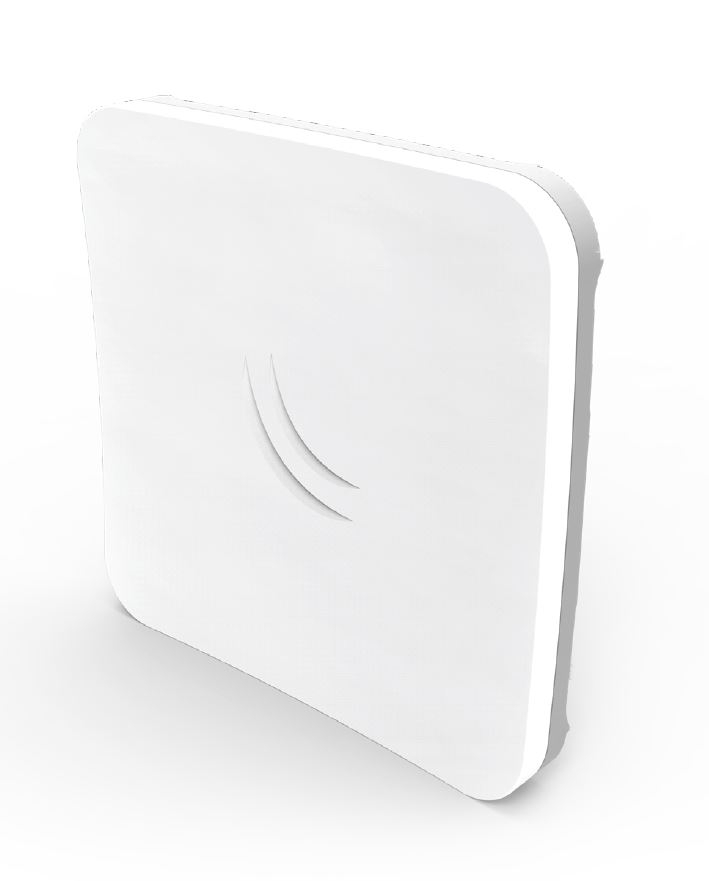

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

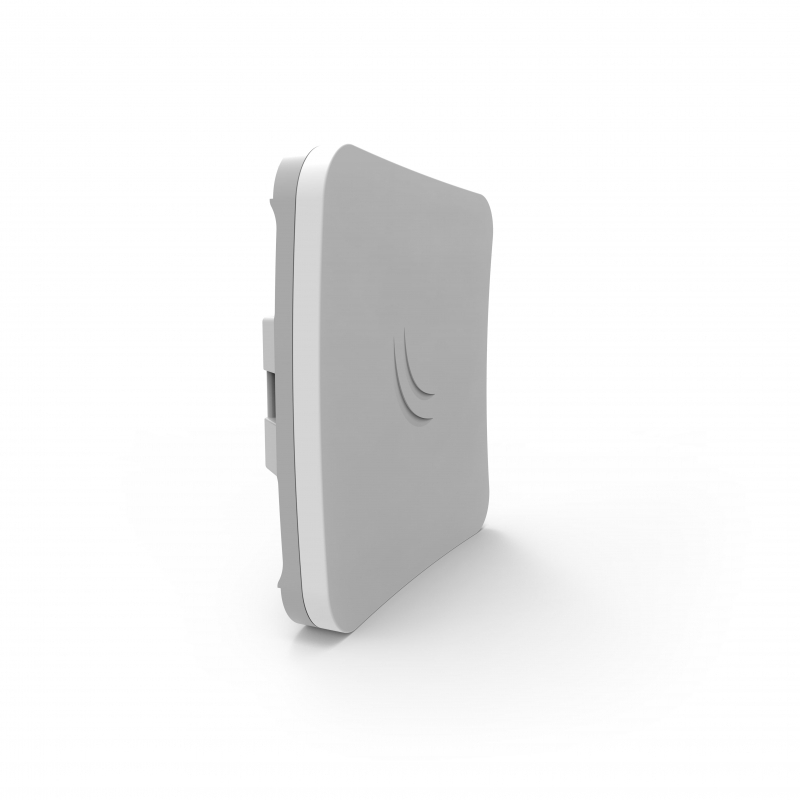

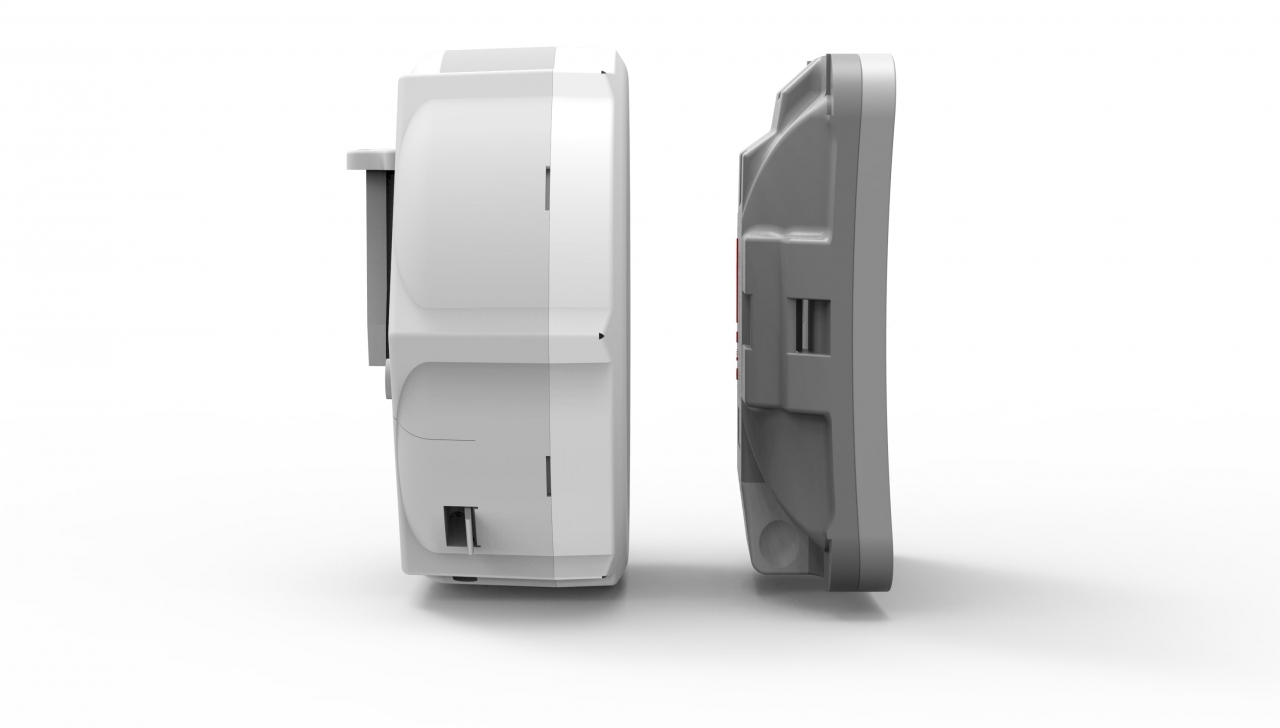

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

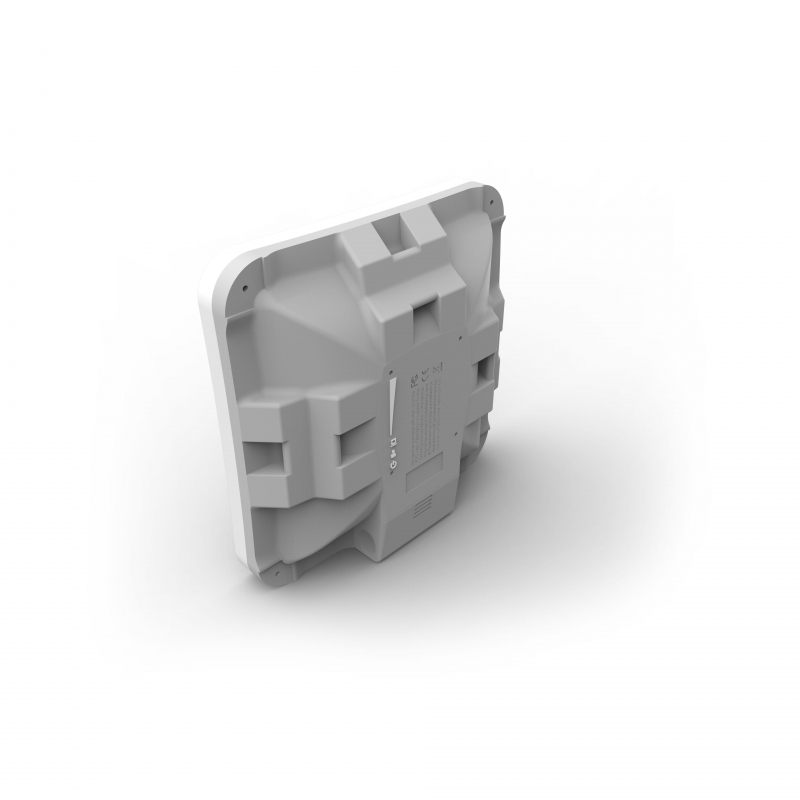

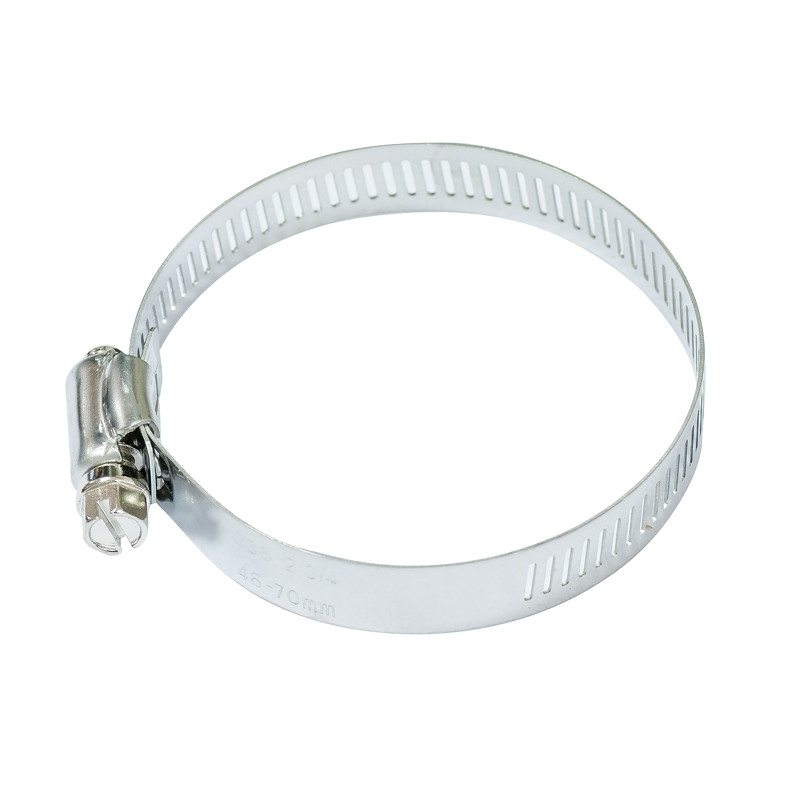

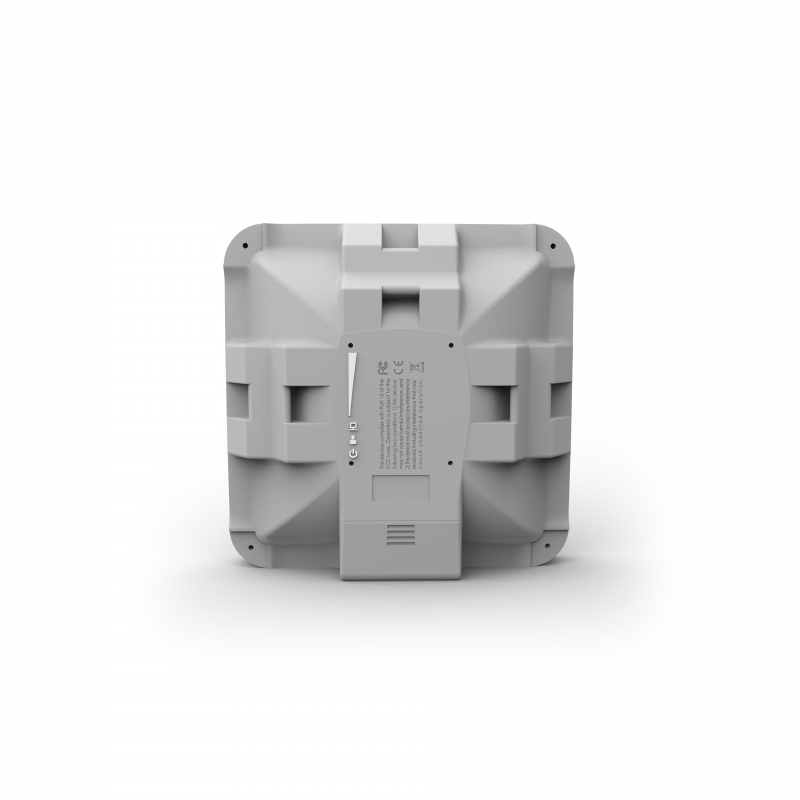

The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.


Product code: RBSXTsqG-5acD
CPU: IPQ-4018, 4 cores, nominal frequency 716 MHz
Size of RAM: 256 MB
Storage: 16 MB Flash
10/100/1000 Ethernet ports: 1
Wireless bands: 5 GHz radio
Wireless regulations: Specific frequency range may be limited by country regulations
Operating frequency: 5150 - 5875 MHz
Protocols: 802.11a/n/ac
Chains: 2
Antenna gain: 16 dBi
Antenna beam width: 23°
Wireless chip model: IPQ-4018

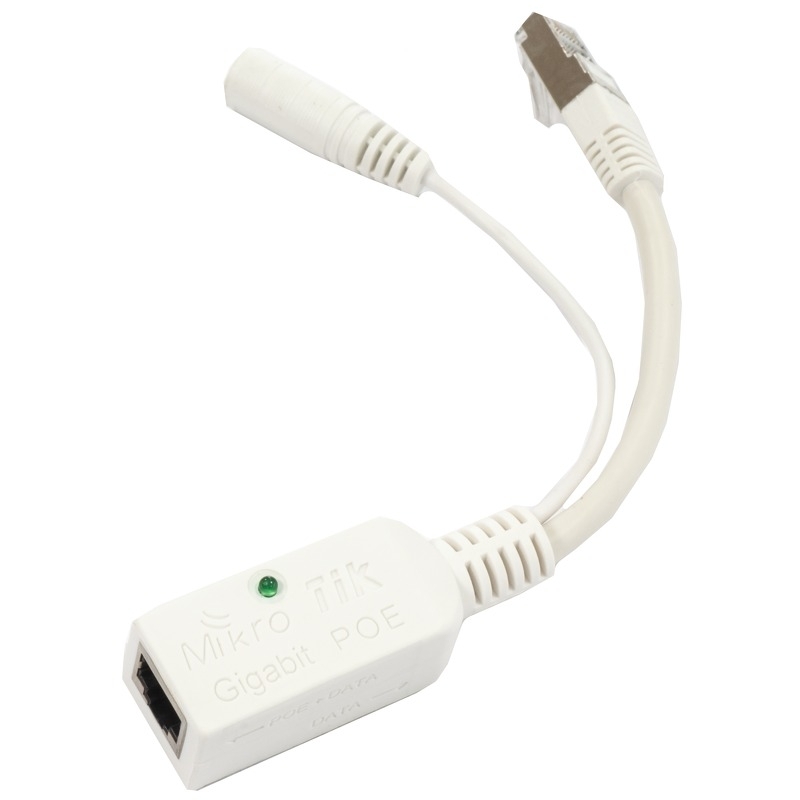

PoE in: Yes
Supported input voltage: 10 V - 30 V, passive PoE
Ingress protection: IP55
Dimensions: 129 x 129 x 34 mm; package: 255 x 180 x 45 mm
Weight Unit: 295 g; package: 492 g
Operating temperature: -40 to 70° C
Operating System: RouterOS (License level 3)
Max Power consumption: 7 W
