MIKROTIK Cloud Router Switch netPower 15FR (CRS318-1Fi-15Fr-2S-OUT) (License level 5)

MPN: CRS318-1Fi-15Fr-2S-OUT
Order code: netPower15FR
Quick code: #2181

Outdoor Switch | 16x 10/100 Ethernet ports, 2x SFP ports, 15 reverse PoE ports, 800MHz CPU, 256MB RAM, SwOS / RouterOS (Dual boot) (License level 5)

Price exc. VAT: Price inc. VAT: For orders (total sum):
98.99£ 118.79£ >0£
98.14£ 117.77£ >300£
96.43£ 115.72£ >1000£
Qty:


Features:

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

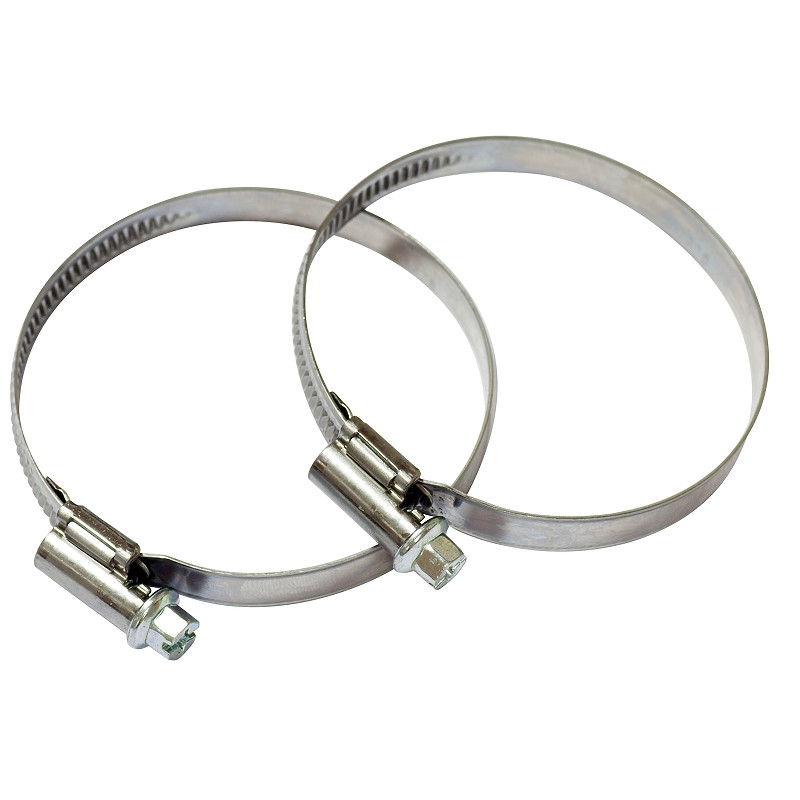

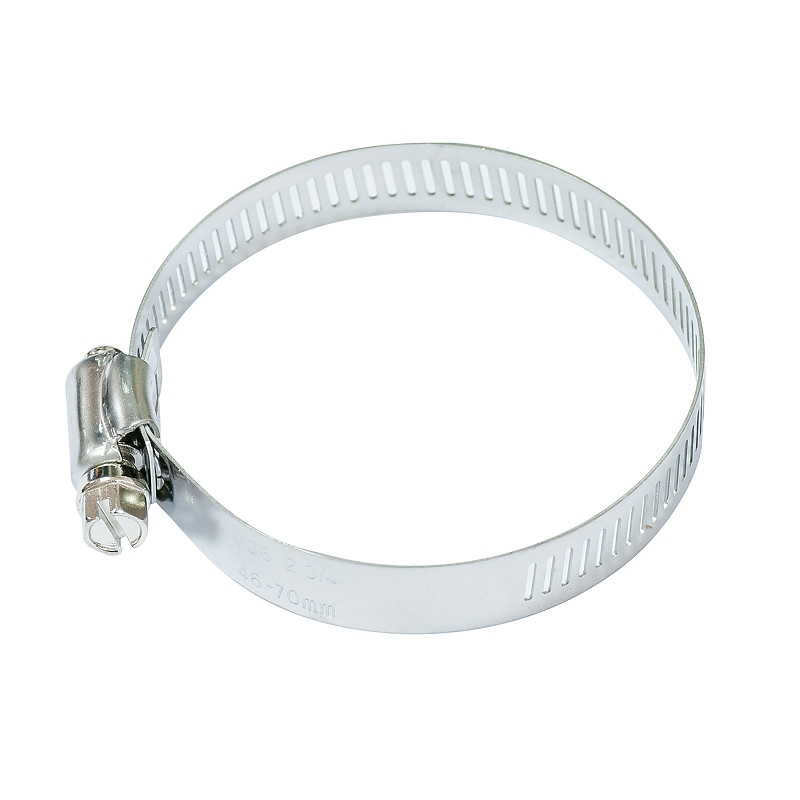

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

The power supply is NOT included with the product- must be purchased separately.

Specification:

Product code CRS318-1Fi-15Fr-2S-OUT
Architecture ARM 32bit
CPU 98DX224S
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 304 x 212 x 71 mm
License level 5
Operating System SwOS / RouterOS (Dual boot)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C

Powering

PoE in Passive PoE
PoE in input Voltage 18-57 V (recommended 36-57V)

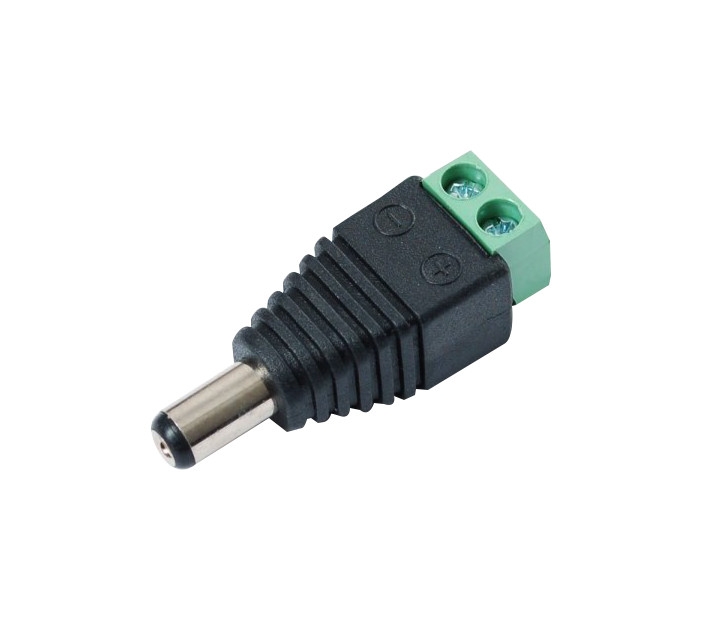

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 29 W
Max power consumption without attachments 10 W

PoE-out

PoE-out ports Ether15
PoE out Passive PoE
Max out per port output (input < 30 V) 0.75 A
Max out per port output (input > 30 V) 0.5 A
Max total out (A) 0.75 A

Ethernet

10/100 Ethernet ports 16

Fiber

SFP ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS
