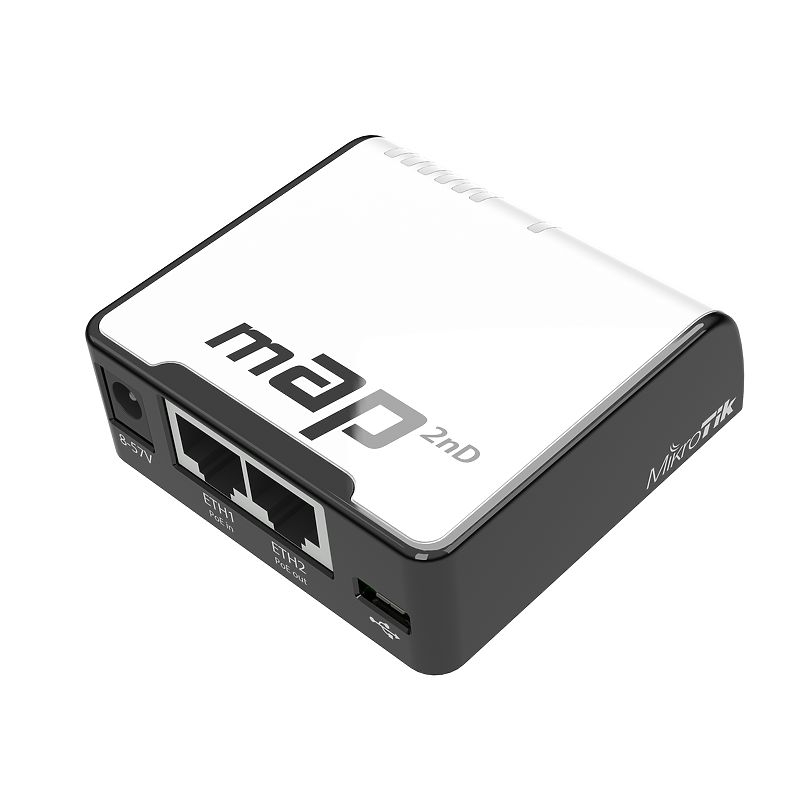

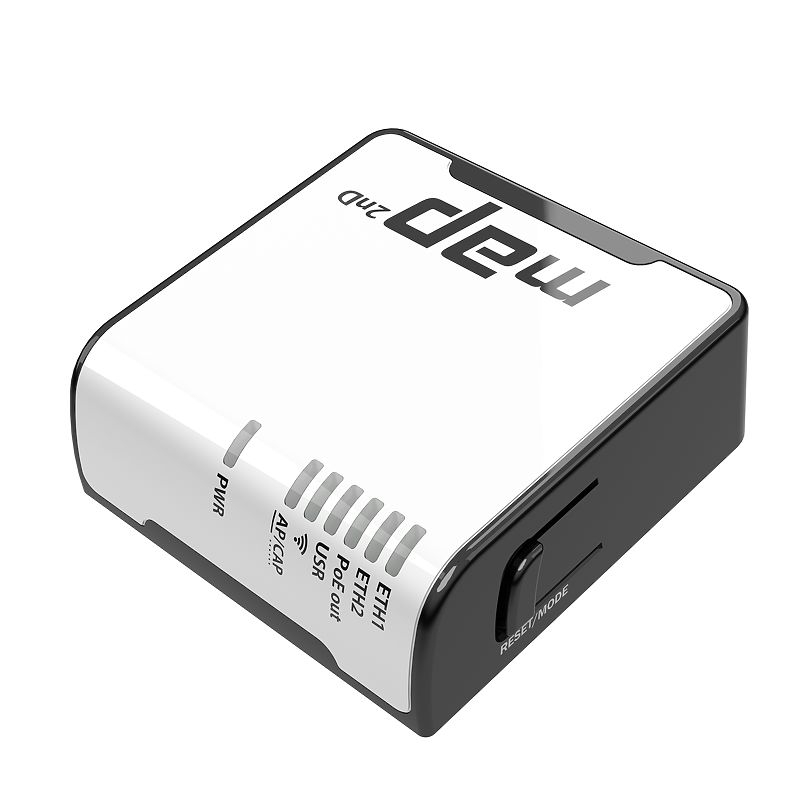

MIKROTIK micro Access Point mAP (RBmAP2nD)

Order code: RBmAP2nD
Quick code: #1484

AR9531 CPU, 64MB DDR2 RAM, x2 LAN ports, built-in 2.4Ghz 802.11b/g/n wireless with integrated antenna (1.2 dBi), microUSB, plastic case, POE-out, supports 802.3af/at, RouterOS (License level 4)

Price exc. VAT: Price inc. VAT: For orders (total sum):
31.13£ 37.36£ >0£
30.86£ 37.03£ >300£
30.33£ 36.40£ >1000£
  In stock


The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

• PoE in 10-57V
• Built in 2,4GHz AP
• microUSB for a 3G/4G modem, or for power input
• Station or AP mode wireless
• Passive PoE output (same as input voltage)


Product code: RBmAP2nD
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 68x68x19mm
Operating System: RouterOS (License level 4)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -10C to +70C tested


Max Power consumption: 5W
MicroUSB input Voltage: 5V
PoE in: 802.3af/at
PoE out: Passive PoE
PoE in input Voltage: 12-57 V
Number of DC inputs: 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage: 8-57 V


Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.2
Wireless 2.4 GHz chip model: QCA9531


10/100 Ethernet ports: 2


Number of USB ports: 1
USB Power Reset: Yes
USB slot type: microUSB type AB


PCB temperature monitor: Yes
Voltage Monitor: Yes
