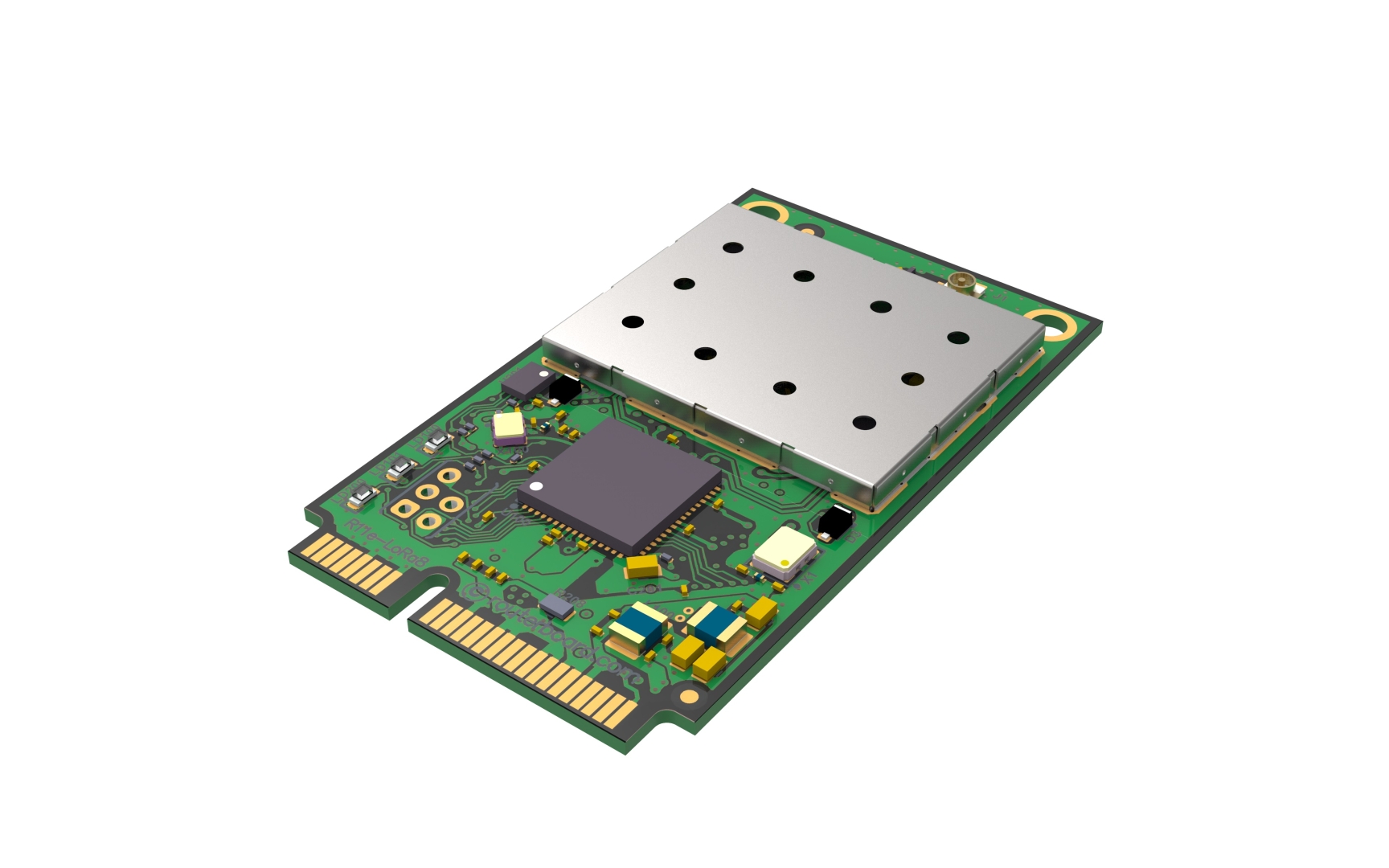

MIKROTIK LoRa miniPCI-e card for Europe (R11e-LoRa8)

Order code: R11e-LoRa8
Quick code: #2008

LoRaWAN concentrator Gateway card in mini PCIe form factor for 863-870 MHz. Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit.

Price exc. VAT: Price inc. VAT: For orders (total sum):
56.16£ 67.39£ >0£
55.67£ 66.80£ >300£
54.71£ 65.65£ >1000£
Qty:


Features:

MikroTik is bringing you new, powerful LoRa products for the fraction of the cost you would expect.

R11e-LoRa8 is a new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.

With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

Operates in 863-870 MHz frequency (used in European Union, Russia, India etc.)

Specification:

Product code R11e-LoRa8
Interface Mini-PCIe
Supported class A and C
Frequency 863-870 MHz (EU863-870, RU864-870,
IN865-867
RF Output power 863-870 MHz 20 dBm
Receive max sensitivity -137 dB @ SF12
Range Up to 15 km in rural environment and up to 2 km in urban environment when using
MikroTik LoRa 6.5 dBi antenna kit
Operating ambient
temperature
-40°C .. +70°C
Max power consumption 2 W
