MIKROTIK LHGG LTE7 kit - LHG series CAT7 LTE outdoor router (LHGGR&R11e-LTE7)
CAT7 LTE modem | Expanded frequency support (B28 & B32) | 1x Micro SIM slot | 1x MiniPCI-e slot | 1x Gigabit LAN Port | LTE antenna gain: 17 dBi | Antenna beam width: 25° | Passive PoE, 802.3af/at | RouterOS (License level 3)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 110.55£ | 132.66£ | >0£ |
| 109.60£ | 131.52£ | >300£ |
| 107.71£ | 129.25£ | >1000£ |
Features:
The LHGG LTE7 kit is designed for reliable “last mile” Internet access in remote locations. Mount it outdoors on a pole or mast and connect even where cell phones fail. Equipped with a high-gain 17 dBi directional antenna and a CAT7 LTE modem with up to 100 Mbps upload speed, it delivers stronger performance and better responsiveness in rural and high-demand environments. The doubled uplink capacity makes it better suited for video surveillance, VPN, remote work, and multi-user rural deployments.

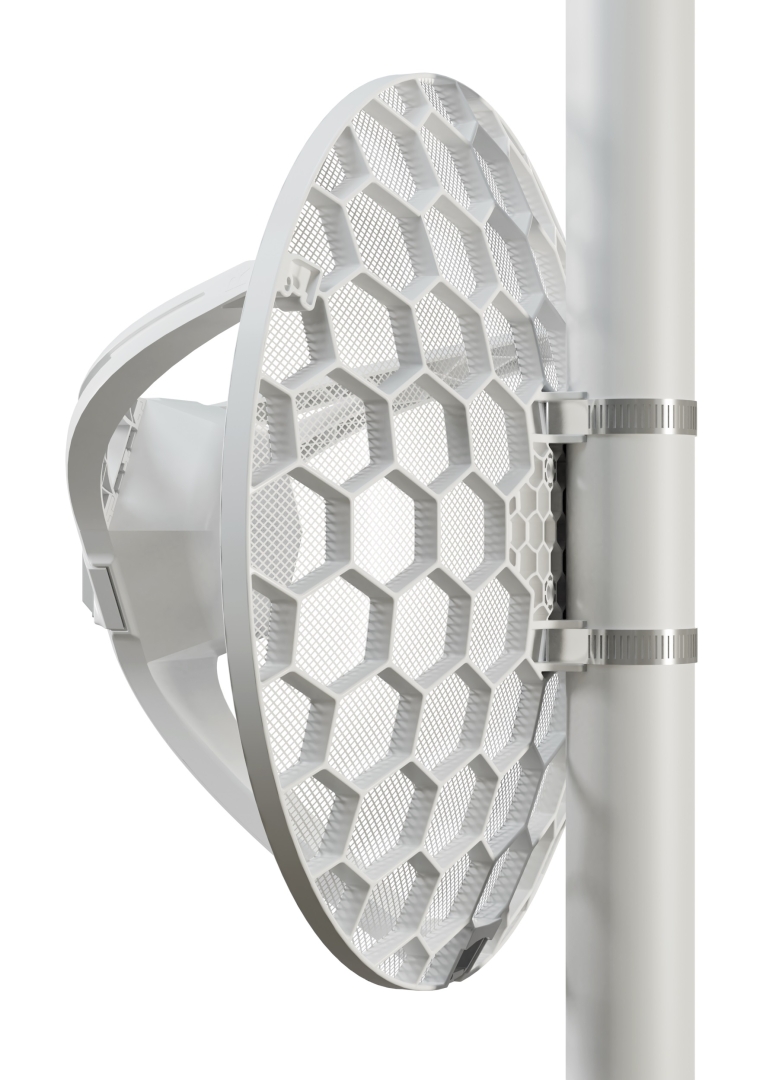

The lightweight grid antenna design reduces wind load while maintaining high gain. And it can be mounted in different ways, including poles and masts. A durable enclosure and operating temperature range from -40°C to +70°C ensure reliable performance in demanding climates. Finally, a massive heat sink keeps the system stable even under continuous load.
Specification:
Product code: LHGGR&R11e-LTE7
Architecture: ARM 64bit
CPU: 88F3720
CPU core count: 2
CPU nominal frequency: 800 MHz
CPU Threads count: 2
RouterOS license: 3
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 8 W
Max power consumption without attachments: 8 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 12-57 V
3G Category R8: (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands:
1 (2100 MHz):
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
LTE TDD bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
TAC: 35312597
Ethernet
10/100/1000 Ethernet ports: 1
Number of SIM slots: 1 Modem (Micro SIM)
MiniPCI-e slots: 1
Mode button: Yes
Certification: CE, EAC, ROHS
IP: 54
