MIKROTIK LHG series LHG XL 5 ax 5 GHz CPE/Point-to-Point Integrated Antenna (LHG-5axD-XL)
1x Gigabit LAN port | Passive PoE-in (12-28 V) | Wi-Fi 6 | Up to 1200 Mbit/s in 5 Ghz (802.11a/n/ac/ax ) | For links up to 30 km | Router OS (Licence level 3)
Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
78.33£ | 94.00£ | >0£ |
77.66£ | 93.19£ | >300£ |
76.32£ | 91.58£ | >1000£ |
Features:
Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.
The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

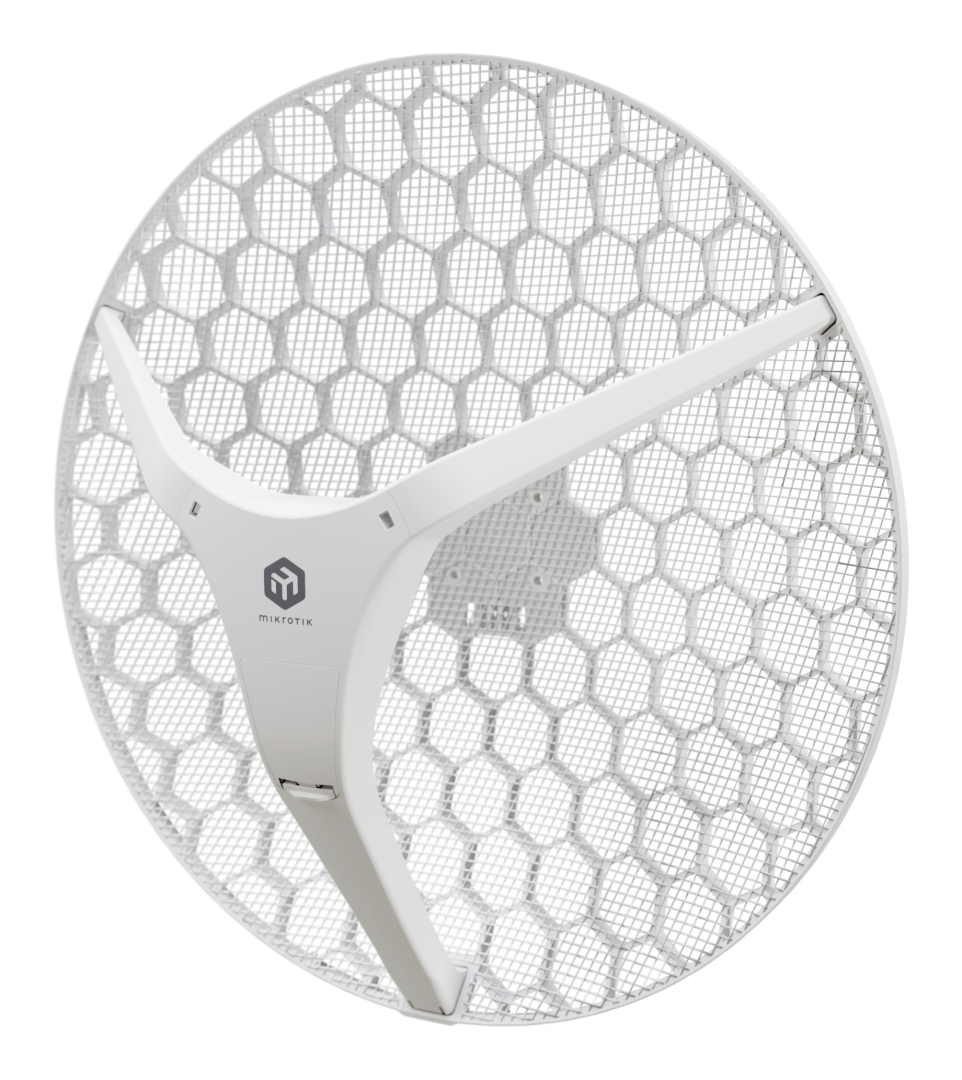

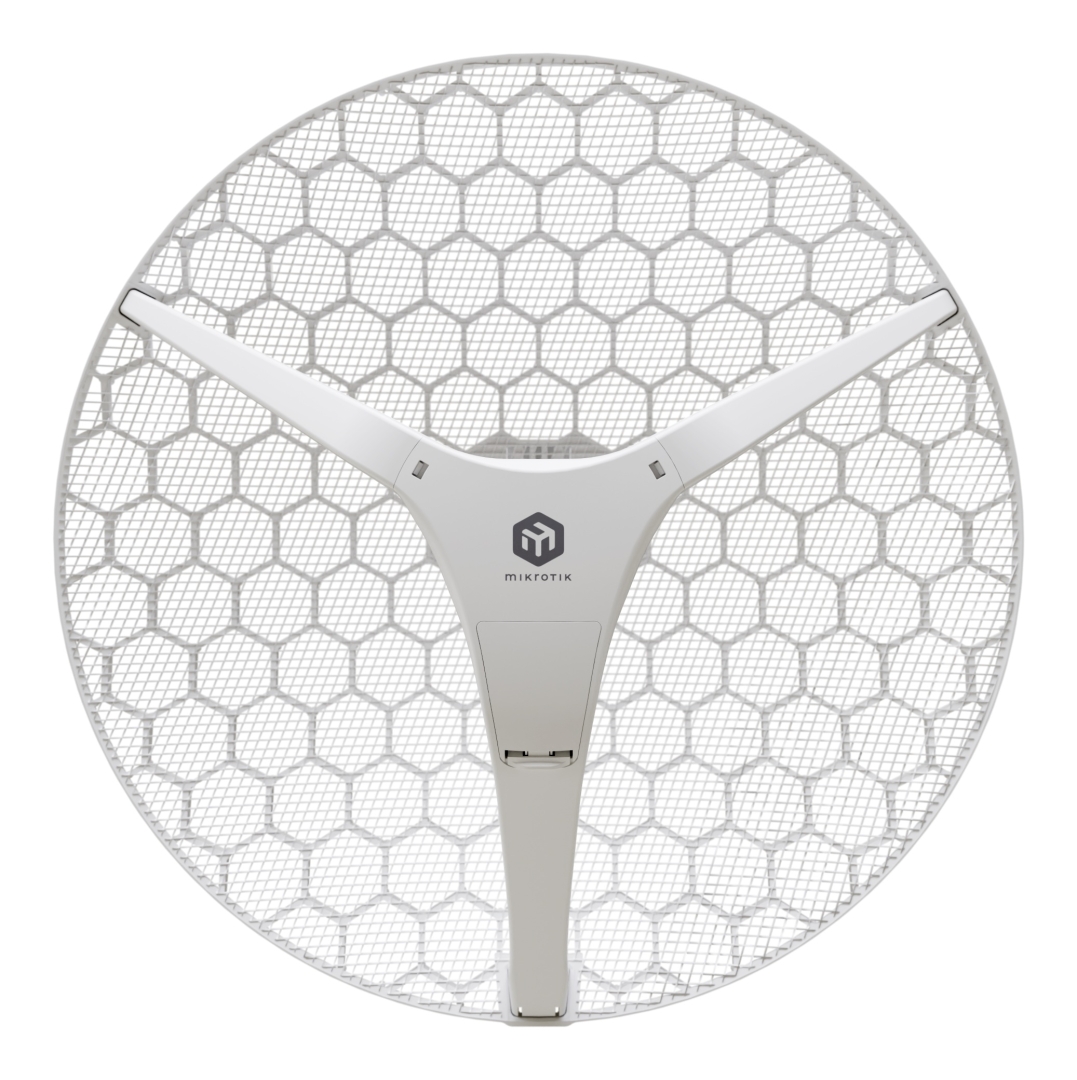

LHG XL 5 ax is an extra large long-range CPE with a 27 dBi antenna. Perfect for links up to 30 km in ideal conditions. Check related devices below for the regular version if you're working at a closer range!
Specification:
Product code | LHG-5axD-XL |
Architecture | ARM 64bit |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
RouterOS license | 3 |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|

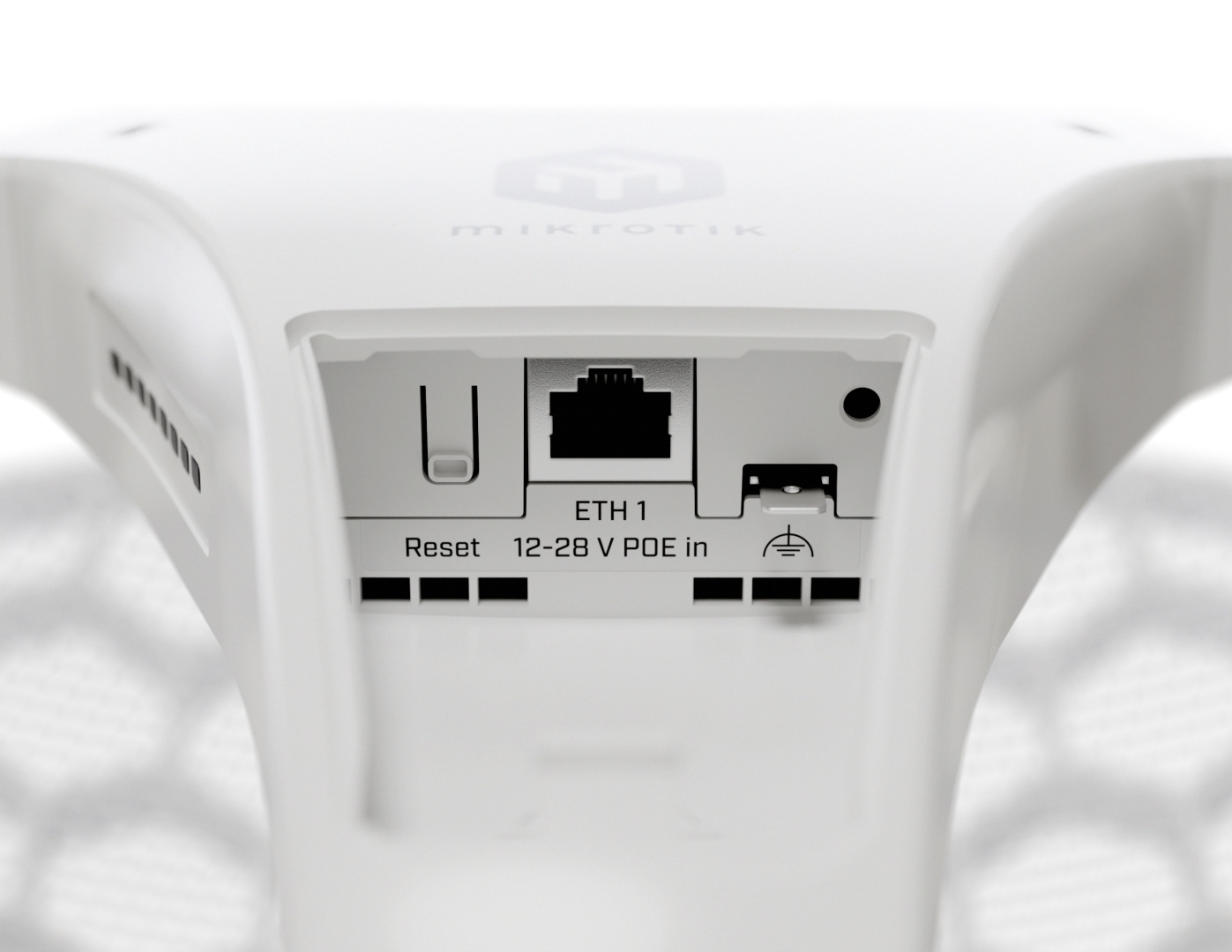

Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 5 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 12-28 V |
Wireless specifications
Details | |
---|---|
Wireless 5 GHz Max data rate | 1200 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac/ax |
Antenna gain dBi for 5 GHz | 27 |
Wireless 5 GHz chip model | QCN-6102 |
Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | 54 |
