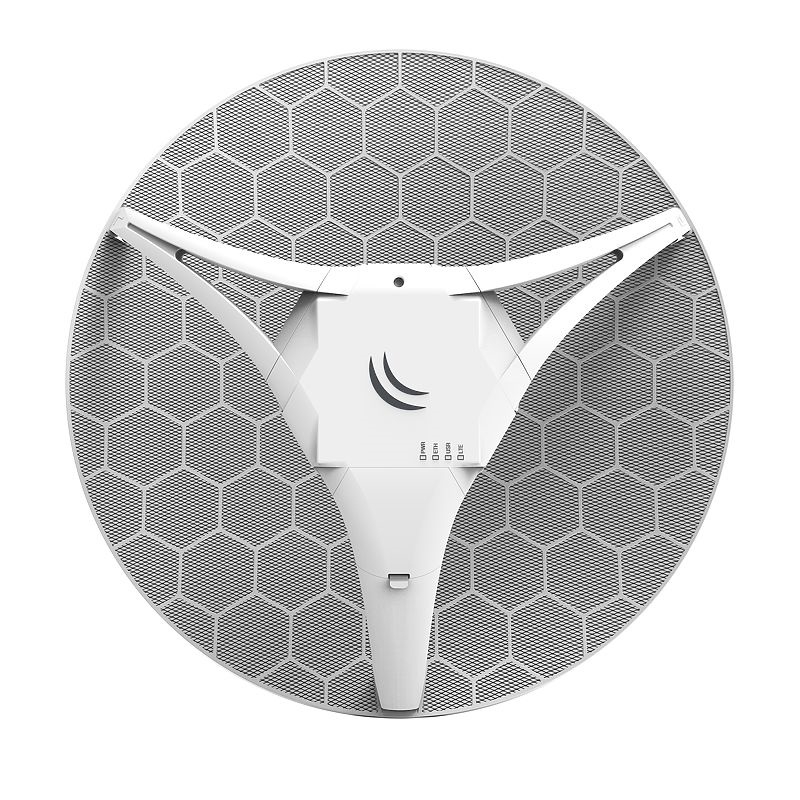

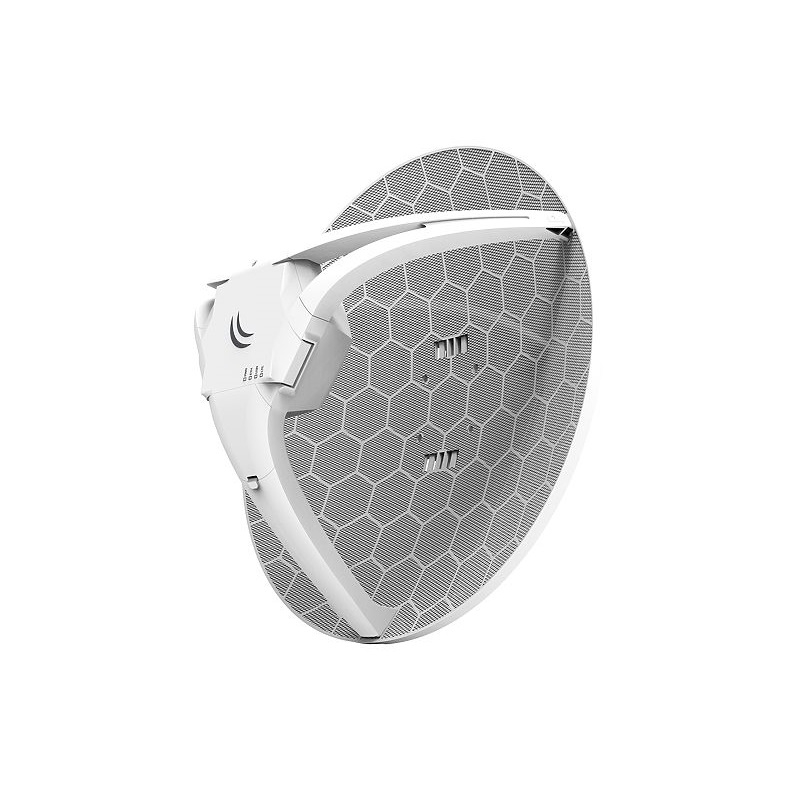

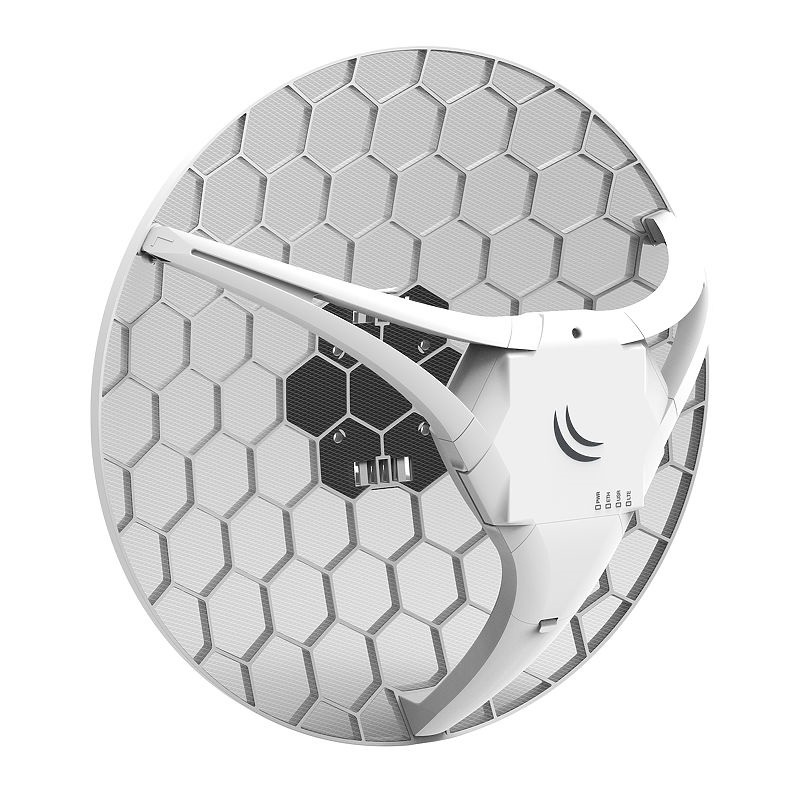

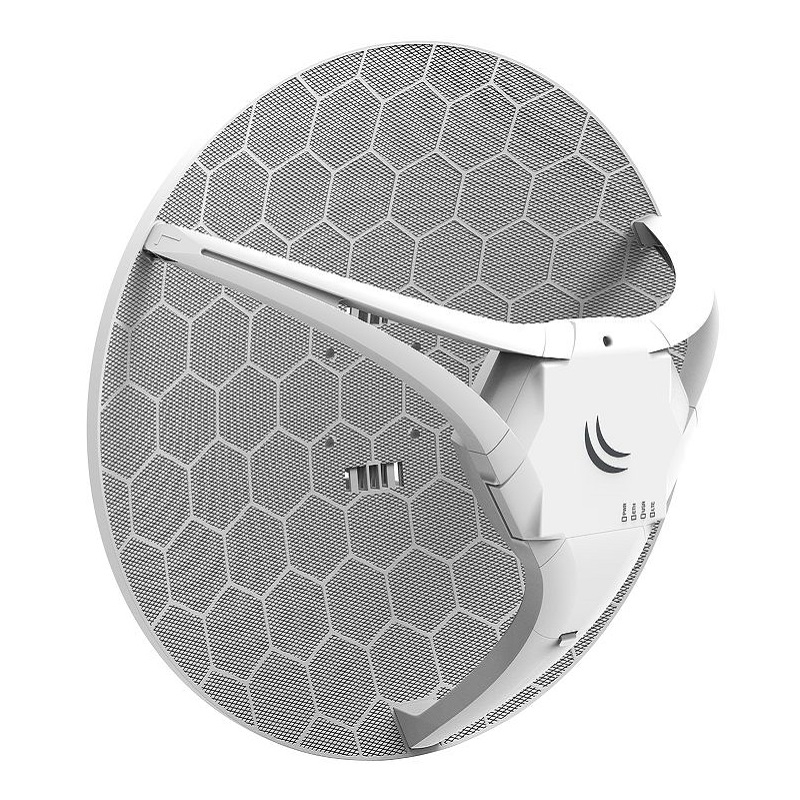

MIKROTIK LHG LTE kit (RBLHGR&R11e-LTE)

MPN: RBLHGR&R11e-LTE
Order code: RBLHGR&R11e-LTE
Quick code: #1611

Device for remote locations that are within cellular network coverage. 1x LAN Port, Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
105.29£ 126.35£ >0£
104.38£ 125.26£ >300£
102.56£ 123.07£ >1000£
Qty:
  In stock


Features:

The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.

RBLHGR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Specification:

Product code: RBLHGR&R11e-LTE
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 391 x 391 x 227 mm
Operating System: RouterOS (License level 3)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type:  FLASH
Tested ambient temperature: -40°C to 60°C

Powering

PoE in: 802.3af/at
PoE in input Voltage: 12-57 V
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 6 W

Mobile

2G Category: Class12
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz)

Ethernet

10/100 Ethernet ports: 1

Peripherals

Number of SIM slots: 1 Modem (Mini SIM)
MiniPCI-e slots: 1

Additional product information:

Brochure
Quick Start Guide
Link to manufacturer product page
