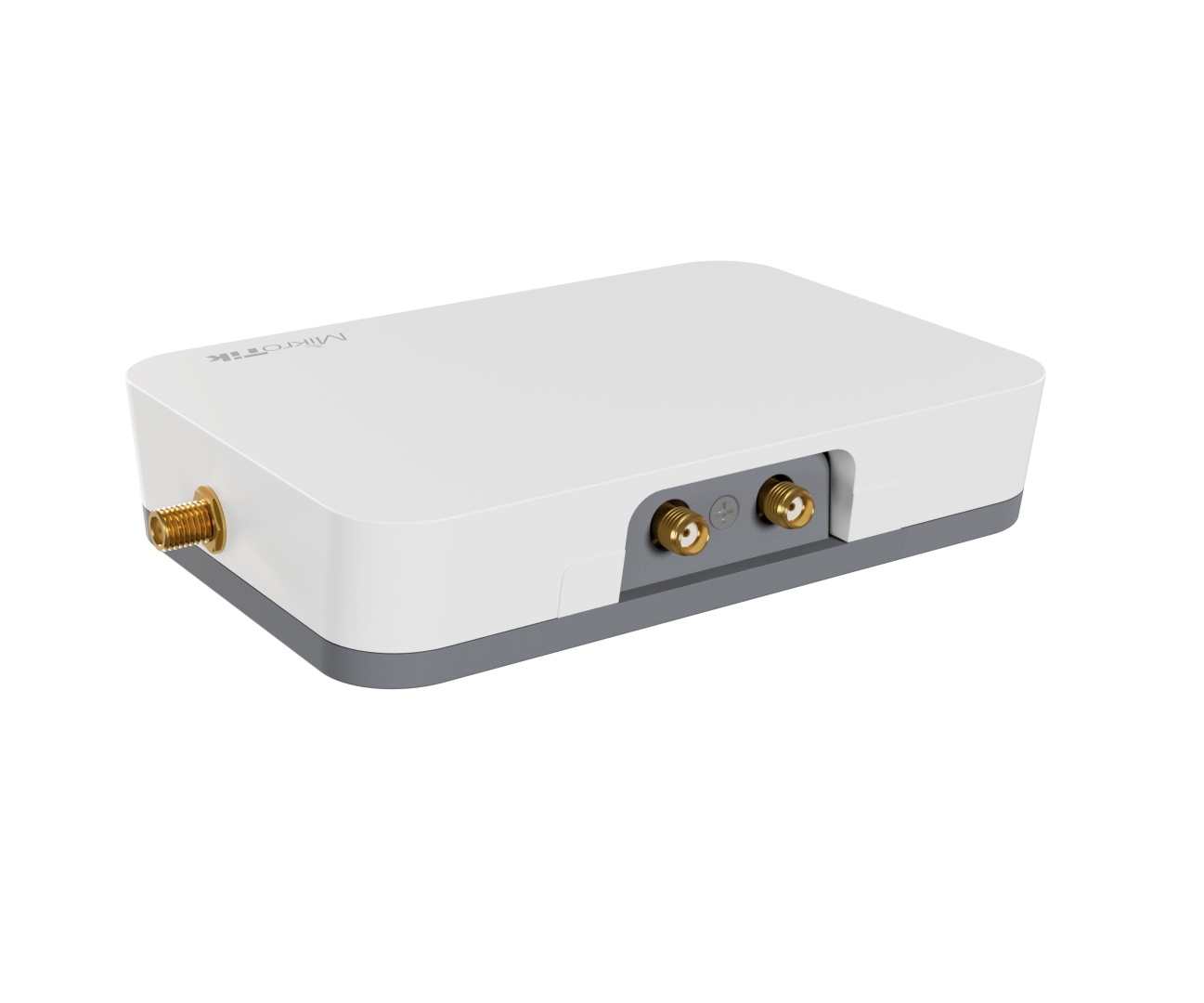

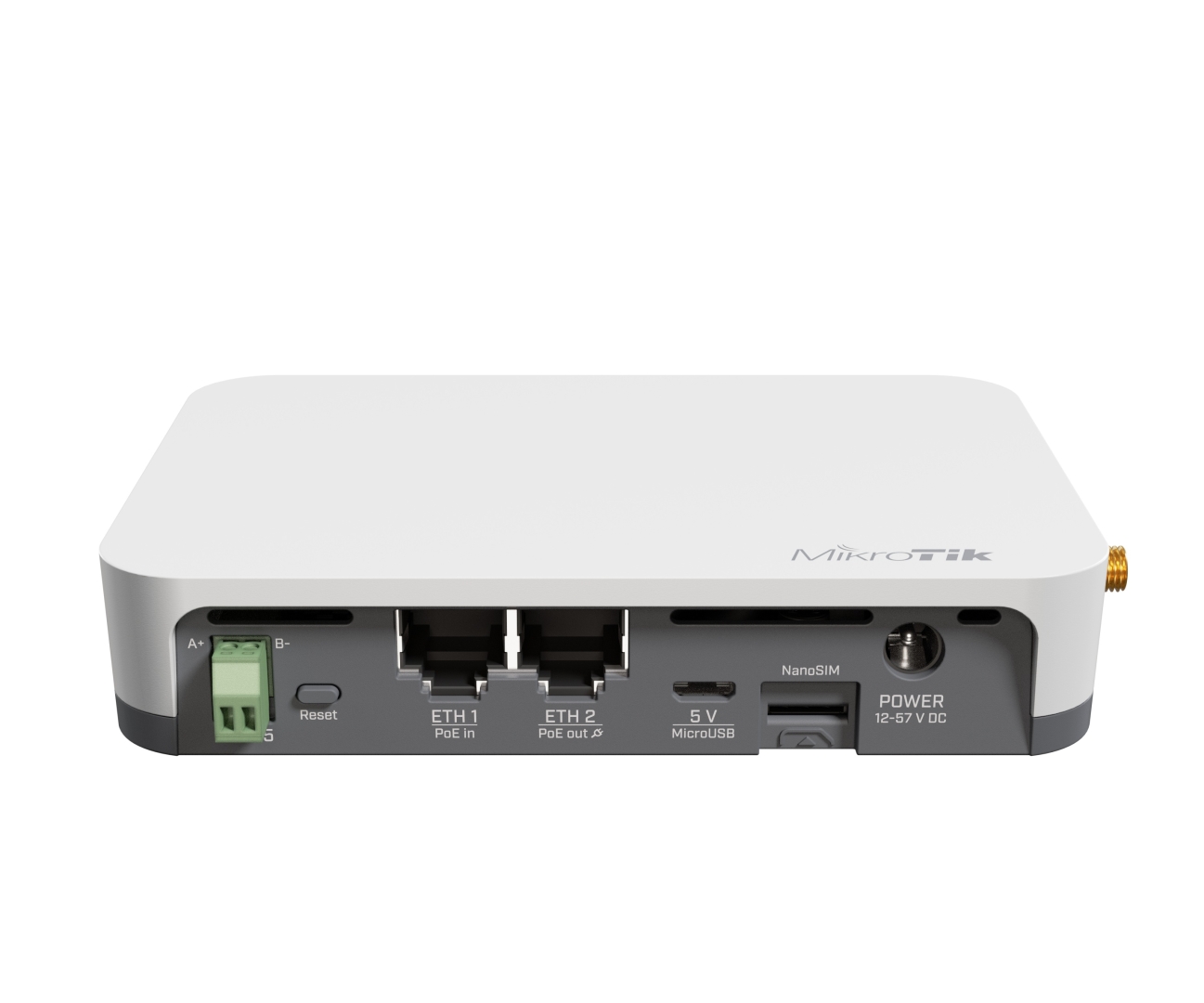

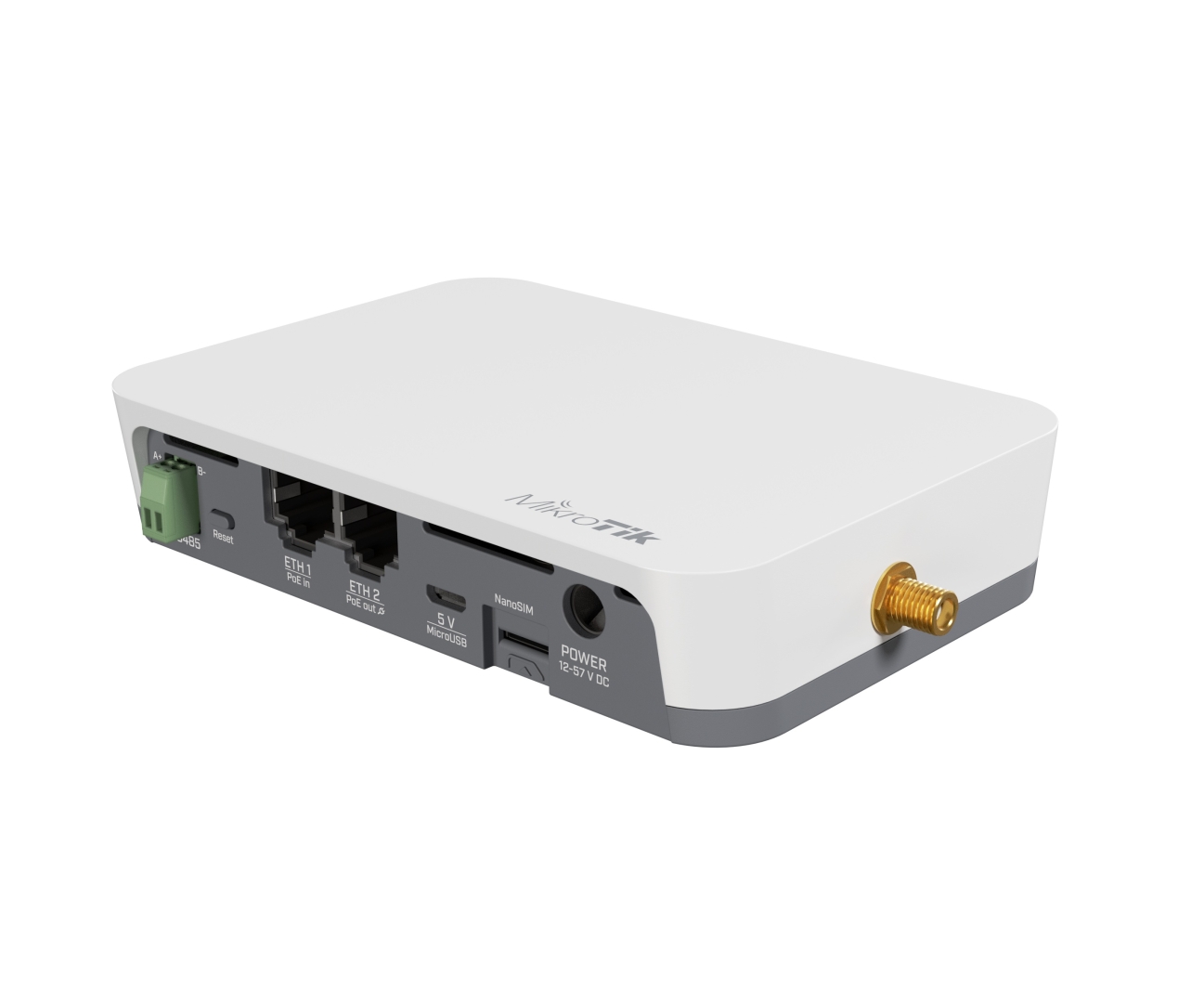

MIKROTIK IoT Gateway KNOT LR8G kit (RB924iR-2nD-BT5&BG770A&R11e-LR8G)
LoRa® 868MHz | CAT-M/NB technology | 1x Modem (Nano SIM) | 2.4 GHz wireless (802.11b/g/n) | Bluetooth (V5.2) | 2x 100 Mbps Ethernet ports | PoE-in/out (802.3af/at) | Micro USB 2.0 (Type AB) | Built-in GPS module | GPIO RS485/Modbus | Router OS (Licence level 4)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 115.25£ | 138.30£ | >0£ |
| 114.26£ | 137.11£ | >300£ |
| 112.29£ | 134.75£ | >1000£ |
Features:
Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.
Versatile Powering
Choose from PoE-in, DC jack, or MicroUSB – including PoE-out on Ether2 for powering other devices.
SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.
Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.
Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.
Powered by RouterOS v7
For full control, custom scripting, and advanced routing features.
Specification:
Product code RB924iR-2nD-BT5&BG770A&R11e-LR8G
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Switch chip model: QCA9531
RouterOS license 4
Operating System: RouterOS v7
Size of RAM: 64 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
MicroUSB input Voltage: 5 V
Number of DC inputs: 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage: 12-57 V
Max power consumption: 23 W
Max power consumption without attachments: 6 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 18-57 V
PoE-out
PoE-out ports: Ether2
PoE out Passive PoE
Low voltage PoE-Out current limit: 650 mA
High voltage PoE-Out current limit: 450 mA
Total output power: 12
Wireless specifications
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz Number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
10/100 Ethernet ports: 2
Peripherals
Number of SIM slots: 1 Smart card (Nano SIM)
MiniPCI-e slots: 1
Serial console port: RS485
Number of USB ports: 1
USB slot type: microUSB type AB
Max USB current (A): 1
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Bluetooth version: 5.2
Bluetooth RF connector type: uUFL
GPS RF connector type: SMA
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 20
