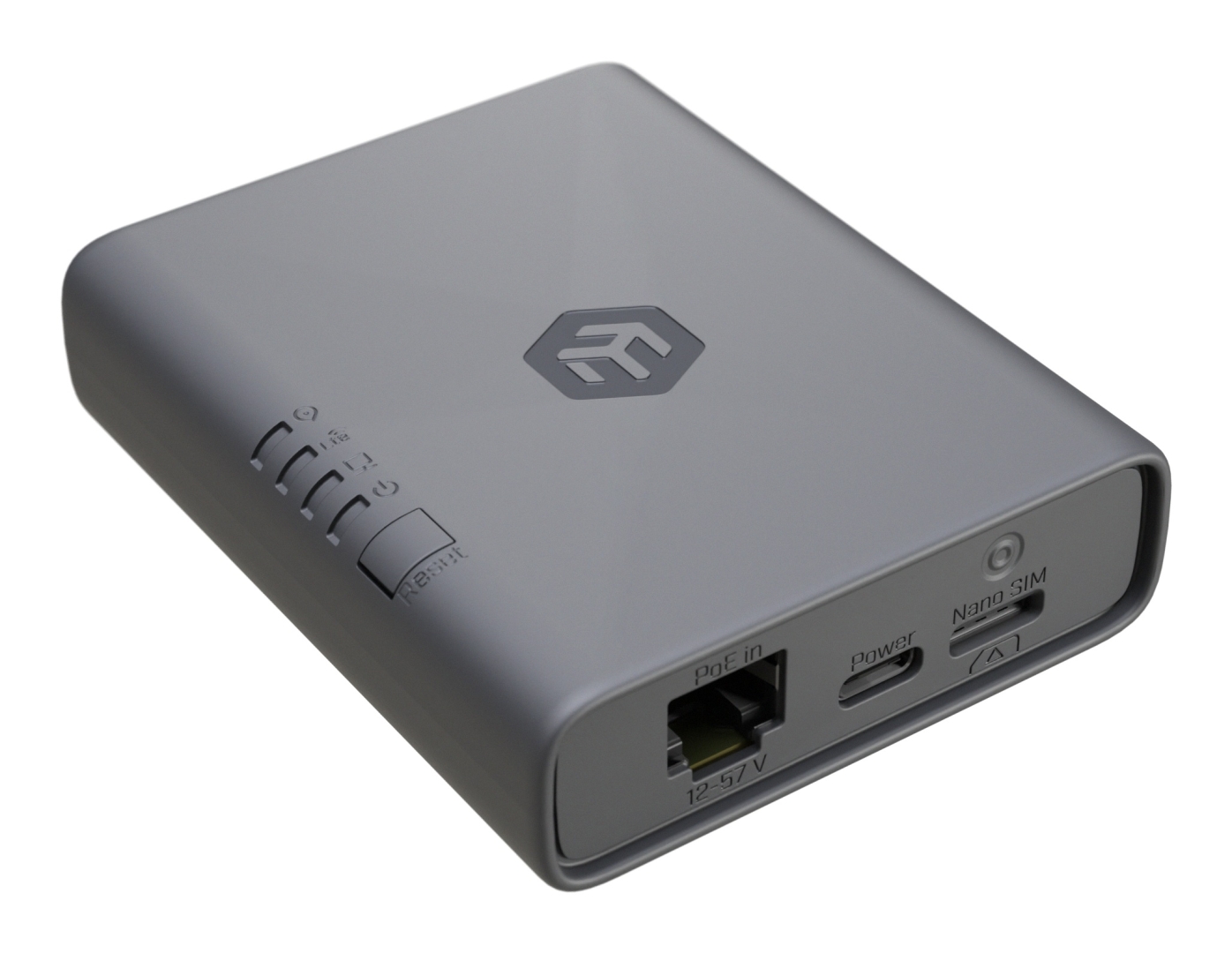

MIKROTIK Industrial LTE Gateway KNOT Embedded LTE4 (EC25-EU&KNe)
1x Modem (Nano SIM) + eSIM | Bluetooth (V5.1) | 1x Gigabit RJ45 LAN port | PoE-in (802.3af/at) | 1x USB-C | GNSS/GPS | DIN rail mounting | 2x2 MIMO DL | Router OS (Licence level 3)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 50.71£ | 60.85£ | >0£ |
| 50.28£ | 60.34£ | >300£ |
| 49.42£ | 59.30£ | >1000£ |
Features:

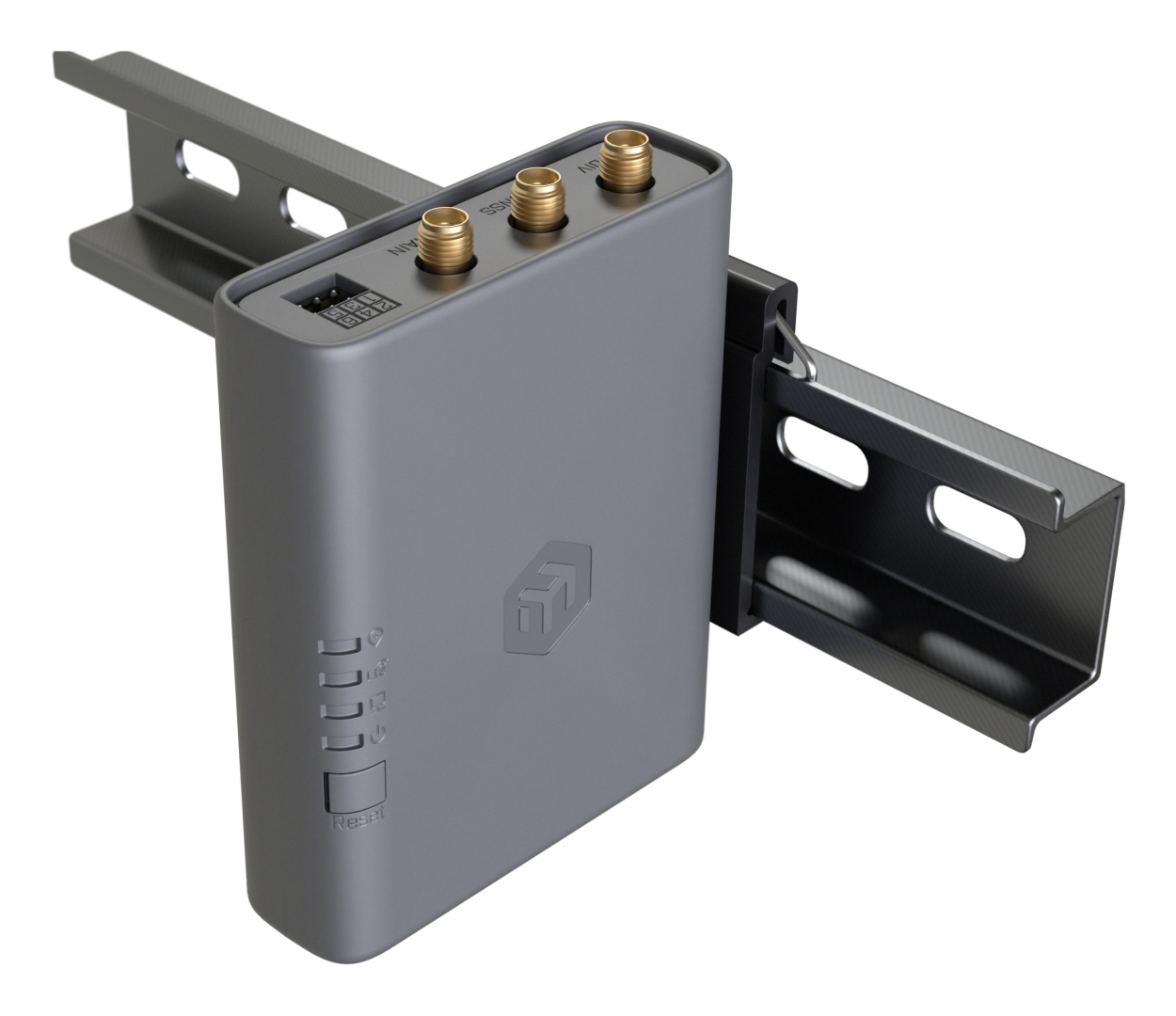

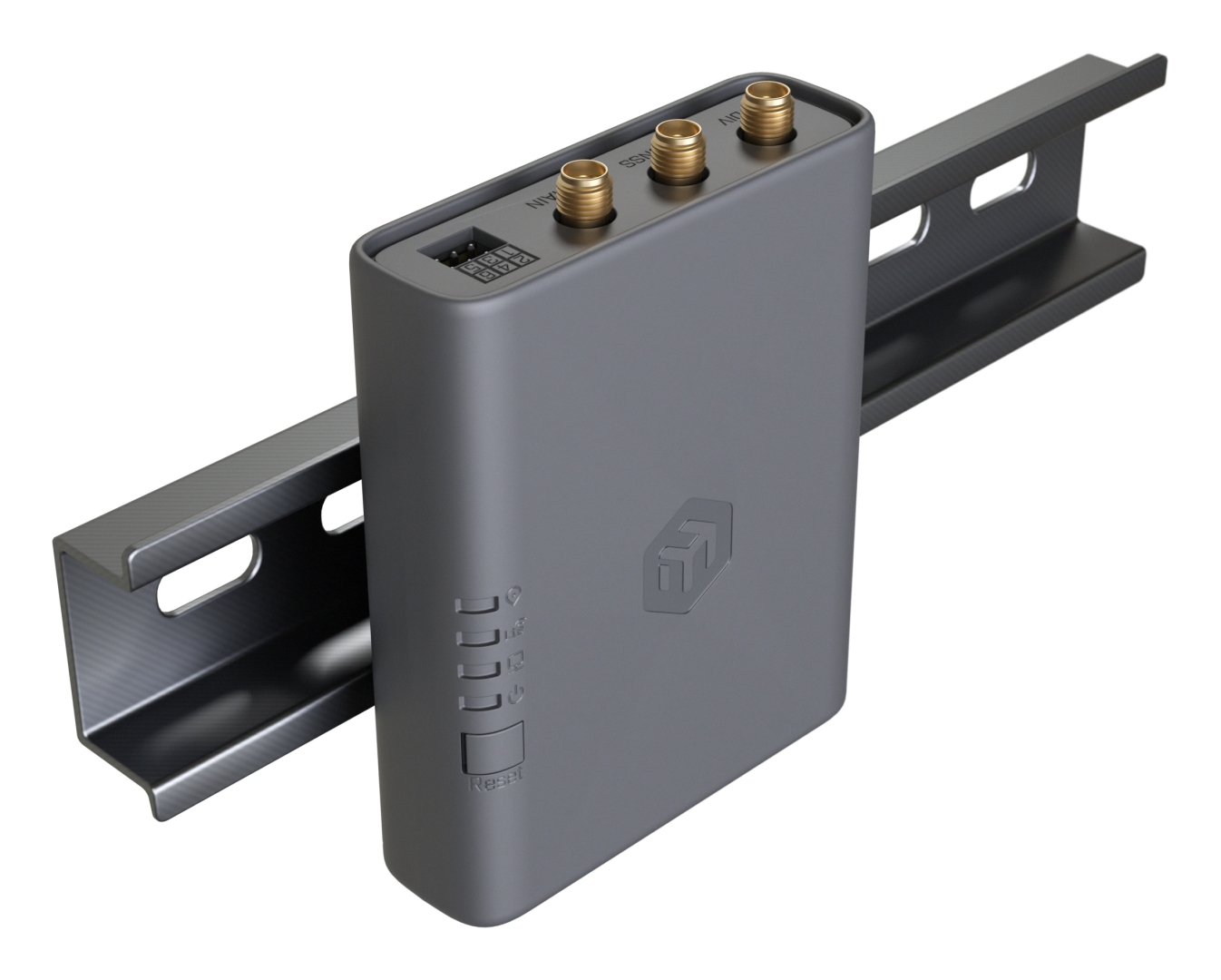

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.
KNOT Embedded LTE4 is made for environments where space is limited but reliability is critical:
• Smart city infrastructure (parking, sensors, metering)
• Coffee and vending machine monitoring
• Industrial automation cabinets
• Environmental & utility monitoring
• Vehicle or asset tracking with GNSS
• Retail kiosks, payment terminals, digital signage
• LTE backup connectivity for existing Ethernet devices
• IoT gateways for BLE sensors and beacons
Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.
Specification:
Product code: EC25-EU&KNe
Architecture: ARM 32bit
CPU: CPU ARM 32-bit Cortex A7
CPU core count: 1
CPU nominal frequency: 800 MHz
RouterOS license: 3
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 512 MB
Storage type: NAND
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 2 (PoE-IN, USB-C)
Max power consumption: 7 W
Max power consumption without attachments: 7 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 12-57 V
USB C input Voltage: 5 V
Mobile
2G Category: Class12
2G bands:
3 (1800MHz)
8 (900MHz)
3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands:
1 (2100MHz)
8 (900MHz)
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100MHz)
3 (1800MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
28A (700 MHz)
LTE TDD bands:
38 (2600MHz)
40 (2300MHz)
41 (2500MHz)
TAC 86554604
Ethernet
10/100/1000 Ethernet ports: 1
Number of 1G Ethernet ports with Reverse PoE (PoE-in): 1
Peripherals
Number of SIM slots: 1 Modem (Nano SIM)
Other
CPU temperature monitor: Yes
Bluetooth version: 5.1
GPS RF connector type: SMA
eSIM: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 20
