MIKROTIK RouterBOARD hEX POE (RB960PGS) (RouterOS Level 4)

Order code: RB960PGS
Quick code: #1098

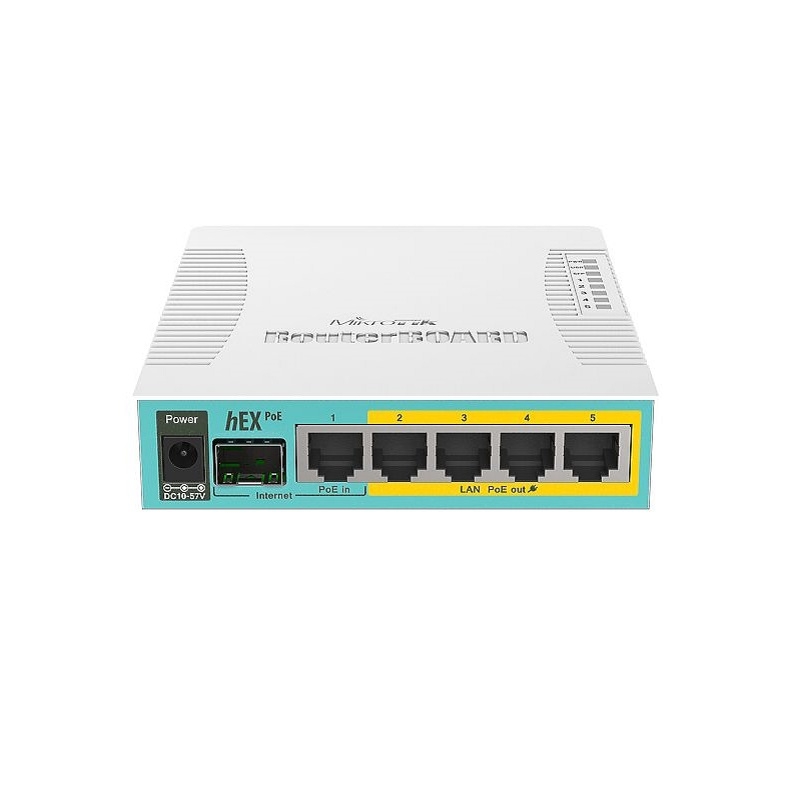

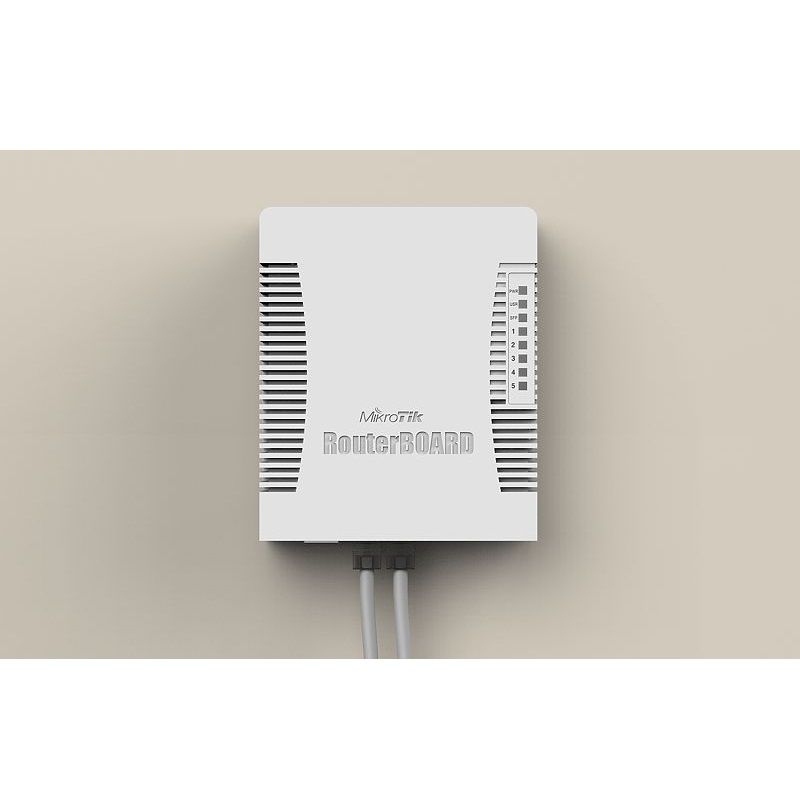

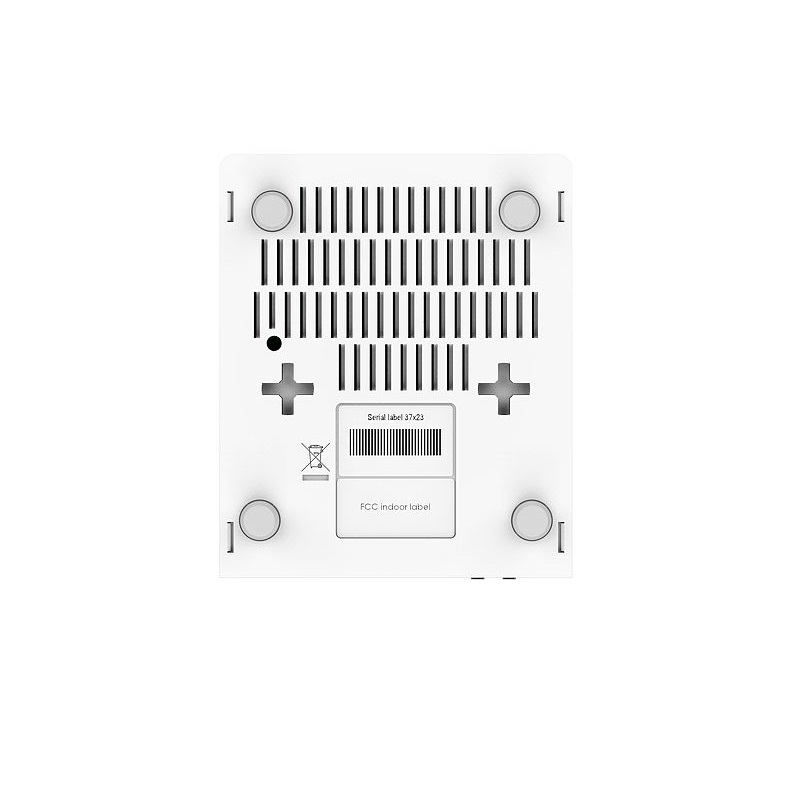

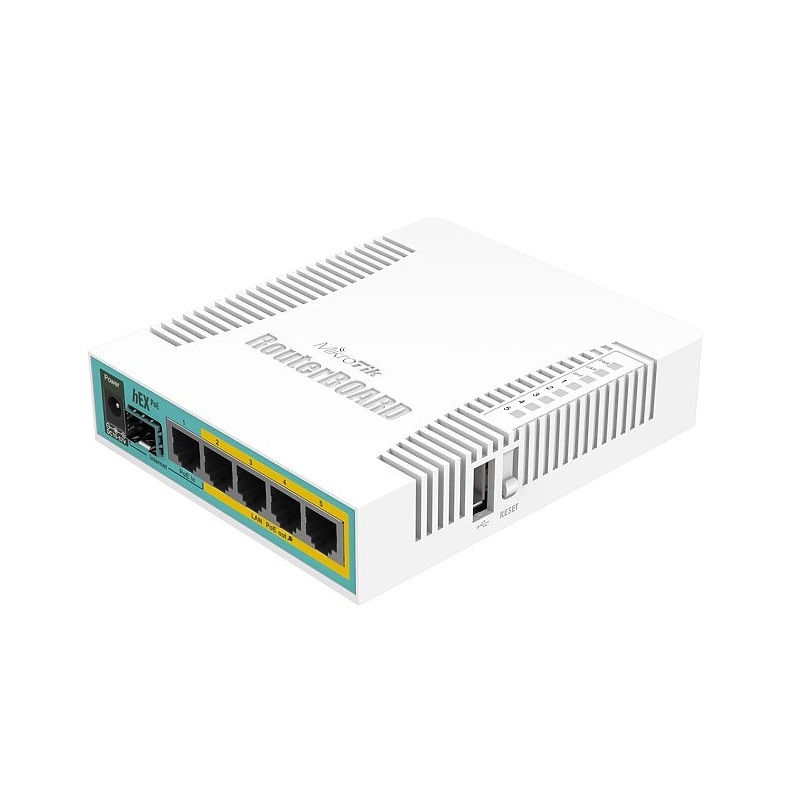

Ethernet Router | MIKROTIK hEX POE RB960PGS 800MHz CPU, 128MB RAM, 5x Gbit LAN (four with PoE-OUT), 1x SFP port, 1x USB port, RouterOS L4

Price exc. VAT: Price inc. VAT: For orders (total sum):
51.35£ 61.62£ >0£
50.96£ 61.15£ >300£
50.02£ 60.02£ >1000£
Qty:


Features:

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.



Specification:

Product code

RB960PGS

Architecture

MIPSBE

CPU

QCA9557

CPU core count

1

CPU nominal frequency

800 MHz

License level

4

Operating System

RouterOS

Size of RAM

128 MB

Storage size

16 MB

Storage type

FLASH

Tested ambient temperature

-40°C to 60°C

Powering

PoE in

Passive PoE

PoE in input Voltage

12-57 V

PoE out

802.3af/at

PoE-out ports

Ether2-Ether5

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

12-57 V

Max out per port output (input > 30 V)

450 mA

Max out per port output (input < 30 V)

1 A

Max total out (A)

2 A

Max power consumption

54 W

Max power consumption without attachments

6 W

Ethernet

10/100/1000 Ethernet ports

5

Fiber

SFP ports

1

Peripherals

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1

Other

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification & Approvals

Certification

CE/RED, EAC, ROHS

Included parts

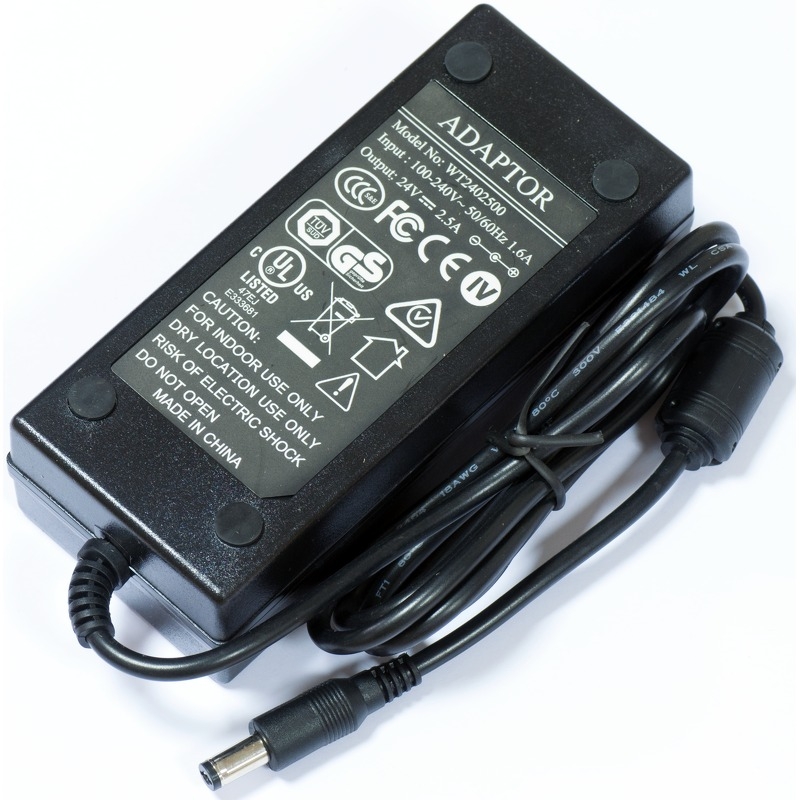

1x 24V 2.5A power adapter

1x IEC cord
