MIKROTIK 2.4GHz access point with 4G (LTE) International modem, LtAP LTE kit (RBLtAP-2HnD&R11e-LTE)

MPN: RBLtAP-2HnD&R11e-LTE
Order code: RBLtAP-2HnD&R11e-LTE
Quick code: #1700

Heavy-duty weatherproof design, extra miniPCI slot, three SIM slots, GNSS support (GPS, GLONASS, BeiDou, Galileo), LTE modem for International bands 1,2,3,7,8,20,38 and 40, 2.4 GHz 802.11b/g/n wireless, 1x Gigabit LAN port, 1x RS232 serial port, Passive PoE 11-30V, Router OS (Licence level 4)

Price exc. VAT: Price inc. VAT: For orders (total sum):
120.52£ 144.62£ >0£
119.47£ 143.36£ >300£
117.40£ 140.88£ >1000£
Qty:
  In stock


Features:

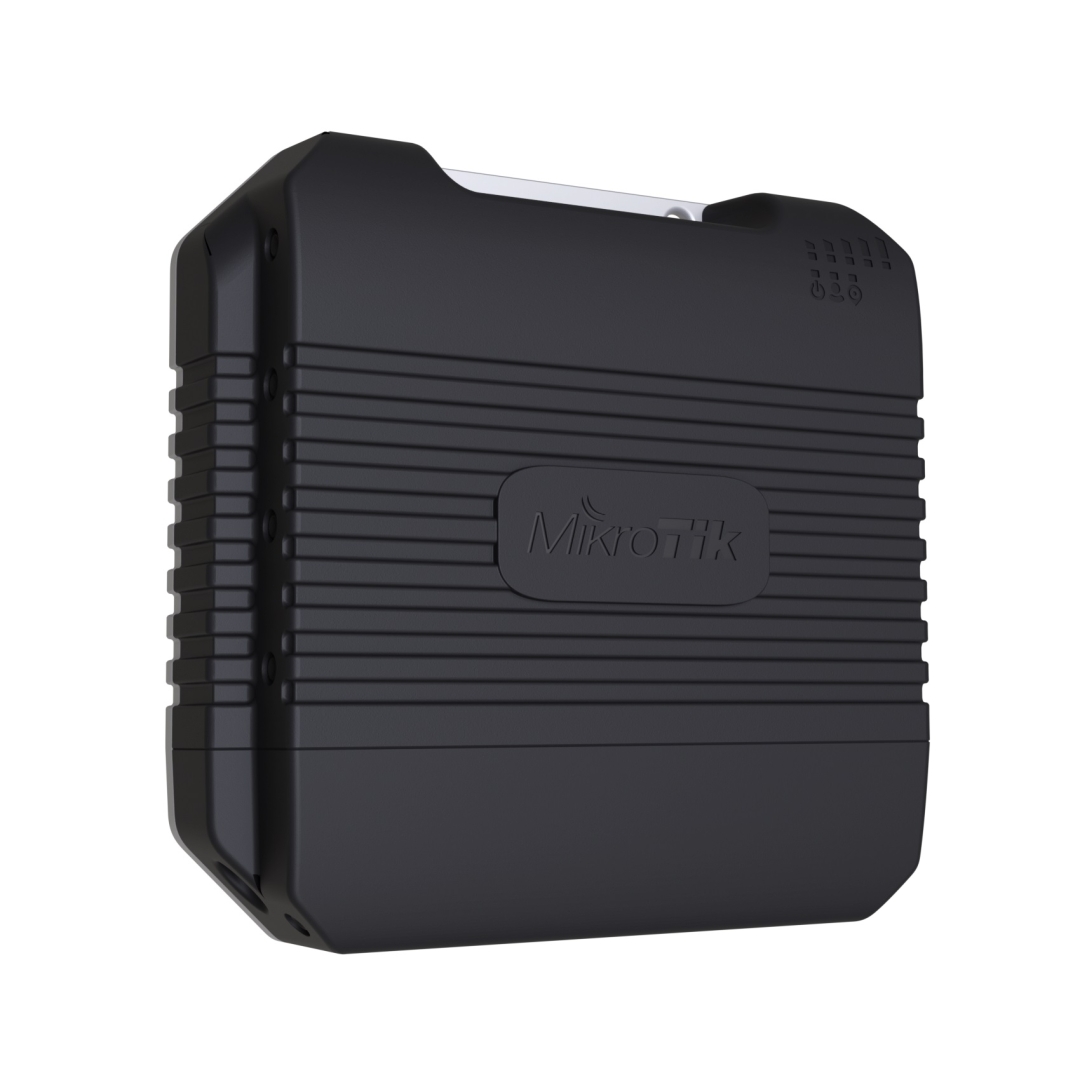

Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.

The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.

Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

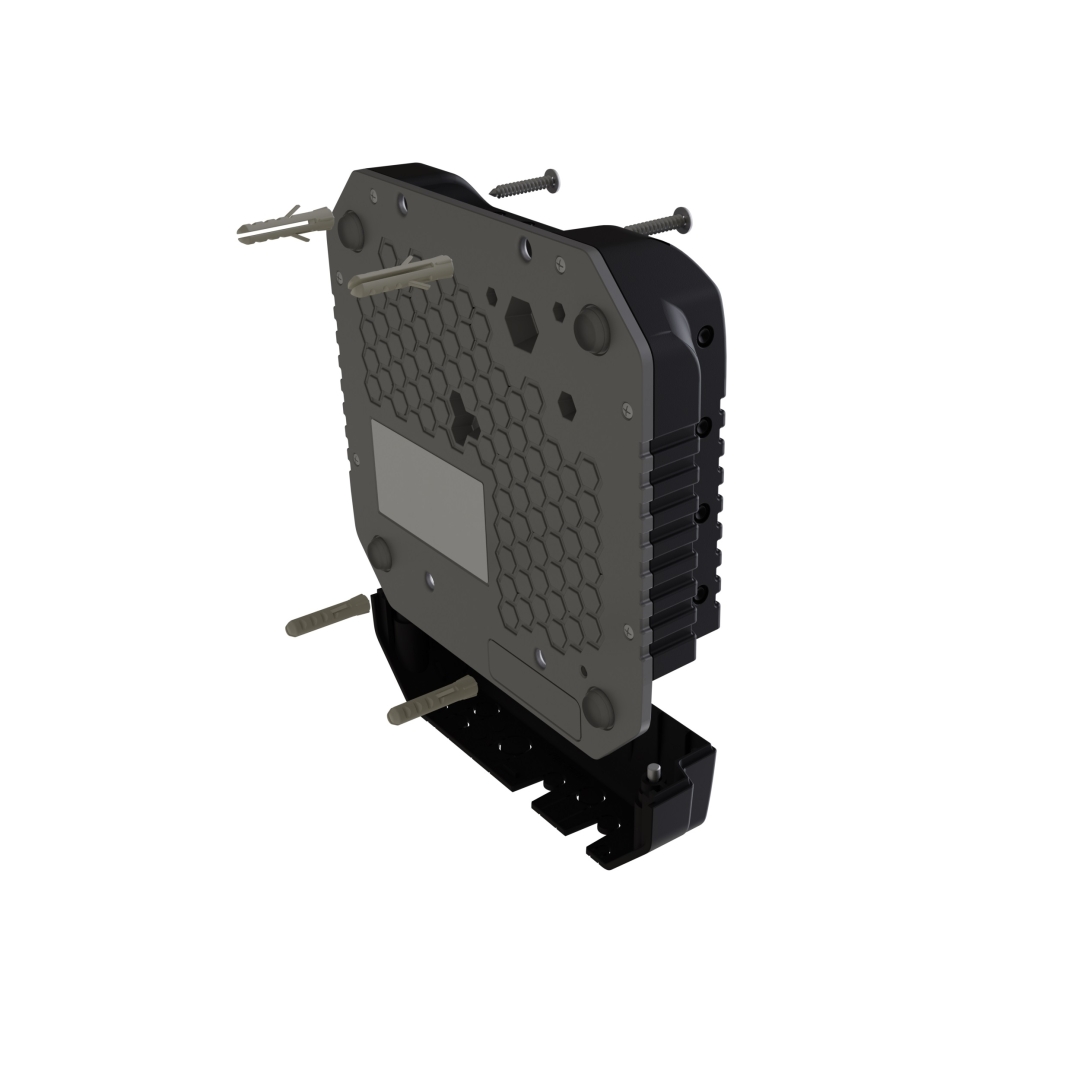

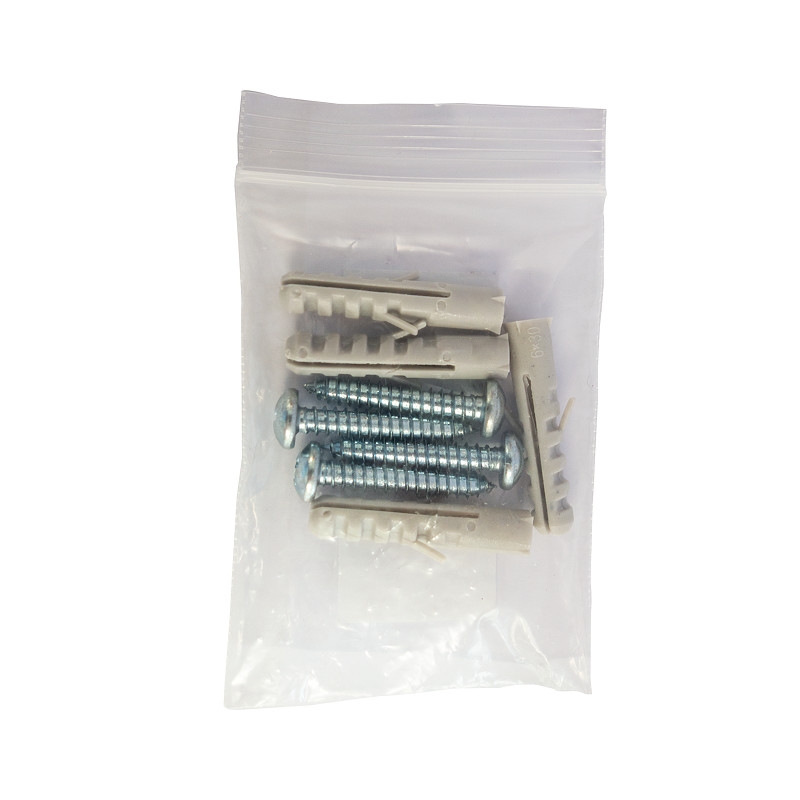

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

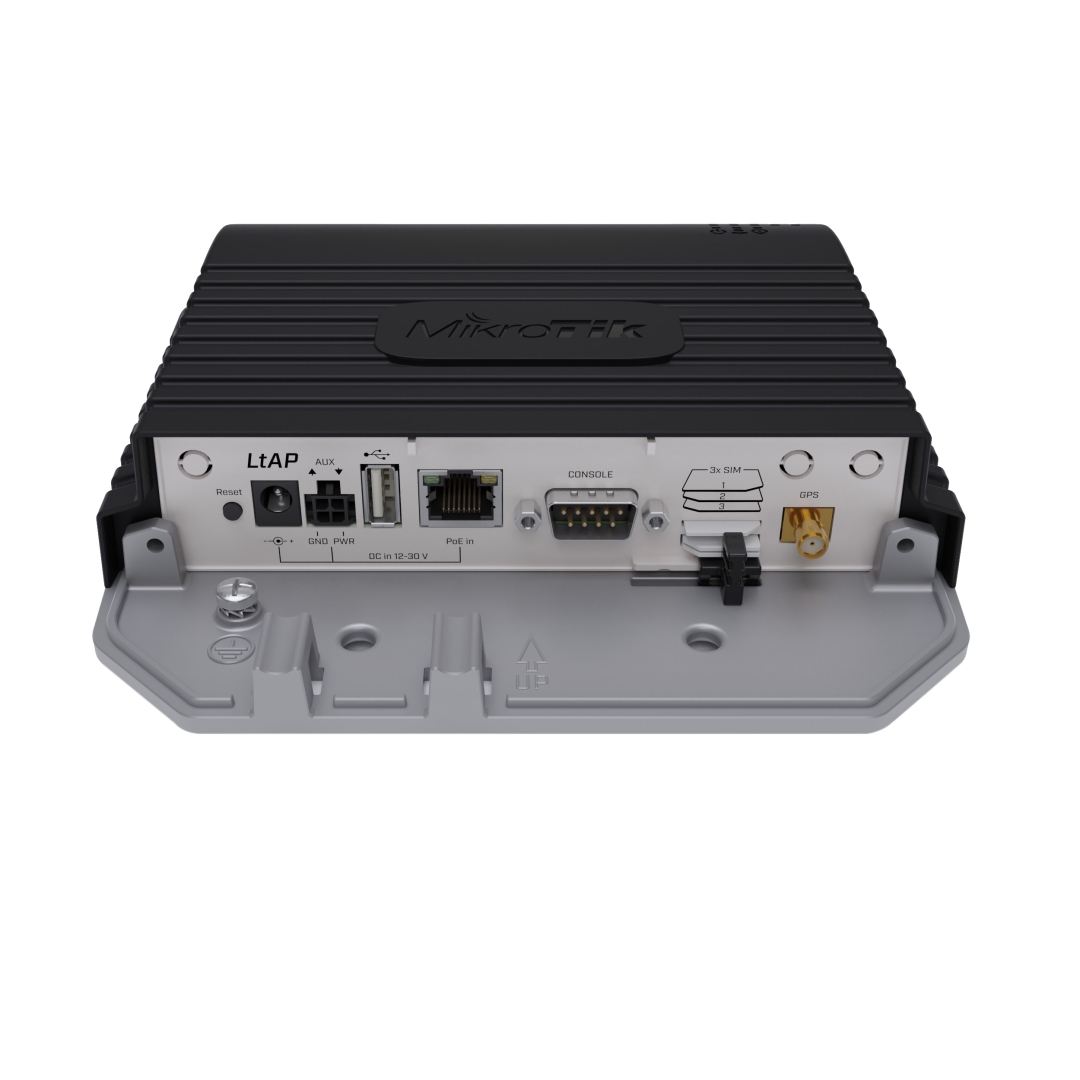

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.

Specification:

Product code: RBLtAP-2HnD&R11e-LTE
Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH

Operating system: RouterOS (License level 4)

Powering

PoE in: Passive PoE
PoE in input Voltage: 12-30 V

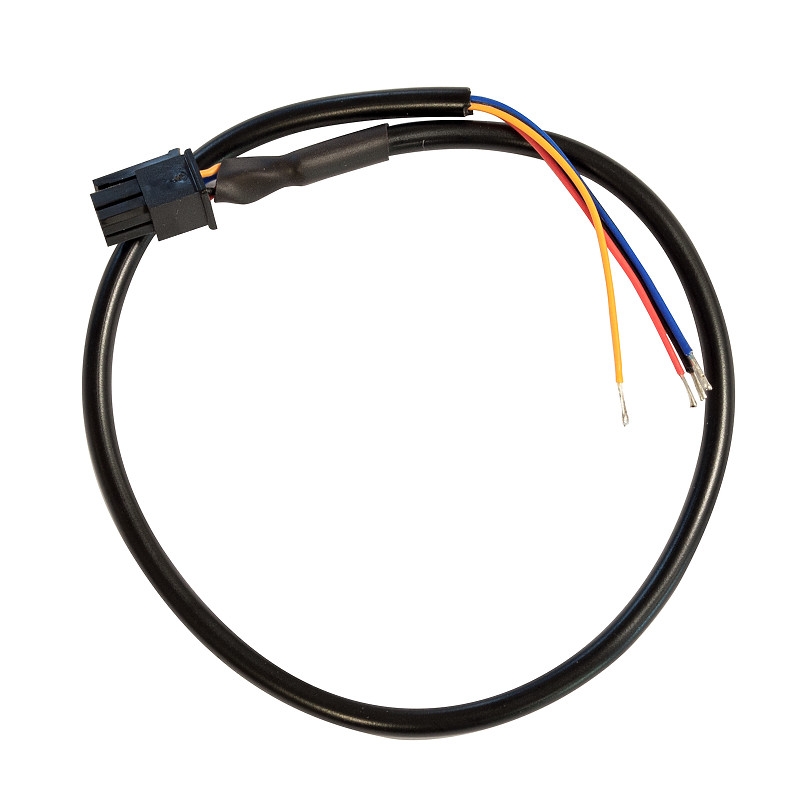

Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage: 12-30 V
Automotive input Voltage: 12-30 V
Max power consumption: 24 W
Max power consumption without attachments: 12 W

Mobile

2G Category: Class12
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz)
LTE antenna max gain: 4 dBi (with u.FL connector)
Antenna beam width: 360°

Wireless

Wi-Fi generation: 4
Wireless antenna max gain: 2.5 dBi

Ethernet

10/100/1000 Ethernet ports: 1

Peripherals

Number of SIM slots: 3 Modem (Mini SIM)
MiniPCI-e slots: 2
Serial port: RS232
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Other

PCB temperature monitor: Yes
Voltage Monitor: Yes
Dimensions: 170 x 162 x 40 mm
Tested ambient temperature: -40°C to 70°C
