MIKROTIK Groove GA 52ac (RouterOS Level 4)
MIKROTIK RouterBOARD GrooveGA-52ac with 720MHz QCA9889 CPU, 64MB RAM, 1 Gbit LAN, 1 built-in dual band 2.4/5GHz 802.11ac/b/g/n wireless interface and antenna included, RouterOS L4 - AP mode, mounting loops, PoE injector, Dual Band 2.4ghz and 5Ghz Omni antenna included, 24V power adapter
|Price exc. VAT:||Price inc. VAT:||For orders (total sum):|

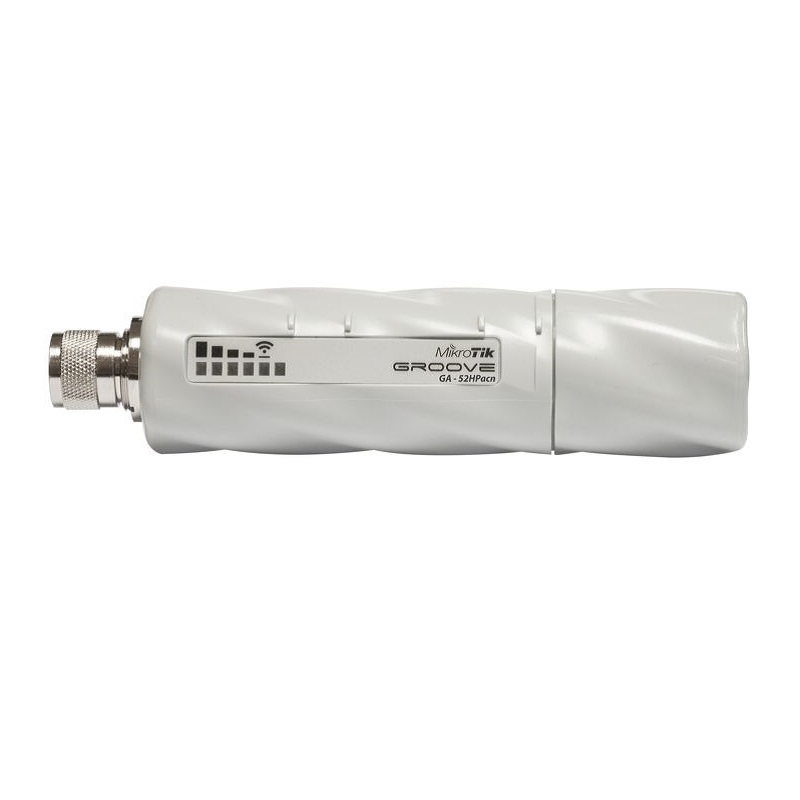

Mikrotik smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.
Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.
The Groove supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).
Two models are available, Groove for CPE and PtP connections, and GrooveA which also supports AP mode.

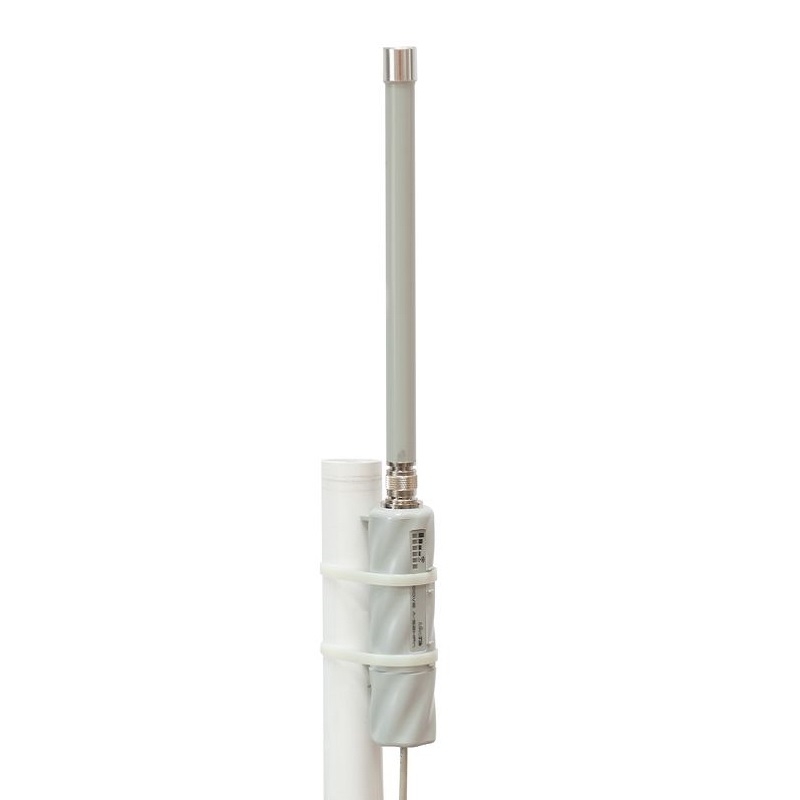

The device has a built-in N-male connector and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

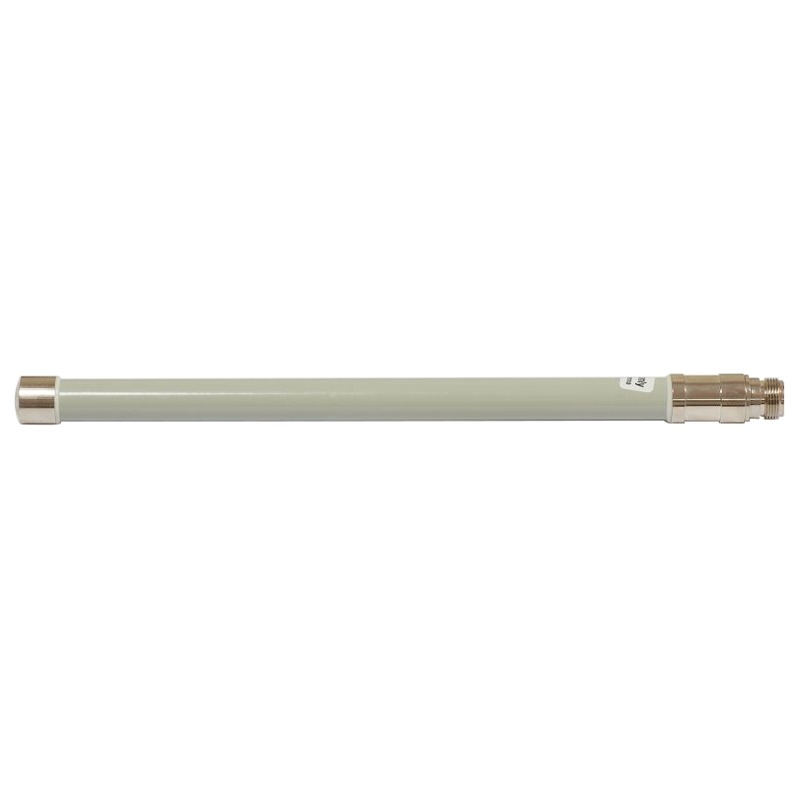

The Groove A (AP model) includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.

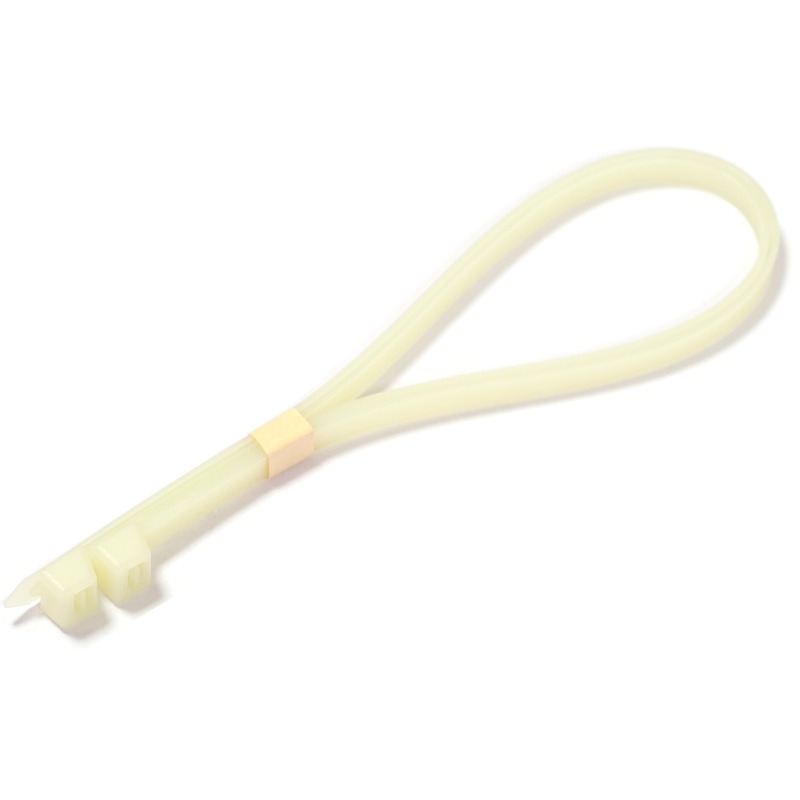

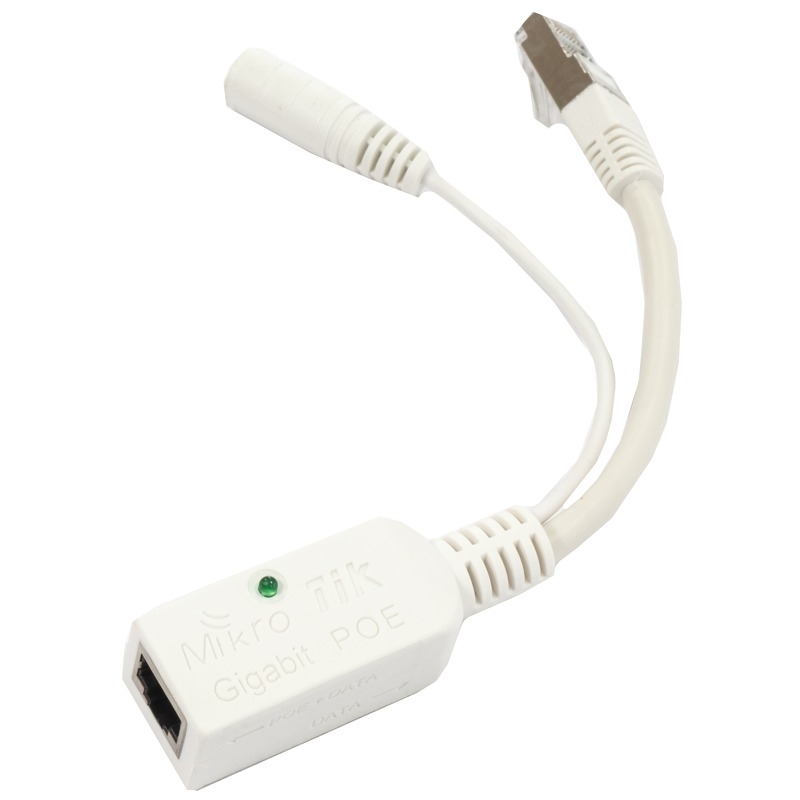

Box contains: Groove unit, mounting loops, PoE injector, power adapter, 6/8dBi 2.4/5GHz Omni antenna (Only A model).
CPU nominal frequency: QCA9556 720 MHz
Size of RAM: 64 MB
Storage: 16 MB Flash
10/100/1000 Ethernet ports: 1
Wireless: 5 GHz, 2.4 GHz
Operating frequency: 5150 - 5875 MHz, 2412 - 2484 MHz
Protocols: 802.11ac, 802.11b/g/n
Channel width: 5*/10*/20/40/80 MHz 5/10/20/40 MHz
Wireless chip model: QCA9889
PCB temperature monitor: Yes
Voltage monitor: Yes
PoE in: Yes
Supported input voltage: 11 V - 30 V (passive PoE)
Operating temperature: -40 to 70° C
License level: 4
Dimensions: 177 x 44 x 44 mm
Power consumption: 5 W
Rate (2.4 GHz) Tx Rx
1MBit/s 24 -97
11MBit/s 21 -91
6MBit/s 24 -93
54MBit/s 21 -77
MCS0 24 -93
MCS7 20 -72
Rate (5 GHz) Tx Rx
6MBit/s 26 -93
54MBit/s 21 -78
MCS0 26 -93
MCS7 21 -74
MCS9 19 -69
*Supports only 802.11an protocol
