MIKROTIK five port Gigabit Ethernet router hEX S (RB760iGS)

MPN: RB760iGS
Order code: RB760iGS
Quick code: #1552

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, IPsec hardware encryption support and The Dude server package, RouterOS (License level 4)

Price exc. VAT: Price inc. VAT: For orders (total sum):
44.47£ 53.36£ >0£
44.09£ 52.91£ >300£
43.32£ 51.98£ >1000£
Qty:
  In stock


Features:

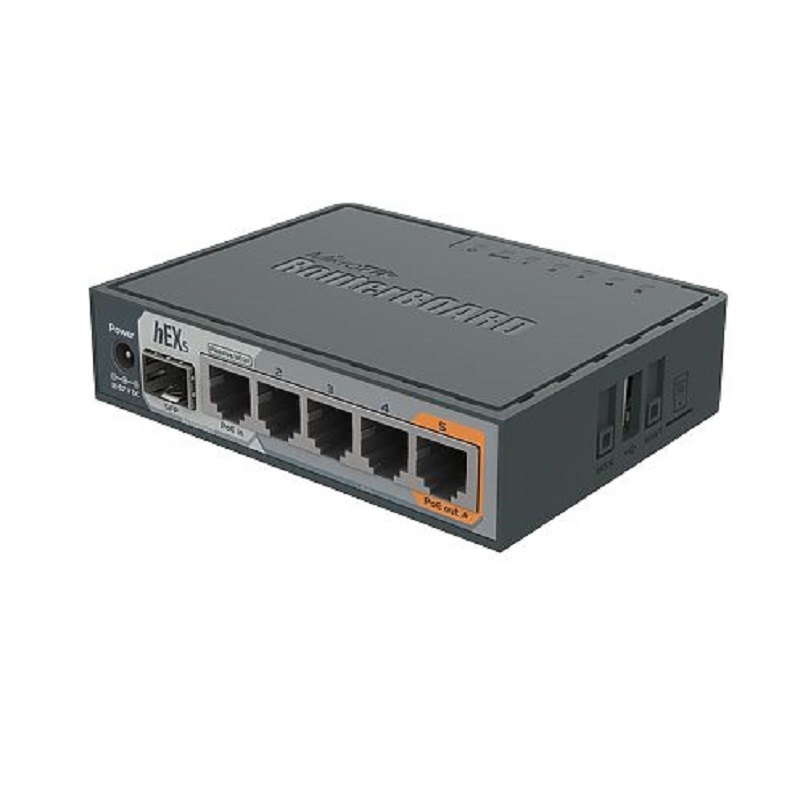

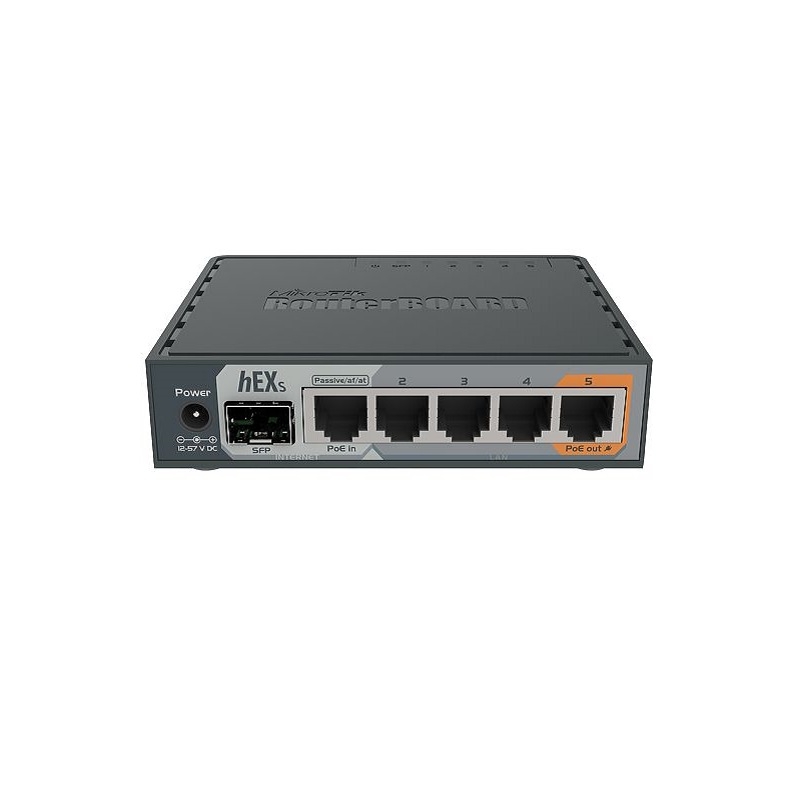

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specification:

Product code: RB760iGS
Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
Dimensions: 113 x 89 x 28 mm
Operating System: RouterOS (License level 4)
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40°C .. +70°C

Powering

Max Power consumption: 11W
PoE in: 802.3af/at
PoE out: Passive PoE up to 57V

Power output:
Max out per port output (input < 30 V): 500 mA
Max out per port output (input > 30 V): 500 mA
Max total out: 500 mA

PoE in input Voltage: 12-57 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V

Ethernet

10/100/1000 Ethernet ports: 5

Fiber

SFP ports: 1

Peripherals

Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Other

PCB temperature monitor: Yes
Voltage Monitor: Yes
