MIKROTIK Gigabit POE Ethernet Smart Switch (CRS112-8P-4S-IN)

MPN: CRS112-8P-4S-IN
Order code: CRS112-8P-4S-IN
Quick code: #1489

8x Gigabit Ethernet PoE-out ports, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS (License level 5)

Price exc. VAT: Price inc. VAT: For orders (total sum):
115.21£ 138.25£ >0£
114.22£ 137.06£ >300£
112.23£ 134.68£ >1000£
Qty:
  In stock


Features:

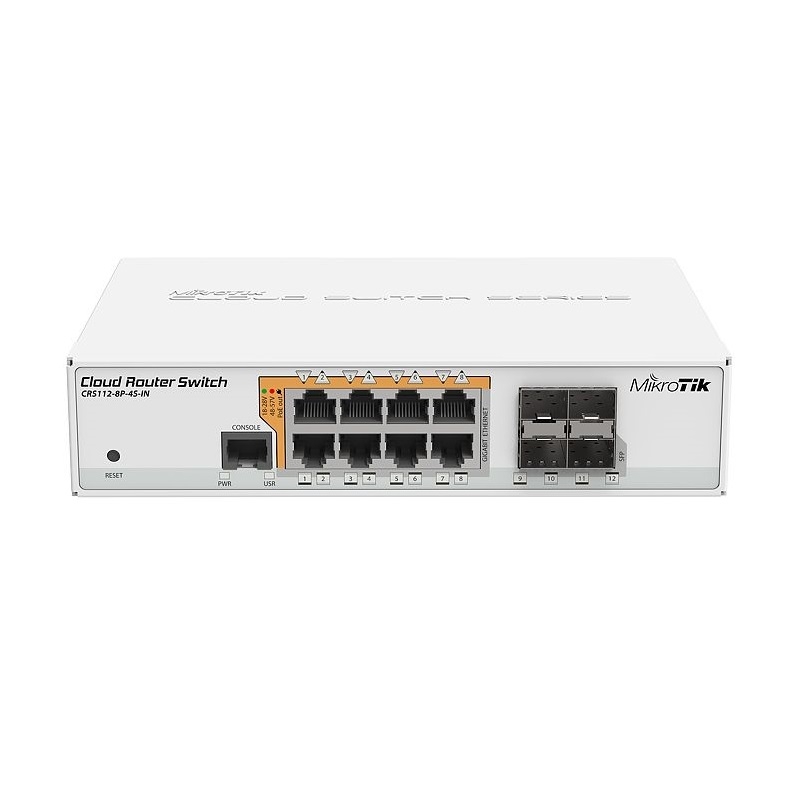

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

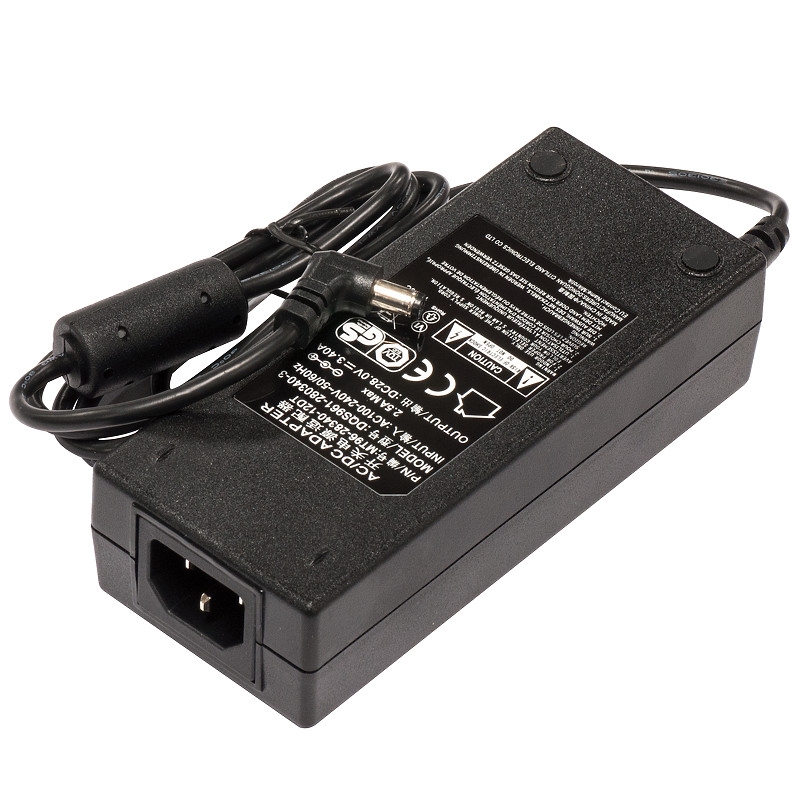

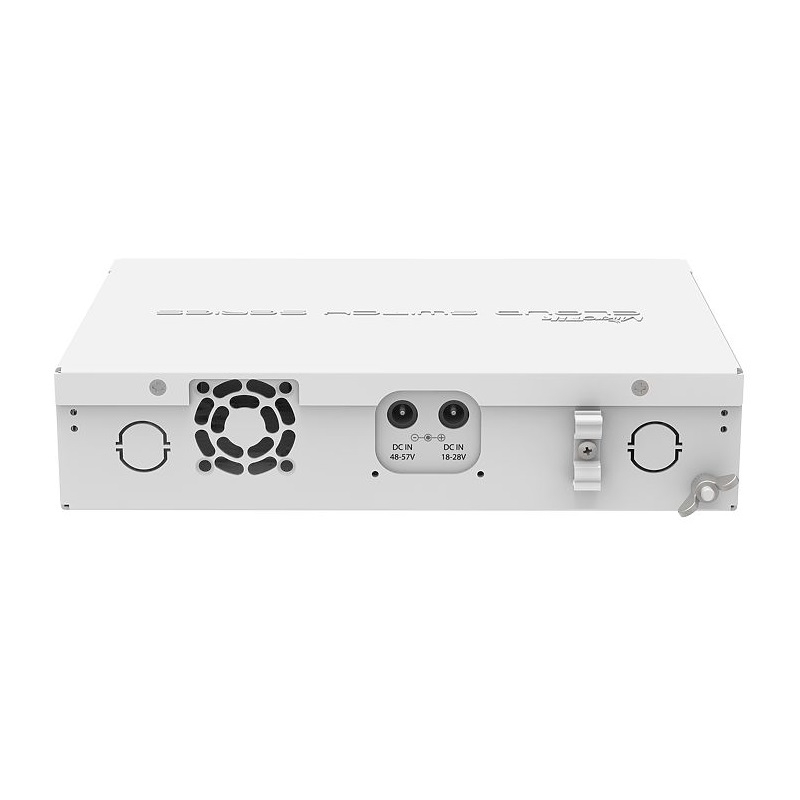

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Specification:

Product code: CRS112-8P-4S-IN
Architecture: MIPSBE
CPU: QCA8511
CPU core count: 1
CPU nominal frequency: 400 MHz
License level: 5
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH

Powering

Max Power consumption: 10W
PoE out: 802.3af/at
Number of DC inputs: 2 (DC jack)
DC jack input Voltage: 18 - 57 V

Ethernet

10/100/1000 Ethernet ports: 8

Fiber

SFP ports: 4

Peripherals

Serial port: RJ45

Other

PCB temperature monitor: Yes

Additional product information:

Brochure
Quick Guide
Declaration of conformity (CE)
Link to manufacturer product page
