MIKROTIK Compact Heavy-duty LTE Access Point LtAP LTE7 kit ( LtAP-2HnD&R11e-LTE7)
1x Gigabit LAN port (passive 12-30V PoE in) | 2.4 GHz 802.11b/g/n dual-chain | Multiple powering options (passive PoE, DC jack or automotive connector 12 - 30 V) | 2x MiniPCI-e slots | 3x Mini SIM slots | 1x USB 2.0 port type A | RS232 port | built in GPS | IP54 | Router OS (Licence level 4)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 108.87£ | 130.64£ | >0£ |
| 107.94£ | 129.53£ | >300£ |
| 106.08£ | 127.30£ | >1000£ |
Features:
The new LtAP LTE7 kit takes everything people loveabout LtAP – the rugged weatherproof case, built-in GPS, extreme power flexibility, and miniPCI-e expansion options… and adds our latest LTE Category 7 modem for ahuge real-world improvement! Higher speed, stability and throughput is not the onlybenefit of the new modem. It comes with expandedfrequency support including Band 32 for betterperformance in congested areas and during roaming.Same trusted LtAP form factor – no changes to installationor configuration. Just faster uploads, stronger ruralperformance, and a noticeably better price.
Perfect for logistics, transport & tracking
Just like in the previous model, you get 3 MiniSIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.
Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attention- grabbing than traditional routers.
The virtue of versatility

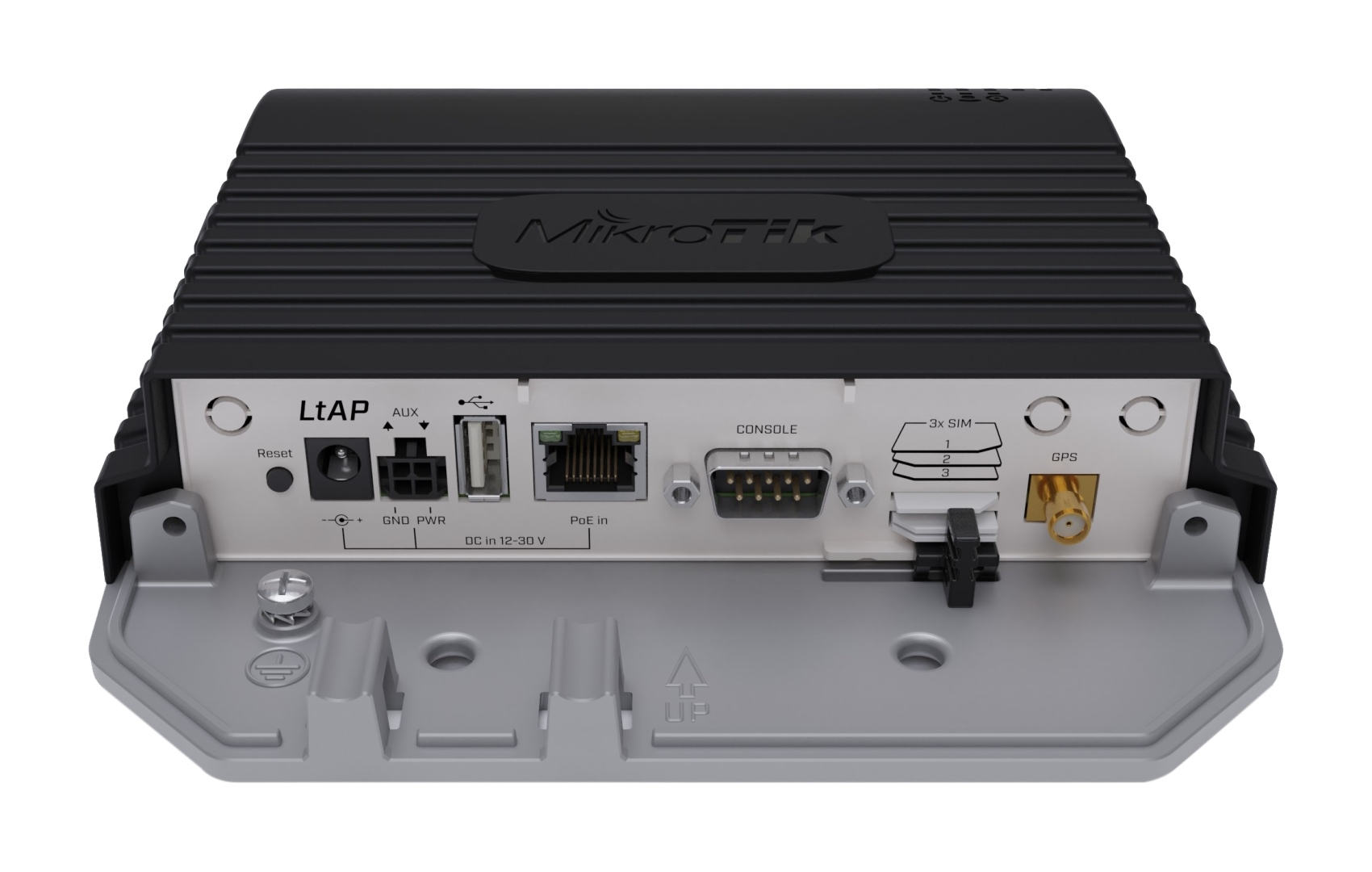

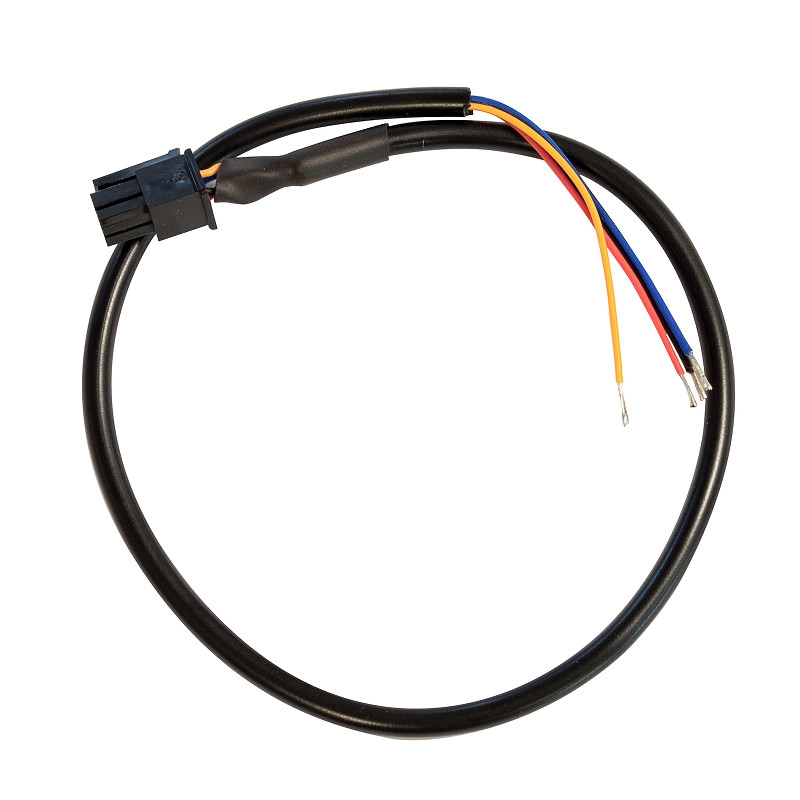

LtAP is designed to run in nearly any environment. It supports: DC jack, Passive PoE-in, and Automotive power connector!
Users have even run the device from power banks in the field. And because LtAP includes two miniPCIe slots, you can expand it with a second LTE modem, a 5 GHz interface, or other add-ons – building exactly the setup you need.
Powered by RouterOS v7 – automate, adapt, and configure anything to your liking!
Firewalling, VPNs, VLANs, DHCP, routing policies, advanced notifications, GPS data processing, custom scripts – RouterOS v7 gives you full control. No paywalls, no subscriptions, only pure functionality… forever! We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job
Specification:
| Product code | LtAP-2HnD&R11e-LTE7 |
| Architecture | MMIPS |
| CPU | MT7621AT |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 12-30 V |
| Automotive input Voltage | 12-27 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-30 V |
Mobile
| Details | |
|---|---|
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 7 (300Mbit/s Downlink, 100Mbit/s Uplink) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC | 35312597 |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 3 Modem (Mini SIM) |
| MiniPCI-e slots | 2 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| GNSS standards | GPS |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, E-MARK, EAC, ROHS |
| IP | 54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
