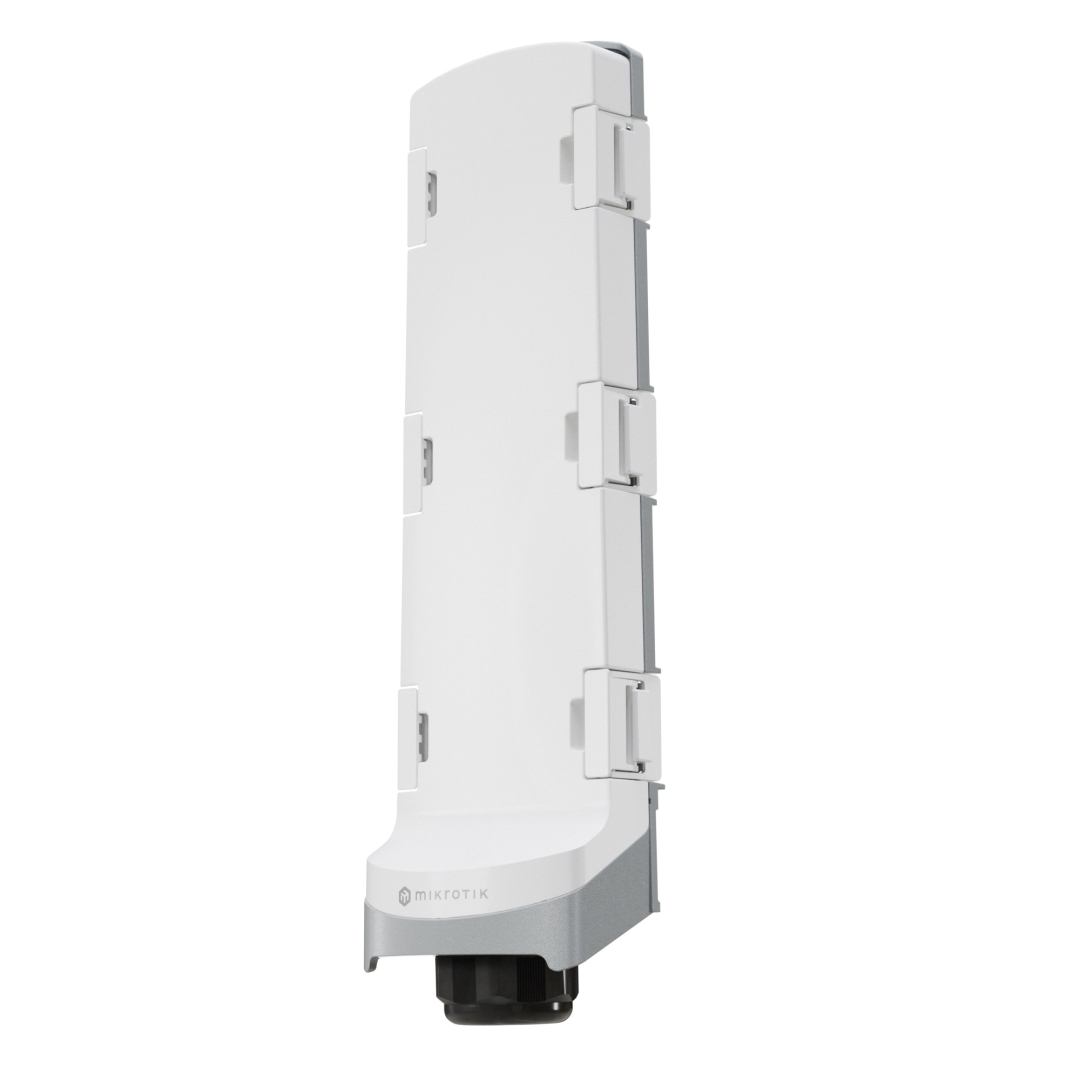

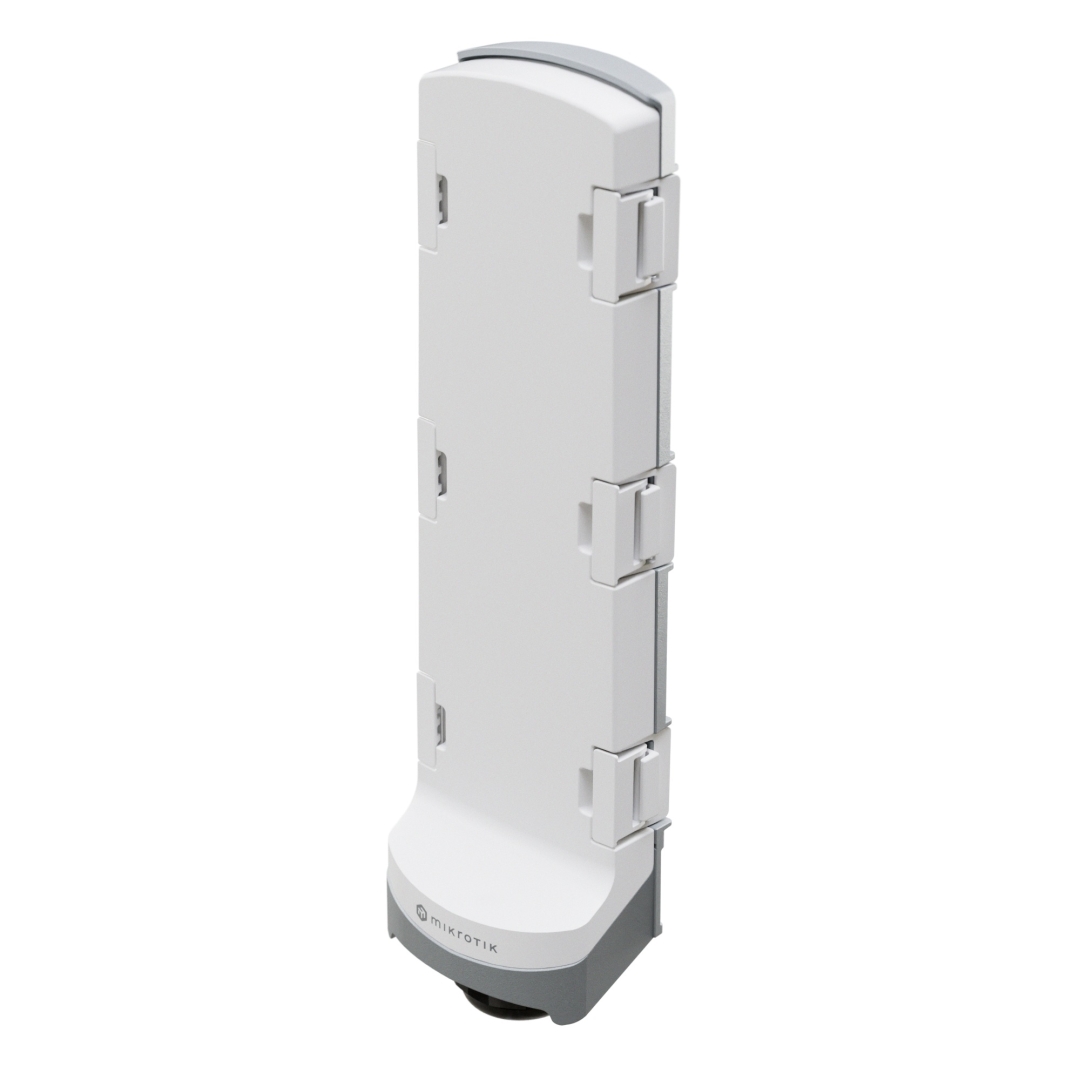

MIKROTIK Cloud Smart Switch GPERx6 (CSS606-1G-2Gi-3S+OUT)
3x Gigabit RJ45 LAN Ports | 2x 10G SFP+ Ports | Flexible powering ()PoE-in, 2x PoE-out, DC jack, 3x DC-out) | Pole-mount | IP66 | SwitchOS
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 91.49£ | 109.79£ | >0£ |
| 90.72£ | 108.86£ | >300£ |
| 89.15£ | 106.98£ | >1000£ |
Features:
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple.
On the surface, it’s straightforward:

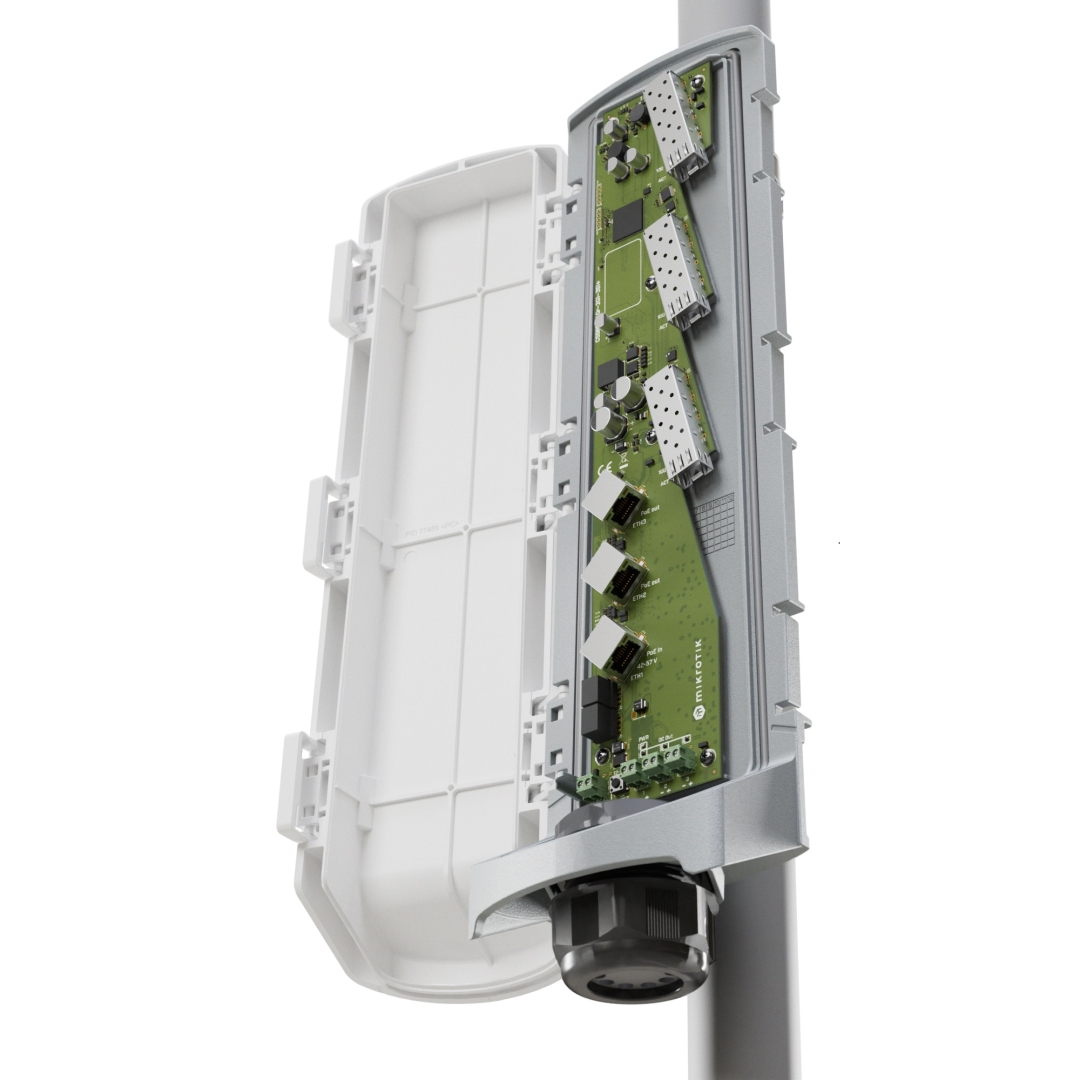

- 3 Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
- 3× 10G SFP+ cages for long-distance fiber
- 3 DC outputs for devices that don’t use PoE, for example, IoT setups

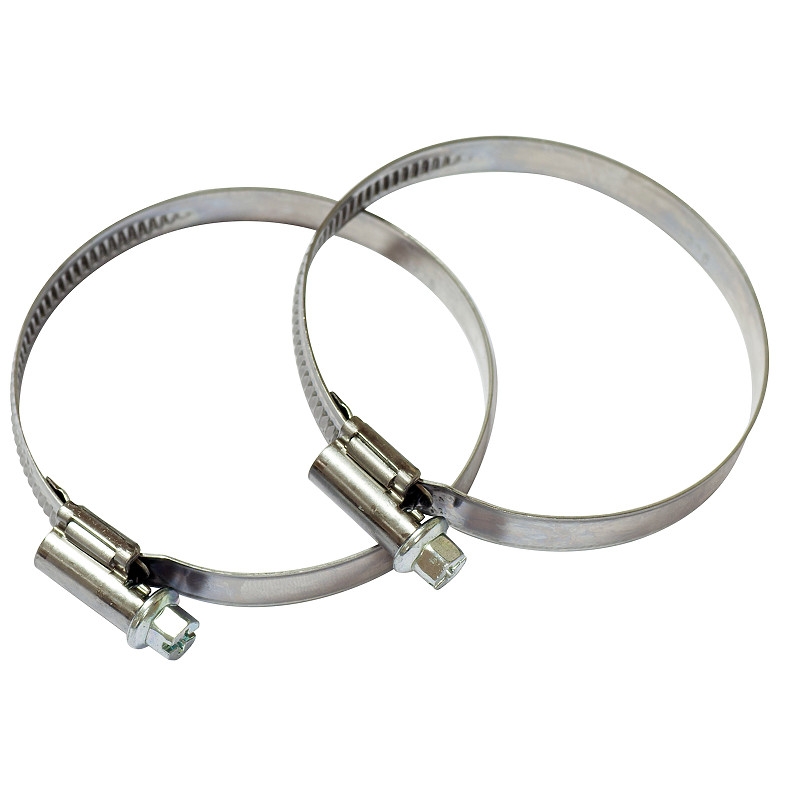

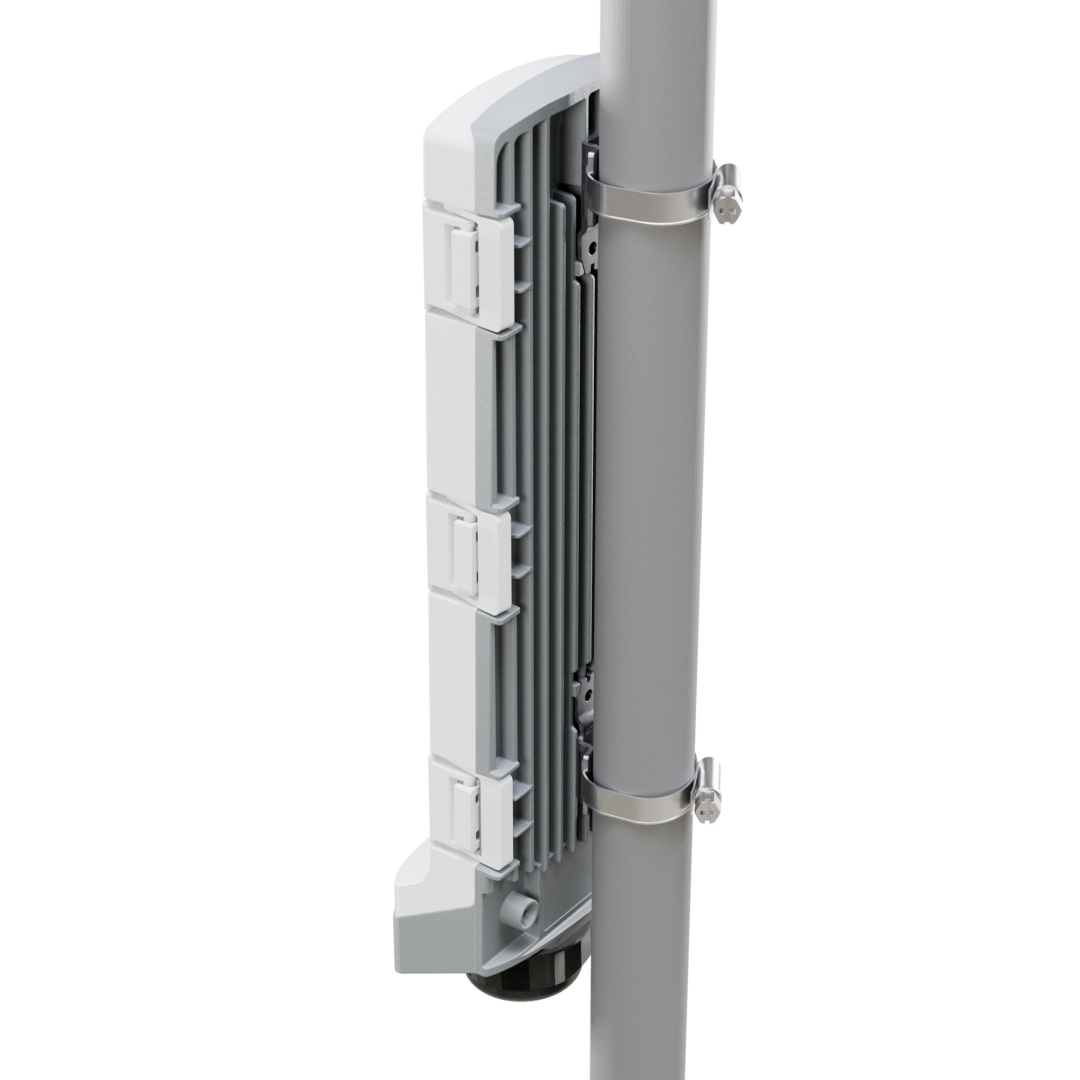

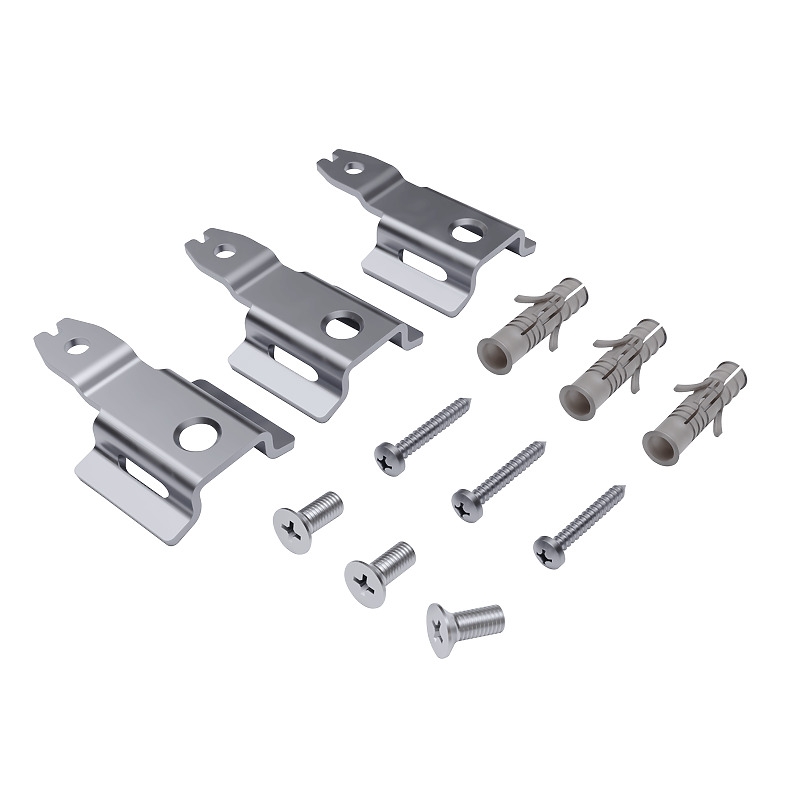

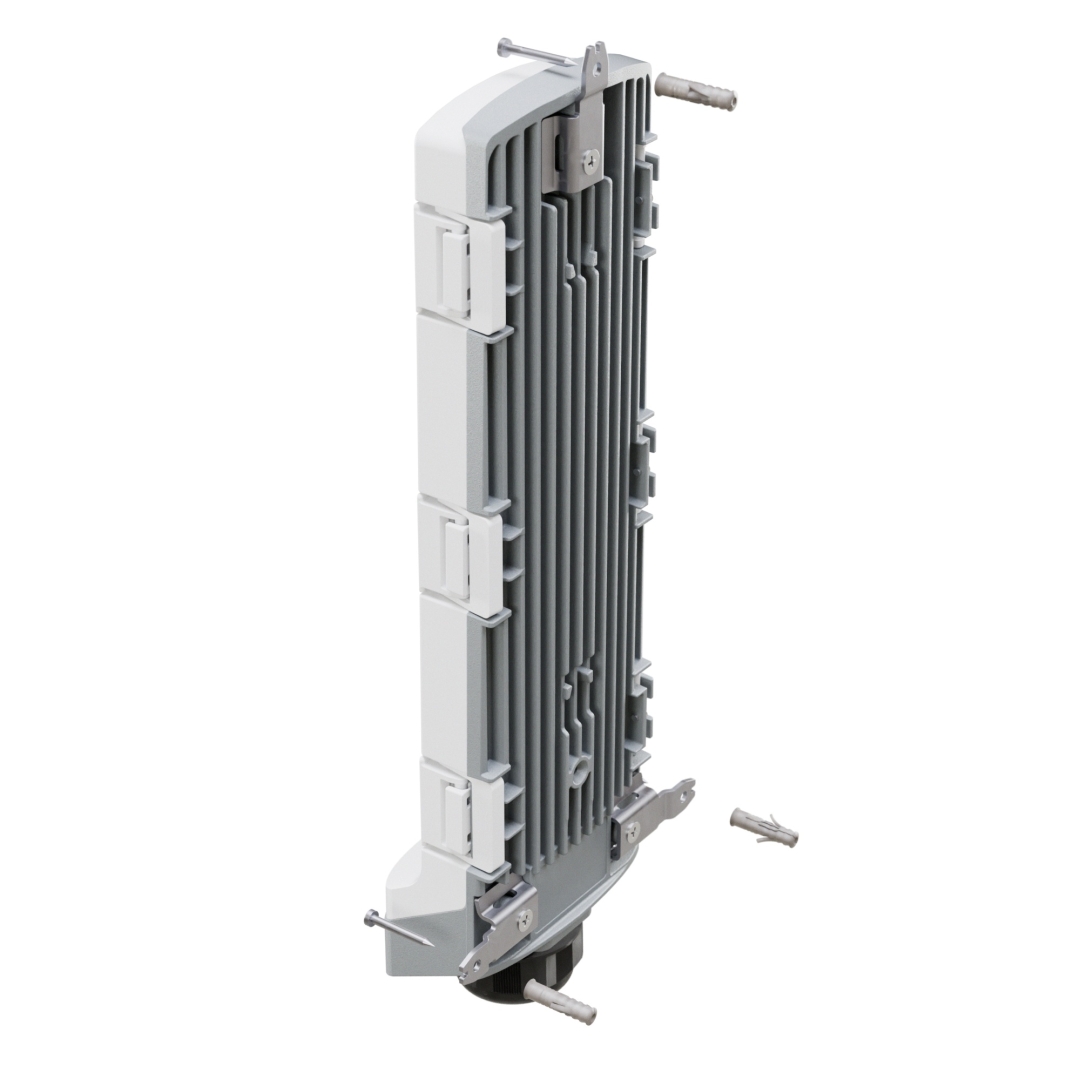

- Heavy-duty IP66 enclosure with handy mounting hardware
- A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)
But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!
Hybrid cable advantage
With hybrid fiber + copper cables, the GPERx6 becomes a
power-and-data lifeline:
• Fiber strands carry your high-speed uplink.
• Copper conductors deliver DC power.
• At the far end, the GPERx6 splits it all:
° SFP+ uplinks for data.
° PoE-out for other switches or access points.
° DC-out for IoT devices or special hardware.
Specification:
| Product code | CSS606-1G-2Gi-3S+OUT |
| Switch chip model | 88E6193X |
| Operating System | SwOS |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 160 W |
| Max power consumption without attachments | 6 W |
| PoE in | 802.3 bt |
| Cooling type | Passive |
| PoE in input Voltage | 42-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether3 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 1.2 A |
| High voltage PoE-Out current limit | 0.625 A |
| Max total out (A) | 2.4 A |
| Total output power | 150 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 3 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
| Number of 1G Ethernet ports with PoE-out | 2 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 3 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 66 |
