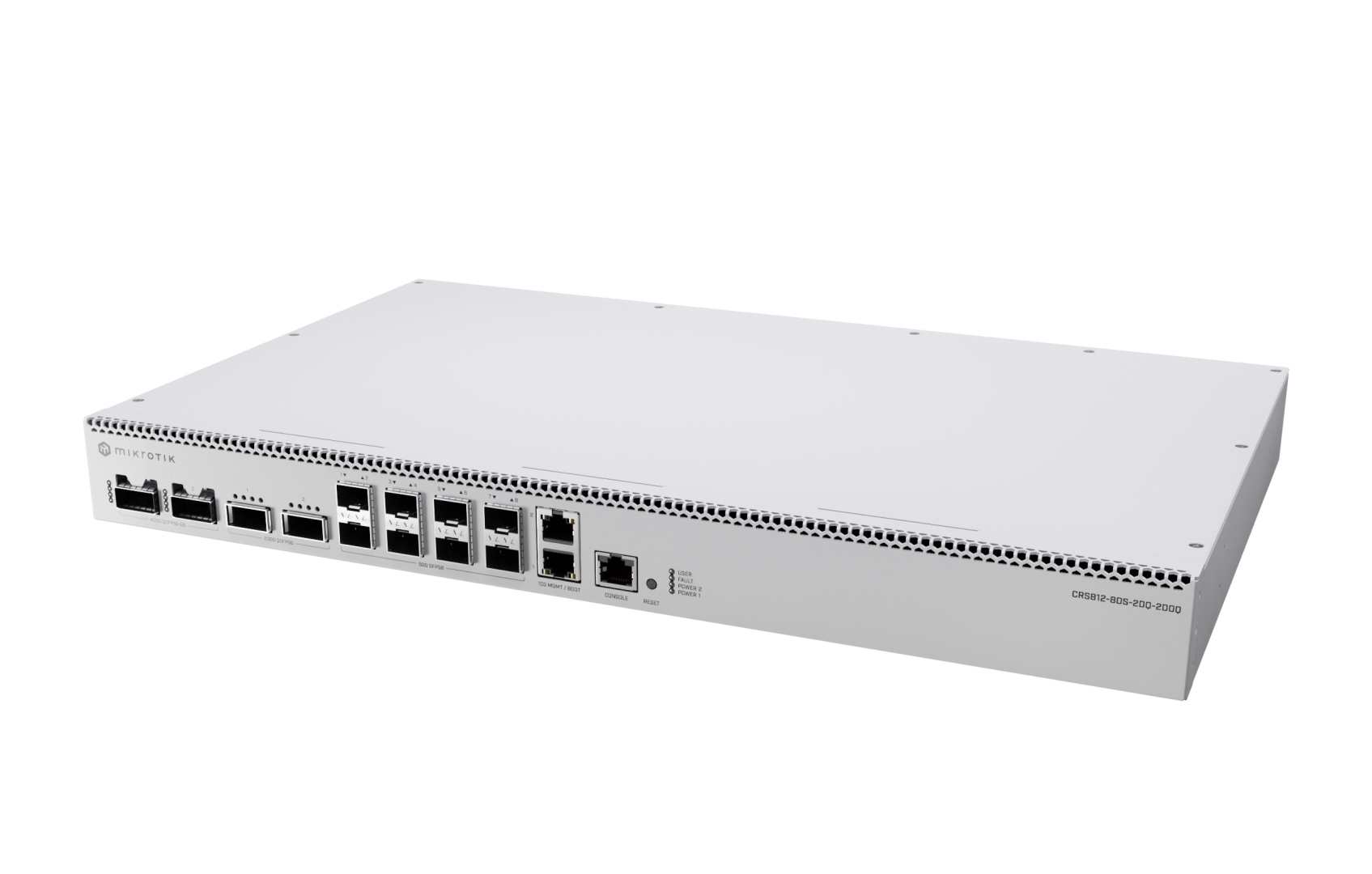

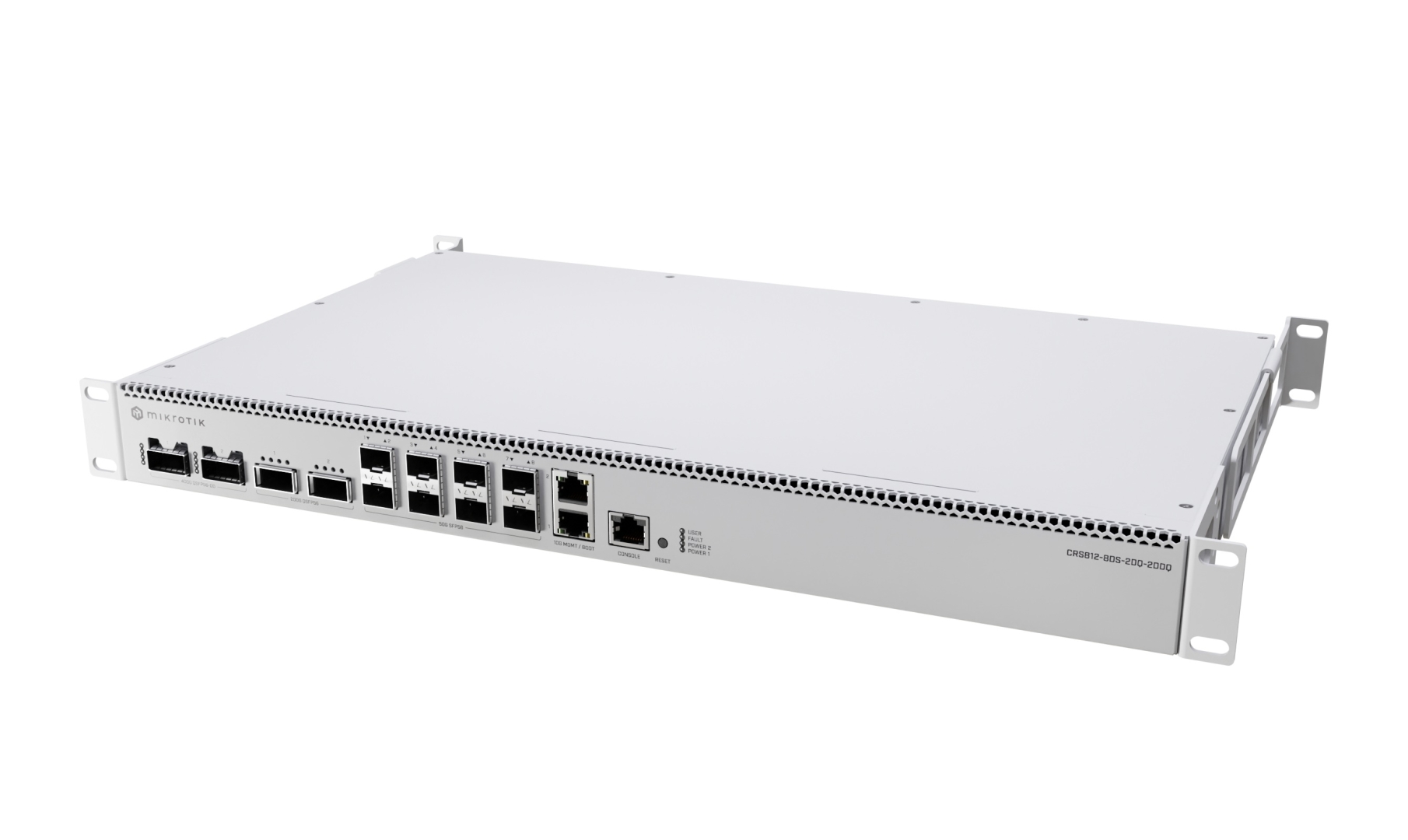

MIKROTIK Cloud Router Switch CRS812 DDQ (CRS812-8DS-2DQ-2DDQ-RM)
MPN:
CRS812-8DS-2DQ-2DDQ-RM
Order code:
CRS812-8DS-2DQ-2DDQ-RM
Quick code:
#4821
EAN:
4752224009715
2x 400G QSFP56-DD ports | 2x 200G QSFP56 ports | 8x 50G SFP56 ports | 2x 1G/10G Ethernet ports | 1x RJ45 Console port | Dual-redundand hot-swap power supplies | 4x Hot-swap cooling fans | RouterOS (License level 6)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 821.94£ | 986.33£ | >0£ |
| >300£ | ||
| 807.77£ | 969.32£ | >1000£ |
Features:
400G used to mean expensive, complex, and out of reach. The CRS812 DDQ changes that! With a modern Marvell switch chip and powerful ARM CPU, it delivers advanced routing, switching, and traffic management features trusted in millions of RouterOS deployments – now with ports up to 400 Gbps!
Where does it fit?
- Top-of-rack / leaf switch with 400G uplinks to the spine
- Campus core bridging 10G legacy with modern 50G interfaces
- Service provider aggregation node
- Labs, AI clusters, media workflows where fast “east–west” traffic is critical
The CRS812 scales your network from 10 to 400G in one simple, affordable, yet managed RouterOS v7 box – no forklift upgrades needed!
With CRS812, 400 Gigabits is no longer out of reach – it’s an affordable way to launch your network into the future, while keeping your existing gear in the loop!
Specification:
| Product code | CRS812-8DS-2DQ-2DDQ-RM |
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU core count | 4 |
| CPU nominal frequency | 2000 MHz |
| Switch chip model | 98DX7335 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 4 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |

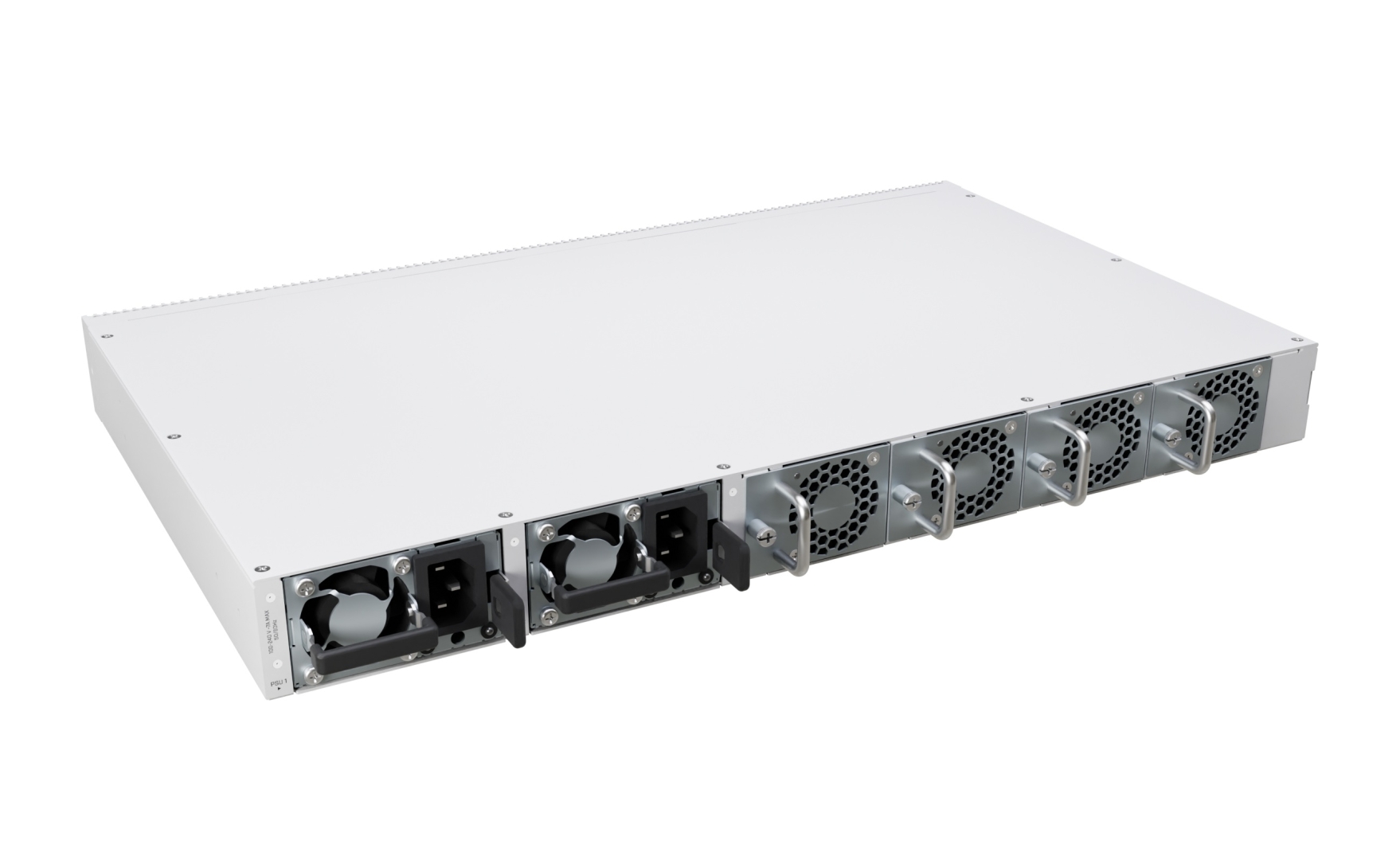

| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 134 W |
| Max power consumption without attachments | 81 W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| Number of 2x 10M/100M/1G/10G Ethernet ports | 2 |
| Number of 50G SFP56 ports | 8 |
| Number of 200G QSFP56 ports | 2 |
| Number of 400G QSFP56-DD ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
