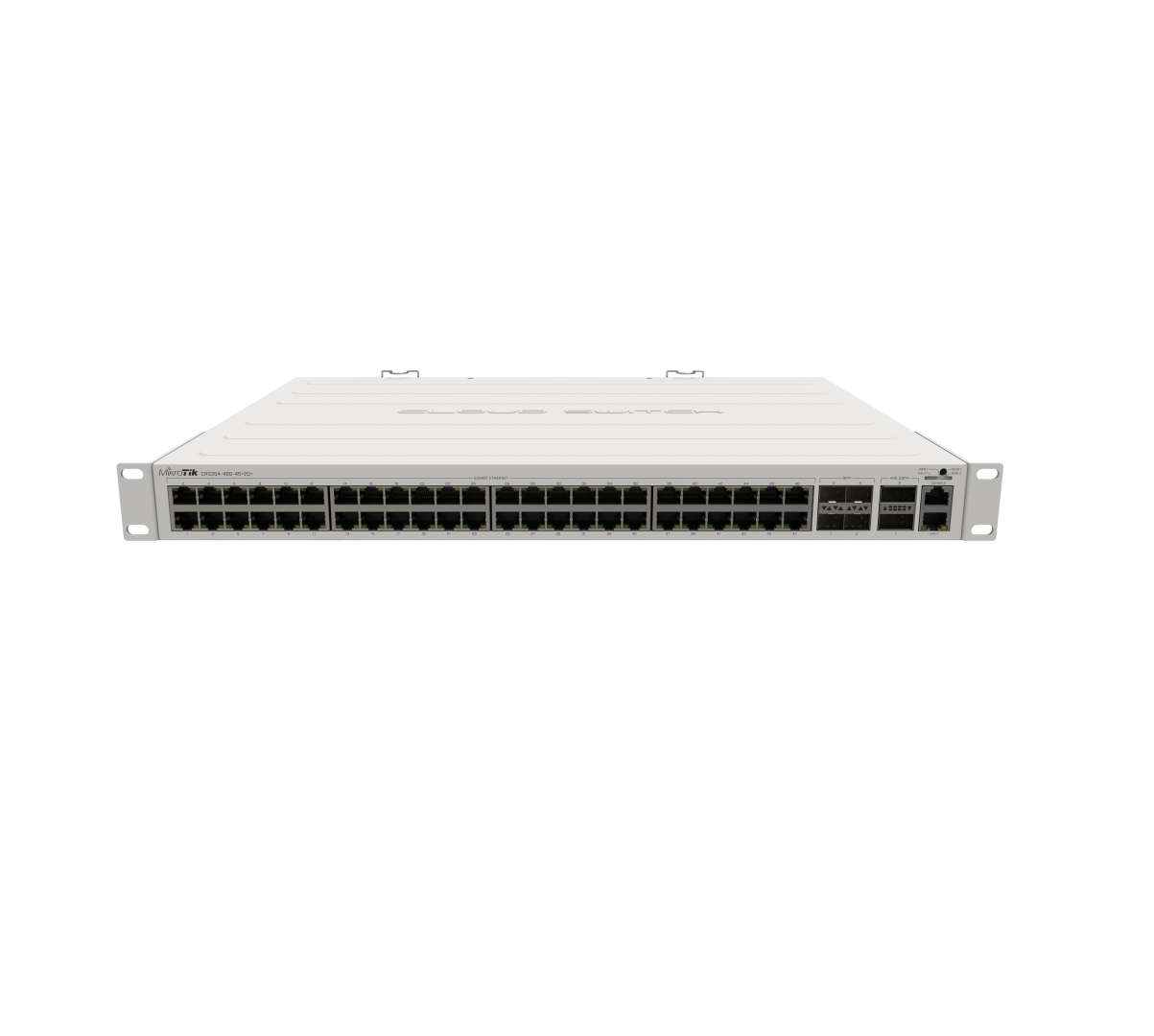

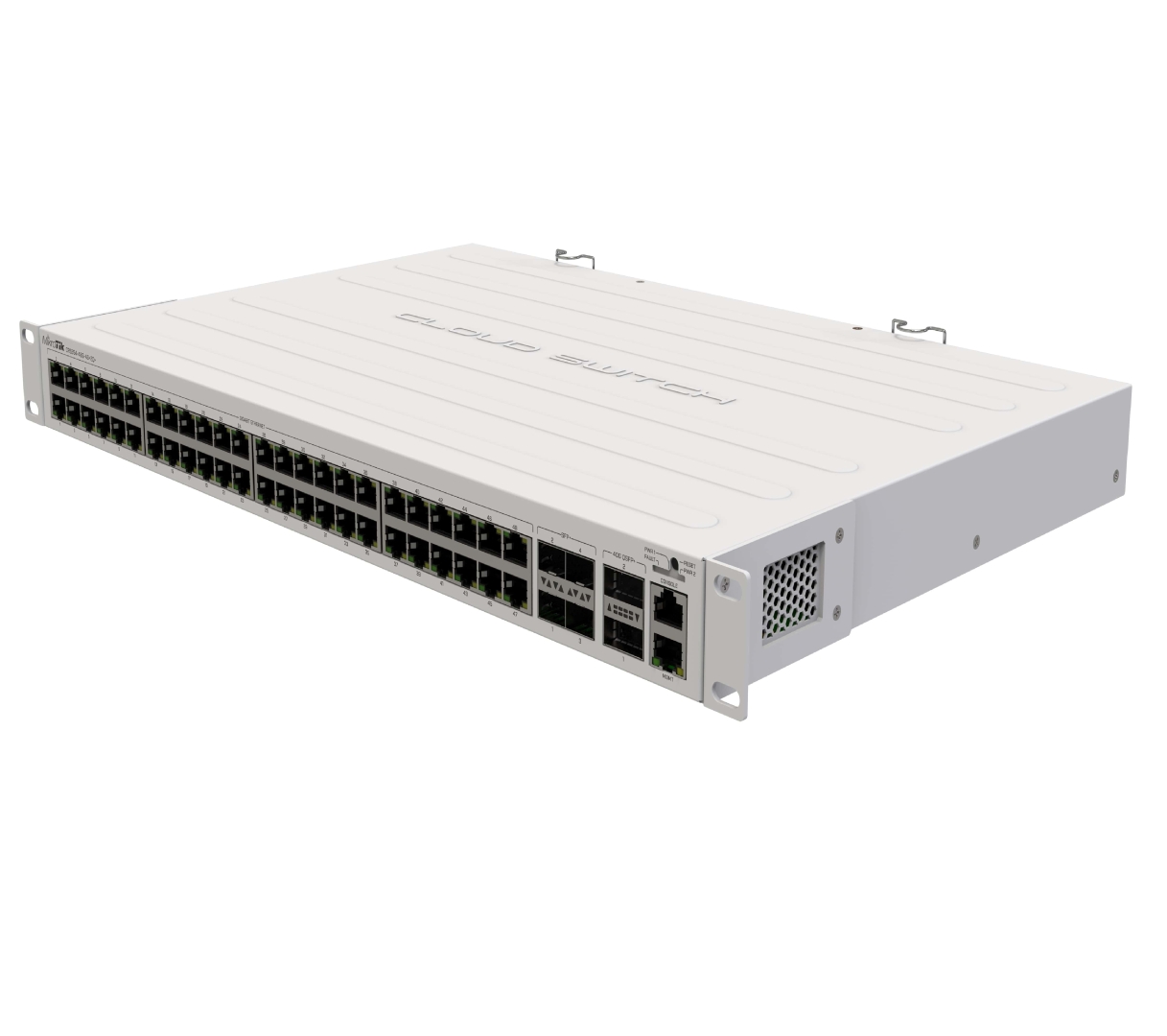

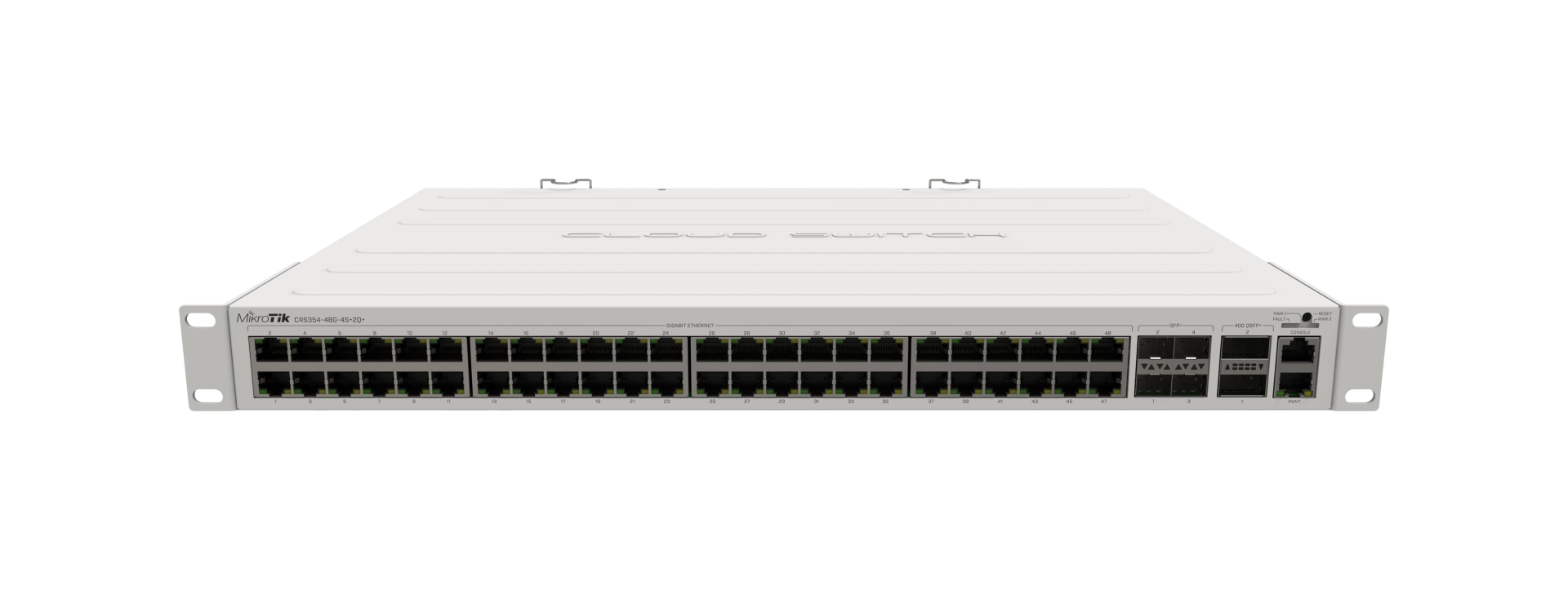

MIKROTIK Cloud Router Switch (CRS354-48G-4S+2Q+RM) (License level 5)

MPN: CRS354-48G-4S+2Q+RM
Order code: CRS354-48G-4S+2Q+RM
Quick code: #2095

Switch | 2x 40G QSFP+ ports, 4x 10G SFP+ ports, 48x Gbit LAN ports, total nonblocking throughput of 168 Gbps, switching capacity of 336 Gbps with forwarding rate of 235 Mpps, dual power supply, RouterOS (License level 5)

Price exc. VAT: Price inc. VAT: For orders (total sum):
325.97£ 391.16£ >0£
323.16£ 387.79£ >300£
317.53£ 381.04£ >1000£
Qty:


Features:

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments.

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Specification:

Product code CRS354-48G-4S+2Q+RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 297 x 443 x 44 mm
License level 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20°C to 60°C

Powering

Number of AC inputs 2
AC input range 100-240
Max power consumption 60 W
Max power consumption without attachments 50 W

Ethernet

10/100 Ethernet ports 1
10/100/1000 Ethernet ports 48

Fiber

SFP+ ports 4
Number of 40G QSFP+ ports 2

Peripherals

Serial port RJ45

Other

PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Certification CE/RED, EAC, ROHS

Included parts

  • 2x IEC cords

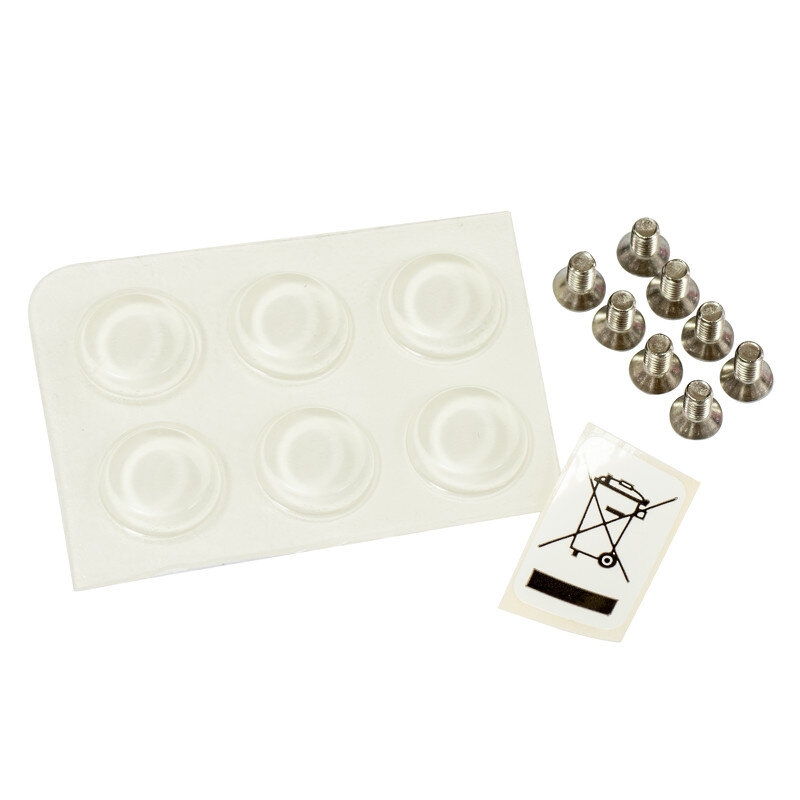

  • Screw and feet kit (K10)

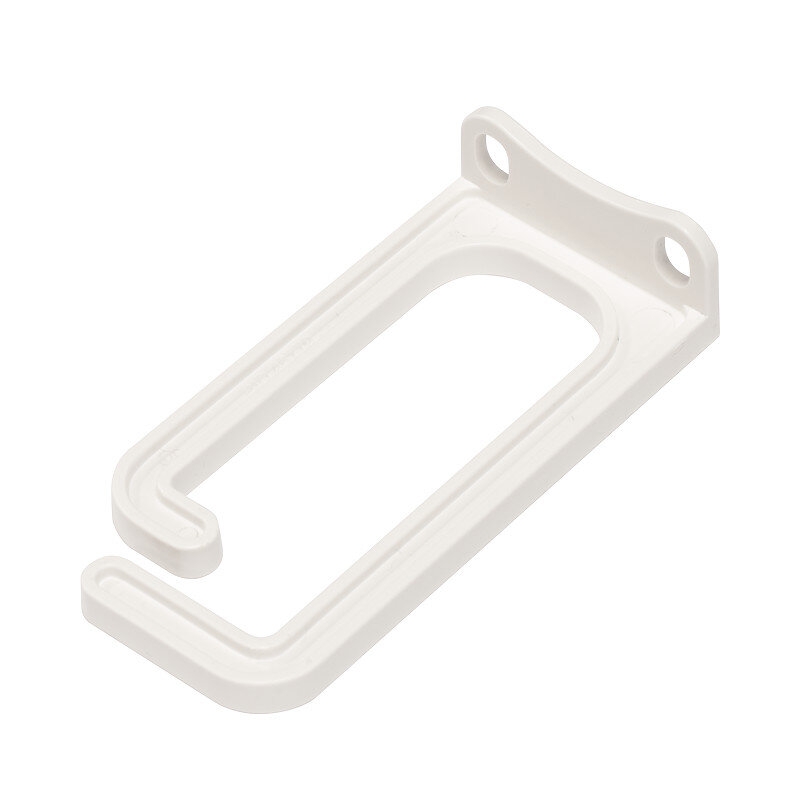

  • Cable managment brackets

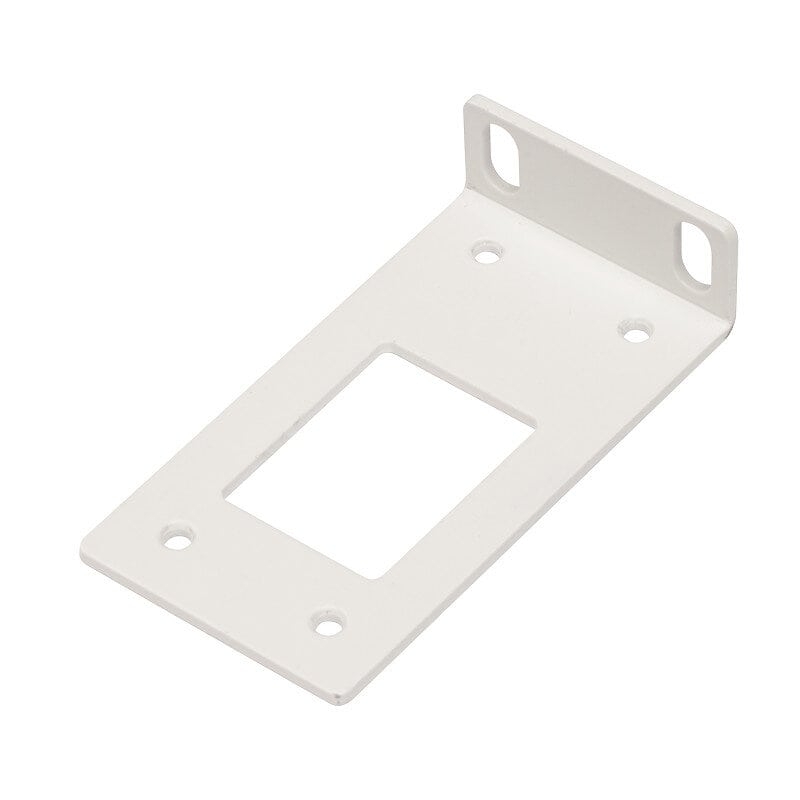

  • Rackmount ears (CRS354)
